Old 05-02-2013, 06:33 PM   #21
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by thenuge26 View Post
I wish.



Looks like they're gonna make me decide between IWG and V-band inlet. Or just run ALLOFIT all the time

Obviously EWG will be more difficult if I end up fabbing my own manifold, but v-bands will be easier to deal with...


Bro think of all the vbands you could have. Vband e'er'thang!


(i'm a massive ricer so this appeals to me.)
concealer404 is offline   Reply With Quote
Old 05-02-2013, 06:36 PM   #22
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

That makes sense, simpler is better. And while v-band inlet is simpler than T25 flange, the IWG is simpler than an EWG (and the Borg ones are as good as an EWG).

I wonder if the v-band EWG housing is the same one Indy uses? Or that housing pictured might be an Indy one and they will also offer a v-band inlet IWG (doubtful but I can dream can't I?).
thenuge26 is offline   Reply With Quote
Old 05-02-2013, 06:39 PM   #23
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by thenuge26 View Post
(and the Borg ones are better than an EWG).
FTFY
Savington is offline   Reply With Quote
Old 05-02-2013, 06:47 PM   #24
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

WANT
viperormiata is offline   Reply With Quote
Old 05-02-2013, 07:48 PM   #25
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by thenuge26 View Post
I wish.



Looks like they're gonna make me decide between IWG and V-band inlet. Or just run ALLOFIT all the time

Obviously EWG will be more difficult if I end up fabbing my own manifold, but v-bands will be easier to deal with...
Yeah I saw the undrilled boss for the wastegate pivot point and figured it was coming without it. But thinking about it more, that boss wouldnt be in that casting if they weren't going to drill a hole there for the IWG.
Leafy is offline   Reply With Quote
Old 05-02-2013, 08:30 PM   #26
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by Leafy View Post
Yeah I saw the undrilled boss for the wastegate pivot point and figured it was coming without it. But thinking about it more, that boss wouldnt be in that casting if they weren't going to drill a hole there for the IWG.
What casting are you talking about? The little bump just after the inlet is likely so you can drill/tap for EGT.
Savington is offline   Reply With Quote
Old 05-03-2013, 10:03 AM   #27
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Savington View Post
What casting are you talking about? The little bump just after the inlet is likely so you can drill/tap for EGT.
The one that was on the other side that we cant see and I had the housing flipped around in my head.
Leafy is offline   Reply With Quote
Old 05-03-2013, 10:47 AM   #28
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I am really hoping that the inlet for the turbine from the manifold is the same size of what Tial uses on their V-Band housing. If I could swap back and forth between the EFR and my GT2871 I would be very happy. I also would like the EFR to have the internal wastegate along with the V-Bands.
shuiend is online now   Reply With Quote
Old 05-03-2013, 10:56 AM   #29
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

The IWG on the EFRs makes the turbine-to-downpipe part of the housing really long, which makes fitment an issue. But from the looks of the v-band housing, you might be able to just swap it straight in where your 2871 was. Except I don't remember if you are EWG or not...
thenuge26 is offline   Reply With Quote
Old 05-03-2013, 11:28 AM   #30
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by thenuge26 View Post
The IWG on the EFRs makes the turbine-to-downpipe part of the housing really long, which makes fitment an issue. But from the looks of the v-band housing, you might be able to just swap it straight in where your 2871 was. Except I don't remember if you are EWG or not...
I am EWG, but that does not mean I can not build a cap for that outlet. I know the stock exhaust housing is rather long on EFR with IWG, I have a lowmount manifold so I really should not have any issues fitting that. I also do not have any problems with making a new downpipe and just switching those. Really I just want to stay away from having to build a new manifold just for the EFR. Back to back testing with just a change of the turbo and downpipe would be very nice.
shuiend is online now   Reply With Quote
Old 05-03-2013, 11:36 AM   #31
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Right but if you don't mind keeping your EWG, I'm thinking that with that EFR v-band housing you could just do a straight swap with your GT2871 from the looks of it. I'm not sure what the coldside looks like compared to the Garrett, you might have to modify the IC piping.

Just swap it out with no mods at all. Back to back testing by removing a couple of v-bands.
thenuge26 is offline   Reply With Quote
Old 05-03-2013, 01:25 PM   #32
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

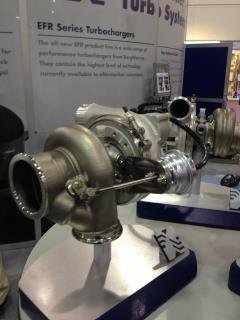

after some more research.




they are doing both. wallop. the housing looks to be in similar proportion to the t25 flange, so wont be interchangable with a tial/garrett unit without the DP going too.
Attached Thumbnails
V-band Housings for EFR Turbos-317189_10151094874946500_2046134439_n.jpg
StarletRick is offline   Reply With Quote
Old 05-03-2013, 01:26 PM   #33
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Lars, that would be awesome, and get us a really good look at how the two stack up


Quote:
Originally Posted by StarletRick View Post
after some more research.



wallop.
WIN!!
18psi is offline   Reply With Quote
Old 05-03-2013, 01:30 PM   #34
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by StarletRick View Post
after some more research.

they are doing both. wallop.
Attached Thumbnails
V-band Housings for EFR Turbos-animation3.gif
thenuge26 is offline   Reply With Quote
Old 05-03-2013, 01:31 PM   #35
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Wonder how much more these suckers will cost
18psi is offline   Reply With Quote
Old 05-03-2013, 01:32 PM   #36
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

yup! I cant tell you how happy this makes me. Lets just hope they are investment cast like the photos. I've heard too many bad stories of EFRs turning up with sand cast housings that look like a piece of ****.
StarletRick is offline   Reply With Quote
Old 05-03-2013, 02:19 PM   #37
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by StarletRick View Post
yup! I cant tell you how happy this makes me. Lets just hope they are investment cast like the photos. I've heard too many bad stories of EFRs turning up with sand cast housings that look like a piece of ****.
The sand cast housings are a temporary solution because the early investment housings were failing QC. The final housings for all of the turbos will be investment cast.
Savington is offline   Reply With Quote
Old 05-03-2013, 03:08 PM   #38
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by thenuge26 View Post
Right but if you don't mind keeping your EWG, I'm thinking that with that EFR v-band housing you could just do a straight swap with your GT2871 from the looks of it. I'm not sure what the coldside looks like compared to the Garrett, you might have to modify the IC piping.

Just swap it out with no mods at all. Back to back testing by removing a couple of v-bands.
My EWG tends to creep a bit on higher RPM's. Also from what I have read the internal gate on the EFR is amazing and better then an ewg. So if I go with an EFR for testing I would like the best of the best.

Also the making of a downpipe that does not need the EWG dump tube would be easier for me.

Quote:
Originally Posted by 18psi View Post
Lars, that would be awesome, and get us a really good look at how the two stack up
I think that my GT2871 will have a slightly better top end the smaller EFR, but I think that the EFR will have a better mid range. Now if I go with the slightly bigger one that Soviet is now rocking I think the top ends would be very similar, with the EFR having a better mid range. If I win the lotto or find me a sugar momma I would love to also throw a GTX of similar size on to test that also.
shuiend is online now   Reply With Quote
Old 05-03-2013, 09:29 PM   #39
Junior Member
iTrader: (7)

Join Date: Feb 2007
Location: Overland Park, KS
Posts: 395
Total Cats: 6
Default

Quote:
Originally Posted by StarletRick View Post
after some more research.



Let the era of low maintenance aftermarket turbocharging begin! Tune and forget.
MazDilla is offline   Reply With Quote
Old 05-03-2013, 09:33 PM   #40
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Yeah cause those FM kits are a royal PITA, definitely not user friendly.
TurboTim is offline   Reply With Quote
