Default V Band Questions

I think I know the Tial V-band housing is so you can use V-band to the exhaust housing/DP, but what do you need to go vband from the manifold to the turbo?


Thanks
jbrown7815 is offline   Reply With Quote
Old 07-12-2010, 05:37 PM   #2
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

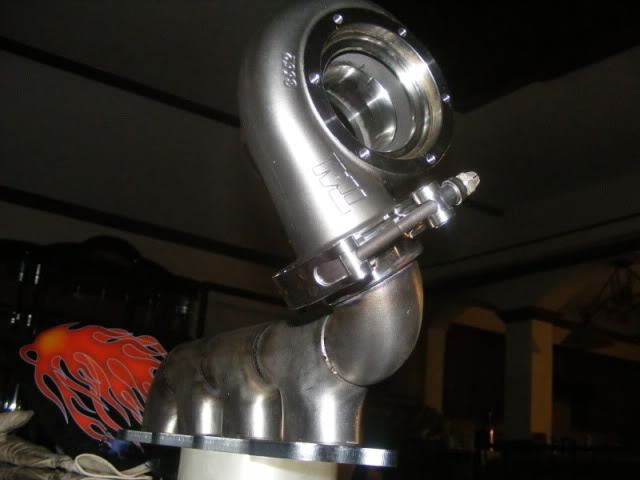

a V-band clamp!

Name:  DSCF5875.jpg
Views: 4
Size:  47.0 KB
WonTon is offline   Reply With Quote
Old 07-12-2010, 05:50 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

You don't need a spcial intake housing?
jbrown7815 is offline   Reply With Quote
Old 07-12-2010, 05:53 PM   #4
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

by intake housing you mean compresor housing? no you dont. however when you buy the Tial exhaust housing (your literally buying only the housing) you need to buy the necessary v-band flanges and clamps as well as new hardware to mount your CHRA to the Tial housing and from what i have been told by the experts here (they need to be safety-wired as well)
WonTon is offline   Reply With Quote
Old 07-12-2010, 05:54 PM   #5
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Its a special tirbine housing that ha vbands on the inlet and outlet, which is unusual. usually when people are talking v-bands its just on the DP
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-12-2010, 06:25 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You should just call Tim and have him explain what you get for the money since he's a tial dealer and you'll give him your money, and like it.
hustler is offline   Reply With Quote
Old 07-12-2010, 07:29 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

What's two clamps (housing and dp) and the housing add up to? And you may lol, but do china chargers bolt up?
curly is online now   Reply With Quote
Old 07-12-2010, 07:40 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Quote:
Originally Posted by curly View Post
What's two clamps (housing and dp) and the housing add up to? And you may lol, but do china chargers bolt up?
eh?
jbrown7815 is offline   Reply With Quote
Old 07-12-2010, 07:46 PM   #9
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

the housing has a vband in and out on it.

you will need a manifold side vband and clamp as well as the downpipe side outlet and clamp. the 3" atp vband i had on my last downpipe was bigger and wouldnt have worked with the tial so you NEED the tial stuff.

the clamps iirc are 49$ each and the manifold and downpipe flanges are 36$ each.

if you upgrade a new turbo from atp turbo the housings are only 100$ additional for a t2 turbo. but to buy them new alone they are mid 300's
shlammed is offline   Reply With Quote
Old 07-12-2010, 07:47 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Quote:
Originally Posted by shlammed View Post
the housing has a vband in and out on it.

you will need a manifold side vband and clamp as well as the downpipe side outlet and clamp. the 3" atp vband i had on my last downpipe was bigger and wouldnt have worked with the tial so you NEED the tial stuff.

the clamps iirc are 49$ each and the manifold and downpipe flanges are 36$ each.

if you upgrade a new turbo from atp turbo the housings are only 100$ additional for a t2 turbo. but to buy them new alone they are mid 300's
That's what I was looking for, thanks.
jbrown7815 is offline   Reply With Quote
Old 07-12-2010, 08:03 PM   #11
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

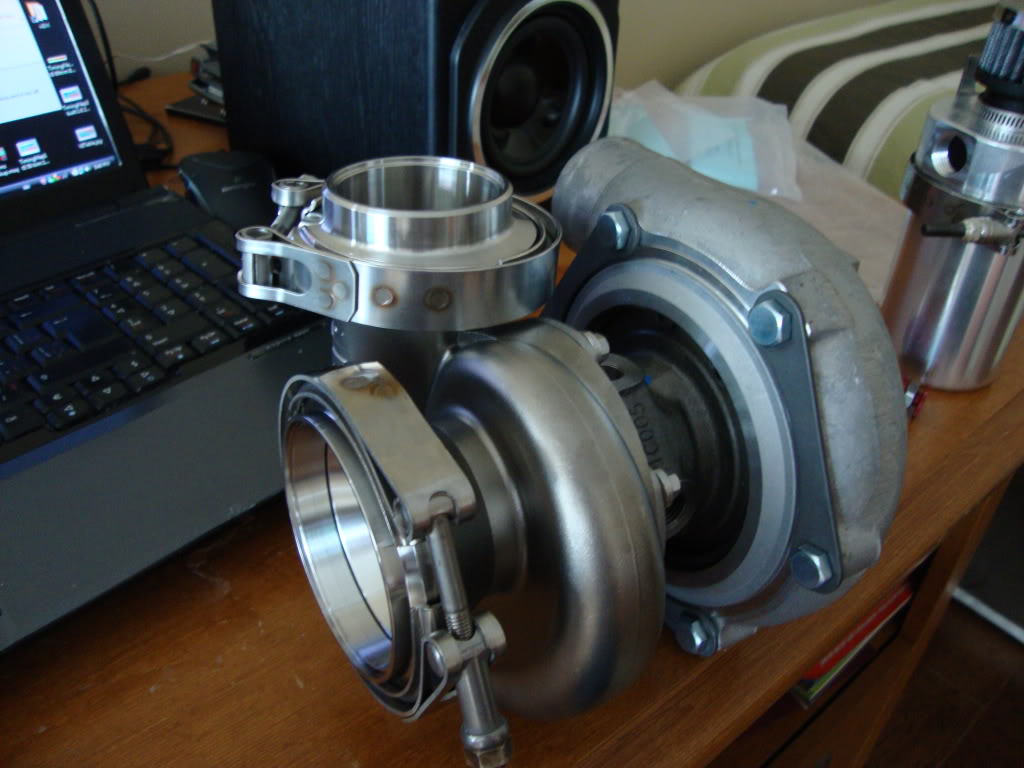

Name:  DSC01676.jpg
Views: 6
Size:  110.2 KB
shlammed is offline   Reply With Quote
Old 07-12-2010, 08:04 PM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Assuming that is yours, was it all worth the money?
jbrown7815 is offline   Reply With Quote
Old 07-12-2010, 08:07 PM   #13
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

yep... 2871R spools the same as a 2860. both turbos are 0.86 on the same manifold downpipe and engine.
shlammed is offline   Reply With Quote
Old 07-12-2010, 08:10 PM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

I've been planning on going with a 2860rs, so you're saying a 2871 spools the same? How?
jbrown7815 is offline   Reply With Quote
Old 07-12-2010, 09:51 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by jbrown7815 View Post
I've been planning on going with a 2860rs, so you're saying a 2871 spools the same? How?
Same hot site, similar performance, but the prime delta or whatever on the compressor map is lower. You get an exponential increase in output as you raise boost until you hit prime...so the sweet spot in the 2860rs is lower, and that works for what I'm doing.
hustler is offline   Reply With Quote
Old 07-12-2010, 10:49 PM   #16
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by WonTon View Post
new hardware to mount your CHRA to the Tial housing /they need to be safety-wired as well
Anyone care to elaborate? Is this a necessity for all, or just for the track *****?

Also interested to know if anyone tried mating a Tial housing to a chinacharger? Or people's thoughts as to why it should/should not work...
TonyV is offline   Reply With Quote
Old 07-12-2010, 10:54 PM   #17
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Quote:
Originally Posted by TonyV View Post
Anyone care to elaborate? Is this a necessity for all, or just for the track *****?

Also interested to know if anyone tried mating a Tial housing to a chinacharger? Or people's thoughts as to why it should/should not work...
Ive never seen the bolts back out of the CHRA, but I suppose it can happen with track cars. So I wouldnt bother unless its a track car, and even then I doubt its a common problem.

as far as the chinacharger deal, I find it unlikely that you could find a chinacharger that even used the same size turbine wheel, and even then it probably wouldnt bolt up to the CHRA
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-12-2010, 11:05 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It's foolish to not use inconel safety wire on a $450 CHRA, and I speak from experience. The wire is $20 and $20 to get a machinist to drill them. I've also run an entire season and never put a wrench on the motor or turbo...do it once, do it right.
hustler is offline   Reply With Quote
Old 07-13-2010, 12:06 AM   #19
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
it's foolish to not use inconel safety wire on a $450 chra, and i speak from experience. The wire is $20 and $20 to get a machinist to drill them. I've also run an entire season and never put a wrench on the motor or turbo...do it once, do it right.

QFT!

cause if im spending this much on one part for my turbo that cost half of what my turbo is worth and or as much as i paid for it, i will definitely be adding safety wire for the added protection.
WonTon is offline   Reply With Quote
Old 07-13-2010, 08:03 PM   #20
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

I guess what I'm getting at has more to do with trying to fit a chinacharger with a tial vband housing...

I have a china on the way, and was really planing to measure the turbo, order the appropriate sized housing and try and mate together...

If/when I find myself on the track, I'd likely be upgrading quite a few things as this is not a track built vehicle..

Haven't seen much on here about why it would or would not work...
