Where is your AIT sensor? I'm curious as to why you'd think flow back through the IC at idle would be a bad thing, if anything it's going to help lower the AITs.
Braineack is offline   Reply With Quote
Old 08-13-2009, 01:14 PM   #42
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
I'm curious: what are your average coolant temps when the car is warmed up?
About 185F

Quote:
Originally Posted by Braineack View Post
Where is your AIT sensor? I'm curious as to why you'd think flow back through the IC at idle would be a bad thing, if anything it's going to help lower the AITs.
What is going on is the low pressure zone in front of the radiator (when the fans are on) is drawing air backwards through the IC (flow comes from above the IC and moves downwards). Thus warm air is drawn through the IC from INSIDE the hood area. It also makes the radiator cooling a little less efficient since cool air coming in through the nose is being mixed with a bit of the warm air flowing backwards through the IC. With the hood open, if I put my hand on top of the IC with the fans running, I can feel the air being drawn through the top of the IC.

This is only a problem though when stopped at idle, or I suppose at VERY slow speeds, like stop-and-go traffic. As soon as the car is moving steadily, the air in front of the radiator (and below the IC) is pressurized, the upward flow through the IC resumes, and the AITs drop fast.

Make sense?
ZX-Tex is offline   Reply With Quote
Old 08-13-2009, 01:32 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

Wouldn't that just be ambient air flowing through?
Braineack is offline   Reply With Quote
Old 08-13-2009, 02:07 PM   #44
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Nice work. Love the ABS Shroud! Very Quality Build!

Michael
TheBandit is offline   Reply With Quote
Old 08-13-2009, 02:08 PM   #45
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I think I need to make a sketch, picture being worth a thousand words and all.
ZX-Tex is offline   Reply With Quote
Old 08-13-2009, 02:15 PM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

yeah maybe you do homey!
Braineack is offline   Reply With Quote
Old 08-13-2009, 03:24 PM   #47
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Homey don't play dat

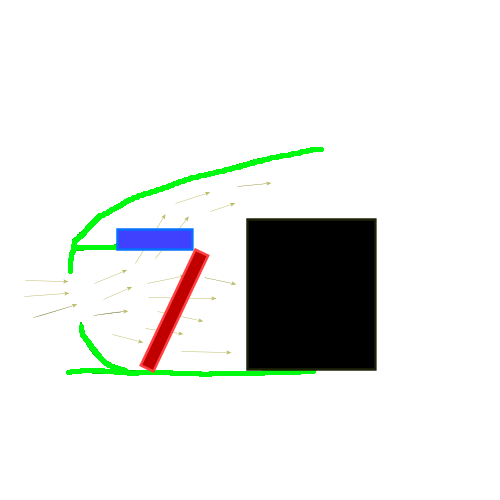

OK here is the most awesome sketch I could muster in 10 minutes. Here is a side look at front of nose/engine area, car traveling right to left. The outline of car/hood/splitter is in green and forms the boxed-in area in front of the radiator/IC. IC is blue. Radiator is red. Engine is black. Airflow is dark arrows.

First image is what the flow looks like when the car is moving at speed and the area in front of the radiator is pressurized.

Second image is what the flow looks like when the car is sitting still and the fans are running.
Attached Thumbnails
V-mount intercooler installed-rad-1.png   V-mount intercooler installed-rad-2.png
ZX-Tex is offline   Reply With Quote
Old 08-13-2009, 03:26 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

i gotcha, i assumed a hole had been cut in the hood.
Braineack is offline   Reply With Quote
Old 08-13-2009, 03:34 PM   #49
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Not yet. Funny, I wondered if that is what you might have been thinking. I am still waiting for that GB extractor hood deal at CR. If it does not happen soon, I'll DIY a hood vent.
ZX-Tex is offline   Reply With Quote
Old 08-13-2009, 04:54 PM   #50
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

ZX, what happens at that magical point half way between your pictures where your flow across the IC is stagnated?
y8s is offline   Reply With Quote
Old 08-13-2009, 05:50 PM   #51
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Good question. If I put fans on the IC, and wire them in parallel with the rad fans, then the second scenario never happens; if the rad fans come on, then the IC fans will be on too, and not backflow.

Plus, if I want to get really crazy, I could have the Adaptronic monitor the IAT, and if it gets above a certain temperature threshold, have it turn the fans on (Rad and IC). That way if the IC heats up from boost, or I am sitting at a light, either way it gets cooled off. It would just be another OR function. Just a matter of changing some settings in the Adaptronic. No need to add another sensor even. Easy.

Last edited by ZX-Tex; 08-13-2009 at 08:45 PM.
ZX-Tex is offline   Reply With Quote
Old 08-14-2009, 11:36 PM   #52
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

your setup make me totaly appriciate my space....

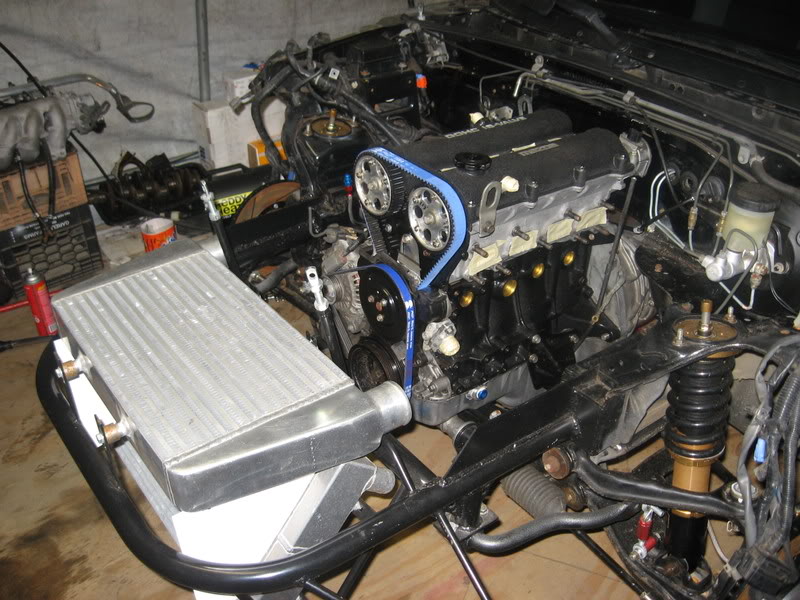

Name:  miata123.jpg
