Default Valve cover project - PICS

So continuing to want the cleanest look for my engine bay I went and started on a new project earlier tonight involving the valve cover. Its just a new cleaner way to securely hold your COP's with out using the ugly metal sheet everyone else uses to hold there COP's down.

Pics go by steps taken.

I'll let the pictures explain now:

you will first have to remove the middle plate underneath the valve cover to remove the metal shavings.


Here I set the cop how I wanted it to be held down. used a screw driver as a punch to mark where to drill the hole.




shown is the tap (thread size 1/4) but you can use any and some long screws that will be later cut to size.


holes are now drilled and tapped. Test fitted everthing and it looks good!




The plan is to cut and remove the head of the screw and have it at the perfect length, Use red loctite on the new threads made on the valve cover, The loctite should create a good seal so no oil leaks out of the new threaded holes. Reinstall the plate that was removed and ad some wrinkle paint for a clean fresh looking valve cover. For the nuts being used for the screws i,ll be using the nylon locking type.

So obviously i'm not done yet. It was getting a little late so I called it a night. Once I finish working on it tmrw i,ll post pics of the finished product
railz is offline   Reply With Quote
Old 03-15-2010, 04:54 AM   #2
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Nice idea! Maybe a good idea would be to turn the bolts upside down, feed them up through to the top of the valve cover then two nuts with Loctite to hold it in place? This is assuming the bolt heads aren't going to foul on anything in the head...
timk is offline   Reply With Quote
Old 03-15-2010, 04:57 AM   #3
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

Quote:
Originally Posted by saboteur View Post
Maybe a good idea would be to turn the bolts upside down, feed them up through to the top of the valve cover

I was originally going to do this but if you look closely at the last picture you'll see that the screw holes are right up against the wall of the sparkplug hole so no way the head of the screw would fit =(

Last edited by railz; 03-15-2010 at 05:15 AM.
railz is offline   Reply With Quote
Old 03-15-2010, 08:05 AM   #4
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Ah, I see. Bummer!
timk is offline   Reply With Quote
Old 03-15-2010, 08:59 AM   #5
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by railz View Post
Its just a new cleaner way to securely hold your COP's with out using the ugly metal sheet everyone else uses to hold there COP's down.



What ugly metal sheet? lol

Piece of aluminum between the cops and the valve cover. You screw the cops into that instead of drilling into the valve cover. You just use the valve cover bolts to hold the aluminum piece in place.
ArtieParty is offline   Reply With Quote
Old 03-15-2010, 01:48 PM   #6
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Nice work. I was thinking about doing the same thing
johnmatt is offline   Reply With Quote
Old 03-15-2010, 02:21 PM   #7
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

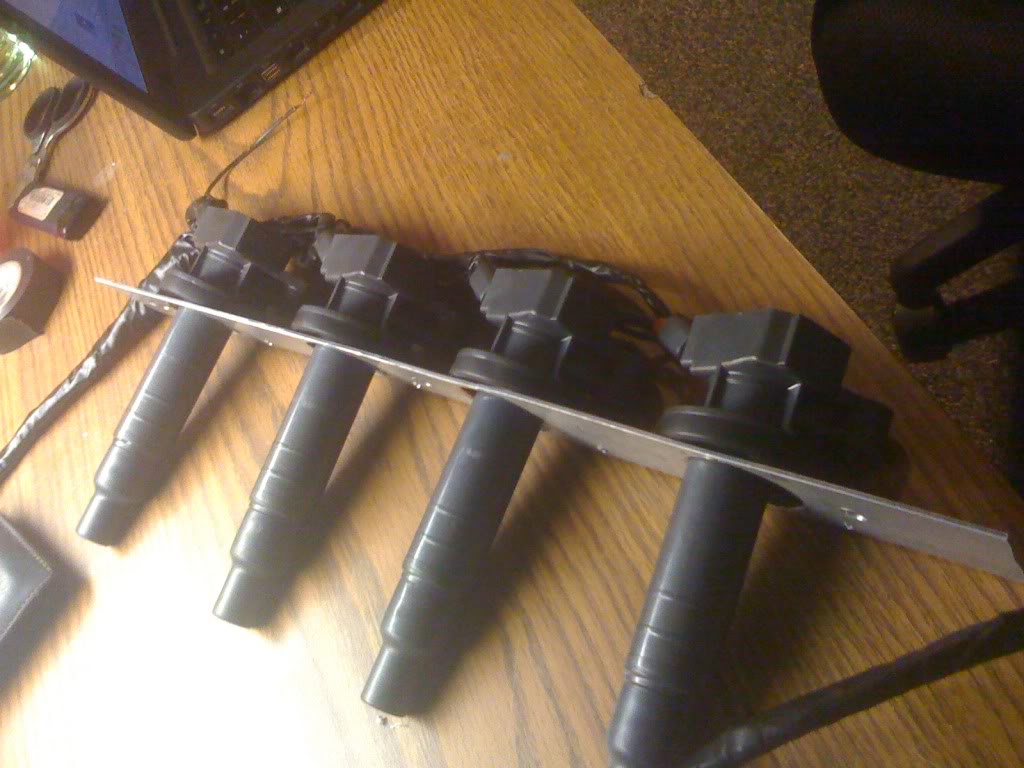

yea I agree with artie have you looked at the write up on the cops??? Brain shows you how to make a nice plate that goes under the cops..


Name:  IMG_0575.jpg
Views: 4
Size:  96.6 KB
p51hellfire is offline   Reply With Quote
Old 03-15-2010, 02:34 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Very, very cool.

I'd been wanting to do this exact thing when I built mine, but couldn't bring myself to drill the VC for some reason. Wound up with something similar to Artie and P51, using a piece of 1/4" thick bar:



On the backside, I countersunk it to drop down over the raised edges around the bolt holes in the VC. I also countersunk the backside to accommodate four upwards-facing flat head machine screws, such that they sit flush with the underside of the bar. On top of the bar, I put two nuts down over each screw, to hold it in place and set the height of the COP, and then one acorn nut over each COP holds it in place and provides a stock-like appearance.
Joe Perez is offline   Reply With Quote
Old 03-15-2010, 03:19 PM   #9
I'm Miserable!
Thread Starter
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

Quote:
Originally Posted by railz View Post
with out using the ugly metal sheet everyone else uses to hold there COP's down.
I know about the plate...This is the whole reason why i drilled holes and used screws

it looks cleaner then the ugly metal sheet you all use
railz is offline   Reply With Quote
Old 03-15-2010, 03:58 PM   #10
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I'm contemplating my future setup. Might use the jbweld method to fasten the COPs.

Looking forward to your results.
turotufas is offline   Reply With Quote
Old 03-16-2010, 12:55 AM   #11
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

looks good.


it also has the benefit of the COP boot actually covering the spark plug hole, which it does not when you use an aluminum plate like a lot of us do.
