Default Wastegate solution for sr20 turbo

So for a couple years i've been using a sr20 turbo. When I first turboed my car I couldn't find an effective way to mount the wastegate. I ended up being very ghetto and used JBweld. Surprisingly it has worked almost flawlessly for 2 years (it cracked once). Fast forward to present day, I've built my motor and wanted to mount my wastegate properly.

Here are the parts i used.
Rod extension kit for Internal wastegates : atpturbo.com
Wastegate Actuator with ROD END, 28RS style, 14 PSI : atpturbo.com
Garrett Adjustable Wastegate Bracket : atpturbo.com

I had to cut the bracket to make space for the oil feed and drill at tap the compressor housing. Now I have it mounted and it almost looks like it was always supposed to be there.

Just thought I'd post my solution, just in case others were having issues.


Attached Thumbnails

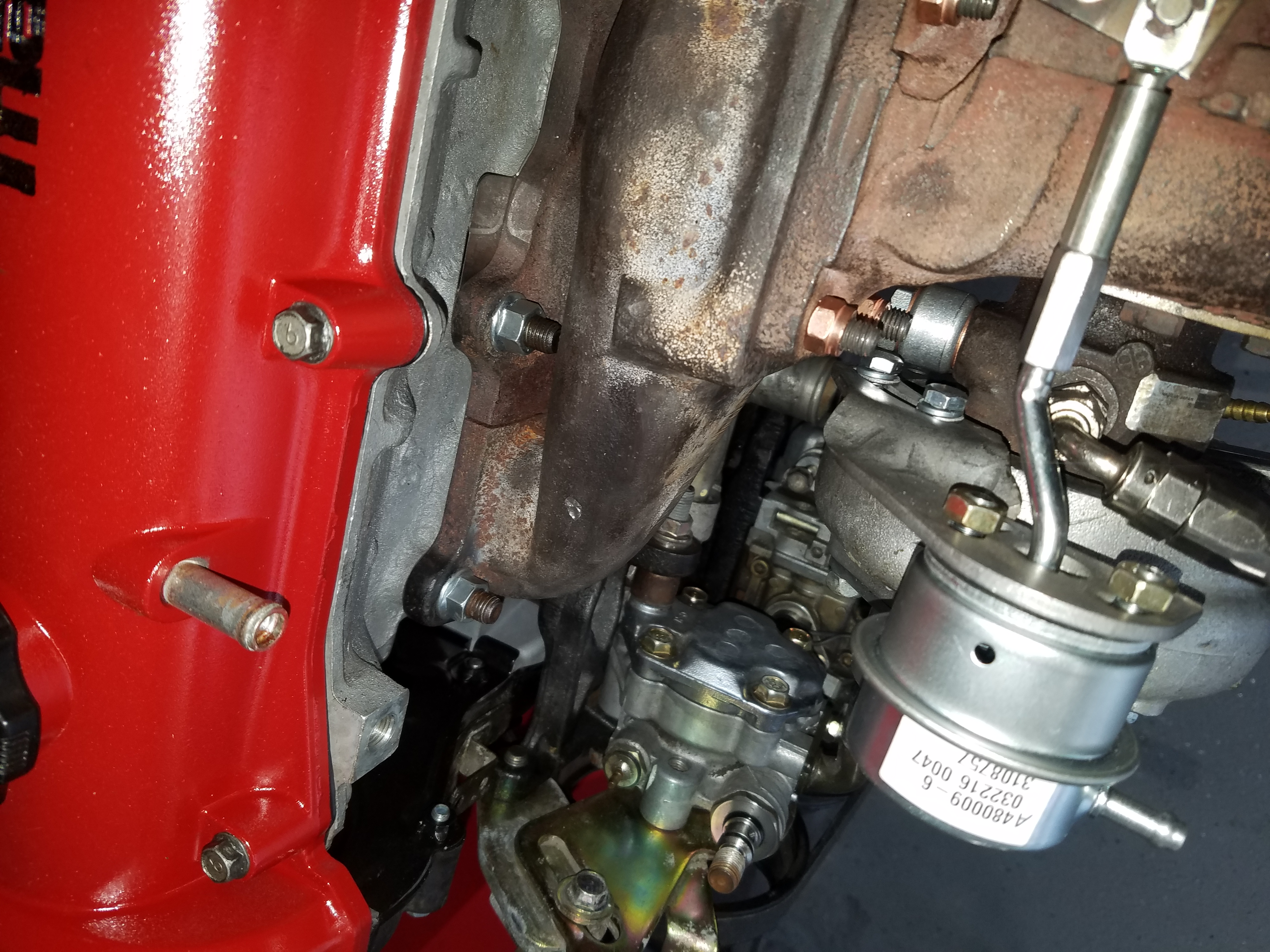

Wastegate solution for sr20 turbo-20160709_164319.jpg   Wastegate solution for sr20 turbo-20160709_164342.jpg
ericsbestshot is offline   Reply With Quote
Old 07-10-2016, 02:26 AM   #2
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Quote:
Originally Posted by ericsbestshot View Post
So for a couple years i've been using a sr20 turbo. When I first turboed my car I couldn't find an effective way to mount the wastegate. I ended up being very ghetto and used JBweld. Surprisingly it has worked almost flawlessly for 2 years (it cracked once). Fast forward to present day, I've built my motor and wanted to mount my wastegate properly.

Here are the parts i used.
Rod extension kit for Internal wastegates : atpturbo.com
Wastegate Actuator with ROD END, 28RS style, 14 PSI : atpturbo.com
Garrett Adjustable Wastegate Bracket : atpturbo.com

I had to cut the bracket to make space for the oil feed and drill at tap the compressor housing. Now I have it mounted and it almost looks like it was always supposed to be there.

Just thought I'd post my solution, just in case others were having issues.
I think this post deserves your first cat.
cordycord is offline   Reply With Quote
Old 02-11-2017, 10:33 AM   #3
Junior Member

Join Date: Dec 2015
Location: Fairfax, VA
Posts: 96
Total Cats: 16
Default

Saw this post and picked up the same bracket to redo my SR20 wastegate setup as well. Thanks for the heads up.

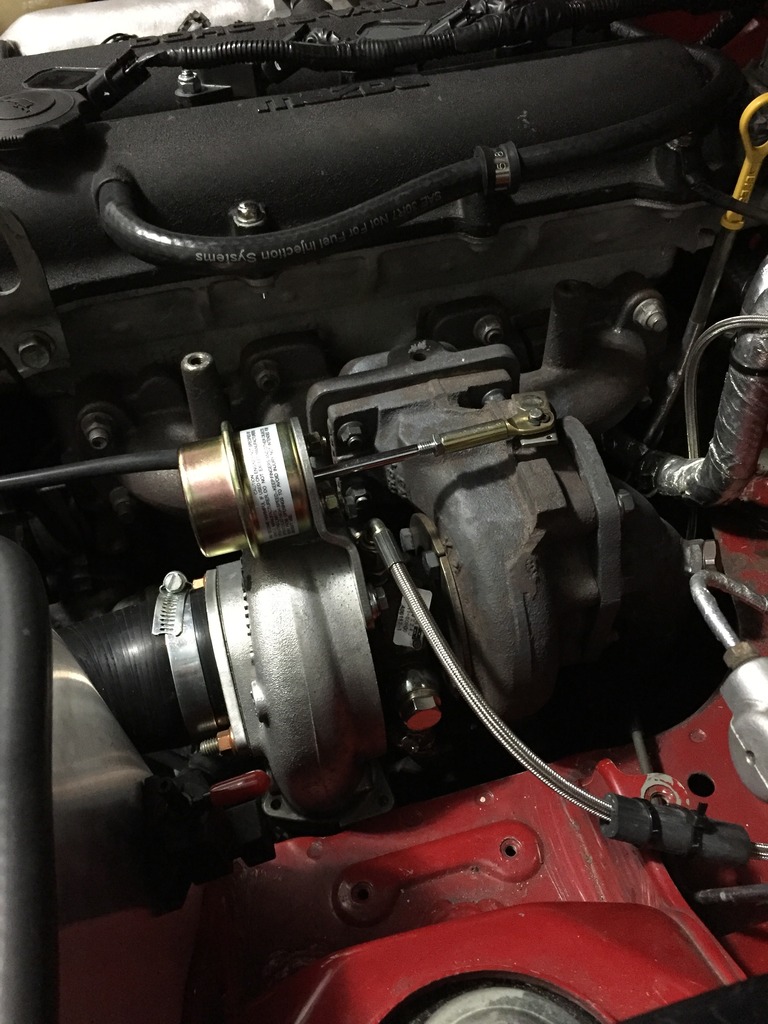

Name:  A30CA787-031E-405E-A248-9B37D3BCCF9C.jpg
