Default Water pump inlet tube options/help need.

Might be a noob question but I have searched and come up with nothing other than the stock msm piece.

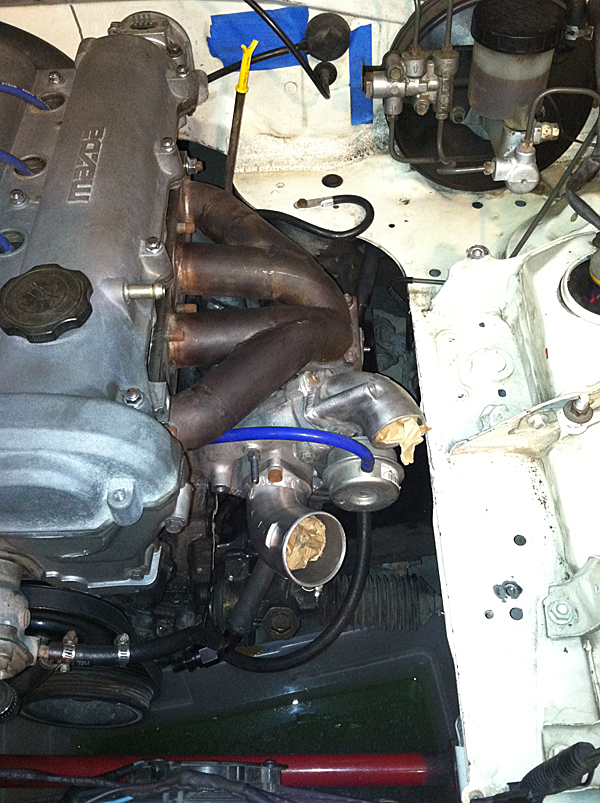

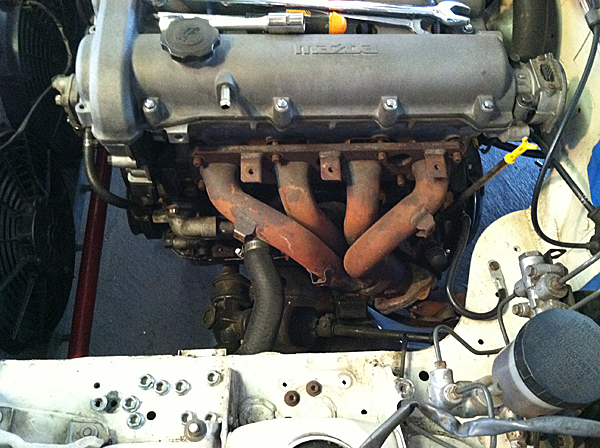

What options are out there for the water pump inlet tube The motor is a 94 with no ps, ac or heater. Turbo is a 2560R, not sure about the manifold.



Attached Thumbnails
Water pump inlet tube options/help need.-photo-9.jpg   Water pump inlet tube options/help need.-photo-11.jpg
WildCJ5 is offline   Reply With Quote
Old 04-28-2013, 11:54 PM   #2
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Check my build thread I run the stock one flipped around, so does soviet. It requires the use of slim fans though. You can also use any of the water neck options depending on how you are going to run your cooling setup.
Leafy is offline   Reply With Quote
Old 04-29-2013, 11:40 AM   #3
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

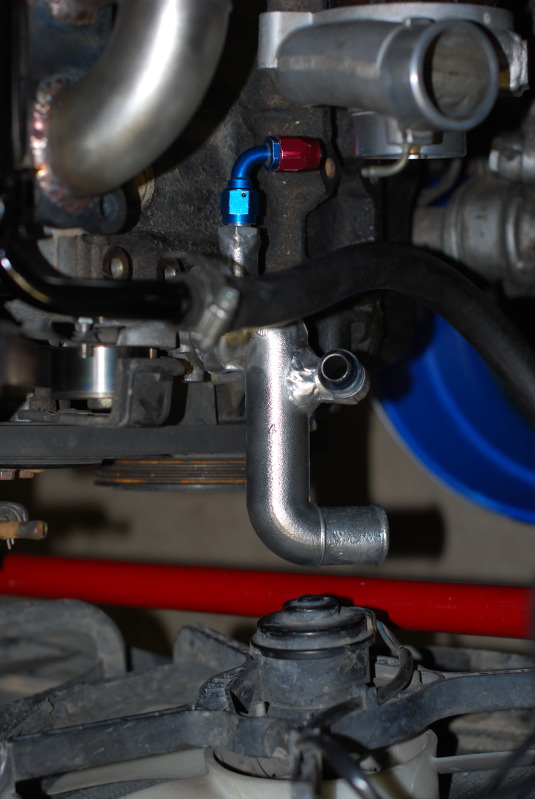

I'm using the stock one flipped around too. I'm just running a stock automatic radiator and fans and it fits fine. That black hose now connects to a -10 push lock thats threaded on that fitting pointing up. The heater core line is a custom hard line that runs above the turbo manifold to another push lock on the other side near the firewall.

Attached Thumbnails
Water pump inlet tube options/help need.-dsc_0704.jpg
baron340 is offline   Reply With Quote
Old 04-29-2013, 11:44 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

Basically what these guys said: you either flip the stocker and modify it to work, or you buy the begi kit that does the same thing, just a little neater/cleaner
18psi is offline   Reply With Quote
Old 05-04-2013, 11:40 PM   #5
Newb
Thread Starter

Join Date: May 2012
Posts: 5
Total Cats: 0
Default

Thanks guys that is what I was looking for. Doing my best at reading everything I can, ears open and mouth shut.
WildCJ5 is offline   Reply With Quote
Old 10-10-2013, 01:42 PM   #6
Junior Member

Join Date: Apr 2012
Posts: 65
Total Cats: -2
Default

Does flipped water inlet clear ps pump and belt?
Hungry-R is offline   Reply With Quote
Old 10-10-2013, 01:43 PM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Hungry-R View Post
Does flipped water inlet clear ps pump and belt?
Shouldnt matter, any turbo setup that requires the inlet to be flipped wont fit with PS or AC anyways.
Leafy is offline   Reply With Quote
Old 10-10-2013, 01:45 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

/\ Not true at all.

Begi s4 requires it flipped and clears both ps and ac

But to answer the question: yes, if done right (or begi piece used) it should clear.
18psi is offline   Reply With Quote
Old 10-10-2013, 01:48 PM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by 18psi View Post
/\ Not true at all.

Begi s4 requires it flipped and clears both ps and ac

But to answer the question: yes, if done right (or begi piece used) it should clear.
How? If the turbo is interfering with the water pump inlet you wont be able to get a hose on the inlet of the turbo if there is a PS pump or A/C comp in the way. Unless the inlet is only blocking the oil line or something.
Leafy is offline   Reply With Quote
Old 10-10-2013, 01:54 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

Not the actual inlet, but the hose going from it is directly under the turbo on the s4. But I see what you were referring to now
18psi is offline   Reply With Quote
Old 10-11-2013, 04:07 AM   #11
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

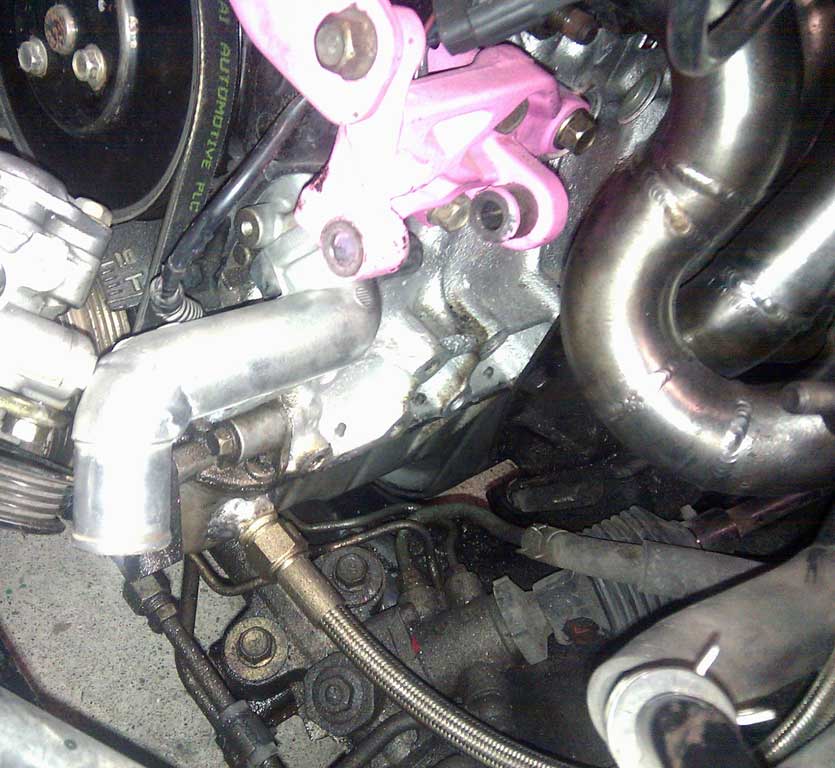

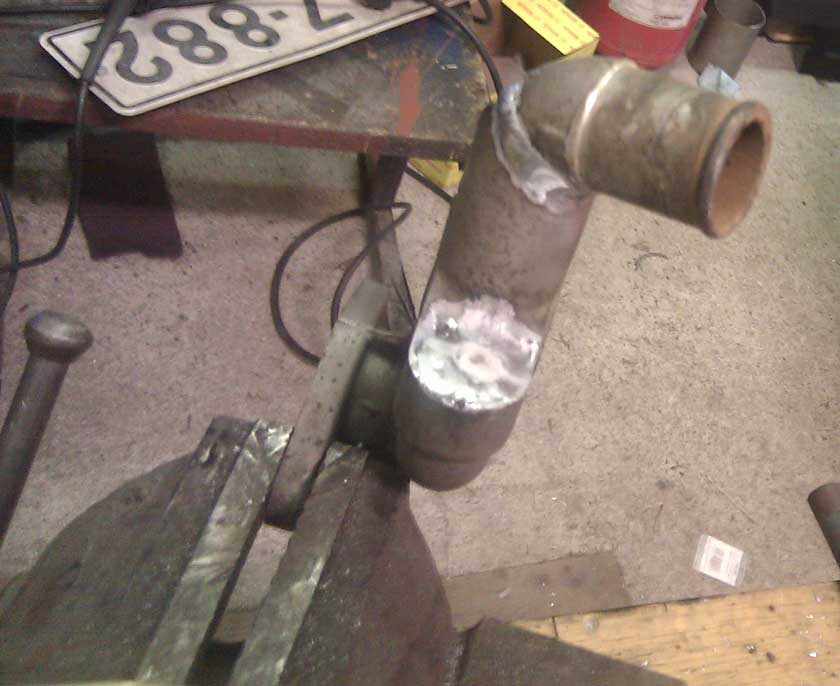

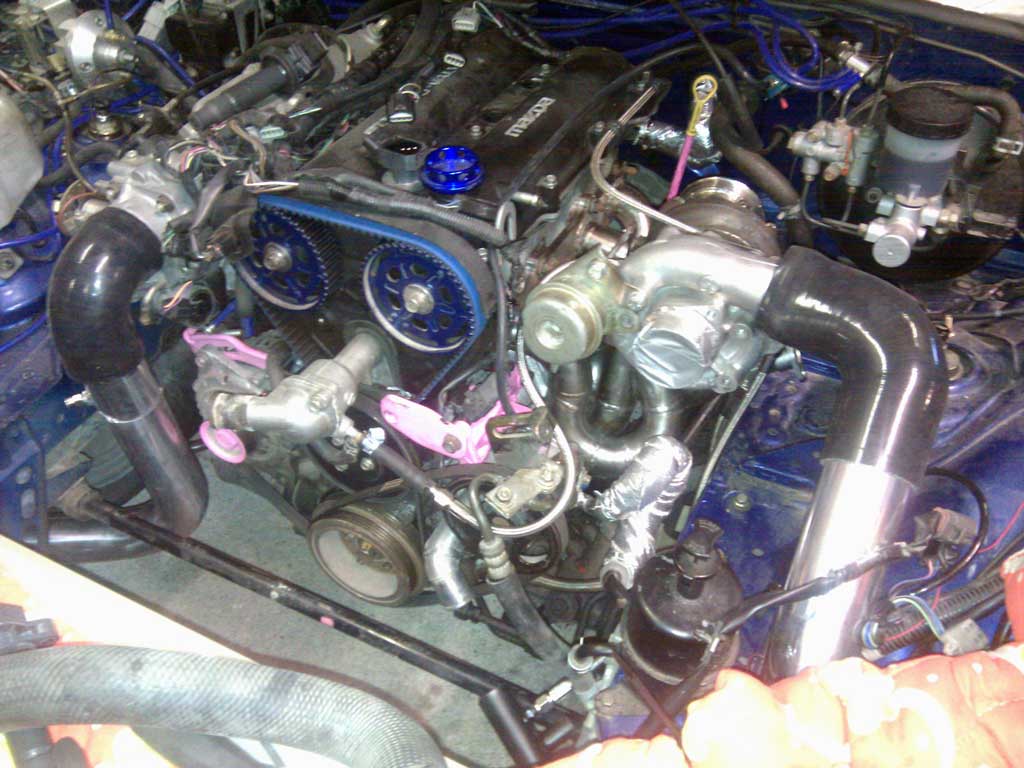

Here's what I did





Clears PS + belt ok. and work with the 50mm radiator + OEM fan
Attached Thumbnails
Water pump inlet tube options/help need.-orav11.jpg   Water pump inlet tube options/help need.-orav13.jpg   Water pump inlet tube options/help need.-orav12.jpg
muoto is offline   Reply With Quote
Old 10-11-2013, 10:32 AM   #12
Junior Member

Join Date: Apr 2012
Posts: 65
Total Cats: -2
Default

Quote:
Originally Posted by muoto View Post
Here's what I did
Clears PS + belt ok. and work with the 50mm radiator + OEM fan
Perfect, that's what I wanted to see... Thanks you!
