Default What gauge is the normal downpipe/exhaust?

I'm going to be building my own downpipe tig welding it togeather and since noone makes it for my setup. I went looking on ebay for mandrel bent piping and came across a few good canidates yet they are saying its 16 gauge stainless steel so i'm hesitating it might be too thin?

http://cgi.ebay.com/ebaymotors/3-0-M...ayphotohosting

http://cgi.ebay.com/ebaymotors/3-0-S...ayphotohosting


Thanks in advance guys.
PaKMaN is offline   Reply With Quote
Old 11-03-2007, 03:28 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

16 is fine.

http://store.racing-solutions.org/
They offer a 5% discount to homemadeturbo.net members, if you call they'll ship usps.
cjernigan is offline   Reply With Quote
Old 11-03-2007, 03:36 PM   #3
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

16 (.065) will work. You might even get by with 18 (.049) if you are concerned with weight savings. If you don't have much experience welding thin tube you might get some mild steel in the same gauge to play with before you go for the real thing, as it can be a bit tricky at times. I still have a few pieces of 16ga mild bends if your interested.
-Michael-
TheBandit is offline   Reply With Quote
Old 11-03-2007, 03:38 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Didn't know you were back bandit.
You back in the market for fuel/oil/water line kits?
cjernigan is offline   Reply With Quote
Old 11-03-2007, 03:40 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

i'm actually running your setup lol wierd. I havn't seen anyone with an HKS manifold plus T25 off the SR20's. How are you running a external WG?
PaKMaN is offline   Reply With Quote
Old 11-03-2007, 03:48 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by TheBandit View Post
16 (.065) will work. You might even get by with 18 (.049) if you are concerned with weight savings. If you don't have much experience welding thin tube you might get some mild steel in the same gauge to play with before you go for the real thing, as it can be a bit tricky at times. I still have a few pieces of 16ga mild bends if your interested.
-Michael-

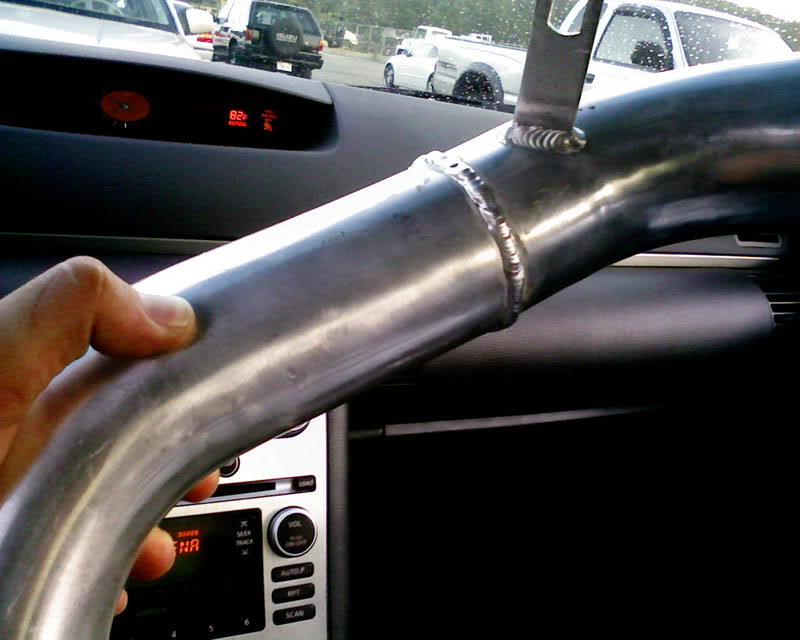

I've been doing tig welding for a few months now. Heres a pic of my first IC aluminum 2mm thick I did.


Name:  weldingniggga.jpg
Views: 22
Size:  63.2 KB
PaKMaN is offline   Reply With Quote
Old 11-03-2007, 09:03 PM   #7
Junior Member

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

nice welds...
Mouglie is offline   Reply With Quote
Old 11-03-2007, 09:23 PM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by PaKMaN View Post
i'm actually running your setup lol wierd. I havn't seen anyone with an HKS manifold plus T25 off the SR20's. How are you running a external WG?
Tubing coming off the downpipe flange to the tial wg, then the tial dumps to atmosphere. The turbine housing has a divorcer plate welded in the housing to seperate the flow, the internal wg flapper assembly is removed and welded shut.
It's not ideal and i'm removing it soon to replace it with a begi mani and t3 60 trim.
cjernigan is offline   Reply With Quote
Old 11-04-2007, 02:11 AM   #9
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Cjernigan- Yea I guess you could say I'm back. I'm still not really doing many kits or fab unfortunately. College is a killer, along with a few other things I'm dealing with. But I might be able to get things out if someone really needs them. I do have a box of MS bends sitting around if anyone still needs any.
Pakman- I wasn't sure how much time you had spent and thought I would just give you a heads up. It looks like you are comfortable in your welding skills so you can probably ignore what I said about practice. That looks pretty good. I'm still working on Al. We aren't friends at the moment. Steel and its alloys are a different story.
-Michael-
TheBandit is offline   Reply With Quote
Old 11-04-2007, 01:59 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Tubing coming off the downpipe flange to the tial wg, then the tial dumps to atmosphere. The turbine housing has a divorcer plate welded in the housing to seperate the flow, the internal wg flapper assembly is removed and welded shut.
It's not ideal and i'm removing it soon to replace it with a begi mani and t3 60 trim.
I've been comtemplating the same setup. Only thing holding me back is I can easily reach my goal of 250rwhp with this current setup.

Quote:
Originally Posted by Mouglie View Post
nice welds...
Thanks Bud.

Quote:
Originally Posted by TheBandit View Post
Pakman- I wasn't sure how much time you had spent and thought I would just give you a heads up. It looks like you are comfortable in your welding skills so you can probably ignore what I said about practice. That looks pretty good. I'm still working on Al. We aren't friends at the moment. Steel and its alloys are a different story.
-Michael-

Thanks Mike, I appreciate it. What are you exactly having problems with? The pic I posted is garbage.. I just wish I had more time to practice.

Last edited by PaKMaN; 11-04-2007 at 02:27 PM.
PaKMaN is offline   Reply With Quote
Old 11-04-2007, 03:13 PM   #11
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Aluminum is just considerably more difficult at least for me. And I haven't really had much Al stuff to weld, just tons of Steel. I'm sure with time it will come.
-Michael-
