Default What goes here?

I'm removing all parts of my greedy turbo kit and im tapping the oil pan for the oil return and was wondering what went in the spot next to the oil filter on an NA car. Picture is included

DXO is offline   Reply With Quote
Old 02-07-2009, 04:19 PM   #2
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

A cap. 1 sec I'll find the part # for you.

B660-10-328 Cover, Blind-cyl. Block

I think I ordered mine from FM when I got some other stuff, but any Mazda dealership should have it.

Vash-
Vashthestampede is offline   Reply With Quote
Old 02-07-2009, 04:33 PM   #3
DXO
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Location: Kannapolis, NC
Posts: 229
Total Cats: 1
Default

Thanks, Ill stop my a dealership in a little bit.
DXO is offline   Reply With Quote
Old 02-07-2009, 06:53 PM   #4
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

thats not a provision for an oil cooler is it?
Hot_Wheels is offline   Reply With Quote
Old 02-07-2009, 07:02 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by Hot_Wheels View Post
thats not a provision for an oil cooler is it?
no, there is zero pressure there. You could probably get away with it being open, as long as you don't turn very fast :P
Braineack is offline   Reply With Quote
Old 02-08-2009, 07:08 PM   #6
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Then what's it for? If it's capped off, with no pressure, then what good would it be in any application?
skidude is offline   Reply With Quote
Old 02-08-2009, 07:09 PM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by skidude108 View Post
Then what's it for? If it's capped off, with no pressure, then what good would it be in any application?
I believe that it is the drain on the other side of the block that could be used for a turbo drain. The only problem is that it is on the other side of the block.
mazda/nissan is offline   Reply With Quote
Old 02-08-2009, 07:10 PM   #8
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by skidude108 View Post
Then what's it for? If it's capped off, with no pressure, then what good would it be in any application?
The stock greddy kit uses it as an oil return. I imagine that the 323 uses it as an oil return as well.
wayne_curr is offline   Reply With Quote
Old 02-08-2009, 07:28 PM   #9
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

No need for an OEM Mazda part... any autoparts store should have a large selection of rubber caps. Measure the diameter and buy a couple plus a small hose clamp.
samnavy is offline   Reply With Quote
Old 02-08-2009, 07:32 PM   #10
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by samnavy View Post
No need for an OEM Mazda part... any autoparts store should have a large selection of rubber caps. Measure the diameter and buy a couple plus a small hose clamp.
lol.....or do that.

Vash-
Vashthestampede is offline   Reply With Quote
Old 02-08-2009, 07:34 PM   #11
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Quote:
Originally Posted by samnavy View Post
No need for an OEM Mazda part... any autoparts store should have a large selection of rubber caps. Measure the diameter and buy a couple plus a small hose clamp.
FWIW, most autopart store special rubber caps are JUNK. I would buy an OEM one personally cause it would suck to have to replace that every year.
patsmx5 is offline   Reply With Quote
Old 02-08-2009, 07:39 PM   #12
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by patsmx5 View Post
FWIW, most autopart store special rubber caps are JUNK. I would buy an OEM one personally cause it would suck to have to replace that every year.
Exactly. Thats why when I tapped my oil pan and removed my old greddy drain I just got the OEM cap. For some people though cheap isn't cheap enough. **** me, I spent $2 too much....I fail at being cheap.

Vash-
Vashthestampede is offline   Reply With Quote
Old 02-08-2009, 08:06 PM   #13
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I know what it is from above, but I will say it anyway. WTF is that! Thats a 1.6 block I assume. I didnt know any blocks had that nipple on it. It is on the wrong side.
NA6C-Guy is offline   Reply With Quote
Old 02-08-2009, 08:10 PM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I glued a cap to a piece of drain hose. I win at being cheap.
kotomile is offline   Reply With Quote
Old 02-08-2009, 08:27 PM   #15
DXO
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Location: Kannapolis, NC
Posts: 229
Total Cats: 1
Default

I've been trying to be not so cheap with my new turbo i just bought. But I've been having a hard time finding fittings that will work and how I'm going to run my oil drain. The turbo was meant to be bottom mount so its on the wrong side and can't rotate the cool side of the turbo enough without messing the wastegate alignment up.
DXO is offline   Reply With Quote
Old 02-08-2009, 09:03 PM   #16
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by DXO View Post
I've been trying to be not so cheap with my new turbo i just bought. But I've been having a hard time finding fittings that will work and how I'm going to run my oil drain. The turbo was meant to be bottom mount so its on the wrong side and can't rotate the cool side of the turbo enough without messing the wastegate alignment up.
Search on here and you'll find all types of info on clocking the turbo and guys that have made brackets for the WG. I'm sure someone will post a pic of how they did it. I didn't understand how to clock my turbo at first, but from suggestions on here to heat it up and hit the **** out of it, its done. I use a external wastegate though so I didn't need to worry about that.

Turbo drain just tap the pan and you're all set.

Vash-
Vashthestampede is offline   Reply With Quote
Old 02-08-2009, 09:14 PM   #17
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by DXO View Post
I've been trying to be not so cheap with my new turbo i just bought. But I've been having a hard time finding fittings that will work and how I'm going to run my oil drain. The turbo was meant to be bottom mount so its on the wrong side and can't rotate the cool side of the turbo enough without messing the wastegate alignment up.
I had to make a bracket for my wastegate actuator, it sucks and I will make a new one. So when I do I will post pics
mazda/nissan is offline   Reply With Quote
Old 02-08-2009, 10:02 PM   #18
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Vashthestampede View Post
... made brackets for the WG. I'm sure someone will post a pic of how they did it. ...

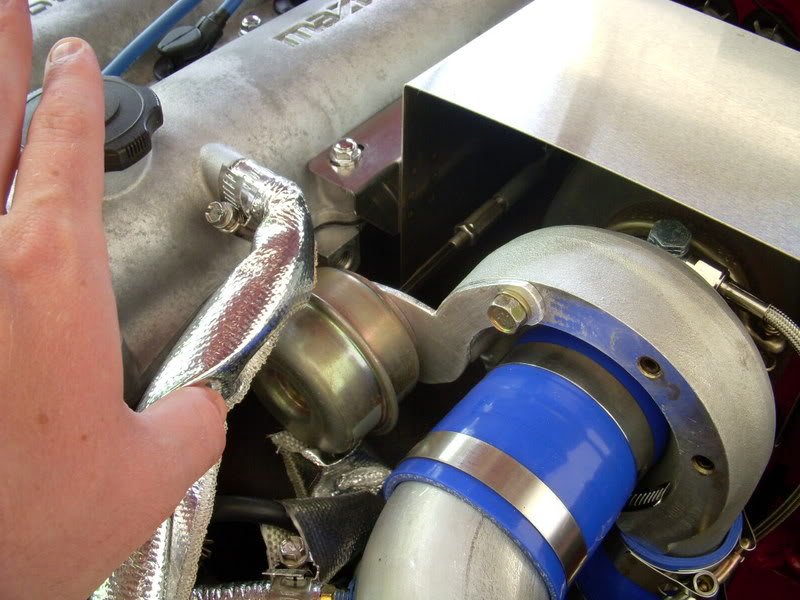

Name:  DSCN0542.jpg
Views: 2
Size:  82.9 KB
kotomile is offline   Reply With Quote
Old 02-08-2009, 11:51 PM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

koto is only that one bolt holding it?
mazda/nissan is offline   Reply With Quote
Old 02-08-2009, 11:53 PM   #20
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

I've only got one bolt holding my actuator to the compressor housing. Doesn't seem like it really wants to go anywhere.
