Default What Turbo do I have?

I was told it is a t-28, but that is it. I know there are many variations of the T-28 but I donít know which one I have. Here is what I know:
The turbo came off an early FM kit, but I was told the turbo was upgraded.

Compressor
Says A/R 48
Inducer diameter = 40.97mm
Exducer diameter = 50.98mm
=64.6 trim

Turbine
Says A/R 64
Inducer diameter = 52.7mm
Exducer diameter = 42.09mm
=63.5 trim

Iím trying to see what the power potential of this turbo is.
I can add pics if necessary.
yellowihss is offline   Reply With Quote
Old 12-20-2010, 11:13 PM   #2
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Sorry, posted in the wrong area. Mods please move to DIY Turbo Discussion. Thanks.
yellowihss is offline   Reply With Quote
Old 12-20-2010, 11:42 PM   #3
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Does it have a tag on the CHRA?
RotorNutFD3S is offline   Reply With Quote
Old 12-21-2010, 01:48 AM   #4
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

No.
yellowihss is offline   Reply With Quote
Old 12-21-2010, 01:56 AM   #5
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

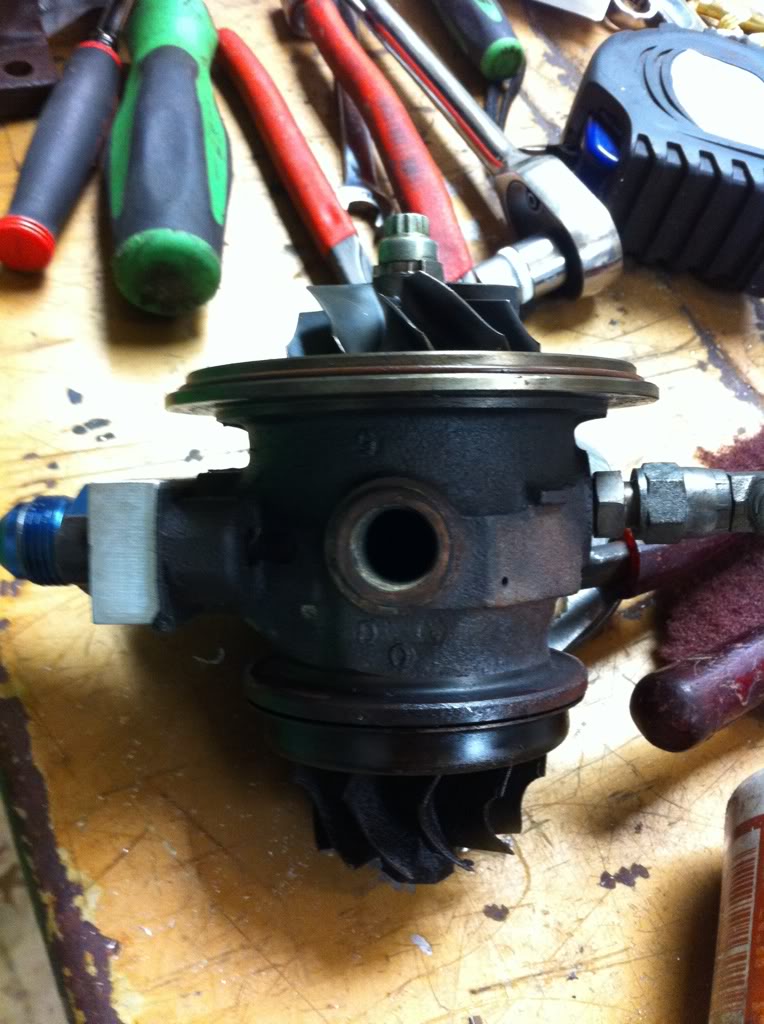

Name:  53f36fc6.jpg
Views: 2
Size:  110.5 KB

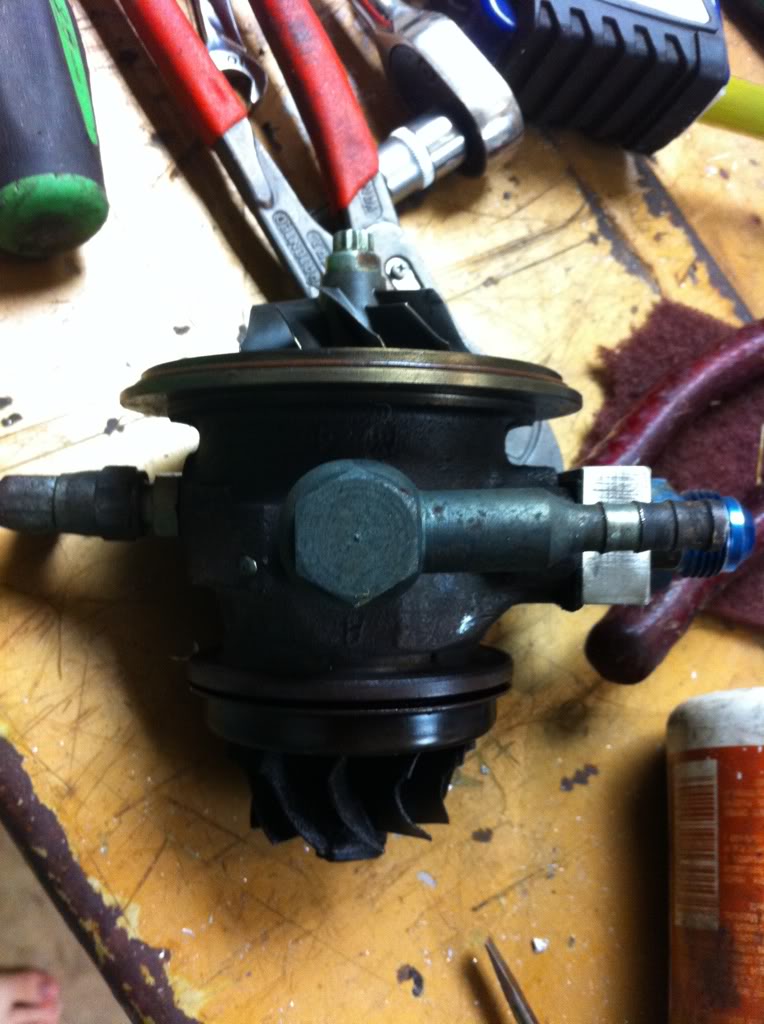

Name:  5c998078.jpg
Views: 2
Size:  95.5 KB

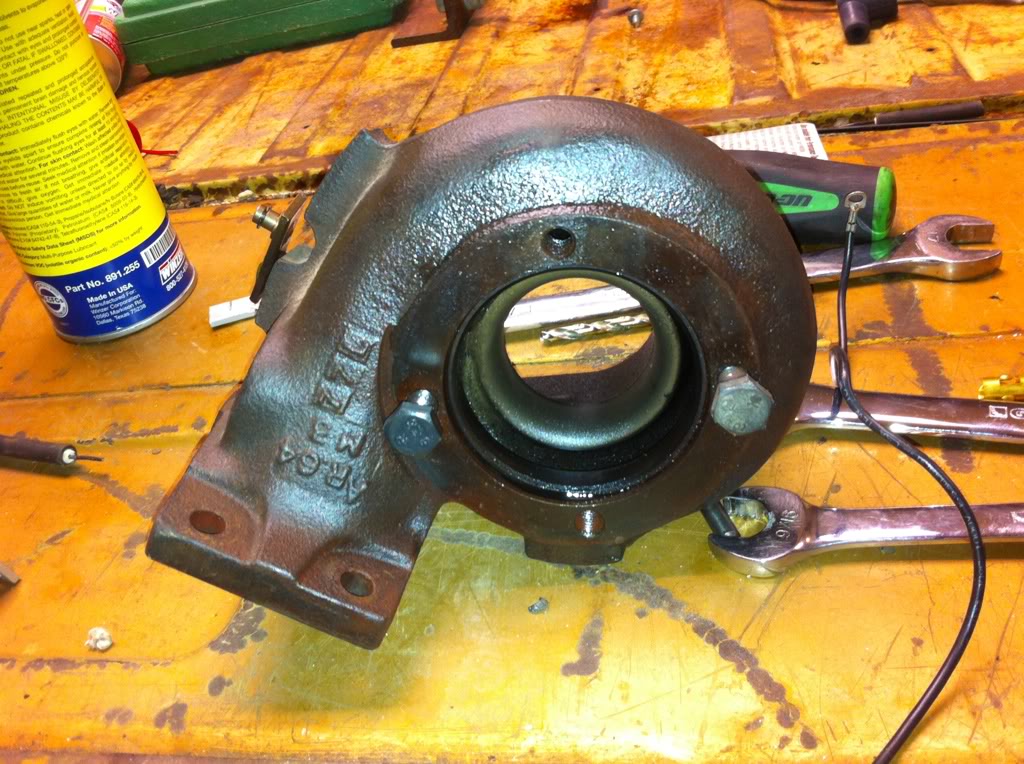

Name:  4d26eb6d.jpg
Views: 2
Size:  165.5 KB

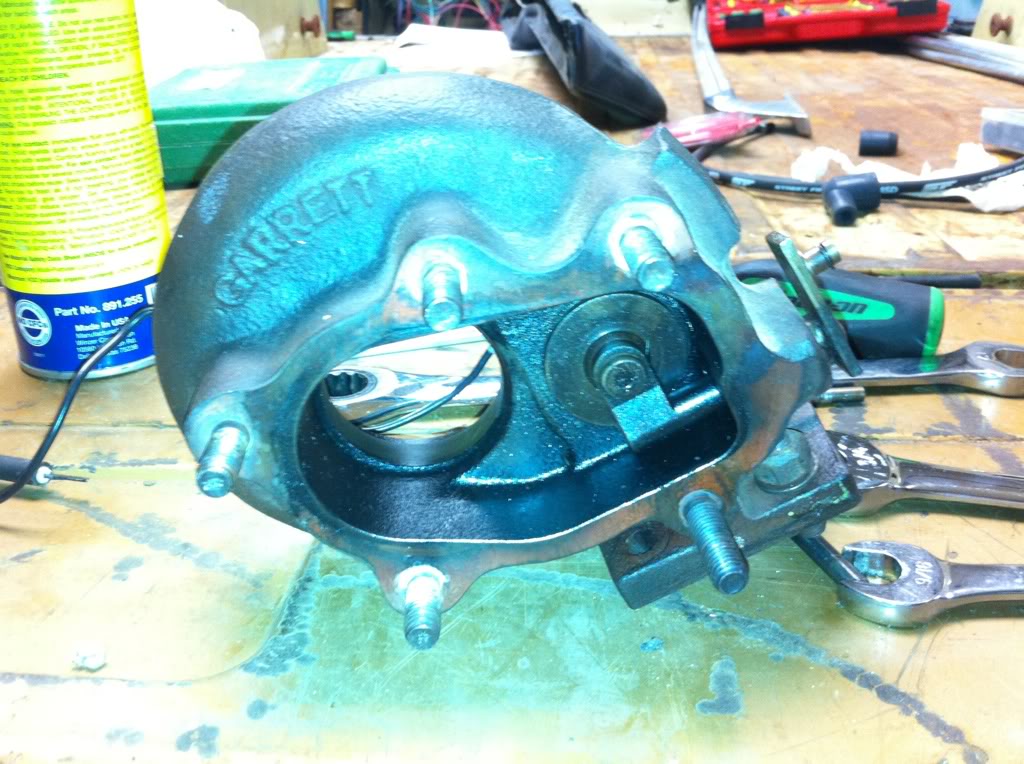

Name:  0a38d384.jpg
Views: 2
Size:  136.1 KB

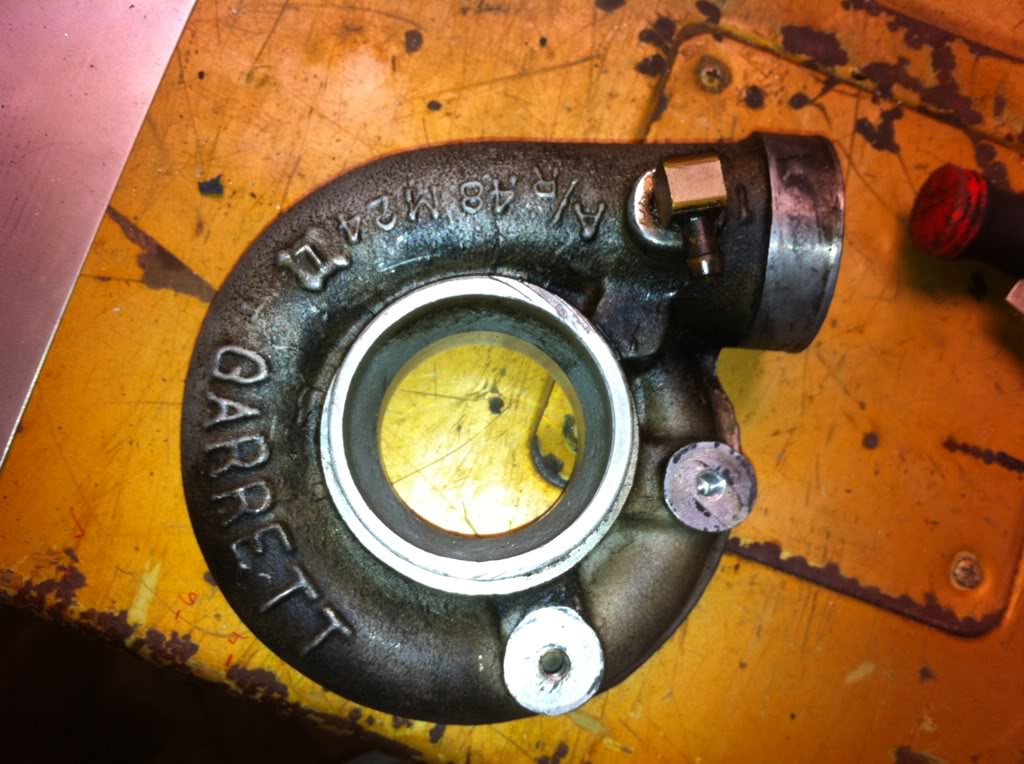

Name:  abce3526.jpg
Views: 2
Size:  116.3 KB

If it helps.
yellowihss is offline   Reply With Quote
Old 12-21-2010, 02:01 AM   #6
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

smaller than a 2650, i think!

There is only 4 bolts that hold the turbine housing to the CHRA, i only see 4. My 2560 had 6 (wait no, my 2860 has 6.....FAWK idk.) I dont know **** about AR and all that crap...
WonTon is offline   Reply With Quote
Old 12-21-2010, 02:28 AM   #7
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Your compressor wheel measurements are a hair smaller than a 2554, and also those currently have a .80 A/R. I believe the .48 compressors were common on the small T25s used on the 300ZX but don't quote me on that. The turbine side sounds close to a 2554 or 2560 but again yours has a more puny compressor. Maybe good for 200 whp? Just a guess.
ScottFW is offline   Reply With Quote
Old 12-21-2010, 02:40 AM   #8
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Doesn't match up directly with anything here.

http://www.turbobygarrett.com/turbob...ison_sheet.htm

C
chriscar is offline   Reply With Quote
Old 12-21-2010, 09:08 AM   #9
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

looks like the comp is close to a GT2252 good for 180-260 is what garrett says on there sit so proby max 220
miatamike203 is offline   Reply With Quote
Old 12-21-2010, 09:41 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

was the compressor measurement supposed to say 60mm? Cause then it would make sense as a T28 with a 50 trim compressor wheel.

Last edited by Braineack; 12-21-2010 at 10:37 AM.
Braineack is offline   Reply With Quote
Old 12-21-2010, 10:34 AM   #11
Junior Member
iTrader: (3)

Join Date: Nov 2009
Location: El Paso
Posts: 81
Total Cats: 0
Default

kinda looks like a nissan ca18 turbo and they are both .48 too.
91rps13 is offline   Reply With Quote
Old 12-21-2010, 11:51 AM   #12
!!! NOT CONFIRMED !!!

Join Date: Nov 2007
Location: Virginia Beach, Va
Posts: 158
Total Cats: 1
Default

Quote:
Originally Posted by 91rps13 View Post
kinda looks like a nissan ca18 turbo and they are both .48 too.
I don't think its a nissan S13 1.8 turbo, cause it doesnt look like this:
http://cgi.ebay.com/ebaymotors/Turbo...Q5fAccessories

Last edited by elderc; 12-21-2010 at 12:02 PM.
elderc is offline   Reply With Quote
Old 12-21-2010, 01:07 PM   #13
Senior Member
Thread Starter
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Could it be a hybrid?
T25 cold side
T28 hot side
yellowihss is offline   Reply With Quote
Old 12-21-2010, 01:26 PM   #14
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Thought it looked like the tb2525, but now I'm not so sure anymore
Oscar is offline   Reply With Quote
Old 12-21-2010, 01:28 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

more like T25 hotside, T20 "cold"side
Braineack is offline   Reply With Quote
Old 12-21-2010, 02:03 PM   #16
Junior Member
iTrader: (3)

Join Date: Nov 2009
Location: El Paso
Posts: 81
Total Cats: 0
Default

Quote:
Originally Posted by elderc View Post
I don't think its a nissan S13 1.8 turbo, cause it doesnt look like this:
http://cgi.ebay.com/ebaymotors/Turbo...Q5fAccessories
was thinking more like a ca18et (not sure if its the same as the one above though)

http://cgi.ebay.com/ebaymotors/Nissa...item33638faca7

the image sucks so its hard to tell.

91rps13 is offline   Reply With Quote
Old 12-21-2010, 02:26 PM   #17
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Tucson, AZ
Posts: 82
Total Cats: 0
Default

Looks exactly the same as a sr20 stock turbo t25......Exept for the compressor ind. and exd. fittings.....

Last edited by lazyguy; 12-21-2010 at 04:40 PM.
lazyguy is offline   Reply With Quote
Old 12-21-2010, 06:14 PM   #18
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by lazyguy View Post
Looks exactly the same as a sr20 stock turbo t25......Exept for the compressor ind. and exd. fittings.....
Looks pretty much identical to my SR20 T25... I'll have to double check to see if my A/R's are the same though.
Rennkafer is offline   Reply With Quote
Old 12-21-2010, 10:12 PM   #19
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Del. Already mentioned.
kenzo42 is offline   Reply With Quote
Old 12-21-2010, 10:54 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Rennkafer View Post
Looks pretty much identical to my SR20 T25... I'll have to double check to see if my A/R's are the same though.

sr20 T25 is 52.5mm exducer compressor wheel.
Braineack is offline   Reply With Quote
