Default What you think of his coolant reroute?

1st parthttp://www.youtube.com/MikesPlaceBiz#p/u/11/mRharubfD1E

2nd parthttp://www.youtube.com/MikesPlaceBiz#p/u/12/9P7VrnggCCk


I know hes doing it on a NB would it work on a NA he says it wont because the ignition coils get in the way i was thinking if i went down the cop route then it wont be a problm unless the front housing with thermostat doesnt fit on the rear or something on the NA block this seems like a simple cost effective solution!
What you all think?
delcbr is offline   Reply With Quote
Old 10-01-2010, 09:42 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

it's a reroute. just like all the rest.
Braineack is offline   Reply With Quote
Old 10-01-2010, 09:56 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2010
Location: Glasgow, Scotland, U.K.
Posts: 114
Total Cats: -12
Default

Ahh just the man!!! i bought this yesterday.


i have the 1996 1.8 looking at the wiring diagram there are 4 wires coming from the miata harness. How do I make 1 wire connect to 4 coils for example the black/white coming from the harness is the ground and needs to connect to the 4 coils do i just twist the 4 wires coming off the coils together then join it from the 1 wire coming from the miata harness then fuse with solder???yes iam retarded dont ask.
delcbr is offline   Reply With Quote
Old 10-01-2010, 12:03 PM   #4
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10
Default

I posted this one yesterday. It has been around for ages.

From what I can gather you can do this on an NA if you move the coil pack and modify or delete your EGR pipe.

Quote:
Originally Posted by delcbr View Post
1st parthttp://www.youtube.com/MikesPlaceBiz#p/u/11/mRharubfD1E

2nd parthttp://www.youtube.com/MikesPlaceBiz#p/u/12/9P7VrnggCCk


I know hes doing it on a NB would it work on a NA he says it wont because the ignition coils get in the way i was thinking if i went down the cop route then it wont be a problm unless the front housing with thermostat doesnt fit on the rear or something on the NA block this seems like a simple cost effective solution!
What you all think?
zossy1 is offline   Reply With Quote
Old 10-01-2010, 12:23 PM   #5
Junior Member
Thread Starter

Join Date: Mar 2010
Location: Glasgow, Scotland, U.K.
Posts: 114
Total Cats: -12
Default

ok thanks.
delcbr is offline   Reply With Quote
Old 10-01-2010, 01:04 PM   #6
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I had this done on an NA with COPs and no need to move the EGR. I plugged the front of the head and got my heater core line from the back instead as well.

I actually like the angle better then the KIA water neck because at that angle, you don't need to mess with the coolant temp sensor.

Last edited by Preluding; 10-01-2010 at 01:05 PM. Reason: spell check
Preluding is offline   Reply With Quote
Old 10-01-2010, 01:20 PM   #7
Junior Member
Thread Starter

Join Date: Mar 2010
Location: Glasgow, Scotland, U.K.
Posts: 114
Total Cats: -12
Default

Quote:
Originally Posted by Preluding View Post
I had this done on an NA with COPs and no need to move the EGR. I plugged the front of the head and got my heater core line from the back instead as well.

I actually like the angle better then the KIA water neck because at that angle, you don't need to mess with the coolant temp sensor.
where did you take your water lines from to cool your turbo still from the front?
delcbr is offline   Reply With Quote
Old 10-01-2010, 01:48 PM   #8
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

yep, from the front.

I'm on my second build now and have the front capped off as well as no IACV.
I'll be sharing the same line as the oil cooler.
Preluding is offline   Reply With Quote
Old 10-04-2010, 08:24 AM   #9
I'm Miserable!

Join Date: Oct 2010
Location: Fort Bragg, NC
Posts: 189
Total Cats: 0
Default

Quote:
Originally Posted by Preluding View Post
I had this done on an NA with COPs and no need to move the EGR. I plugged the front of the head and got my heater core line from the back instead as well.

I actually like the angle better then the KIA water neck because at that angle, you don't need to mess with the coolant temp sensor.
Where did you get your heater core line at from the back? I have a 94 1.8. I am contemplating doing this particular re-route, re-using the factory thermostat housing. Anyone have pix of their NA coilpacks "moved" for this re-route?
BoostedTrixx is offline   Reply With Quote
Old 10-04-2010, 08:34 AM   #10
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I removed the port where the oil cooler gets its coolant and tapped it for 1/2 pipe thread. I screwed a pipe into it with an extension and the 5/8" coolant line popped on that nicely. I then T'd the oil cooler line with the main return line after the thermostat.
Preluding is offline   Reply With Quote
Old 10-04-2010, 08:41 AM   #11
I'm Miserable!

Join Date: Oct 2010
Location: Fort Bragg, NC
Posts: 189
Total Cats: 0
Default

Quote:
Originally Posted by Preluding View Post
I removed the port where the oil cooler gets its coolant and tapped it for 1/2 pipe thread. I screwed a pipe into it with an extension and the 5/8" coolant line popped on that nicely. I then T'd the oil cooler line with the main return line after the thermostat.
Ahhh ok makes good sense, wouldnt happen to have any pictures of your reroute? Particularly the area of your top radiator hose and charge pipe?
BoostedTrixx is offline   Reply With Quote
Old 10-04-2010, 09:00 AM   #12
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

haha... I welded a different inlet on the rad to that the charge pipe would clear easily.

I'll try to find pics tonight.
Preluding is offline   Reply With Quote
Old 10-04-2010, 09:18 AM   #13
I'm Miserable!

Join Date: Oct 2010
Location: Fort Bragg, NC
Posts: 189
Total Cats: 0
Default

Haha ok thanks man!
BoostedTrixx is offline   Reply With Quote
Old 10-07-2010, 10:33 AM   #14
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

ok, so this is a little late but I just thought of it now so i'm posting the pics.

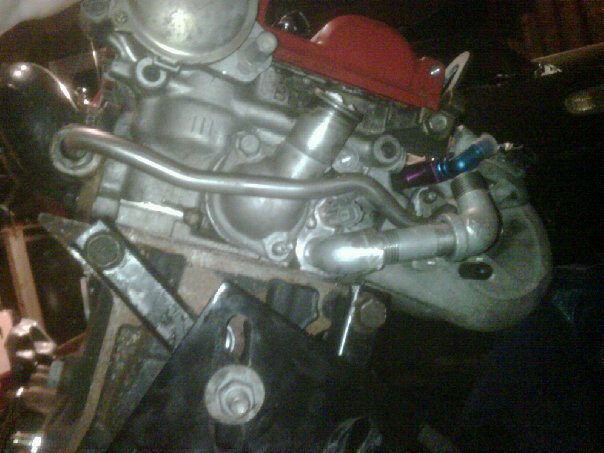

here is a good one of the back of the head with the engine out (you can see the egr clears and I don't need to mess with the temp sensor. heater hose fit tight onto 1/2' plumbing perfectly)

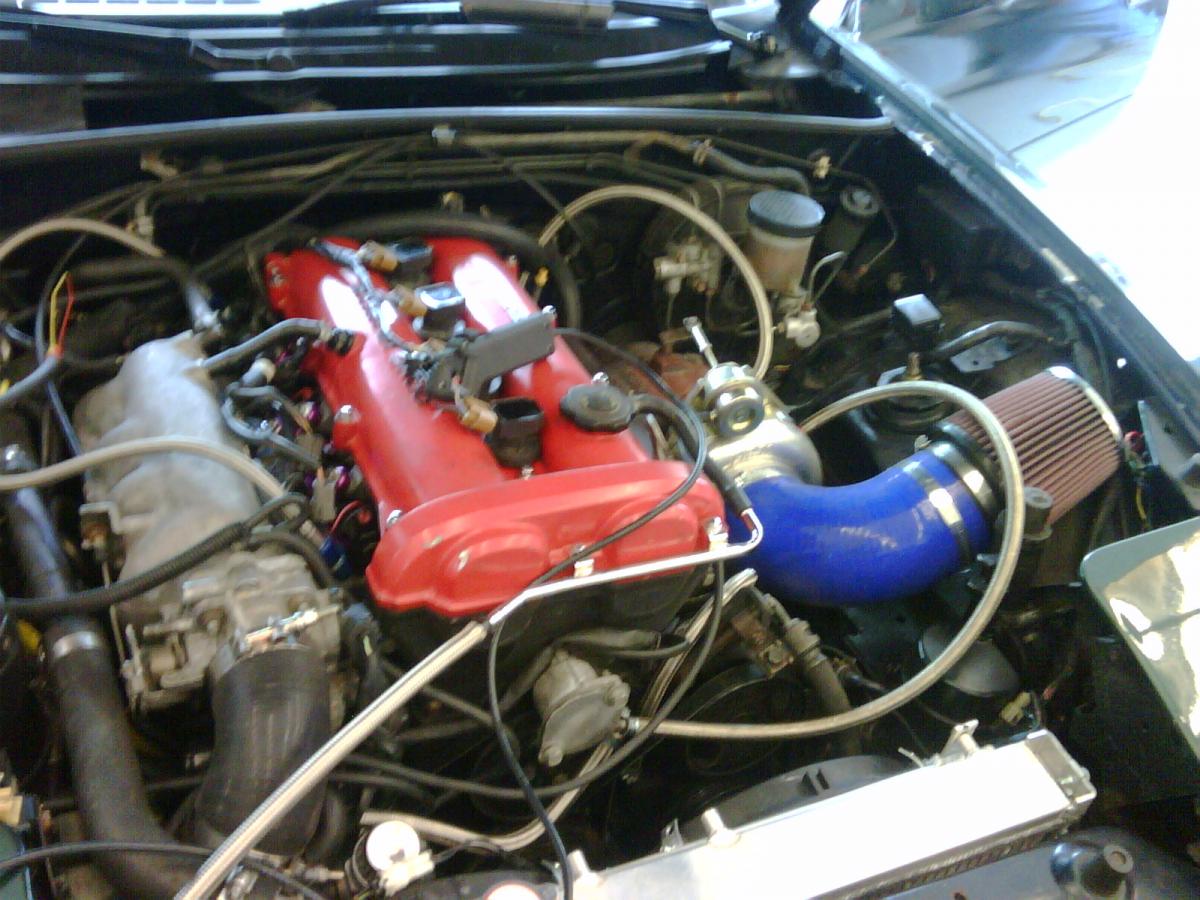

Sorry if the other pic is blurry, best on i could find... i welded the inlet on the rad at a 45 degree angle to clear the intake more easily (please excuse the mess of wires and vacuum lines)
Attached Thumbnails
What you think of his coolant reroute?-img00026-20100527-1420.jpg   What you think of his coolant reroute?-img_0099%5B1%5D.jpg

Last edited by Preluding; 10-07-2010 at 10:36 AM. Reason: ...
Preluding is offline   Reply With Quote
Old 10-07-2010, 02:44 PM   #15
Junior Member
Thread Starter

Join Date: Mar 2010
Location: Glasgow, Scotland, U.K.
Posts: 114
Total Cats: -12
Default

pics are good i was wondering where people were taking their water cooling lines from for the turbo as i thought they were fitting a 30mm freeze plug as in the video.
delcbr is offline   Reply With Quote
Old 10-07-2010, 03:49 PM   #16
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

some people do... it looks a lot cleaner with one as well.

my next setup isn't taking any coolant from the front of the motor at all
Preluding is offline   Reply With Quote
Old 10-07-2010, 06:51 PM   #17
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Tucson, AZ
Posts: 252
Total Cats: 0
Default

Quote:
Originally Posted by delcbr View Post
Ahh just the man!!! i bought this yesterday.


i have the 1996 1.8 looking at the wiring diagram there are 4 wires coming from the miata harness. How do I make 1 wire connect to 4 coils for example the black/white coming from the harness is the ground and needs to connect to the 4 coils do i just twist the 4 wires coming off the coils together then join it from the 1 wire coming from the miata harness then fuse with solder???yes iam retarded dont ask.
Please forward that information to me, I want do that as well.
Cross is offline   Reply With Quote
Old 10-07-2010, 08:34 PM   #18
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Just make two separate harnesses for the '96.
turotufas is offline   Reply With Quote
Old 10-08-2010, 01:12 AM   #19
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Tucson, AZ
Posts: 252
Total Cats: 0
Default

Sometimes I feel like the Baster Child of the Miata Community with a 2000.
Cross is offline   Reply With Quote
Old 10-08-2010, 01:33 AM   #20
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

im bout to guiny pig this! i hate being a cheap *** somtimes! lulz
WonTon is offline   Reply With Quote
