Old 02-12-2013, 12:04 PM   #61
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Hmmmm . . . . Sounds like your innate Scottishness costs you a lot of money. I recognize this.

It is extremely hard for me to bite the bullet and pay money for quality. In the rare times that I do, I don't regret it. But I still always have the urge to go cheap.
hornetball is offline   Reply With Quote
Old 02-12-2013, 12:12 PM   #62
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by callmelinc View Post
Anyone make a DIY manifold and wish the would have done stainless instead of mild or vice versa? Anyone build one and wish they would have just bought instead?
I have no regrets making my DIY manifold from mild steel. It might be heavy and flow really poorly, but my car made good power with it. I'm happy I didn't just buy one, building one is a good experience.

I also have no regrets running an ebay IC...
Efini~FC3S is offline   Reply With Quote
Old 02-12-2013, 12:44 PM   #63
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Regrets:
- Spending money on NEW suspension that is not Xida. I bought Koni Sport and sold them for 1/2 price QQQ
- Spending money on MS2 instead of going to MS3X right away
- Not rewiring my car while it was apart
- Not using crimp tools earlier (they are a godsend for wiring!)
- Not doing LeMons earlier
soviet is offline   Reply With Quote
Old 02-12-2013, 01:47 PM   #64
Newb
Thread Starter

Join Date: Feb 2012
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
regrets:
  • 1.6L motor.
  • 90-93 body so I had to upgrade: clutch, brakes, diff and still have a floppy dick chasis.
  • blowing my first motor after about 15mins into my first test drive with boost (I had my timing advanced and still had 87 octane in the tank)
  • buying another 90-93 after I totalled mine and didnt want to have to get a new manifold and DP for the turbo setup.
  • buying a turbo from MJM Turbos
  • ever bothering with FMU, Fuel Pump, Bipes instead of going straight to EMS
  • swaping my 12x12x3 IC for a 18x12x3 IC
  • swapping my 18x12x3 IC for a 18x6x2.5 IC
  • buying an ebay IC at all
  • building an IM and then selling it because I blew my motor
  • buying frame rails and then selling them beause I blew my motor
  • Buying seats and harnesses and selling them because I never track the car
  • not tracking the car
  • Doing a coolant reroute and reusing a gasket so I have a coolant leak now
  • Upgrading to 11" Corado Front rotors
  • not buying the 50 trim Chinacharger sooner
  • Koni Shocks w/stock springs
  • Koni Shocks w/FM springs
  • Koni Shocks w/sleeves and 550/300 springs
  • Koni Shocks w/sleeves and 400/250 springs
  • Not selling my Koni Shocks fast enough
  • Burning up two MS3 CPUs from asshatery
  • Buying used injectors from this site, twice, and both times getting things not as described. First was low ohm injectors listed as high, the second had broken pintle caps and I paid to have them cleaned to find out.
And now I don't have the motivation to really work on the car anymore, so it is what it is.
Wow, I hope when I am done with my car I don't have a list like this. I can understand the lack of motivation.
callmelinc is offline   Reply With Quote
Old 02-12-2013, 01:50 PM   #65
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

the lack of movitation is mainly cause the car works well and im lazy and cheap.


basically: buy good parts and make sure you have a 1.8L



I should add the rx7 clutch diff and clutchnet clutch.
Braineack is offline   Reply With Quote
Old 02-12-2013, 01:58 PM   #66
Newb
Thread Starter

Join Date: Feb 2012
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post

I should add the rx7 clutch diff and clutchnet clutch.
On the regret list?
callmelinc is offline   Reply With Quote
Old 02-12-2013, 02:01 PM   #67
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

yes
Braineack is offline   Reply With Quote
Old 02-12-2013, 02:04 PM   #68
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I never had any issues with my RX7 diff or clutchnet clutches...

I think the reality is that everything Scott touches goes to ****. Or he secretly sabotages his car to get his bros to come over to his garage to work on stuff on the weekends.
neogenesis2004 is offline   Reply With Quote
Old 02-12-2013, 02:07 PM   #69
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

the rx7 clutch diff sucks, no one should use one.


and the clutchnet clutch has a 70:30 failure rate on this site with member who try it.
Braineack is offline   Reply With Quote
Old 02-12-2013, 05:30 PM   #70
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
and the clutchnet clutch has a 70:30 failure rate on this site with member who try it.
Oh yes, I forgot about this one.

I very much regret buying clutchnet clutch and PP.

That was a significant waste of money, and time...


All you guys saying you regret getting MS2 instead of going MS3X right away make me nervous. I haven't even installed my Reverent Enhanced MS2 yet...
Efini~FC3S is offline   Reply With Quote
Old 02-12-2013, 07:39 PM   #71
qax
Junior Member
iTrader: (1)

Join Date: Nov 2010
Location: SoCal 626
Posts: 94
Total Cats: 0
Default

Should have just spent 6-7k to buy a mid pack SM for track duty only, learn how to drive with it, then move on to s2gay or something; instead of compromising everything on the street and hoping to have a dual purpose car which cost more money anyways.
qax is offline   Reply With Quote
Old 02-12-2013, 09:20 PM   #72
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by Efini~FC3S View Post
All you guys saying you regret getting MS2 instead of going MS3X right away make me nervous. I haven't even installed my Reverent Enhanced MS2 yet...
Reverant Enhance MS2 > MS2
Braineack is offline   Reply With Quote
Old 02-12-2013, 09:47 PM   #73
Senior Member
iTrader: (7)

RedCarmel's Avatar

Join Date: Oct 2011
Location: Horse and Buggy, PA
Posts: 689
Total Cats: 18
Default

Quote:
Originally Posted by Braineack View Post
regrets:
  • swaping my 12x12x3 IC for a 18x12x3 IC
  • swapping my 18x12x3 IC for a 18x6x2.5 IC
So your favorite ebay intercooler was 12x12x3? What sort of power were you making at the time? I have been looking for something roughly the same as the FM intercooler in size but am kind of intrigued by the idea of something a little smaller to increase airflow to the radiator.
RedCarmel is offline   Reply With Quote
Old 02-12-2013, 10:01 PM   #74
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Quote:
Originally Posted by soviet View Post
Things I wish I did:
- Should have got LS2 truck coils right away instead of dicking with COPs
- Should have got MS3X from the start instead of MS2
- Should have overpaid for the chassis and got an *immaculate* one, instead of one that's just alright
- Should have bought SuperMiata damper when I had the cash

Everything else, no regrets
Why DID you start with MS2?!
You had damper issues? I don't want to hear that. Still trying to talk myself into not needing one.

What coil issues did you have?

Quote:
Originally Posted by soviet View Post
Regrets:
- Spending money on NEW suspension that is not Xida. I bought Koni Sport and sold them for 1/2 price QQQ
- Not rewiring my car while it was apart
- Not using crimp tools earlier (they are a godsend for wiring!)
- Not doing LeMons earlier
Konis need the race valving. Not saying Xida isn't better, but they are certainly pretty good.
Have you been rewiring? I'm about to tackle that, not looking forward to it.
What crimp tool do you like?

+1 on lemons. Super fun. Wish there was a good crew down here to do it with. I've gotten a lot of trophies but could have had more fun.

Quote:
Originally Posted by Efini~FC3S View Post
I have no regrets making my DIY manifold from mild steel. It might be heavy and flow really poorly, but my car made good power with it. I'm happy I didn't just buy one, building one is a good experience.

I also have no regrets running an ebay IC...
I have a couple friends in the fab business, who've both made about half their stuff mild and half stainless. The first couple were mild for added cheapness, then a bunch of stuff in stainless.
Now they make everything in mild because they are tired of fixing, fixing and refixing the stainless stuff which keeps coming back broken.


I might do an Ebay radiator and IC to replace the FM ones I paid way way too much for.

I really, REALLY don't want to disparage FM, but honestly I can say 2/3 of my regrets come from FM products.

*The Twincooler sounds awesome, gets lots of looks and interest from people checking out the car, but I don't think it cools nearly as well as a big rad and putting in an oil cooker.

*The oil cooler lines require you to pull the intake manifold brace, and that made my secondary injectors fall off. 4 or 5 times. Lots of rewelding, strengthening, etc. Total joke.

*The oil return line fell off over and over with the FM set up. Added some brass pipe, problem went away, but it's much lighter now with solid lines.

*The water lines fell off over and over. I bought their upgraded lines. It did the same. Bought more upgraded lines, they did the same. I had wrapped things in foil, heat blankets, everything I could think of, kept losing lines. I added some hand-re-shaped DSM OEM hard lines, similar to FM's new set up and they just barely worked. Finally I made custom lines for everything, it rocks 100%. Tools and materials cost just what FM's lines cost, and I could make 3 more now.

*The FM wastegate set up could never handle my boost. I redid this several times. Eventually, porting wastegate, adding springs, making a new bracket got it under control.

*The FM manifold gave me issues, but I think it was overheated by a PO.

*The "upgraded" FM intercooler is no bigger than the previous. I even asked for the biggest one they had. TOTALLY should have gone ebay. The silicon lines are nice though, thermal efficiency aside. Props. :-)

MS2! OMG what a ******* horridly annoying piece of ****. Of course, there was no MS3 then, so I can't regret it too much, because it's worlds better than:

FM Link Piggyback. And ALL piggybacks. I've spent more time dicking with people trying to run MS1 or 2 in piggy mode, it's **** **** ****. Never do it. NEVER. You spend weeks chasing your tail trying to trick things into thinking other stuff isn't there. FM O2 clamp, rear O2 sensor trickery.... All a huge joke. I can't stress enough the retardedness of piggybacks. Definitely lost a motor from one computer not knowing what the other was doing.


Things I like:
My super old style FM BOV. Used to stick and be crappy and I'd clean/lube it all the time. Then I turned it upside down and it's not stuck once. Awesome, two stage... Just zero complaints about it, one of the most trouble free parts of the car.

I love my COP setup. I don't know why everyone hates. <$100.

550cc low ohm evo injectors. Newer stuff is better, but they were like $80.

I regret taking off my super cheap anti-sway bar. The OEM one is nice, but very heavy. The first one felt much stiffer than none, but no stiffer than this.


Toyo T1R/T1S - both very cheap, light, great in rain. Can't find them anymore, and R1R is spendy.

Kosie rims - 12 lbs, tires are SO cheap in 15x7.

Probably my Koni Race shocks. No one riding in the car could ever tell I had 700 lb springs in it, felt wonderful, could take mom/girlfriends/etc in car with no complaints even on rough roads.

New deck and amp. And putting speakers into luggage tray. None of those thigns cost me over $100, makes radio usable at 100 mph.

Bought car 1 year old (in '01) for 7k with 10,000 miles on it, as a well done salvage title car. GREAT place to save money, everything looked sweet, car's been a dream to own, no inherited problems. Worth taking the time to pick out the right car.

Not cheap, but 6 speed and 3.6 gears has made the car so much more refined. :-)

HID H4's to replace halogens. I could never go back, well under $100. Just adjust them right.

As people said, take your time, make stuff look nice. Underhood is up to you - but in the cab and the outside of the car people will see and judge you by. Cops as well as real people. black out intercooler, keep tailpipe tame, etc.

My SPEC stage 2/3 clutch. I haven't had any issues with the FM one, but the spec one really felt great, and held power. So far I'm not yet trusting the FM one, doesn't seem too hard to get too hot, and the pucks/no-pucks spec always treated me right, went through a couple of them.

Short shift kit - real, displaced fulcrum kind. Doesn't do a damn lick of good for performance, but I like how it felt.

Air horns!

Exhaust - I probably have $150 in parts in it, 3 inch all the way back (friend welded, now I could myself).... Which brings up best point:

Don't be afraid to spend the money to buy tools to do it yourself. In the end you'll have a shop and skills. Manifolds I would probably buy, but everything else.... Look carefully at doing it better.
AbeFM is offline   Reply With Quote
Old 02-13-2013, 10:44 AM   #75
Newb
Thread Starter

Join Date: Feb 2012
Posts: 13
Total Cats: 0
Default

Quote:
Originally Posted by AbeFM View Post
Have you been rewiring? I'm about to tackle that, not looking forward to it.
What crimp tool do you like?
Over at roadsterdrift these were talked about OTC Ratcheting Terminal Crimpers 4497 - SummitRacing.com . They said they were real great. although summit's site doesn't appear to be selling them at the moment I am sure other places do.
callmelinc is offline   Reply With Quote
Old 02-13-2013, 10:56 AM   #76
Senior Member
iTrader: (7)

RedCarmel's Avatar

Join Date: Oct 2011
Location: Horse and Buggy, PA
Posts: 689
Total Cats: 18
Default

Quote:
Originally Posted by callmelinc View Post
Over at roadsterdrift these were talked about OTC Ratcheting Terminal Crimpers 4497 - SummitRacing.com . They said they were real great. although summit's site doesn't appear to be selling them at the moment I am sure other places do.
After doing a ton of research on tool related forums I found a lot of very experienced tradesmen swore by the most simple tool. Klein 1005 for about $25.

Klein Tools Product Catalog - Crimping/Cutting Tool ? Non-Insulated/Insulated Connectors

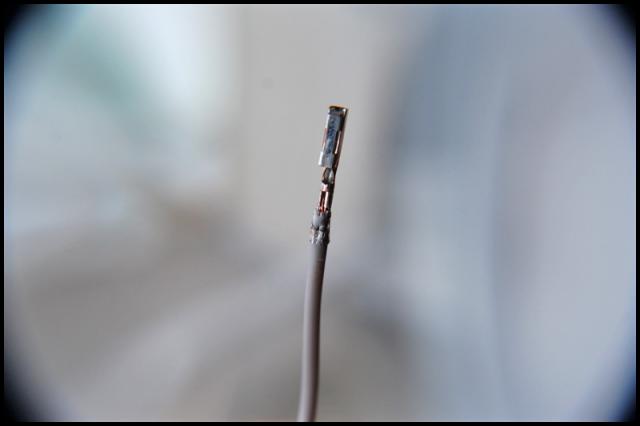

Has worked well for me so far when doing crimps with non-insulated connectors. I don't use insulated connectors so I don't have any experience with that yet.
RedCarmel is offline   Reply With Quote
Old 02-13-2013, 10:58 AM   #77
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by RedCarmel View Post
So your favorite ebay intercooler was 12x12x3? What sort of power were you making at the time? I have been looking for something roughly the same as the FM intercooler in size but am kind of intrigued by the idea of something a little smaller to increase airflow to the radiator.

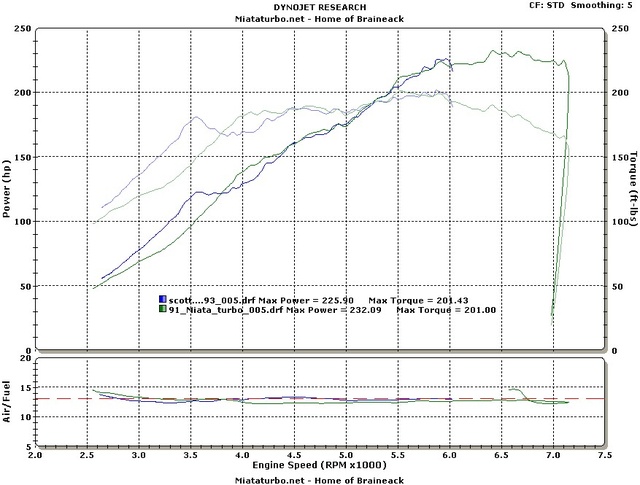

here's a before and after of the 12x12x3 vs the 18x12x3:



Because it was so large it has a bigger pressure drop and the spool suffered slightly. Since I drive a shitty no-torque 1.6L, it was noticeable. (the dip in torque was due to wonky boost control at the time)

Abliet the AITs were never more than 10F over ambient.






now I have some tube and fin IC that I doesn't seem to be as efficient as the 12x12x3 where I see my AITs get higher than I'd like in boost. The turbolator count when you looked through it left little to be desired. The core is also getting beat to hell by rocks.

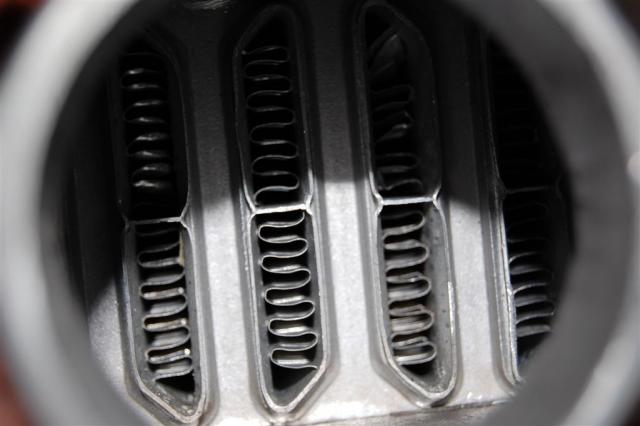

compare this to a BELL IC core:

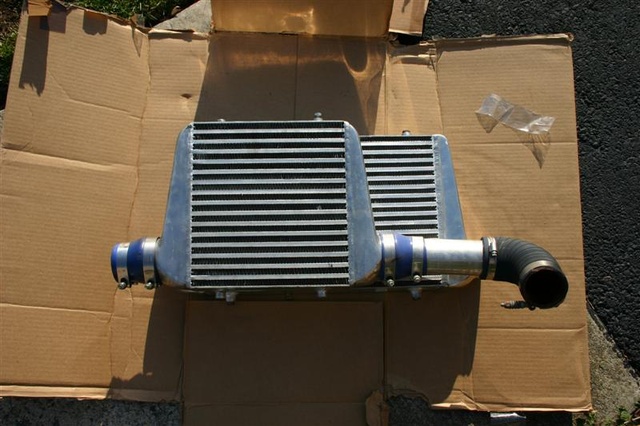

OEM MSM core:




I wish I had a BEGi IC or something with a rock solid well constructed core with miata specific mounts.
Attached Thumbnails
Where not to skimp?-12in_ic_vs_18in.jpg   Where not to skimp?-img_5098.jpg   Where not to skimp?-dsc_0009-_large_.jpg
Braineack is offline   Reply With Quote
Old 02-13-2013, 11:02 AM   #78
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Thats a fine crimper, but when you're re-wiring a whole car your arm will fall off if you dont use a ratcheting crimper. And that seems to only be for the junky stuff they sell at hardware stores, not legitimate crimp connectors. I bought the blue handled crimper from eastern beaver. Its worked well with sumitomo connectors so far, but even doing the COP harness my hand was getting tired. I picked that one since it should be able to crimp most pins I'll run into in a miata.
Leafy is offline   Reply With Quote
Old 02-13-2013, 11:15 AM   #79
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

that crimper posted looks like ***.

you want this with the correct dies for your contacts:
Ratcheting crimper for Weather Pack connectors DIYAutoTune.com

worth it.


although I still use my wire strippers that does an okay job at best...but i still solder them to the wire for extra insurance.

Attached Thumbnails
Where not to skimp?-dsc_0033.jpg
Braineack is offline   Reply With Quote
Old 02-13-2013, 11:40 AM   #80
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
Reverant Enhance MS2 > MS2
Yes I know, that's why I purchased it.

But everyone is so hot n bothered by MS3 right now...

I doubt I'll take full advantage of the capabilities of the E-MS2, not sure why I would need MS3.
Efini~FC3S is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
FS: Fully built 1.8. Needs some work. cmalouf Miata parts for sale/trade 4 07-26-2015 01:21 AM
1.8 Source for length of water lines and oil feed line? miataa DIY Turbo Discussion 7 05-29-2015 12:03 PM
1.6 project in bumble[rules, bro] Iowa goingtoscotland Meet and Greet 18 02-03-2015 11:25 PM
bad trans or bad clutch bayside blue General Miata Chat 10 10-12-2010 05:59 PM
BEGI = Great people! cueball1 DIY Turbo Discussion 17 02-02-2007 08:55 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 09:14 AM.
