Default Why not a SR20 T28?

1) Why aren't SR20 journal bearing T28 used more often than the SR20 T25?

It seems that the two spool similarly and a T28 wouldn't run out of steam by 6000 rpm, unlike the T25.

I already purchased a BEGi T25 exhaust manifold, and from what I understand, the SR20 T28 works w/ it as well.

2) Would the Begi-S DP work with a T28, with no modifications?

Thanks Sam for the info you gave me.
kenzo42 is offline   Reply With Quote
Old 12-29-2007, 11:20 PM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

my sr20 is a t28 i believe. (the one i use)
Dow.tom is offline   Reply With Quote
Old 12-29-2007, 11:31 PM   #3
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

T28 is just the larger A/R on the turbine correct?
Saml01 is offline   Reply With Quote
Old 12-29-2007, 11:47 PM   #4
Senior Member
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

i thought so, i have a .80 AR as opposed to the .46AR that comes on some of the SR20
Dow.tom is offline   Reply With Quote
Old 12-30-2007, 12:29 AM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

the flanges for the intake and charge pipe on the T28 are clocked at different angles... but unless you are using the stock sr20 elbows this shouldnt matter. if you are, buy addapter flanges or make your own..thats wat i did on my 240
240_to_miata is offline   Reply With Quote
Old 12-30-2007, 12:56 AM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

I think the T28s are a bit more rare, and expensive...right?
miatamania is offline   Reply With Quote
Old 12-30-2007, 01:43 AM   #7
Senior Member
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

i believe so, i think the 28 had a .80 AR like my 2 and the t25 had a .46
Dow.tom is offline   Reply With Quote
Old 12-30-2007, 01:51 AM   #8
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

my t25 had a .80 iirc, they came in two sizes.
miatamania is offline   Reply With Quote
Old 12-30-2007, 11:27 AM   #9
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

the t25's come in a few different sizes, depending on whether it was on a gtir (sentra)... redtop SR or a few later blacktops

the t28 also came in different sizes depending on s14 or s15... only the s15 is fully ball bearing

And yes..they are more expensive
240_to_miata is offline   Reply With Quote
Old 12-30-2007, 08:43 PM   #10
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

From wiki.
The second generation in the S14 Silvia produced 220 PS (166 kW) through the use of Nissan's VTC variable valve timing and a ball bearing turbocharger. The final S15 Silvia version produced 250 PS (187 kW) @6400 rpm and 275 nm @4800 rpm with an improved Inconel impeller wheel for its turbocharger.

I picked up my T28 BB for $201 shipped off ebay.
jobambo is offline   Reply With Quote
Old 12-30-2007, 08:49 PM   #11
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by jobambo
I picked up my T28 BB for $201 shipped off ebay.
That's a helluva deal.

There's also FWD T25's and T28's. Bluebirds & Avenier's had the T25 (a small number of them are ball bearing), GTiR's had the T28, all are journal bearing.

C
chriscar is offline   Reply With Quote
Old 12-30-2007, 08:50 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

AHHHHHHH.

Tom the turbo you have is a t25.

t28 + t3 = t28

all t25s have a 50mm exducer, all t28s have a 60mm exducer...the rest is exactly the same.

the only difference between them is the compressor wheel, a T28 will have the exact compressor wheel I have, a T3 super 60 wheel. 47mm inducer / 60mm exducer.



the t28s are harder to find.....the end.


some t28s come off GTRs and have an odd turbine outlet which requires a different flange.

only JDM t28s have BBs and most likey have said odd shaped turbine outlet flange.
Braineack is offline   Reply With Quote
Old 12-30-2007, 09:24 PM   #13
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

The T25 I have sitting on my desk has a .64 A/R on the turbine.
Saml01 is offline   Reply With Quote
Old 12-30-2007, 10:34 PM   #14
Senior Member
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

scott send me your t3, i'll turn it to a t28 than..
Dow.tom is offline   Reply With Quote
Old 12-30-2007, 11:35 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I have a spare 50 trim t3 wheel....you still gotta machine the housing

the wheel itself is about 10mm taller, which would also have to get milled off so it could fit on your shaft.



tom, here's your wheel vs. my t3 wheel.
Braineack is offline   Reply With Quote
Old 12-30-2007, 11:59 PM   #16
Senior Member
iTrader: (3)

Join Date: Apr 2007
Location: Odenton, MD
Posts: 713
Total Cats: 0
Default

just let me think, i may do it... i know you were thinking bout doing it while you were taking my turbo apart looking to see if they're compatible.
Dow.tom is offline   Reply With Quote
Old 12-31-2007, 12:13 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

yep. i wanted to see for myself what it would take. it's a common upgrade, technically it's all a t28 is.

even now. a gt2860 is a 47mm inducer and 60mm exducer, the same size wheel as mine. my advantage however is the larger turbine.
Braineack is offline   Reply With Quote
Old 12-31-2007, 03:20 AM   #18
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,048
Total Cats: 4
Default

Like people have said they aren't used as often because they are rarer and more expensive.

The sr20 t25's are a dime a dozen.

Of the journal bearing t28's the one off of the gti-r seems to be the one to have.
Efini~FC3S is offline   Reply With Quote
Old 12-31-2007, 05:11 AM   #19
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

here are some more info on my T28 turbo.
First the ebay link
http://cgi.ebay.com/ebaymotors/ws/eB...MEWN:IT&ih=001

Some close ups.




Part number reads
14411-69F00
466541-1

According to http://www.turbobygarrett.com/turbob...R_466541_1.htm
I believe this is a GT2560R Turbo. For the first time, luck might be on my side.
BTW today is my Bday, if this is a gt2560r i could not be any happier.
jobambo is offline   Reply With Quote
Old 12-31-2007, 05:46 AM   #20
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

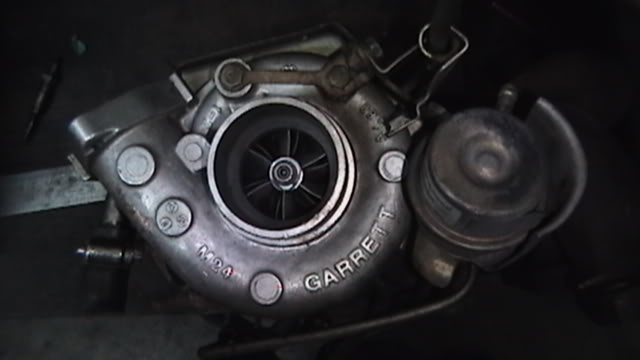

Most of the SR T25 turbos I see are like Jobambo's, where the compressor inlet has a 2 bolt diamond shape. However, I've also seen some SR T25 that are round like this. What's the difference (other than shape)?

Name:  Turbo027.jpg
Views: 28
Size:  23.1 KB
kenzo42 is offline   Reply With Quote
