Default Will ATP Compressor Adapter Clear AC if Turbo Is Clocked Downwards

This is w/ a Begi manifold and T25 on a 1991. Thanks.
kenzo42 is offline   Reply With Quote
Old 10-06-2008, 09:38 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,780
Default

it should.
Braineack is online now   Reply With Quote
Old 10-06-2008, 01:14 PM   #3
Junior Member
iTrader: (3)

Join Date: Oct 2007
Location: Fremont, CA
Posts: 173
Total Cats: 0
Default

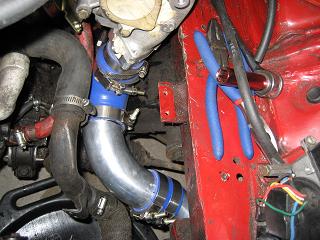

It would, but very tight against the crossmember. Should get a 90 degree elbow.

You need to relocate the radiator hose too.
Attached Thumbnails
Will ATP Compressor Adapter Clear AC if Turbo Is Clocked Downwards-b.jpg
rippledabs is offline   Reply With Quote
Old 10-06-2008, 03:17 PM   #4
Junior Member

Join Date: Sep 2008
Posts: 218
Total Cats: 0
Default

Why not install the turbo and worry about clocking it and routing the pipes when it is in the car?

If you are fabbing your own pipes, you shouldn't bother cutting until you have a chance to install everything the pipes connect to.

If you are buying a kit, the kit maker should have figured this out before they sold it to you.
JimAtFSU is offline   Reply With Quote
Old 10-06-2008, 05:01 PM   #5
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

It will hit the PWS lines also.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 10-06-2008, 05:11 PM   #6
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

What is PWS?

I don't have power steering btw.
kenzo42 is offline   Reply With Quote
Old 10-06-2008, 06:04 PM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I would seriously recommend you get a dremel and chop off the retarded 3 bolt flange on it.

Edit: Bench grinder will work as well.
Saml01 is offline   Reply With Quote
Old 10-07-2008, 05:52 PM   #8
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Quote:
Originally Posted by Saml01 View Post
I would seriously recommend you get a dremel and chop off the retarded 3 bolt flange on it.

Edit: Bench grinder will work as well.
I have a T25 off a 300zx where the flange starts right at the compressor housing, so cutting it off would leave no room to slide a coupler on. Maybe the OP has a similar situation.
messiahx is offline   Reply With Quote
Old 10-07-2008, 05:54 PM   #9
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by messiahx View Post
I have a T25 off a 300zx where the flange starts right at the compressor housing, so cutting it off would leave no room to slide a coupler on. Maybe the OP has a similar situation.

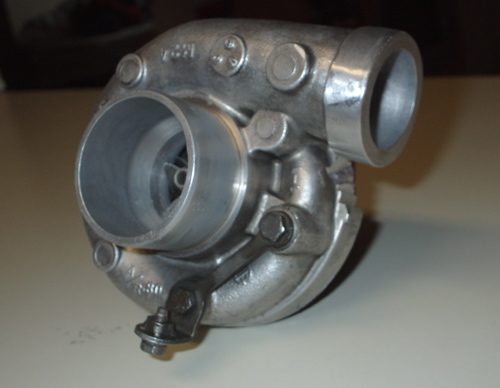

I think he meant to round it off, not chop it off. There was a thread on it...somewhere.

Here, found the picture.
Attached Thumbnails
Will ATP Compressor Adapter Clear AC if Turbo Is Clocked Downwards-05200002.jpg
kenzo42 is offline   Reply With Quote
Old 10-07-2008, 07:31 PM   #10
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Ah. My bad. I'll have to look into that. Do you think the machining can be done for less than the cost of the adpater (which is $30-40)?

Also, where would you get the wastegate signal from, then? The adapter usually comes with a fitting and if I'd have to drill for a fitting, it seems like it'd just be simpler to get the adpater.
messiahx is offline   Reply With Quote
Old 10-07-2008, 10:22 PM   #11
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

DIY w/ dremel, as Sam put it. Saw off the corners then shape it w/ a dremel. You'll need a good carbide.

Drill the fitting. Or do as Joe did and place it on the cold side.
kenzo42 is offline   Reply With Quote
Old 10-11-2008, 06:39 AM   #12
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

yay! i see someone getting banned
UrbanSoot is offline   Reply With Quote
