Old 12-13-2012, 08:06 PM   #21
Junior Member

Join Date: Oct 2012
Posts: 83
Total Cats: 0
Default

Yep, there the ones that most of us use. I myself am running a set of 1.8l injectors and a fmu also just retarded my timing and im im 7ish psi right now
My92 is offline   Reply With Quote
Old 12-13-2012, 08:11 PM   #22
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Please read:

Fuel Injectors - Miata Turbo FAQ
Adjustable Fuel Pressure Regulator - Miata Turbo FAQ
Fuel Pump - Miata Turbo FAQ

But don't stop with those pages. TONS of stuff on there you need to read up on before you go any further.
EO2K is offline   Reply With Quote
Old 12-13-2012, 09:01 PM   #23
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

If I got bigger injectors, would a fmu be necessary?
firefaux is offline   Reply With Quote
Old 12-13-2012, 09:13 PM   #24
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

The FAQ says stock injectors are good up to 6 psi.. Could I do that without a fmu?
firefaux is offline   Reply With Quote
Old 12-13-2012, 10:13 PM   #25
Junior Member

Join Date: Oct 2012
Posts: 83
Total Cats: 0
Default

You need the FMU to raise the fuel pressure with boost. That increases your fuel flow or cc`s. With out a FMU its not gonna work
My92 is offline   Reply With Quote
Old 12-13-2012, 11:00 PM   #26
Junior Member

Join Date: Oct 2012
Posts: 83
Total Cats: 0
Default

You need the FMU to raise the fuel pressure with boost. That increases your fuel flow or cc`s. With out a FMU its not gonna work
My92 is offline   Reply With Quote
Old 12-14-2012, 12:19 AM   #27
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Just out of curiosity, what manifold are you running?
dustinb is offline   Reply With Quote
Old 12-14-2012, 01:14 AM   #28
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

plan to weld together a custom 304 ss manifold
firefaux is offline   Reply With Quote
Old 12-14-2012, 03:41 PM   #29
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

Theres so many holes, how do i know which ones the oil drain and feed and such?
firefaux is offline   Reply With Quote
Old 12-14-2012, 03:45 PM   #30
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

Quote:
Originally Posted by My92 View Post
You need the FMU to raise the fuel pressure with boost. That increases your fuel flow or cc`s. With out a FMU its not gonna work
I see. Corct me if im wrong, but it uses the pressure in the intake to boost the fuel pressure?
firefaux is offline   Reply With Quote
Old 12-14-2012, 03:51 PM   #31
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

[Wille=firefaux;959264]Theres so many holes, how do i know which ones the oil drain and feed and such?[/quote]

Are you sure you should be installing a turbo? The oil drain will be easy, it has two bolts. The oil feed is exactly opposite. The remaining two are water. They are not directional. And yes you will probably have to clock the turbo (rotate it).
dustinb is offline   Reply With Quote
Old 12-14-2012, 05:03 PM   #32
Junior Member

Join Date: Oct 2012
Posts: 83
Total Cats: 0
Default

Quote:
Originally Posted by firefaux View Post
I see. Corct me if im wrong, but it uses the pressure in the intake to boost the fuel pressure?
Yes, in a round about kinda way it work just like a Rising rate fuel pressure regulator, for every lb of boost it will increase fuel pressure by a said amount.
My92 is offline   Reply With Quote
Old 12-16-2012, 12:38 AM   #33
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

ok. sweet. One more question: given that the exhaust port for my turbo is a 3 bolt and the wastegate recirculates the gases back to the turbine, would i have to setup my system differently in any way or is it all pretty standard?

firefaux is offline   Reply With Quote
Old 12-16-2012, 12:49 AM   #34
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by firefaux View Post
ok. sweet. One more question: given that the exhaust port for my turbo is a 3 bolt and the wastegate recirculates the gases back to the turbine, would i have to setup my system differently in any way or is it all pretty standard?

You have an internal wastegate. You just need to have a downpipe made with the proper flange.
dustinb is offline   Reply With Quote
Old 12-16-2012, 01:24 AM   #35
Junior Member

Join Date: Oct 2012
Posts: 83
Total Cats: 0
Default

All the wastegate does in a dumbed down manner is allow exhaust gasses to BYPASS the exhaust turbine so you only make the appropiate boost (in this case what ever boost pressure your wastegate is set at) with out it the turbo would just spin till it popped.
My92 is offline   Reply With Quote
Old 12-19-2012, 01:47 AM   #36
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

Quote:
Originally Posted by My92 View Post
I would look for atleast a FMU, there easy to obtain and will allow you to run a low boost setting. Be sure to retard your timing some to help keep knock away if your running a stock ecu. Usually retarding 4 degrees ahould be a safe bet for around 5-6 psi with a FMU.

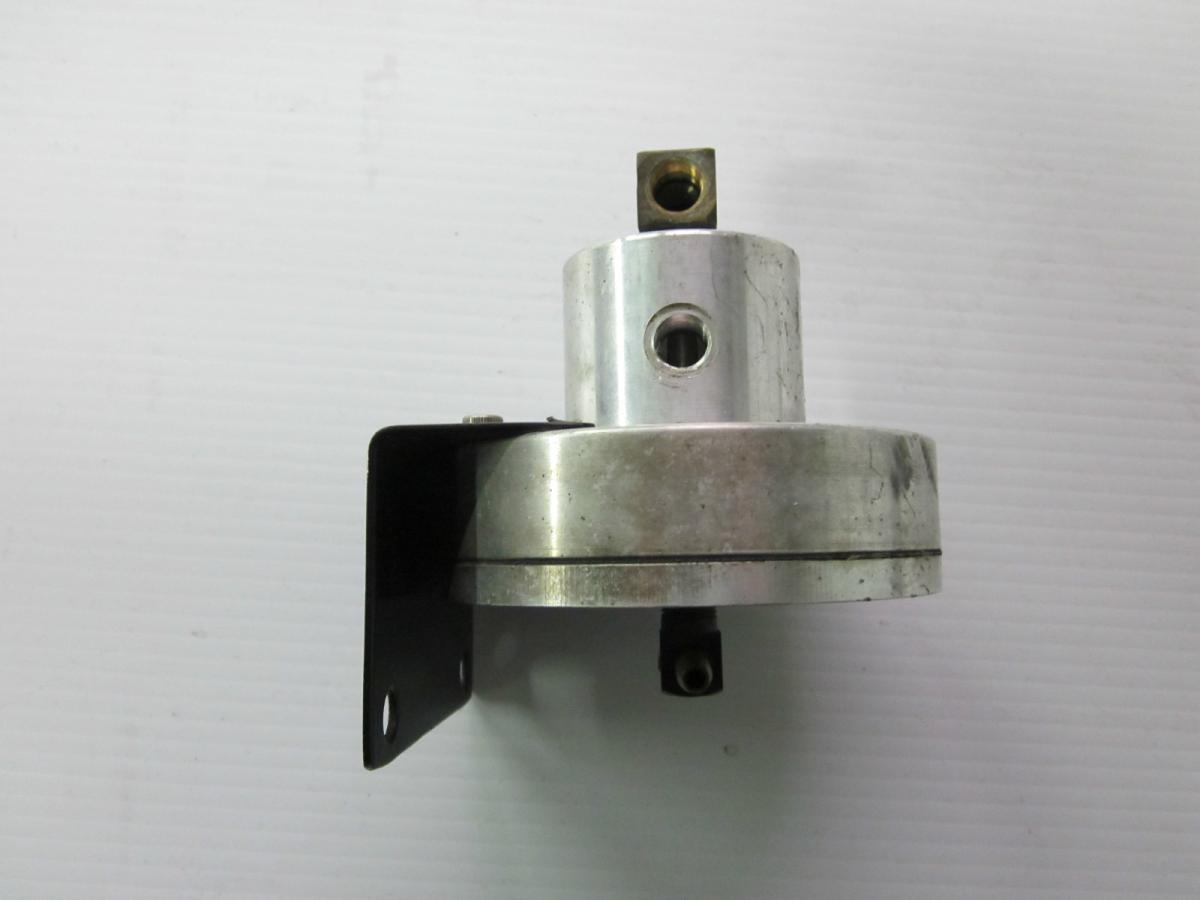

just got some 97 injectors and a procharger fmu.
now as for the installation, the top goes to the intake pressure, the middle goes to the gas input and bottom goes to gas return???

NOTE: THIS PICTURE IS UPSIDE DOWN
Attached Thumbnails
Word of advice please on my T25-%24-kgrhqv-p8fbmujr9sjbqp-kre2-g%7E%7E60_57.jpg
firefaux is offline   Reply With Quote
Old 02-01-2013, 02:11 AM   #37
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

just got 1.8 injectors, procharger fmu, 255lph hp fuel pump, and a cheap ebay cast iron mani im planning to cut relief lines on. would a MSD Boost Control sufficient for low boost mods? if so how much boost?
firefaux is offline   Reply With Quote
Old 02-01-2013, 12:52 PM   #38
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

would one of these work? or even needed? MSD Boost Ignition Timing Unit for Miata 1990-1997
firefaux is offline   Reply With Quote
Old 02-01-2013, 03:51 PM   #39
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Is that a 1:1 FMU or a rising rate FMU ? I don't know anything much about FMUs but know that the rising rate FMU raises the fuel pressure by 8 or 12 lbs (or something) for every pound of manifold air pressure increase and that you can change an internal part to adjust how much it rises per pound of manifold pressure to change the fuel air ratio.

Do you have a wideband oxygen sensor or are you going to run a small hose up to the cabin to smell the exhaust under boost to tell if it is rich or lean?
sixshooter is online now   Reply With Quote
Old 02-01-2013, 03:56 PM   #40
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 61
Total Cats: -2
Default

ya i plan to have a wideband sensor
