Old 09-15-2010, 02:47 AM   #21
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

Is the ground for the ecu (92') in the *passenger side or driver side* rear of the cylinder block? I think more people had/have success with the ecu ground.
x8mrxjohn8x is offline   Reply With Quote
Old 09-15-2010, 03:04 AM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

nevermind, I found my answer for my ECU grounding points.
x8mrxjohn8x is offline   Reply With Quote
Old 05-20-2011, 04:27 PM   #23
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

I’m reviving my thread after having my car sit for a good half a year.
I finished the hot side part of the turbo. This includes fitted turbo, manifold, lines, intercooler, and downpipe. What I need to finish is (have several questions):
1. Get my bumper cut for the dual exhaust and add another exhaust hanger because my magnaflow muffler is too heavy.

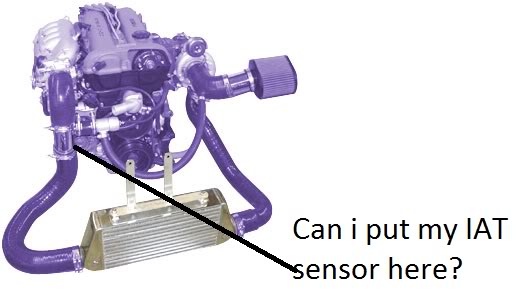

2. Mount BOV, IAC hose, and IAT sensor on cold side (on intercooler piping between throttle and cold side of intercooler). Would it be okay to mount the IAT Sensor at this location?
3. Hook up Electronic Boost controller
Instructions
http://www.diyautotune.com/catalog/e...kit-p-285.html

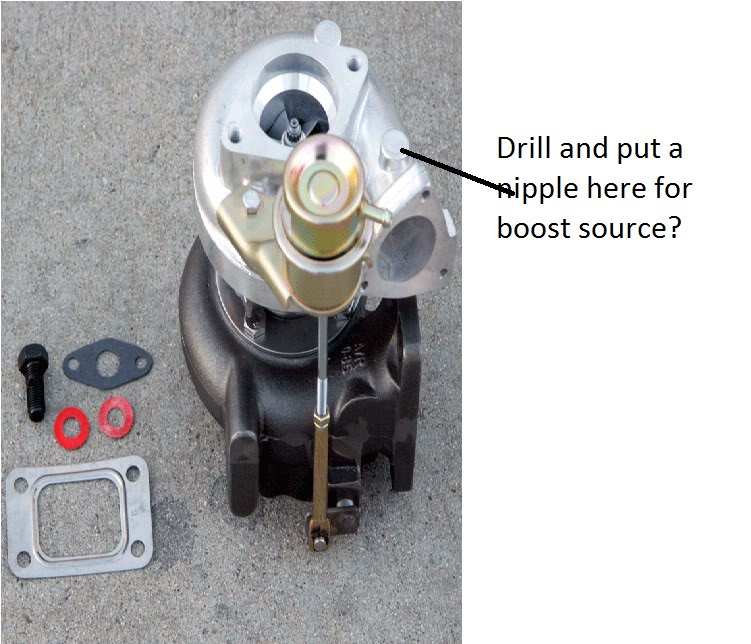

Do I have to drill a hole at the spot (pictured below) and use this as my boost source? Is there any alternative way? Do I just drill and weld a nipple on there?
4. Hook up my gauges, boost gauge
5. Start car (hopefully)

Also, how do I know if i need a oil restrictor
I have this turbo
http://cgi.ebay.com/ebaymotors/T25-T...Q5fAccessories
Name:  IATsensor.jpg
Views: 3
Size:  25.2 KB
Name:  boostcontroller.jpg
Views: 2
Size:  97.7 KB
x8mrxjohn8x is offline   Reply With Quote
Old 05-20-2011, 04:29 PM   #24
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

I will get up pictures of what I've done so far tomorrow.
x8mrxjohn8x is offline   Reply With Quote
Old 05-20-2011, 05:02 PM   #25
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I would recommend putting your IAT sensor much closer to the outlet of the intercooler, and putting the boost source nipple where you originally wanted to put the IAT sensor.
skidude is offline   Reply With Quote
Old 05-22-2011, 06:31 AM   #26
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

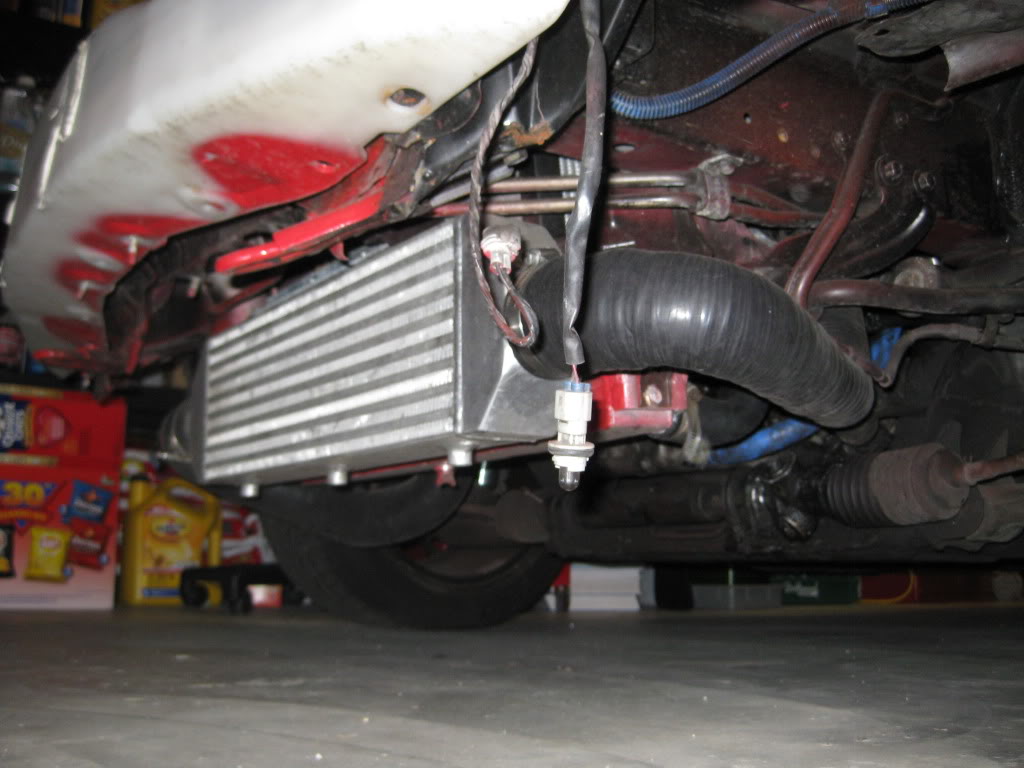

Name:  IMG_0903.jpg
Views: 2
Size:  87.4 KB

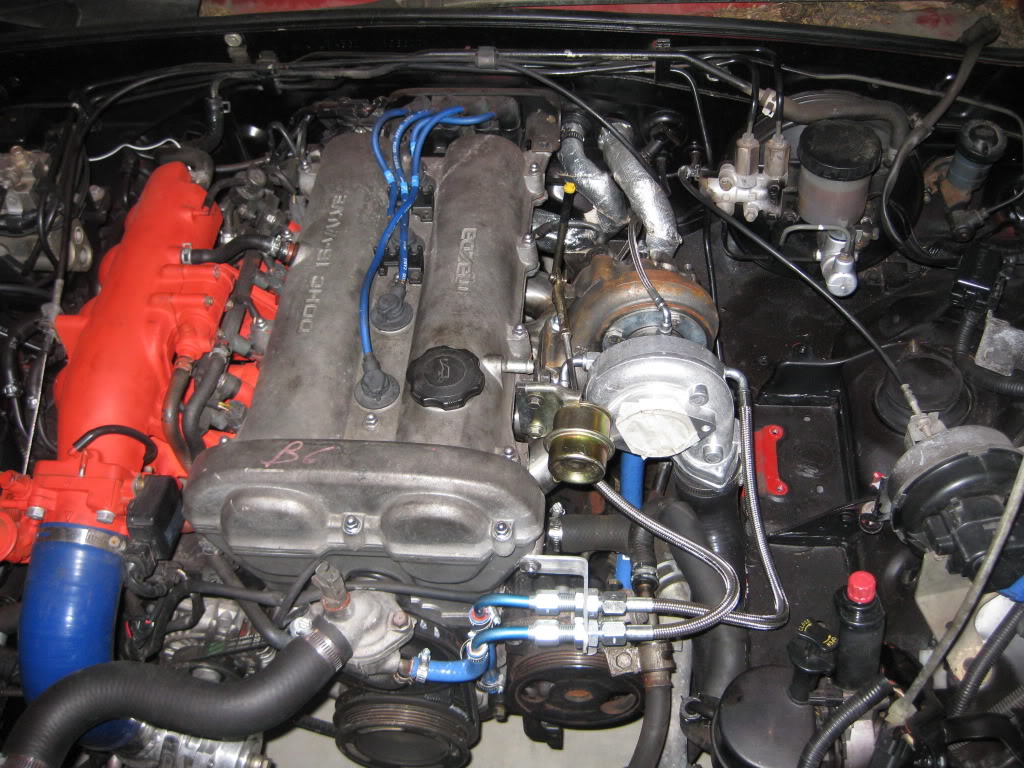

Name:  IMG_0899.jpg
Views: 2
Size:  173.8 KB

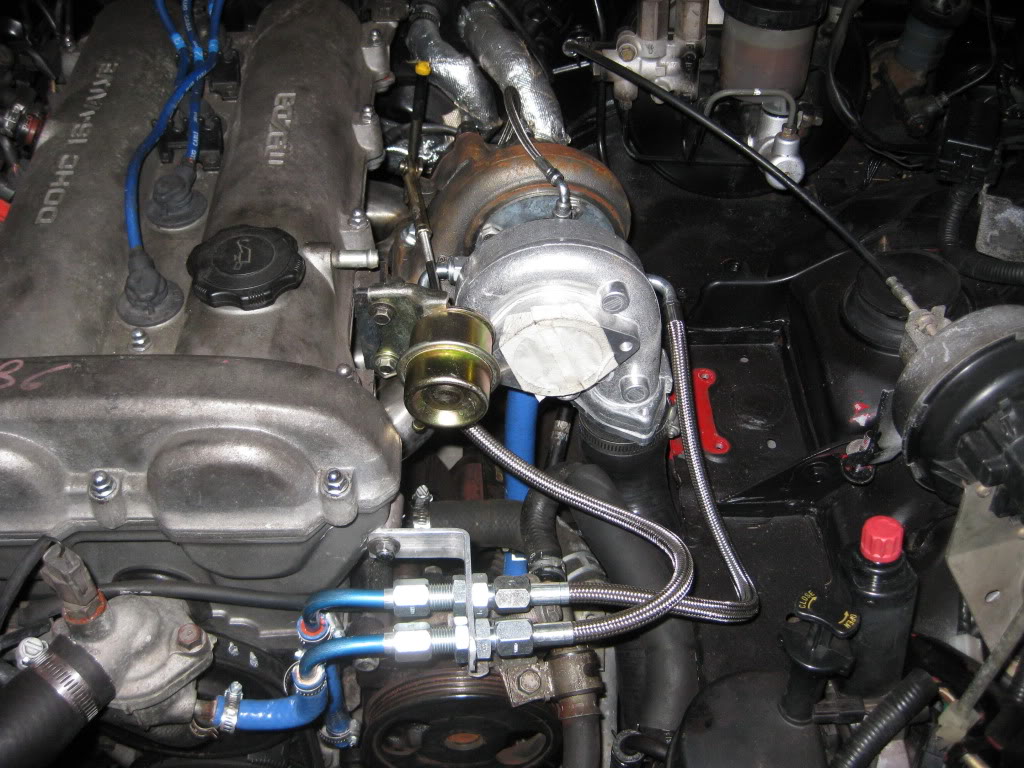

Name:  IMG_0900.jpg
Views: 2
Size:  159.4 KB

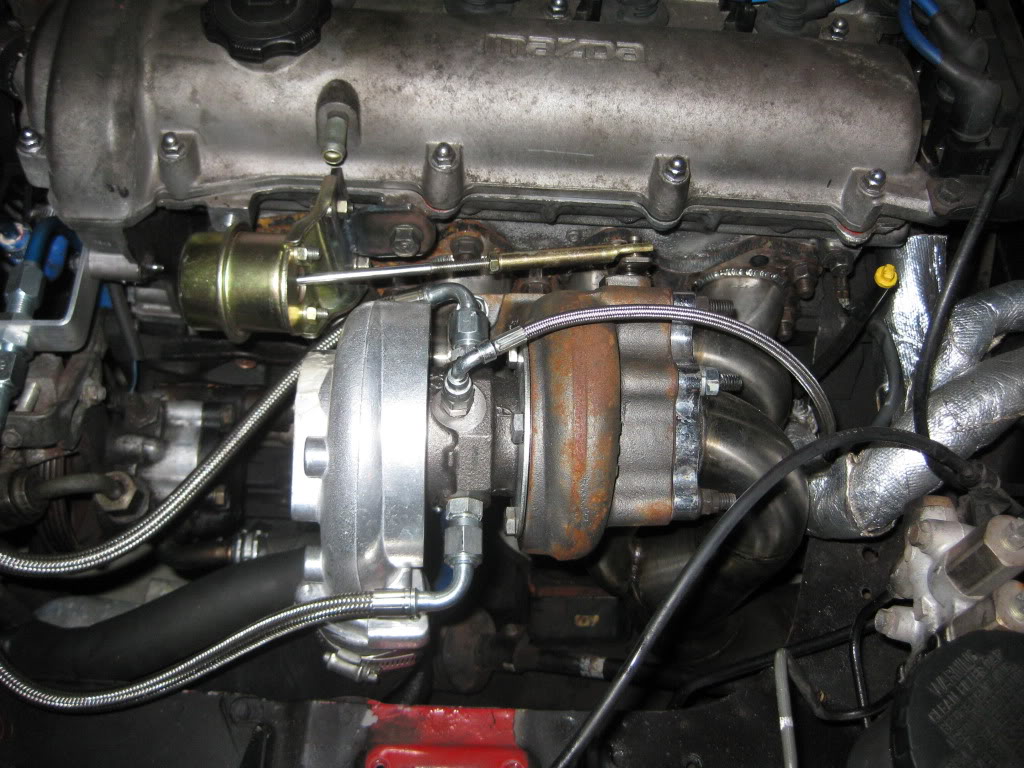

Name:  IMG_0898.jpg
Views: 2
Size:  156.5 KB
Can you guys help me answers the rest of the questions I asked above.
Thank you
x8mrxjohn8x is offline   Reply With Quote
Old 05-22-2011, 07:36 AM   #27
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

edit: nevermind i'm an idiot, excessive drinking plus forum advice shouldnt mix, looks like youve already fixed your grounding issues, i didn't see the dates on the post.

Anyways, as far as your other questions go... read through THIS thread for boost source and iat position. To sum it up though... Both should be post intercooler, pre throttle body for best results. The iat position in your picture is perfect but alot of people put it in the cold side intercooler end tank for ease of installation. The first picture that you refer to iat position would however be a perfect place place for your boost source. If you put the boost source were you asked about, the wastegate will be seeing more pressure than the throttle body sees (due to it going through the intercooler) and opening the wastegate "prematurely". It explains why in that thread.
Short version:
IAT can be anywhere after the intercooler and before the throttle body.
Boost pressure source can be anywhere after the intercooler but benefits from being as close to the throttle body (before it though) as possible.

Last edited by Golferluke; 05-22-2011 at 08:01 AM.
Golferluke is offline   Reply With Quote
Old 07-07-2011, 03:19 AM   #28
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Los Angeles, California
Posts: 176
Total Cats: 0
Default

well after a year or so, I finally plan on having my car tuned 2 weeks away from now. I have this turbo:
http://cgi.ebay.com/ebaymotors/T25-T...d=246139424211
If i plan on running 8psi or 10psi, what kind of numbers do you think I should expect?
x8mrxjohn8x is offline   Reply With Quote
Old 07-07-2011, 07:40 PM   #29
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

160-200, Proly make 160 on the wastegate at 7psi closer to 200 on 10psi, who knows though.
1slowna is offline   Reply With Quote
