After searching for a good while, I've come up with no results. I just need to know if drilling/tapping the spot on my oil pan directly between where the dipstick comes out and the tranny is acceptable? It just works much better with my setup than drilling further forward of the pan
bash253 is offline   Reply With Quote
Old 05-28-2013, 03:04 AM   #2
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

what setup are you installing that you rather try a different spot then our traditional location?
zipstrips is offline   Reply With Quote
Old 05-28-2013, 12:36 PM   #3
Newb
Thread Starter

Join Date: Mar 2013
Posts: 36
Total Cats: -14
Default

Its a homebrew setup using a manifold that I made myself, the turbo sits closer to the radiator and the PS/AC cause problems. I'm pretty sure my location is ok, but I figured I should check first.
bash253 is offline   Reply With Quote
Old 05-28-2013, 04:34 PM   #4
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

Look at my diy turbo thread i just posted yesterday if you want another idea
sickmiatabra is offline   Reply With Quote
Old 05-28-2013, 04:42 PM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Do you have the engine out of the car and the oil pan off? The biggest reason everyone puts the oil drain in the same spot towards the front is because that is where you can get with a drill to make the whole with AC installed. If the engine is out you can put the drain just about anywhere as long as it does not hit anything else.
shuiend is offline   Reply With Quote
Old 05-28-2013, 04:58 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by shuiend View Post
If the engine is out you can put the drain just about anywhere as long as it does not hit anything else.
Yup.

I've never really looked all that closely at the location you describe while the engine is actually installed in the car, mostly because I'd consider it sub-optimal relative to the usual location of a turbocharger.

But if you've got a special-case scenario, and you are satisfied that you can route the drain line in such a way as to clear the engine mount and subframe without putting any weird bends into it, then there's no reason why you couldn't return the oil to the rear of the pan rather than the front.
Joe Perez is offline   Reply With Quote
Old 05-29-2013, 04:17 AM   #7
Newb
Thread Starter

Join Date: Mar 2013
Posts: 36
Total Cats: -14
Default

Thanks joe, that's relieving. Its also the most accessible for me, ill just drill from the wheelwell with a jobber
bash253 is offline   Reply With Quote
Old 05-29-2013, 04:19 AM   #8
Newb
Thread Starter

Join Date: Mar 2013
Posts: 36
Total Cats: -14
Default

Also shuiend, having read many writeups I syill fail to see where people are fitting their drills up there, elaborate perhaps?
bash253 is offline   Reply With Quote
Old 05-29-2013, 09:30 AM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Looks easy to go down from the top and rest the drill on the steering rack. But I have no accessories on that side of the engine.
Leafy is offline   Reply With Quote
Old 05-29-2013, 02:58 PM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

Take note that the oil pump pickup tube is just inside the oilpan in many locations down that side and when you drill through the pan you can wreck your day by puncturing the pickup tube.
sixshooter is offline   Reply With Quote
Old 05-30-2013, 09:01 AM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by bash253 View Post
Also shuiend, having read many writeups I still fail to see where people are fitting their drills up there, elaborate perhaps?
If you check the FM install directions or the BEGI install directions they have pictures of how to fit the drill. My hole was drilled 6 years ago by Braineack so I do not remember what all exactly had to be done to fit the drill.

Quote:
Originally Posted by sixshooter View Post
Take note that the oil pump pickup tube is just inside the oilpan in many locations down that side and when you drill through the pan you can wreck your day by puncturing the pickup tube.
This is another thing that does have to be looked out for when drilling the pan.
shuiend is offline   Reply With Quote
Old 06-09-2013, 02:32 PM   #12
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

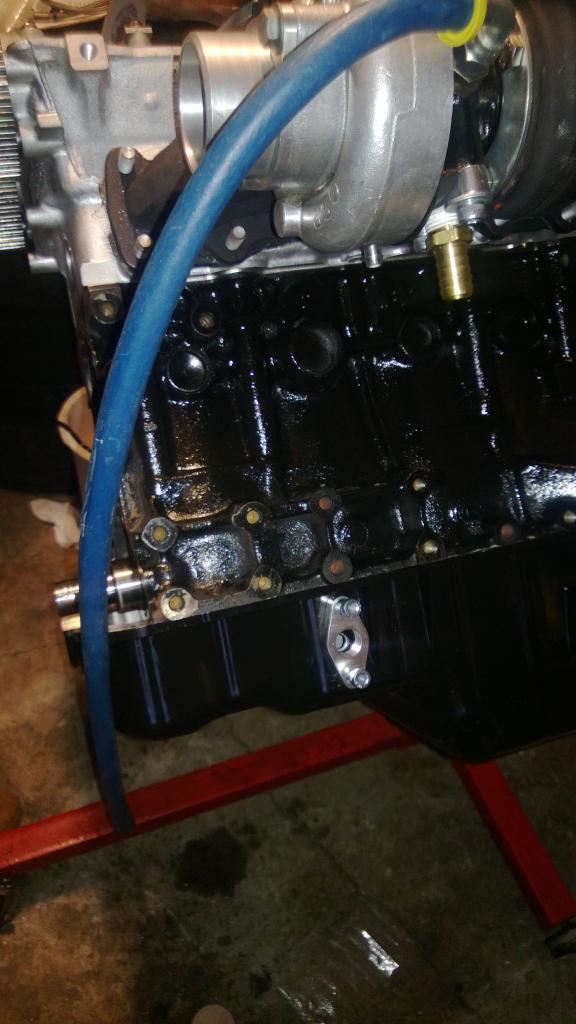

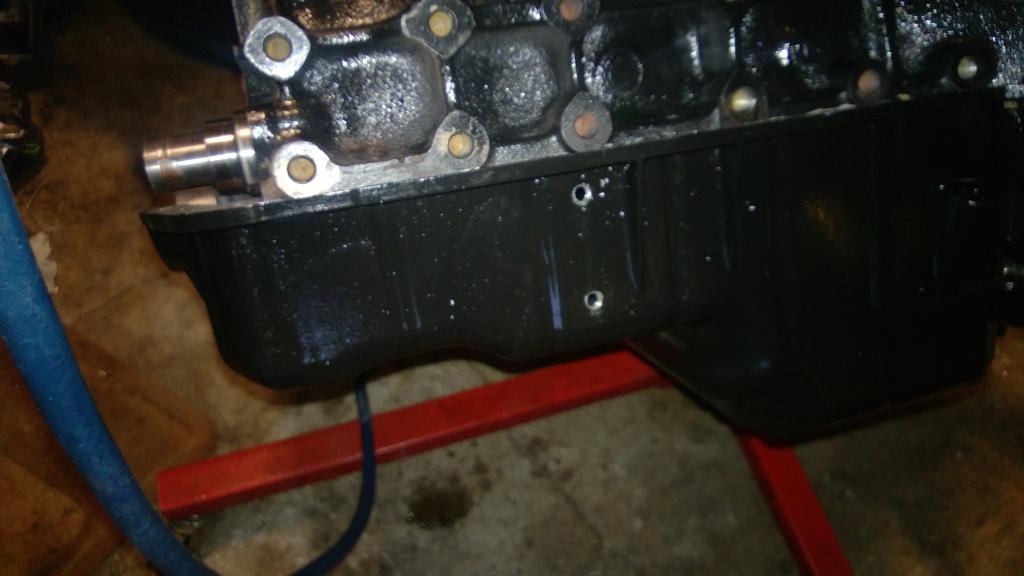

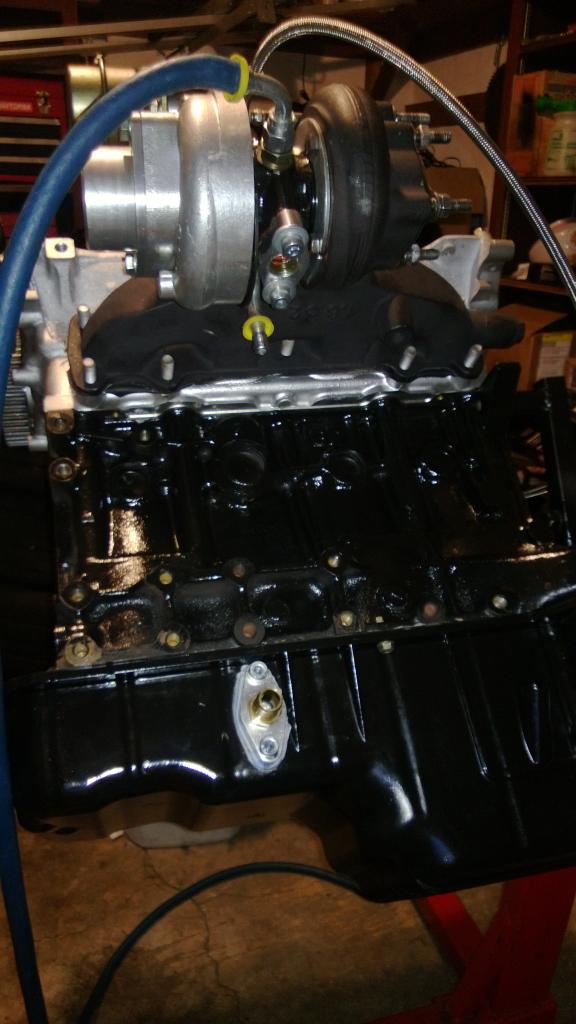

i would've loved to tap the oil pan but buying that ONE USE tool wasn't worth it...so searching around, i found a T3/T4 oil return plate that is threaded for 5/8's NPT brass fittinng
so, the tinkering started...

ended up with this:

awesome thing is that if it ever breaks, all i need to replace is the plate, and not retap a bigger hole!








hope this gives another IDEA to the TAP and sCREW approach
Attached Thumbnails
Yet another oil pan thread!-wp_20130601_001_zps005f096b.jpg   Yet another oil pan thread!-wp_20130601_003_zpse51d538a.jpg   Yet another oil pan thread!-wp_20130601_004_zps346b4259.jpg
Alejo_NIN is offline   Reply With Quote
Old 06-09-2013, 04:15 PM   #13
Newb
Thread Starter

Join Date: Mar 2013
Posts: 36
Total Cats: -14
Default

Quote:
Originally Posted by Alejo_NIN View Post
i would've loved to tap the oil pan but buying that ONE USE tool wasn't worth it...so searching around, i found a T3/T4 oil return plate that is threaded for 5/8's NPT brass fittinng
so, the tinkering started...

ended up with this:

awesome thing is that if it ever breaks, all i need to replace is the plate, and not retap a bigger hole!







hope this gives another IDEA to the TAP and sCREW approach
Not trying to be a dick, but isn't that just more work than drilling and tapping? It also looks like you have more spots to leak from. Lll
bash253 is offline   Reply With Quote
Old 06-09-2013, 04:42 PM   #14
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

no offense taken
i got this idea from the mazdaspeed protege stock oil retunr.
and it wasn't that much difficutly and as long as you put in a gasket and sealant, can't be any worse than tapping.

Quote:
Originally Posted by bash253 View Post
Not trying to be a dick, but isn't that just more work than drilling and tapping? It also looks like you have more spots to leak from. Lll
Alejo_NIN is offline   Reply With Quote
Old 06-10-2013, 06:39 AM   #15
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: scranton, pa
Posts: 103
Total Cats: 4
Default

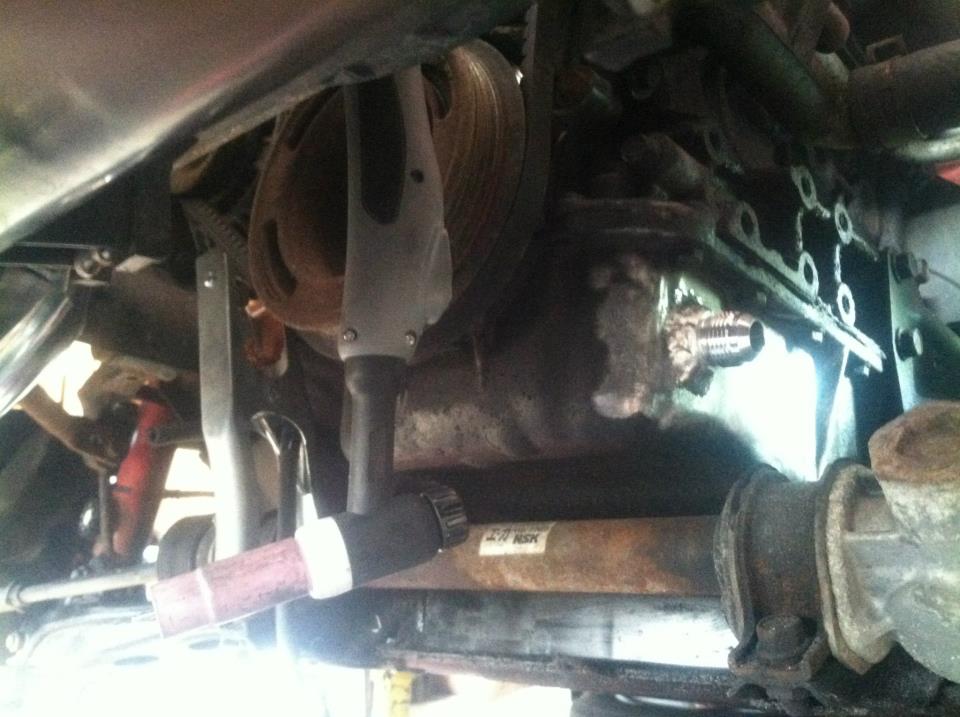

my oil pan


i realize not everyone has access to a TIG.. this has worked just fine. if it,(for some crazy reason) strips ill cut it off and weld another.
Attached Thumbnails
Yet another oil pan thread!-252268_461384787231599_2044609102_n.jpg
zipstrips is offline   Reply With Quote
Old 06-10-2013, 06:49 AM   #16
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Mine is TIG welded the same as zipstrips' but I have it back a bit further to keep air conditioning:



timk is offline   Reply With Quote
Old 06-10-2013, 09:06 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by shuiend View Post
My hole was drilled 6 years ago by Braineack so I do not remember what all exactly had to be done to fit the drill.
I had to hold it in place and drill.
Braineack is offline   Reply With Quote
Old 06-10-2013, 11:17 AM   #18
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,020
Total Cats: 114
Default

Quote:
Originally Posted by shuiend View Post
My hole was drilled 6 years ago by Braineack


Oscar is offline   Reply With Quote
Old 06-10-2013, 11:22 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

jealous?

Braineack is offline   Reply With Quote
Old 06-10-2013, 08:17 PM   #20
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

this looks sexy as ****
Quote:
Originally Posted by timk View Post
Mine is TIG welded the same as zipstrips' but I have it back a bit further to keep air conditioning:



Alejo_NIN is offline   Reply With Quote
