Default Your heater hoses...

how do you protect them???

I just got boosted, was driving around (very rich and untuned)... only hit boost here and there... come back and my heater hose is leaking bad.

-Coolant temps were 200-205 at the time according to megasquirt.
-Hard line was bent to give aprox. 1.5" of clearance from turbo elbow to heater hose.
- Hose was half-*** protected with spark plug wire wrap from advanced.
- FM mani, sr20 t25, fm outlet and downpipe.

I was thinking of trying to bend the hard line even more, and then get SS braided line.
240_to_miata is offline   Reply With Quote
Old 03-28-2009, 10:29 PM   #2
Elite Member
iTrader: (8)
Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3

I dont think I got much more clearance than you when I bent mine. Maybe half an inch more than that.

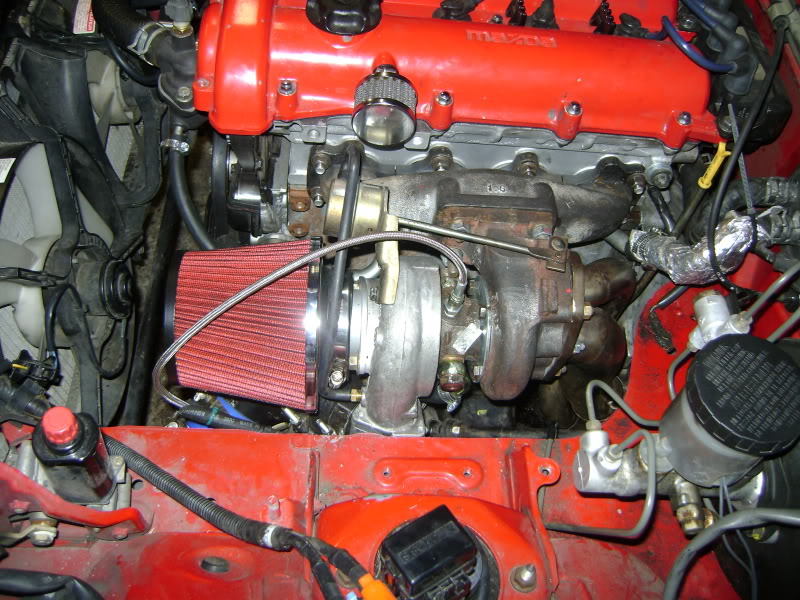

I found some ducting tape of some sort in my garage left by the last tenant. Saw no heat rating or anything about it. Its like a foam tape with foil on one side and sticky on the other. ****, I even zip-tied the top of it and its still holding up fine. Zip-tie isn't even melted. I'm betting you could get this at home depot/lowes on the cheap.

Name:  DSC00874.jpg
Views: 8
Size:  143.4 KB
wayne_curr is offline   Reply With Quote
Old 03-29-2009, 12:26 AM   #3
iTrader: (7)
Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2

i used asbestos spark plug protectant works like a charm.
magnamx-5 is offline   Reply With Quote
Old 03-29-2009, 12:39 AM   #4
Miotta FTW!
iTrader: (24)
Splitime's Avatar
Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26

I bought a starter heat sheild, cloth material, silver sided and then cut it up and wrapped the hoses and then wire wrapped the material to hold it.

My hoses are old and hard though... reminds me that I should get around to replacing them anyways.
Splitime is online now   Reply With Quote
Old 03-29-2009, 11:29 AM   #5
Elite Member
iTrader: (5)
m2cupcar's Avatar
Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290

I've linked competition products before - they've got loads of heat wrap/shield at heavy discounts.
m2cupcar is offline   Reply With Quote
Old 03-29-2009, 01:05 PM   #6
2 Props,3 Dildos,& 1 Cat
iTrader: (8)
y8s's Avatar
Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407

you need silver or gold foil faced fiberglass. the end. /thread
you will have more radiated heat than anything else and that's what the silver face rejects. I've been running this stuff on my car for eons and it's never failed.

You can see why I need it. red hot mani an <1inch away from hoses:

(actually some of that is the tape or what's left of it)

you can get it in sleeves or velcro sleeves (or tape that falls off after a few hundred miles). the sleeves / split loom mean not having to disconnect hoses.

Design Engineering, Inc. - Heat Shroud - Hook & Loop Closure
Design Engineering, Inc. - Heat Sheath - Hose/Line Sleeve
Design Engineering, Inc. - Cool Tube

all available at pretty much all the hot rodder shops.
