Default z31 turbo mystery

So on craigslist, there's a "t25 from a z31" in my price range, so I did some research...
There's so much conflicting info out there I'm not sure which way is up. I know for sure that late 300zx's came with a "t25" turbo, while the earlier ones had T3s. There was this really helpful thread here where a t25 turbo with a T3 flange came off a 300zx. I've heard that flange mismatch is the case from some other place, but that doesn't jive with what I know about turbo names...

Anyway. To the questions.

I don't mind using a T3 flange since I'm building my own manifold, but with a lack of turbine maps, how can I be sure my 1.6 will spin it?

Lets say I want to add a ton more boost. Could I use the CHRA from a GT2560R to make a sweet BB hybrid? I'm worried that I'll be stuck with a T3 flange and I'll have no options for making power under 6000rpm.



here's that thread https://www.miataturbo.net/diy-turbo...n-turbo-33468/


Brain knew about the turbo the first time, so lets see if I can summon him
Attached Thumbnails
z31 turbo mystery-fullsizerender-2_zpsu4jb7x13.jpg
squeegee is offline   Reply With Quote
Old 02-09-2016, 03:10 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Honestly find a different turbo that you know exactly what it is. The amount of time and effort to figure out if the random turbo off CL would work is not worth the hassle.
shuiend is offline   Reply With Quote
Old 02-09-2016, 03:14 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 86
Total Cats: 6
Default

Quote:
Originally Posted by shuiend View Post
Honestly find a different turbo that you know exactly what it is. The amount of time and effort to figure out if the random turbo off CL would work is not worth the hassle.
I feel ya, but finding a used T25 around $100 has been impossible. I'm even willing to do a rebuild and can't find one.
squeegee is offline   Reply With Quote
Old 02-09-2016, 03:21 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Try using searchtempest.com and searching all over the US. May be able to find one on there that someone would be willing to ship. I paid $100 for my SR20 T25 back in 07/08, I then paid the same price in 2013, and again in 2014 for more. Sadly I don't have any spare ones on hand that I could let go.
shuiend is offline   Reply With Quote
Old 02-09-2016, 04:51 PM   #5
Junior Member

Join Date: Jan 2016
Location: Atlanta, GA
Posts: 70
Total Cats: 1
Default

I got a used T25 5 days ago for $120 shipped... I didn't even look that hard(or I got lucky). The Nissan 240SX forums(zilvia.net) is where I found mine.
Wingman703 is offline   Reply With Quote
Old 02-09-2016, 08:18 PM   #6
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

check this link for detailed turbo info on the z31 turbo.

So you want a bigger turbo?
mmmjesse is offline   Reply With Quote
Old 02-10-2016, 12:20 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 86
Total Cats: 6
Default

Boom. As soon as I complain, one shows up. Maybe you guys can help me get this girl I like to go out with me this Sunday

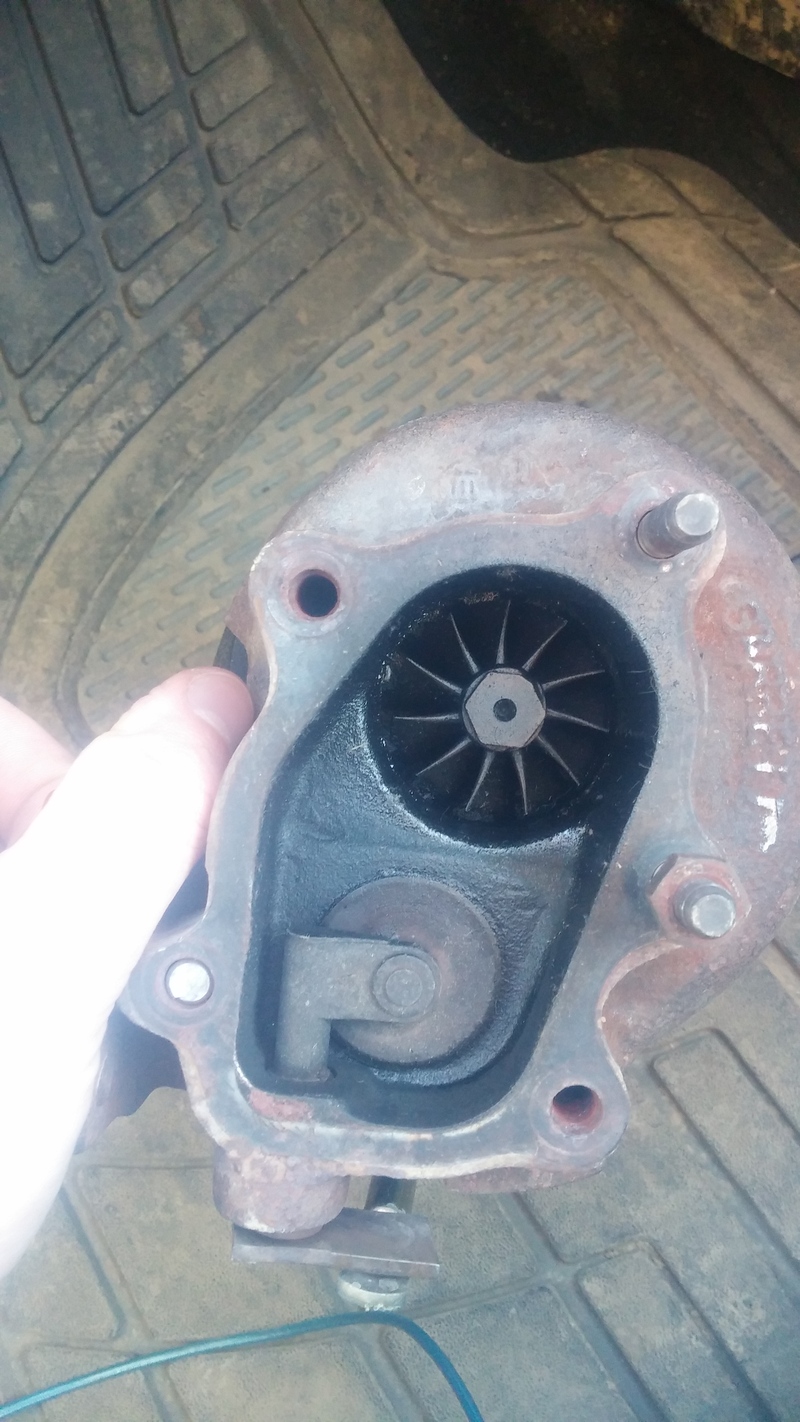

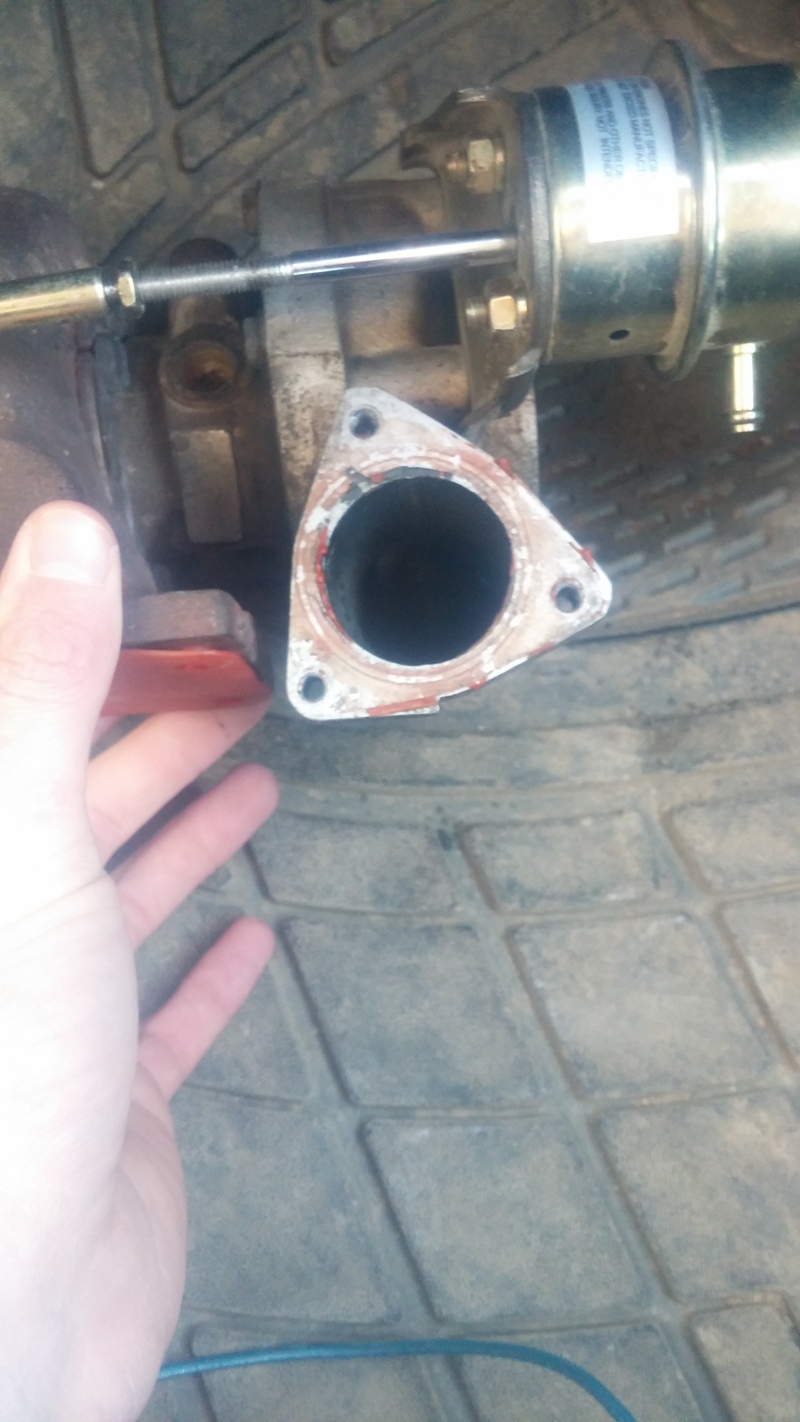

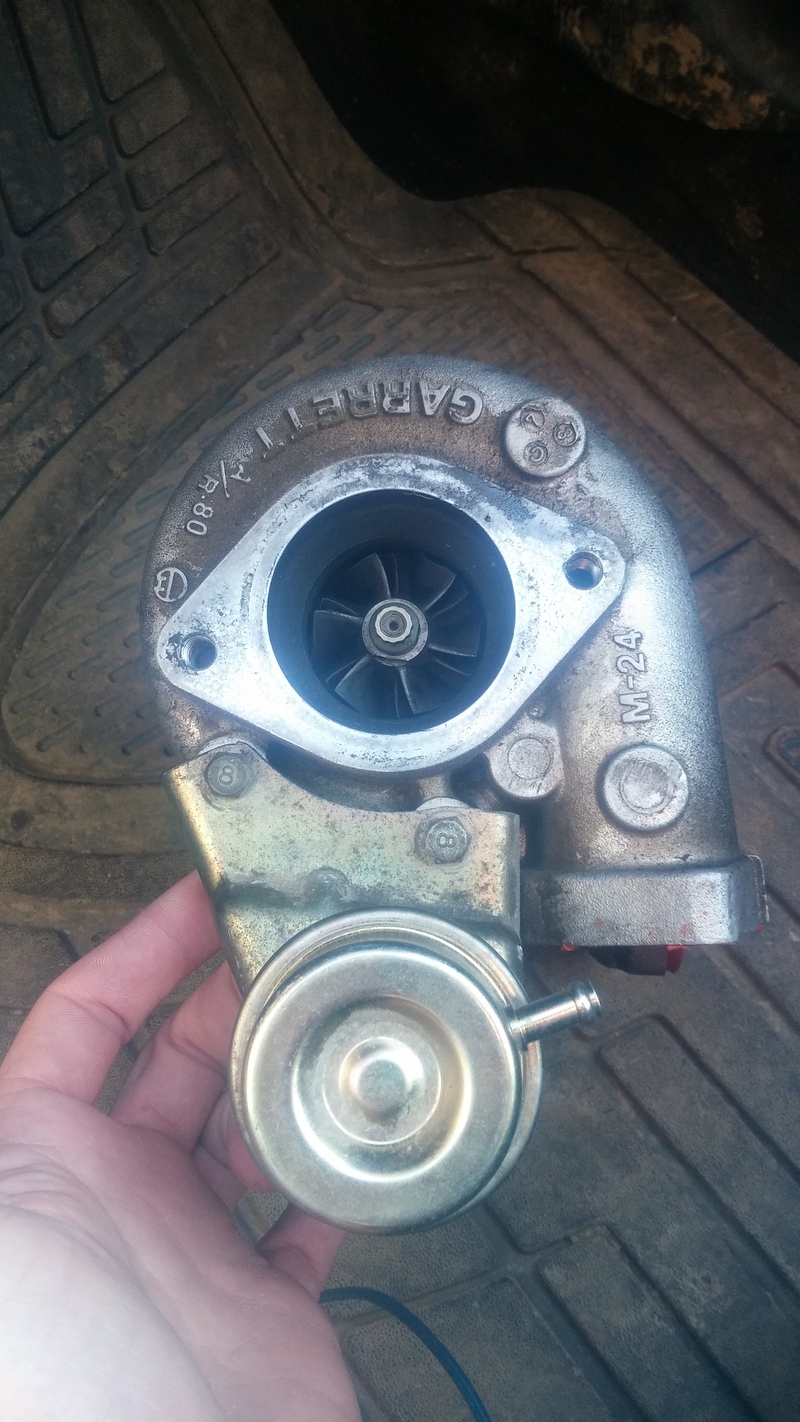

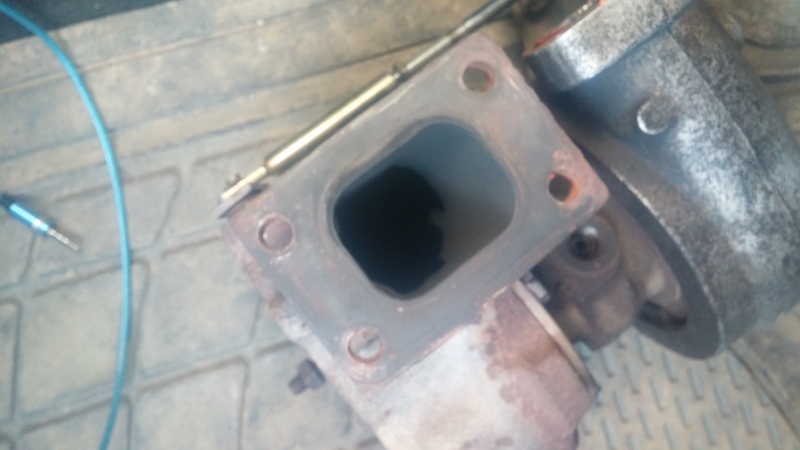

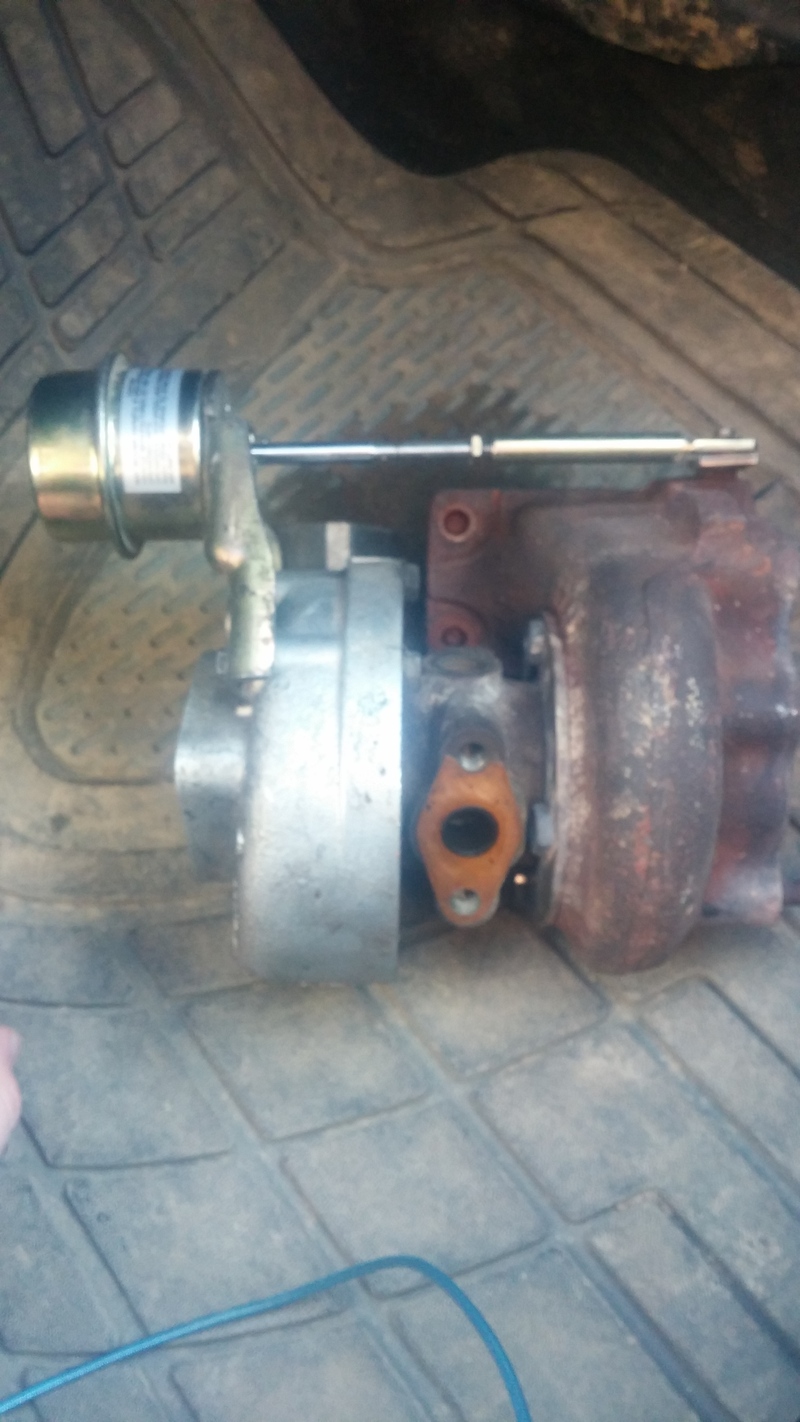

Does this look like it'll clean up ok? I'm not 100% what to look for. It has some shaft play, so I'm expecting a rebuild. It doesn't look like the fins hit the housings, which is basically all that matters right? Looks like some studs are missing too, what do people usually use?

Attached Thumbnails
z31 turbo mystery-0209161458_zpsdq6tbdgk.jpg   z31 turbo mystery-0209161458b_zpsxl8esdxz.jpg   z31 turbo mystery-0209161458c_zpswmuwlxbn.jpg   z31 turbo mystery-0209161458a_zpsmziqtcqm.jpg   z31 turbo mystery-0209161458d_zpsvlbkrs5d.jpg

squeegee is offline   Reply With Quote
Old 02-11-2016, 11:53 PM   #8
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

with all that oil on the turbine, it definately needs a rebuild. smoking turbos are a big reason people pull them off of SR's. rebuild it and it should be fine.
mmmjesse is offline   Reply With Quote
