Talking 99 Sport eBay turbo build

This is my first ever turbo build, and i want to create this thread so i can ask questions without creating a new topic each time and cluttering the forum.

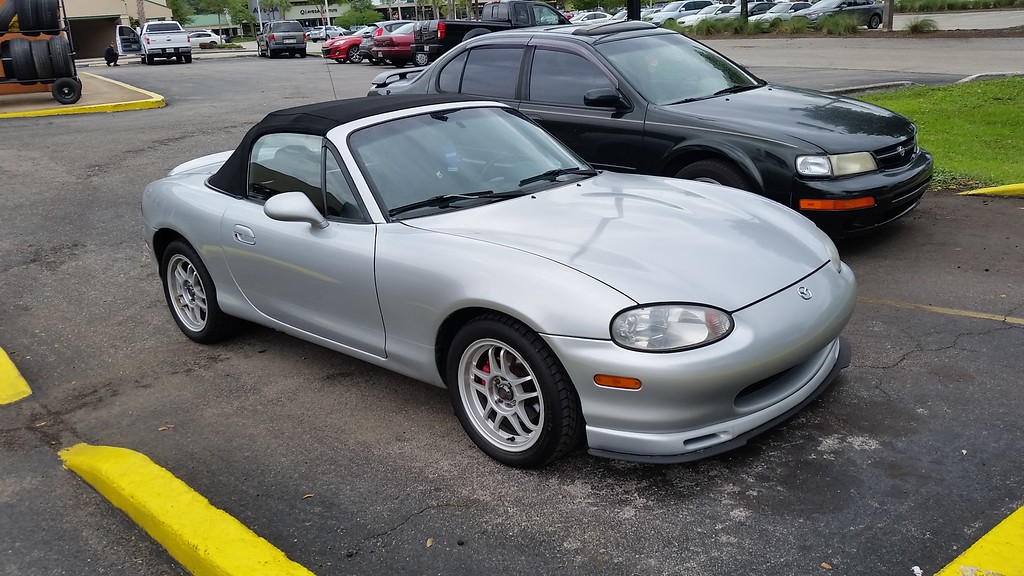

Here is my 99 Miata sport, 175K miles, mostly stock, RB header + RB dual exhaust.




My goals is 220-250HP.

Once parts start arriving i will take pictures and post progress updates.

This build could be an epic fail or success, so stay tuned.
Attached Thumbnails
99 Sport eBay turbo build-i-kcqv9n5-xl.jpg   99 Sport eBay turbo build-i-kcqv9n5-xl.jpg
borka is offline   Reply With Quote
Old 01-21-2016, 10:37 AM   #2
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

Welcome. Clean Car. Maybe find a used FM2 kit?

From which land do you hail?

Last edited by psyber_0ptix; 01-21-2016 at 10:55 AM.
psyber_0ptix is offline   Reply With Quote
Old 01-21-2016, 10:46 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 366
Total Cats: 20
Default

Quote:
Originally Posted by psyber_0ptix View Post
Welcome. Clean Car. Maybe find a used FM2 kit?

From which land do you hail from?
Im in Jacksonville, FL

I prefer not to go used, and i actually want to create something myself, and from what i see, most people here are scared of ebay stuff, so i wanted to see if i can make use of the ebay parts and actually make them work.

I already ordered most of the major parts and they should be arriving next week.

MS2E from Rev
1.8L T3 tacotaco manifold
27x5.5x2.5 intercooler
2.25" universal piping + 2.25 to 2.5" 90 degree elbow for throttle body
oil line
same turbo as in MK kit
hks ssqv clone BOV


I still need to decide on injectors (any recommendations)?
leaning toward yellow top rx7/8? enough for 250whp?

And not sure what to do with the stock IAT sensor. i dont see how to mount it into the intercooler piping and make it air tight.
borka is offline   Reply With Quote
Old 01-21-2016, 10:56 AM   #4
Newb

Join Date: Jun 2014
Posts: 43
Total Cats: -32
Default

[QUOTE=borka;1301175

And not sure what to do with the stock IAT sensor. i dont see how to mount it into the intercooler piping and make it air tight.[/QUOTE]

GM IAT sensor and weld a bung into cold side IC piping
Dobzeh is offline   Reply With Quote
Old 01-21-2016, 10:57 AM   #5
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

Just get the GM IAT and wire it into the maf wiring harness. You'll be using speed density anyway so that plug will just be unused. You can repurpose the wires from the maf for other functions back to the megasquirt if you intend on using an EBC or whatever.
psyber_0ptix is offline   Reply With Quote
Old 01-21-2016, 10:58 AM   #6
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

Quote:
Originally Posted by Dobzeh View Post
GM IAT sensor and weld a bung into cold side IC piping
What this guy said
psyber_0ptix is offline   Reply With Quote
Old 01-21-2016, 10:59 AM   #7
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 366
Total Cats: 20
Default

Quote:
Originally Posted by Dobzeh View Post
GM IAT sensor and weld a bung into cold side IC piping
no way to reuse oem sensor right?

ok. so GM sensor + weld bung after intercooler on cold side. no problemo.

now do i splice the GM sensor into the OEM sensor wires so it can talk to MS2E or do i run all new wires from gm sensor directly to MS?
borka is offline   Reply With Quote
Old 01-21-2016, 11:03 AM   #8
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 826
Total Cats: 79
Default

Just tap a hole in the cold side of the intercooler. That way it's as far away from engine heat as possible.

Wire to OEM sensor wires. It's laid out in the install docs on MSExtra.
acedeuce802 is offline   Reply With Quote
Old 01-21-2016, 11:07 AM   #9
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 366
Total Cats: 20
Default

Thanks for the replies.

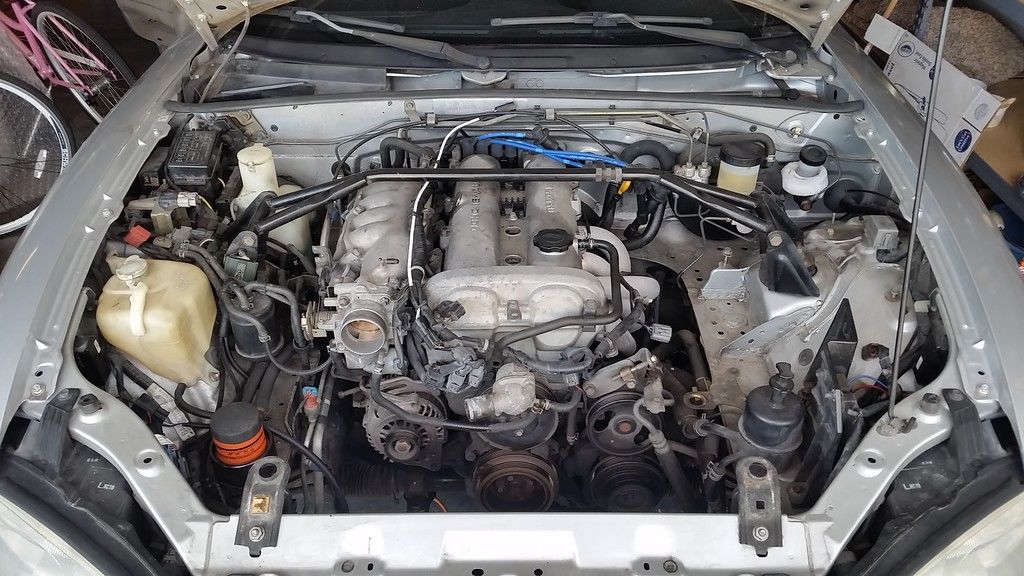

ok going to work on the Miata a bit, this weekend im sorting out all the stupid oil leaks. (cap on rear exhaust side, front main seal etc..) plus new timing belt, new acc belts and new fuel filter.


Attached Thumbnails
99 Sport eBay turbo build-80-i_2jkgdgt_xl_ad3d203c168a003fed4cf56d1777d4d722786836.jpg
borka is offline   Reply With Quote
Old 01-21-2016, 11:23 AM   #10
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 466
Total Cats: 22
Default

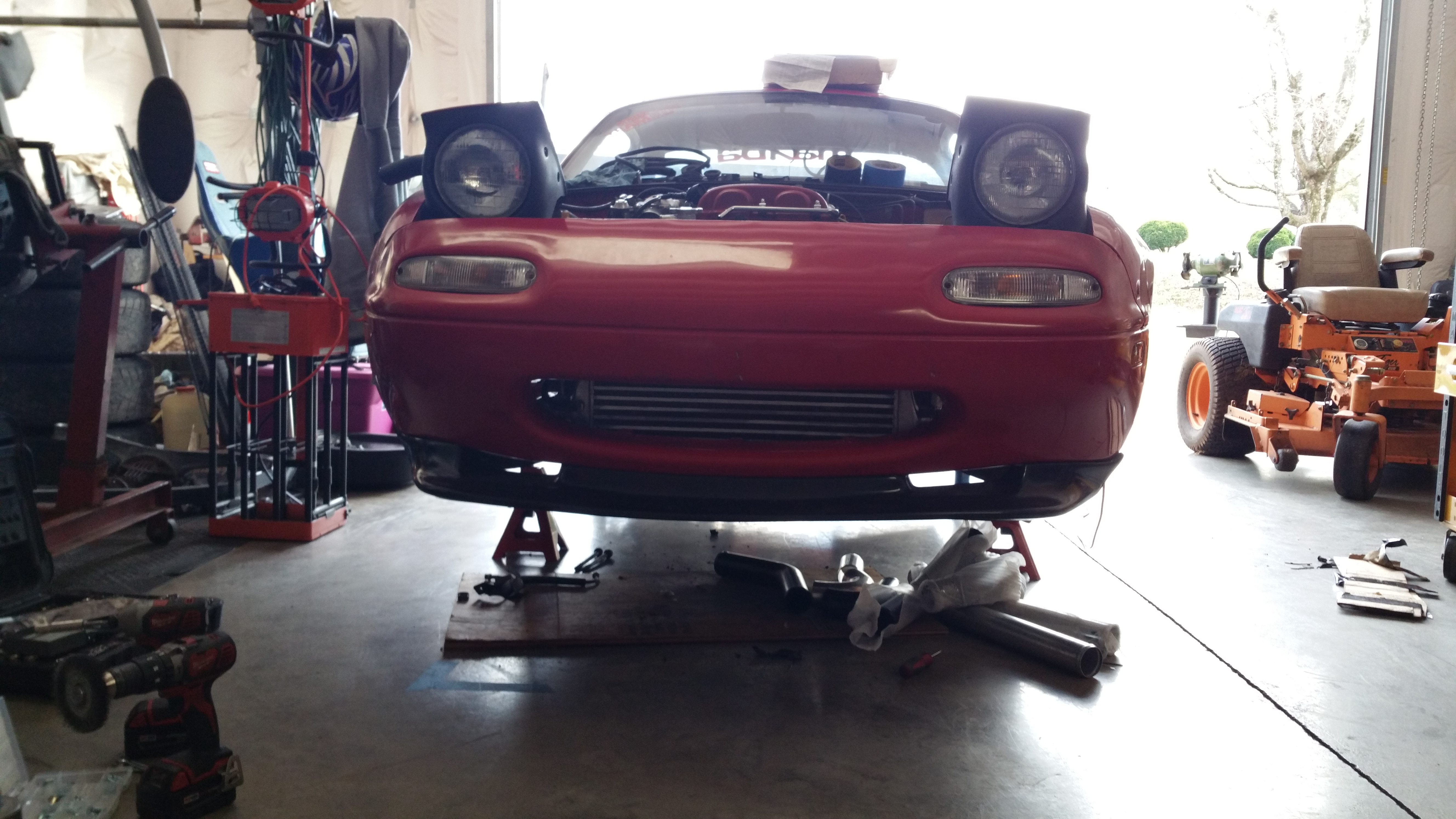

Might be hard to tell but I tapped my IC up front for the IAT sensor. This way you keep it from heat soaking in the engine bay but, there probably will be a change in temp from the initial exit of the air and the air entering the throttle body. Not sure how much of a delta T there is or if it significant. I have zero hot start issues this way on DIYPNP.

Attached Thumbnails
99 Sport eBay turbo build-fjqv5at.jpg
90civichhb is offline   Reply With Quote
Old 01-21-2016, 12:52 PM   #11
Junior Member

Join Date: Nov 2014
Location: Hoschton, GA
Posts: 78
Total Cats: 1
Default

Looking forward to see your progress.

You should also look into getting a Wideband Air Fuel Ratio Gauge and Sensor. I have the Innovate LC-2 Wideband.
nbdooey is offline   Reply With Quote
Old 01-21-2016, 01:31 PM   #12
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 366
Total Cats: 20
Default

Thanks, I am researching widebands and gauges.

Probably will go with LC-2 with no gauge.

what i really want is one multi gauge that will show
AFR
BOOST
IAT
COOLANT TEMP.

from what i understand, the MS2E has a built in boost gauge, and then i will plug in the LC-2 wideband into MS2E via digital input. then get something like multigauge2 and it will show me the above parameters via multigauge2 or similar. but i could be wrong, so if any one has a similar setup please chime in.

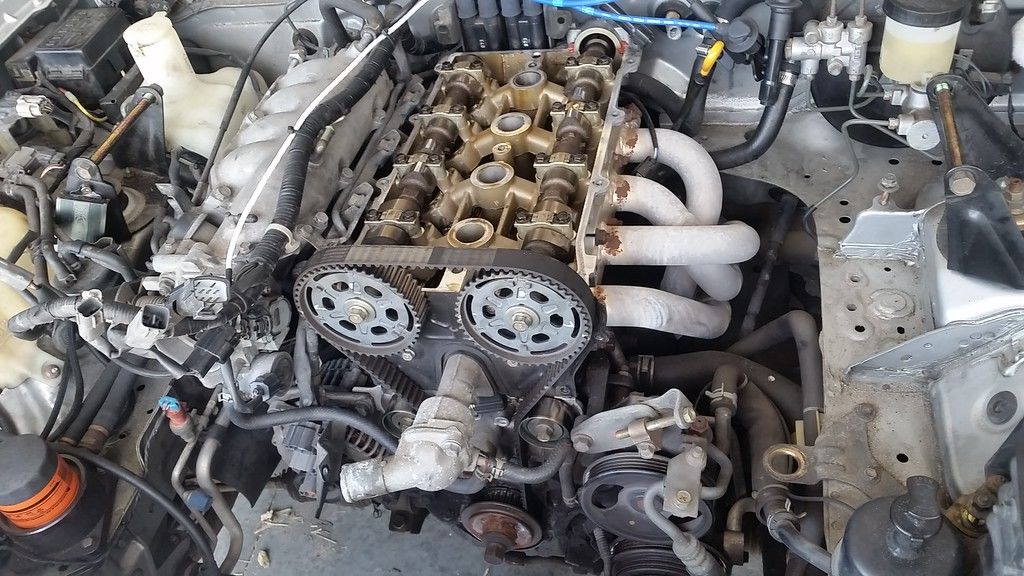

Making progress, trying to get to the front main seal to replace it.

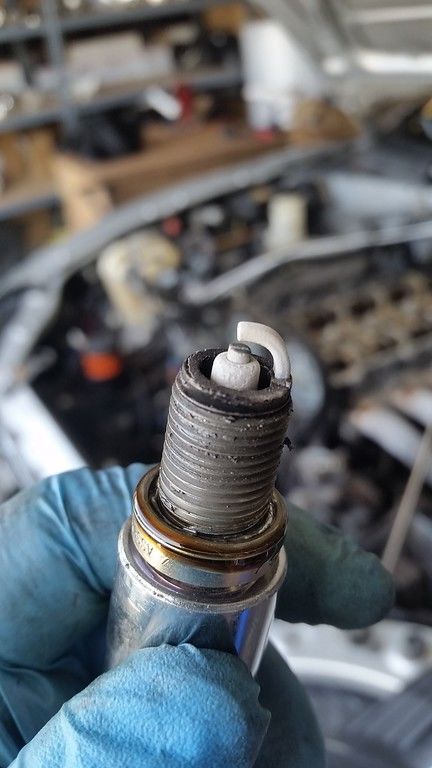

pulled plugs, they seem awfully white, LEAN?
last week a fuel line popped off the fuel filter and i was spilling fuel all over the road behind me, until some one stopped me to tell me about it. so engine was probably lean due to lack of oil pressure for 15-20mins. im surprised the car still drove and didnt stall.





Attached Thumbnails
99 Sport eBay turbo build-80-i_bnbsgtv_xl_e6d95d09a9f374d5512b89297b856094cb04cfdf.jpg   99 Sport eBay turbo build-80-i_xccgppq_xl_6e3aafc5af931a58db93ec16ec6e8dc10dbd59b7.jpg
borka is offline   Reply With Quote
Old 01-21-2016, 01:42 PM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,709
Total Cats: 1,078
Default

I would highly suggest getting a MTX-L or an AEM EUGO with the gauge over one without a gauge. It is nice to be able to verify that TS and the wideband gauge match so you know you are not tuning to the wrong AFR's.
shuiend is offline   Reply With Quote
Old 01-21-2016, 01:54 PM   #14
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

Lean probably due to the lack of fuel.

MTX-L user here; AEM EUGO temps me
psyber_0ptix is offline   Reply With Quote
Old 01-21-2016, 05:00 PM   #15
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,877
Total Cats: 518
Default

looking forward to results on the 1.8 tacotaco manifold.
turbofan is offline   Reply With Quote
Old 01-21-2016, 05:15 PM   #16
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I like ebay builds

Try and splurge on EV14 injectors if you can, everyone likes flowforce.

Digital wideband input is awesome, assuming I understand right a gauge won't do you any good, digital is digital and has no voltage offset issues that Shuiend is trying to explain. You can get MTX_L and stuff the gauge somewhere, LC2 is fine though.

Don't worry too much about IAT, you'll probably be changing air density correction enough to not worry about it being little bit off.

I was able to run my miata on stock injectors with the relay pulled, guess tank pressure or siphon power is enough to keep em idling. Strange stuff!
deezums is offline   Reply With Quote
Old 01-21-2016, 05:20 PM   #17
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

Holy **** you have the elusive Thompson Quick-Change oil filter relocation kit
psyber_0ptix is offline   Reply With Quote
Old 01-21-2016, 05:59 PM   #18
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 366
Total Cats: 20
Default

Quote:
Originally Posted by deezums View Post
I like ebay builds

Try and splurge on EV14 injectors if you can, everyone likes flowforce.

Digital wideband input is awesome, assuming I understand right a gauge won't do you any good, digital is digital and has no voltage offset issues that Shuiend is trying to explain. You can get MTX_L and stuff the gauge somewhere, LC2 is fine though.

Don't worry too much about IAT, you'll probably be changing air density correction enough to not worry about it being little bit off.

I was able to run my miata on stock injectors with the relay pulled, guess tank pressure or siphon power is enough to keep em idling. Strange stuff!

Injectors, i haven't decided yet, but i want 100% plug and play
EV14 sound good. like these:
Flow Force 610cc EV14 Injectors from TrackSpeed?

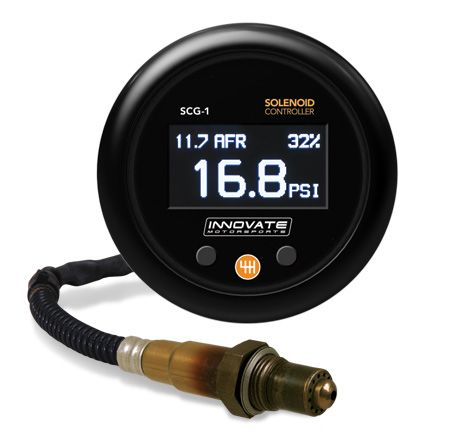

So far i like Innovate SCG-1 gauge and EBC combo. sounds like it could kill 3 birds with one gauge. AFR, Boost and give me EBC function.





Quote:
Originally Posted by psyber_0ptix View Post
Holy **** you have the elusive Thompson Quick-Change oil filter relocation kit
It came with the car and could be yours for a low price of one Million dollars.
Attached Thumbnails
99 Sport eBay turbo build-80-scg1_main_475_b5023b3c5c1e2bf87c828f4e6ad0bcc958cf1c15.jpg
borka is offline   Reply With Quote
Old 01-21-2016, 06:04 PM   #19
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Why not megasquirt EBC? I'm cheap and that looks expensive.

Those are the injectors though, I like them more than rx8's.
deezums is offline   Reply With Quote
Old 01-21-2016, 06:17 PM   #20
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

I like silver Miatas! Taco away!
hornetball is offline   Reply With Quote
