Default 04 MSM stk turbo

04 MSM

Stk turbo
rev built MS2 +
ID 650cc's
PLX wideband
MAC EBC
tial BOV,
Custom 2.5 Charge piping / Intercooler
2.5 TBE (side exit)

all dyno Runs were done at Lovefabinc LoveFab Motorsport Fabrications | Perfomance Auto and NSX Specialists > Home here in Traverse city MI, on a Mustang dyno this dyno is known as the Heart breaker becuase its been known to run 20-25% low in numbers.

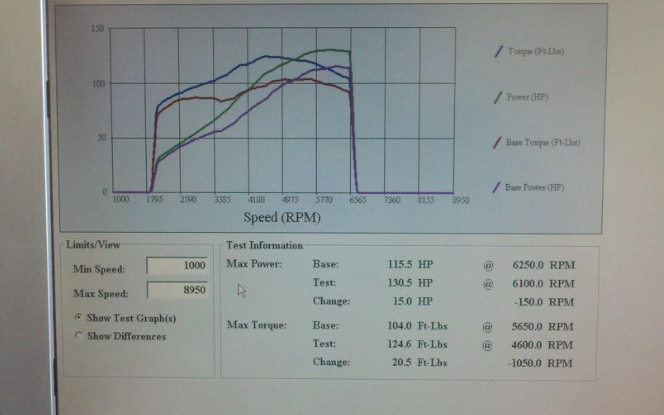

Orginal base line run vs 2.5 TBE

stock results
115.5 HP with 20 % correction (23.1) = 138.6 HP
104.0 tq with 20 % correction (20.8) = 124.8 TQ

2.5 TBE Results
130.5 HP with 20 % correction (26.1) =156.6 HP
126.6 TQ with 20 % correction (25.3 ) =151.9 TQ

# diff
+18 HP
+27.1 TQ


2.5 TBE Vs MS2+ ,650's,charge piping/ intercooler ect...


2.5 TBE Results
130.5 HP with 20 % correction (26.1) =156.6 HP
126.6 TQ with 20 % correction (25.3 ) =151.9 TQ

MS2+ ,650's,charge piping/ intercooler ect... stk wastegate pressure ( 8-10 psi creep) Results
168.8 HP with 20 % correction (33.7) = 202.5 HP
144.0 TQ with 20 % correction (28.8 ) =172.8 TQ

# Diff
+45.9 HP
+20.9 TQ

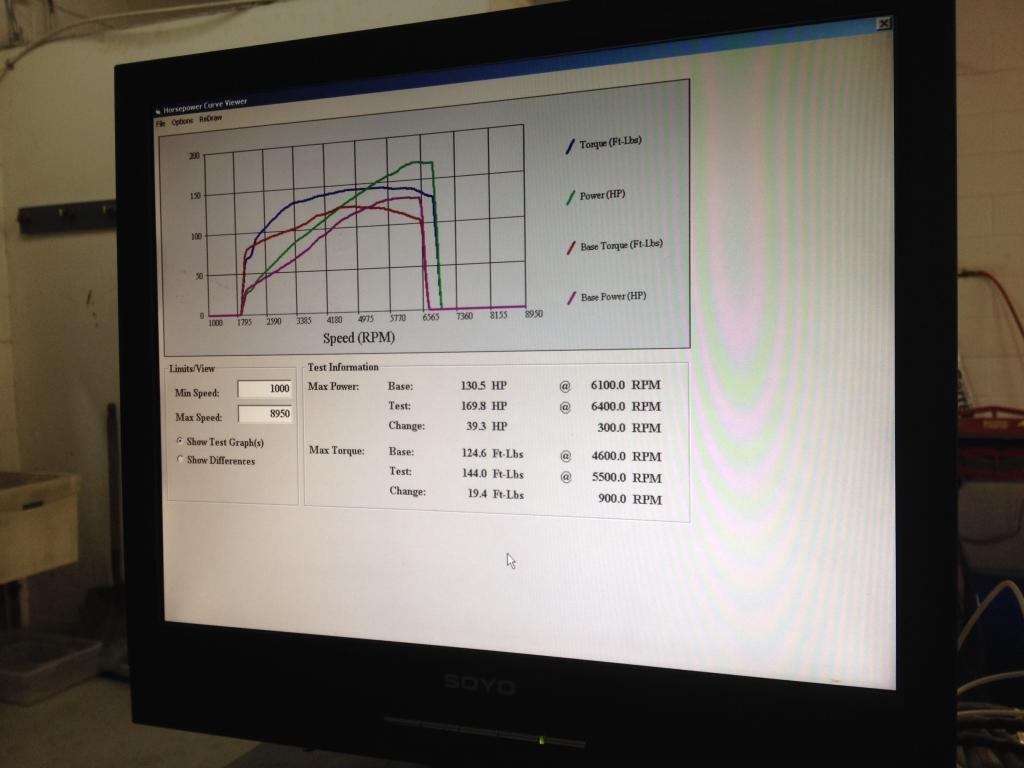

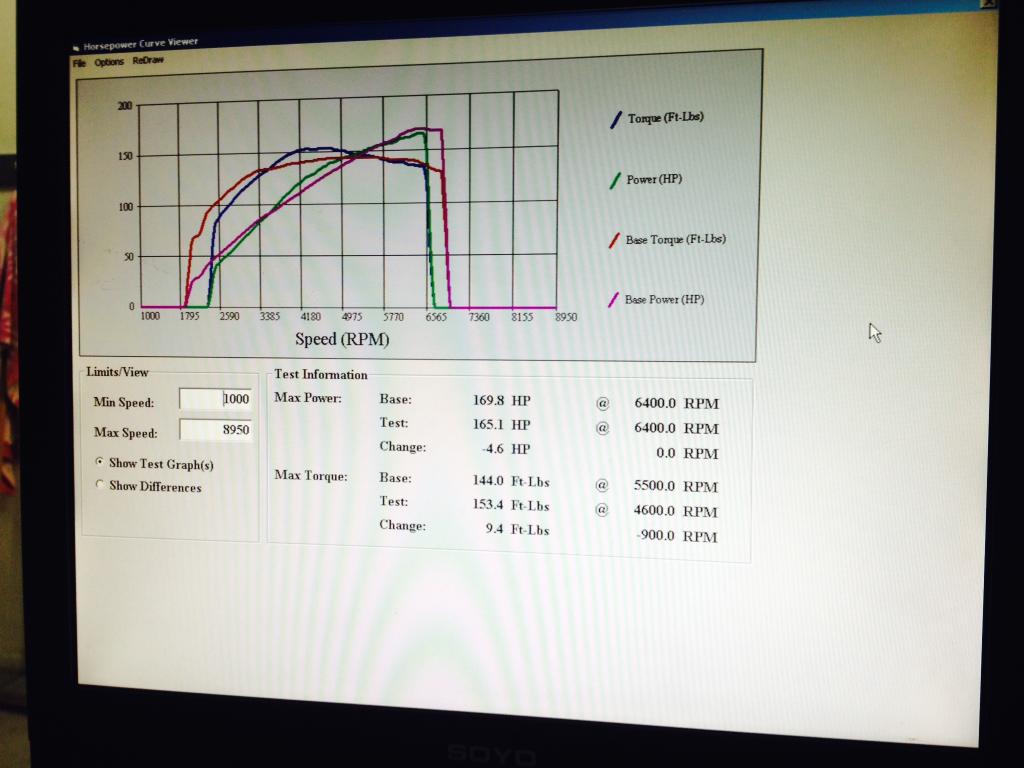

EBC & maxed out stk turbo (13 psi)


MS2+ ,650's,charge piping/ intercooler ect... stk wastegate pressure ( 8-10 psi creep) Results
168.8 HP with 20 % correction (33.7) = 202.5 HP
144.0 TQ with 20 % correction (28.8) =172.8 TQ

EBC and 13 PSI
165.1 HP with 20 % correction (33.2) = 198.1 HP
153.4 TQ with 20 % correction (30.68) =184 TQ


# diff
-4.4 HP
+11.2 TQ

through the tune we were pretty conservitive with timing. AFR in boost is pretty flat at 11.3-11.8

the stk trubo showed 15 lbs at the compresser outlet pipe and 13 at the intake manifold

i can post logs and tune info if i could figure that out...
