Default 1.6 with Greddy @ 14 PSI



About what I expected. Spools up decently, but that tiny little turbo is running out of steam at the top end. Even though IAT was still decent, going from ~12.5 PSI to ~14.5 PSI yielded smaller returns than expected, which says to me that turbine backpressure is probably the limiting factor here.

Spark advance was in the 18-20 range here. (This is with WI @ 5 GPH.) I saw a little knock at about 5,000 RPM when I got up to 23.

Leaning out the mixture gave large gains in the midrange from where we started. On the first run, I was down in the mid 11s the whole way. Bringing that up into the mid 12s was beneficial, and I could probably still stand to lean out that dip around 5,000.

All in all, not too bad for a Greddy. Putting aside that little burble at ~7,000 RPM it put down an honest 205 HP and 202 ft/lbs.
Joe Perez is offline   Reply With Quote
Old 05-14-2010, 02:10 PM   #2
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

What size are the charge pipes/exhaust piping?
kotomile is offline   Reply With Quote
Old 05-14-2010, 02:13 PM   #3
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I like the nice, flat boost plot once target boost is reached with no tapering towards redline.
Bryce is offline   Reply With Quote
Old 05-14-2010, 02:21 PM   #4
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

Quote:
Originally Posted by kotomile View Post
What size are the charge pipes/exhaust piping?
Inlet pipe is 2.5" from air filter to compressor (no MAF/VAF), 2" at compressor outlet, 2" to 2.25" coupler at the downturn behind the radiator, 2.25" to 2.5" coupler at the bend around the radiator, then 2.5" through the IC and into the throttle body.

Exhaust is a TurboTony downpipe (non-seperated) and the whole system is 2.5" from the turbine to the tailpipe, with a ceramic-core cat. Manifold is stock Greddy.

So basically, I don't see any room for improvement there, short of removing the cat. I think we're just looking at what happens when you have a small turbine putting a lot of exhaust backpressure on the head.


Quote:
Originally Posted by Bryce View Post
I like the nice, flat boost plot once target boost is reached with no tapering towards redline.
That's mostly a function of where you take your boost reference signal from. A lot of folks use the little nipple on the compressor, so you see a tapering off due to the pressure drop across the intercooler as airflow increases with RPM.

The fix is very simple. Just install a nipple in the piping after the intercooler, and feed your boost controller with that. Presto-chango, nice flat boost curve.
Joe Perez is offline   Reply With Quote
Old 05-14-2010, 03:16 PM   #5
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Hmm, haven't we seen better numbers from greddy setups before? not being a dick, just curious where the improvements are there versus here

Last edited by devin mac; 05-14-2010 at 03:17 PM. Reason: more descriptive commentary
devin mac is offline   Reply With Quote
Old 05-14-2010, 03:27 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Didn't Ben get 250 from his?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-14-2010, 03:47 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Very solid and smooth. Looks like a very street friendly powerband. nice jerb
18psi is offline   Reply With Quote
Old 05-14-2010, 03:49 PM   #8
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

not only that, but kotos sig indicates he is as well
devin mac is offline   Reply With Quote
Old 05-14-2010, 03:49 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

judging by the spool speed, im going to suggest teh 2.5" exhaust is hurting you.
Braineack is offline   Reply With Quote
Old 05-14-2010, 03:49 PM   #10
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
Very solid and smooth. Looks like a very street friendly powerband. nice jerb
this, also. looks a lot like how mine FELT when it was still running. :-) wish i had gotten mine on the dyno...
devin mac is offline   Reply With Quote
Old 05-14-2010, 04:21 PM   #11
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Were you running water/meth or straight water? I also would have thought slightly higher numbers, but Brain may be right with the 2.5" exhaust since you have a cat. When the shop finishes my motor, I guess I'll find out. I plan to run 15psi with water/meth, BEGI downpipe and 3" exhaust with no cat. They haven't even had a chance to look at my pile of parts yet, so who knows when that'll be...
TrickerZ is offline   Reply With Quote
Old 05-14-2010, 05:04 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by levnubhin View Post
Didn't Ben get 250 from his?
That was on 93 pump and a little more boost (15 tapering to 13). I was also running EBC. Best MBC pull is the dotted trace.
Ben is offline   Reply With Quote
Old 05-14-2010, 05:27 PM   #13
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

That's a pretty nice plot, Ben. What ignition advance were you running up there?

I am running 91 octane SoCal gas, which isn't exactly the happiest combustible liquid around. Even with WI, I was definitely running into the knock limit. And I imagine that pulling the cat (or at least replacing it with a metal-core) would help things a lot.

TrickerZ, straight water.
Joe Perez is offline   Reply With Quote
Old 05-14-2010, 07:05 PM   #14
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Maybe it's just me, but it seems like you are injecting a lot of water. What made you decide on the 5gph nozzle?
JayL is offline   Reply With Quote
Old 05-14-2010, 07:18 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

91oct needs LOTS of help to keep from detonating.

They don't call it camel **** for nothing
18psi is offline   Reply With Quote
Old 05-14-2010, 07:19 PM   #16
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by 18psi View Post
91oct needs LOTS of help to keep from detonating.

They don't call it camel **** for nothing
I doubt the difference between 91 california camel **** and 92 octane seattle hobo **** is that drastic.
Jeff_Ciesielski is offline   Reply With Quote
Old 05-14-2010, 07:45 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

18psi is offline   Reply With Quote
Old 05-14-2010, 08:09 PM   #18
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Joe Perez View Post
What ignition advance were you running up there?

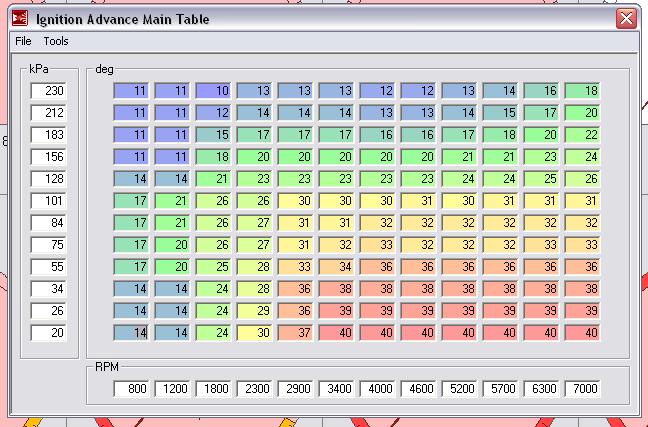

How does this compare to yours Joe?

General disclaimers: This was on my car for a couple of years. I assume it's still on the car, but I haven't heard from the new owner in more than a year.
It is a very aggressive table, created from many hours on the dyno. I post it for reference only and in no way advise anyone to copy it. If you simply slap my table into your ECU, you may possibly destroy your motor. I would suggest the MSPNP basemap's ignition table as a better starting point.
Attached Thumbnails
1.6 with Greddy @ 14 PSI-sparkmap.jpg
Ben is offline   Reply With Quote
Old 05-14-2010, 08:16 PM   #19
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Wow, I never knew the difference between MBC and EBC was so huge.

Any idea how much timing has to be pulled to run 91oct from 94oct?
dgmorr is offline   Reply With Quote
Old 05-17-2010, 01:36 PM   #20
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
I doubt the difference between 91 california camel **** and 92 octane seattle hobo **** is that drastic.
I don't doubt it at all. Granted Seattle is relatively liberal, but the difference between CA91 and TX93 is about like the difference between Old Rasputin Imperial Stout and wine with a screw-top from an engine perspective. My guess is that Seattle 92 is the equivalent of say Amber Bock. Its not getting passed around at the Waldorf, but it isn't brewed under an overpass by the I-5 either.
Sparetire is offline   Reply With Quote
