1.8 GT2554 at 12.5 psi - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 06-15-2010, 11:31 PM   #1
Newb
Thread Starter

Join Date: Mar 2008
Location: Nashville, TN
Posts: 38
Total Cats: 0
Default 1.8 GT2554 at 12.5 psi

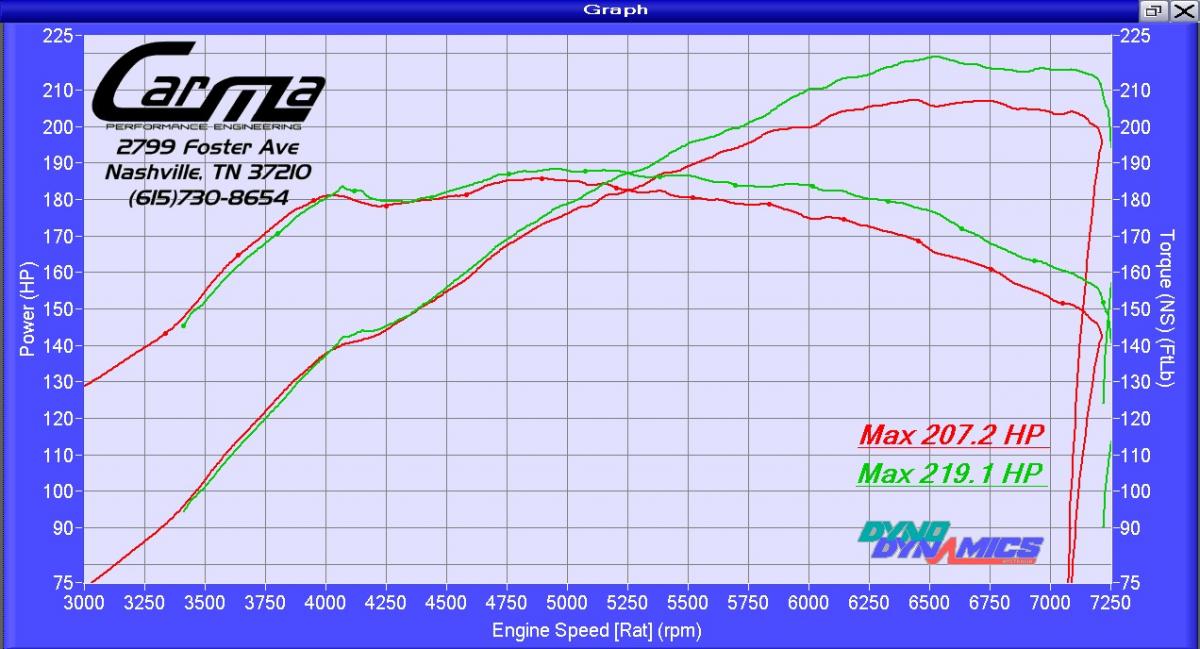

1.8 GT2554 at 12.5 psi-joecosta1.jpg

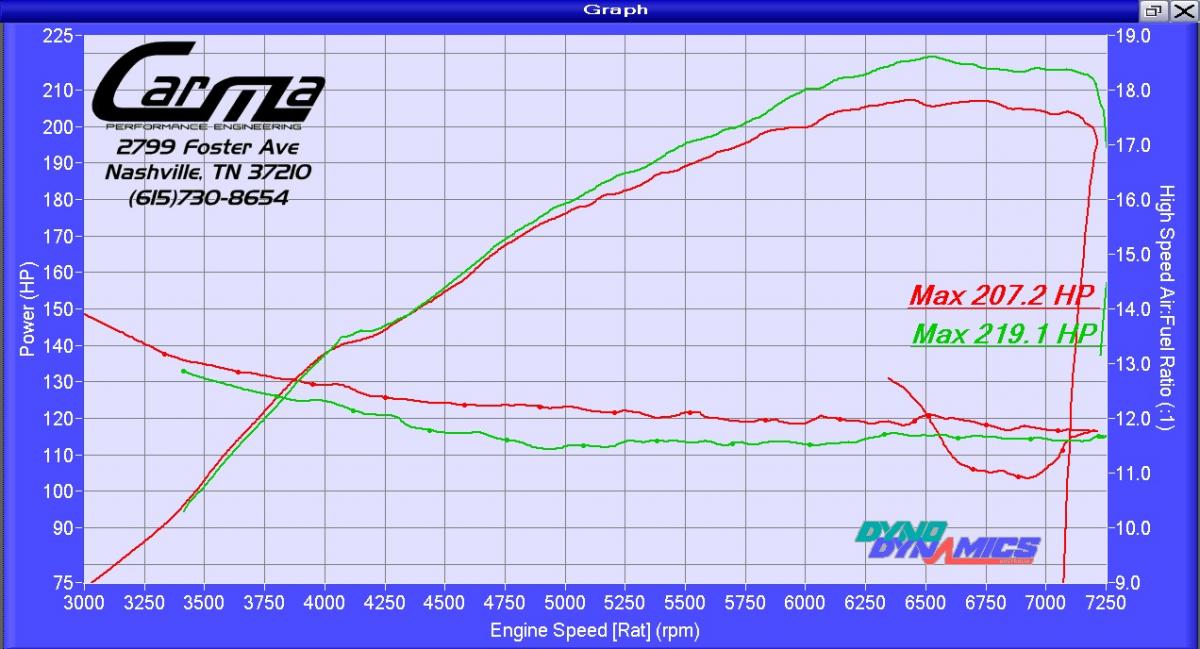

1.8 GT2554 at 12.5 psi-joecosta2.jpg

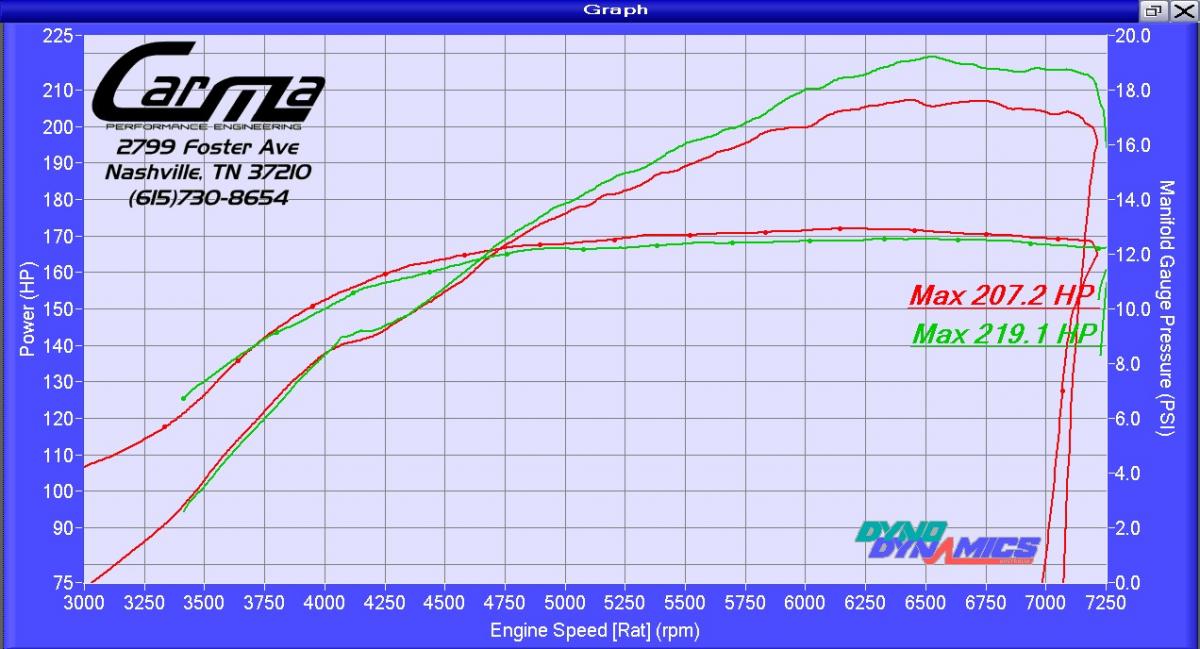

1.8 GT2554 at 12.5 psi-joecosta3.jpg

97M 1.8 with motor from a 95.

12.5 ish psi with a GT2554.

2.5 exhaust into an enthuza metal core cat and enthuza 2.5" turbo exhaust.

Mspnp with low imp RC550 inj

The red lines were my baseline run.

We also tried Brisk Racing Silver plugs which picked up 5hp.

We were starting the runs around 2K, but I guess he was hitting "record" later. I'm very happy and it was a great experience.
Costa is offline   Reply With Quote
Old 06-15-2010, 11:39 PM   #2
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Mustang or dynojet??
buffon01 is offline   Reply With Quote
Old 06-15-2010, 11:59 PM   #3
Newb
Thread Starter

Join Date: Mar 2008
Location: Nashville, TN
Posts: 38
Total Cats: 0
Default

Quote:
Originally Posted by buffoon01 View Post
Mustang or dynojet??
Dyno Dynamics. A friend of mine who races in SCCA, tuned his 350ish hp race miata there. He says that dyno tends to read low.

My spool is kinda lame for a 2554. I'm running an MBC right now.
Costa is offline   Reply With Quote
Old 06-16-2010, 03:25 AM   #4
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

That curve looks just about right for a Dynojet with a GT25r at that boost and setup... and a great tune. You've got a bit more boost in that little guy, but the upgrade to a GT2560 would let you make the same power and a bit more torque at a pinch less boost and if you go with EBC, even probably spool a bit better.
samnavy is offline   Reply With Quote
Old 06-16-2010, 03:59 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I wouldn't be complaining about those numbers at 12psi with that sized turbo.
Braineack is online now   Reply With Quote
Old 06-16-2010, 04:43 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Spool seems a little slow, what are you using for boost control?
Savington is offline   Reply With Quote
Old 06-16-2010, 05:58 AM   #7
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

stock engine? how many miles?
na8psi is offline   Reply With Quote
Old 06-16-2010, 09:18 AM   #8
Junior Member
iTrader: (7)

Join Date: May 2007
Location: Buffalo, NY
Posts: 332
Total Cats: 0
Default

good numbers!
longuyen88 is offline   Reply With Quote
Old 06-16-2010, 09:27 AM   #9
Junior Member

Join Date: Aug 2007
Location: Burlington, VT
Posts: 419
Total Cats: 0
Default

Wait... you really picked up 5hp out of your spark plugs?
That seems crazy!

Is anyone else running these plugs?
jbresee is offline   Reply With Quote
Old 06-16-2010, 10:17 AM   #10
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Same gasp used on both plugs?
Techsalvager is offline   Reply With Quote
Old 06-16-2010, 10:48 AM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

looks slow.
hustler is offline   Reply With Quote
Old 06-16-2010, 10:48 AM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

great powerband man.

I have a hard time believing the plugs claim.
1st I've never even heard of those, and 2nd I've never heard of gaining 5hp unless your original ones were fouled to ****
18psi is offline   Reply With Quote
Old 06-16-2010, 10:54 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by jbresee View Post
Wait... you really picked up 5hp out of your spark plugs?

I let my car cool off once after a few pulls...i picked up 4hp. true story.
Braineack is online now   Reply With Quote
Old 06-16-2010, 04:46 PM   #14
Newb
Thread Starter

Join Date: Mar 2008
Location: Nashville, TN
Posts: 38
Total Cats: 0
Default

Thanks for the responses.


Brain - Actually, I'm very happy with the results. I just heard that particular dyno read low etc. It's all relative. The dyno operator was great to work with. He had dealt with MS on other cars (non Miata) and hated it. After working with mine and TunerStudio, he was impressed.


Sav - I'm using the NSX MBC

http://cgi.ebay.com/ebaymotors/NXS-M...Q5fAccessories


My wastegate actuator used to zip up to 8psi and stay there. Now, without the MBC, it will go up to 8psi. Then above 5K, will creep to 10psi. With the MBC hooked up, I can alleviate this a bit. It wont really creep per se. I can adjust to hit 12 psi without it going to 10 and creeping to 12 above 5K, but the spool isn't as good as I remember. Not sure if the diaphragm in the supplied actuator from FM wears out over time.

NA8psi - Stock Motor around 90,000 Miles


About the plugs...

It was something we just tried.

My old plugs were bkr-6e11's.

We worked with those for awhile. Installed the new plugs at the same gap. (.30 I believe). The next run gained 1hp, probably from sitting, although it was like 95 degrees in the shop. On that run, everything had leaned out. We got the a/f ratio back to where we had previous to installing the new plugs and gained another 5hp. Now, this might have happened with fresh bkr-7e's. It was just an observation.
Costa is offline   Reply With Quote
Old 07-24-2010, 08:43 PM   #15
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
... and if you go with EBC, even probably spool a bit better.
With an EBC, the spool comes in faster, but less linearly, correct? The acceleration has more jerk in it?
Nagase is offline   Reply With Quote
Old 10-20-2010, 06:35 PM   #16
Junior Member
iTrader: (1)

Join Date: Sep 2007
Location: Chi
Posts: 138
Total Cats: 0
Default

thats good power for that small snail! are you running a cat?

post spark map
arctct is offline   Reply With Quote
Old 10-20-2010, 07:09 PM   #17
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,686
Total Cats: 1,562
Default

Quote:
Originally Posted by arctct View Post
are you running a cat?
He said he was. Is your shift key broken?
sixshooter is offline   Reply With Quote
Old 10-20-2010, 07:10 PM   #18
Junior Member
iTrader: (1)

Join Date: Sep 2007
Location: Chi
Posts: 138
Total Cats: 0
Default

Quote:
Originally Posted by sixshooter View Post
He said he was. Is your shift key broken?
no but my left-hand pinky is...
arctct is offline   Reply With Quote
Old 10-23-2010, 08:35 PM   #19
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

You need a 3 inch exhaust. It will help your spool big time. Also would you care to post your spark map?
shuiend is offline   Reply With Quote
Old 10-24-2010, 06:57 PM   #20
Newb
Thread Starter

Join Date: Mar 2008
Location: Nashville, TN
Posts: 38
Total Cats: 0
Default

Hi everyone!

Here are 2 spark maps.

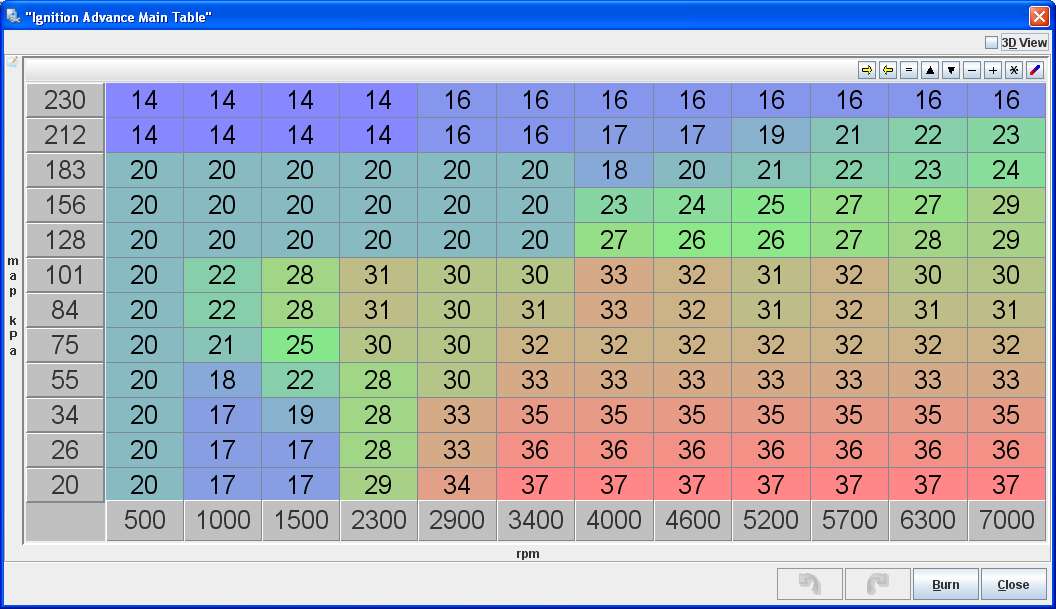

The first, "Dyno Final", is what we ended up with and produced the graphs shown.

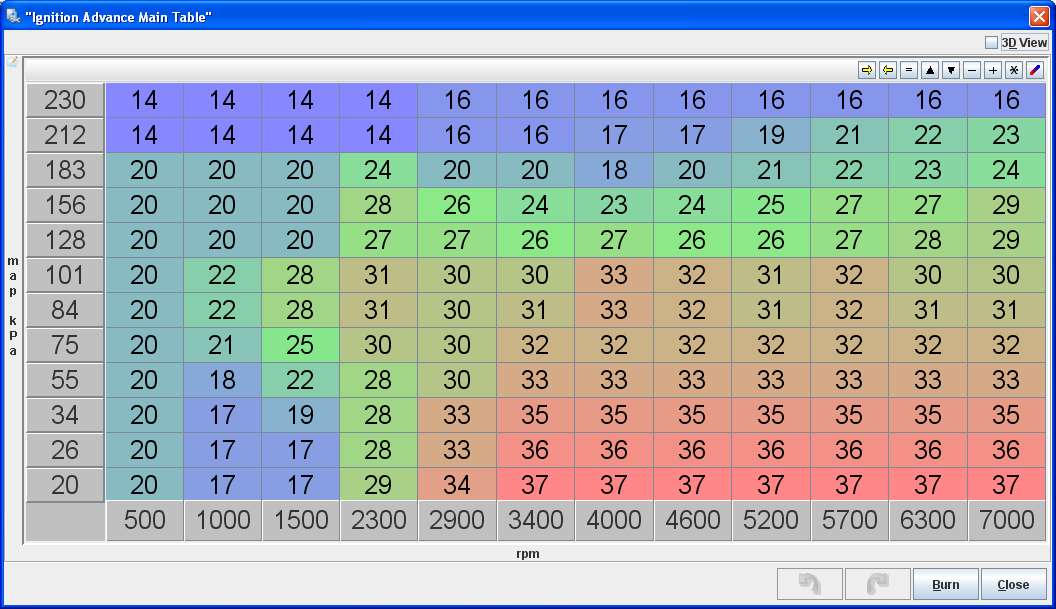

The other, "Post Dyno", is just my return to the numbers I had from 2300-3400 rpm and 128-183 map cells.

We originally lowered those cells and did a run. He liked where I had them before, but we never really revisited it.

Pulls great down there.

The second map is where I've been since.

Joe
Attached Thumbnails
1.8 GT2554 at 12.5 psi-jc-spark-dyno-final.jpg   1.8 GT2554 at 12.5 psi-jc-spark-post-dyno.jpg
Costa is offline   Reply With Quote
