1.8, gt2554r, 420cc, ms3, 12.5psi - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 07-08-2015, 07:45 PM   #1
Newb
Thread Starter
iTrader: (2)

Join Date: Feb 2012
Location: CT
Posts: 44
Total Cats: 2
Thumbs up 1.8, gt2554r, 420cc, ms3, 12.5psi

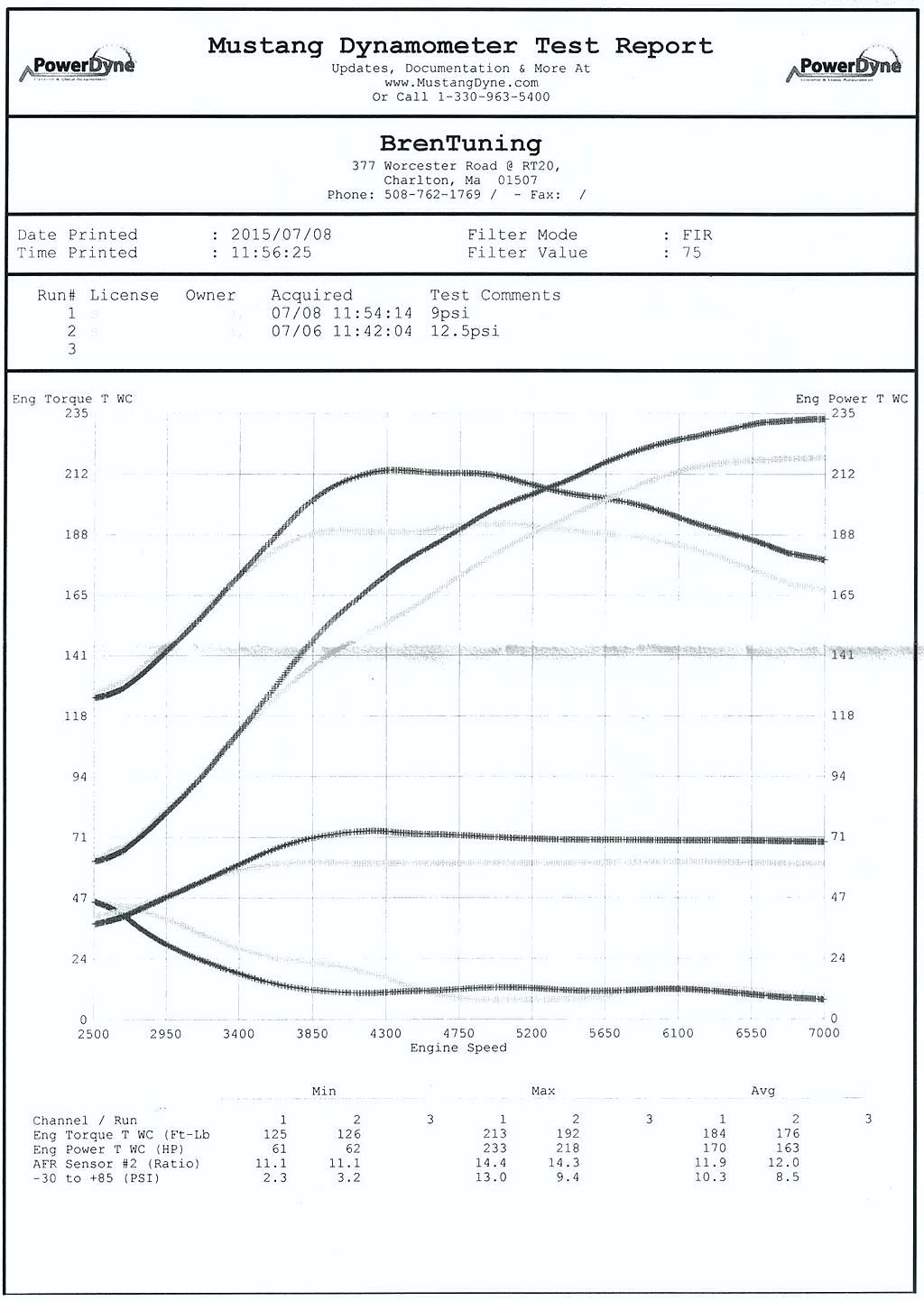

Attached Thumbnails
1.8, gt2554r, 420cc, ms3, 12.5psi-80-ve9ojbk_670fb322cbebf7623600dcf4ceadbcd577466e54.jpg
briswo is offline   Reply With Quote
Old 07-08-2015, 08:34 PM   #2
Junior Member
iTrader: (1)

Join Date: Oct 2010
Location: Vallejo, CA Bay Area
Posts: 56
Total Cats: -4
Default

Looks good. What is your duty cycle on those 420s? I'm getting uneasy on my 440s at 10psi.
Grey Vw is offline   Reply With Quote
Old 07-08-2015, 09:32 PM   #3
Newb
Thread Starter
iTrader: (2)

Join Date: Feb 2012
Location: CT
Posts: 44
Total Cats: 2
Default

At 9psi the tuner mentioned it was around 80%. 12.5psi is the max he could get out of the injectors while keeping it safe.
briswo is offline   Reply With Quote
Old 07-09-2015, 11:50 AM   #4
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Safe means different things to different people. I don't know your duty cycle but I wouldn't consider over 85-90% duty cycle safe. Changes in ambient temperature or pressure from the conditions on the day it was tuned can lead to the ECU demanding more or less fuel at the same rpm and load. With many injectors roughly 85% DC can be the threshold beyond which the injectors don't close before being energized to be reopened. They are therefore always open and no additional fuel can be added if longer opening times are requested by the ECU. This can lean out a mixture at high RPMs and loads.
sixshooter is offline   Reply With Quote
Old 07-09-2015, 12:04 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Steve's right.
Food for thought though: what I've noticed is there's usually quite a big "cushion" between what the MS (and other ecu's) say is "maxed out" and the the actual physical limit.

While some see this at 80%, most can go to 100, I've even gone to 125% on EV6 injectors before actually physically running out of fuel.
18psi is offline   Reply With Quote
Old 07-09-2015, 01:48 PM   #6
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,700
Total Cats: 267
Default

<p>&nbsp;</p><p>What fuel system, as in NA with 44psi referenced, NB 60psi atmosphere, or some other?</p><p>EDIT: found on your other thread: 1997 Miata.</p>
DNMakinson is offline   Reply With Quote
Old 07-09-2015, 04:17 PM   #7
Newb
Thread Starter
iTrader: (2)

Join Date: Feb 2012
Location: CT
Posts: 44
Total Cats: 2
Default

I trust my tuners judgement on the duty cycle.

Quote:
Originally Posted by DNMakinson View Post
<p>&nbsp;</p><p>What fuel system, as in NA with 44psi referenced, NB 60psi atmosphere, or some other?</p><p>EDIT: found on your other thread: 1997 Miata.</p>
Correct, stock 97 fuel system excluding the RX8 injectors.
briswo is offline   Reply With Quote
