Default 350HP 1.6??? Ebay turbos, Corn oil and drifting inside

Hi everyone! I asked about this over a year ago and received similar answers/beliefs/hatred. Well, I finally went to the dyno to see what my abomination build could produce and I was very well satisfied. It is a reputable dyno/tuner and everything was done on dynapack.

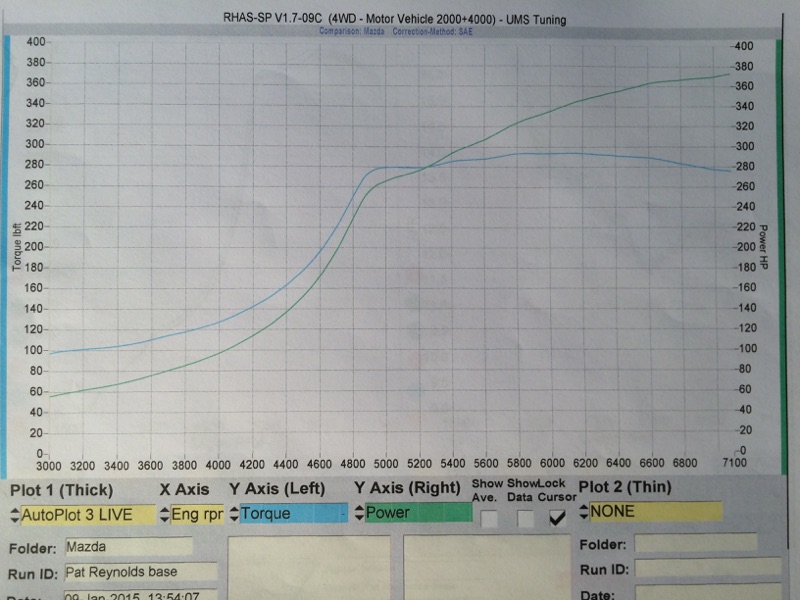

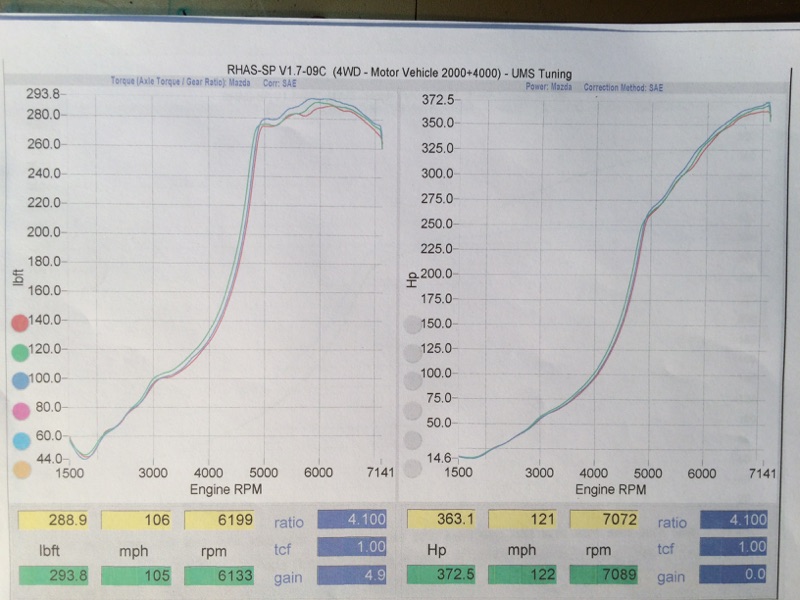

372whp/293ftlbs

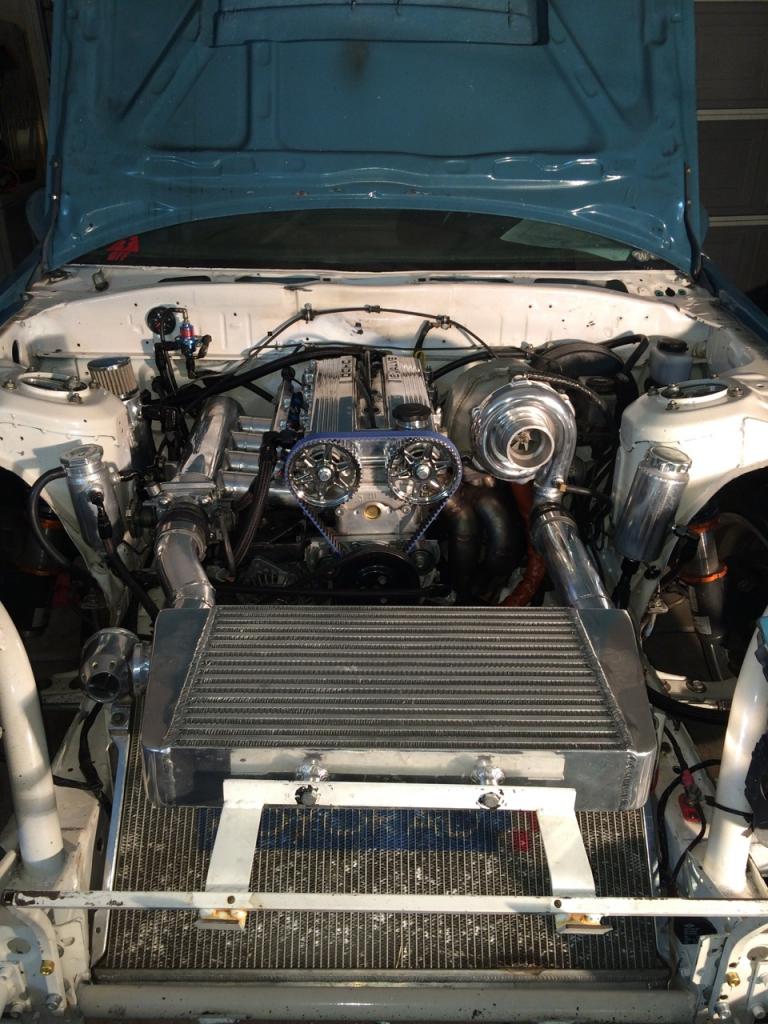

Bone stock 1.6

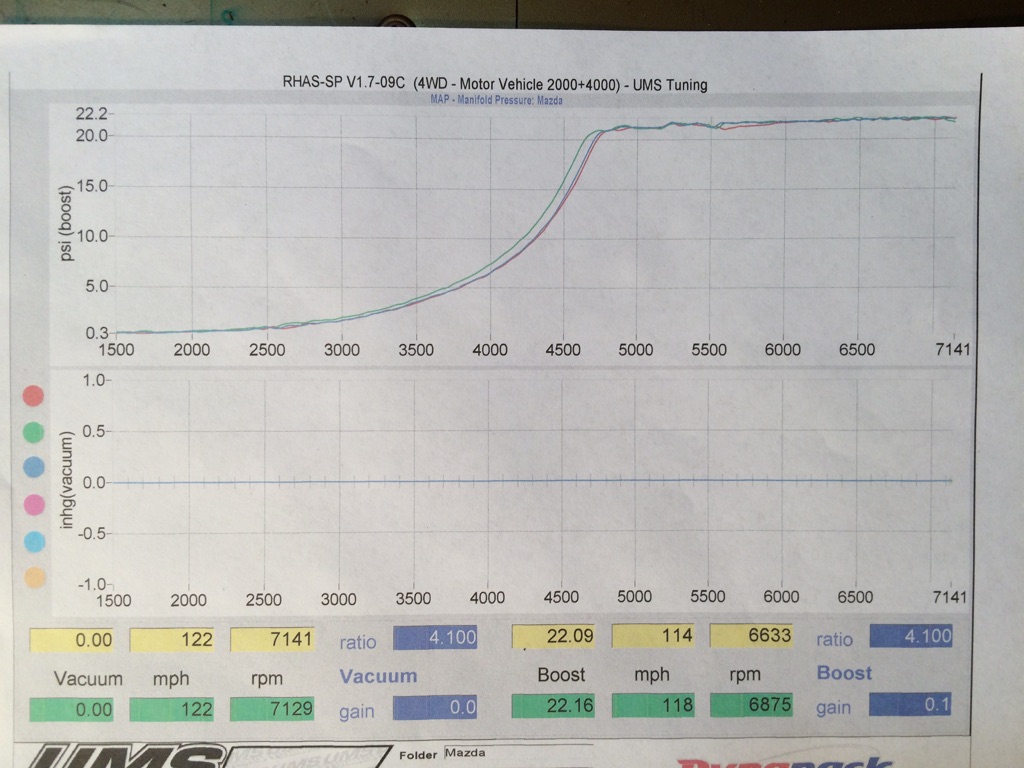

Ebay T04E 22psi
Custom Tubular manifold
3" downpipe/straight exhaust
38mm Tial wastegate

BEGI intake manifold
m-tuned dual feed fuel rail
Injector Dynamics 1000cc injectors
E-85
stock TB
CX racing intercooler

AEM EMS4
Custom Wiring Harness
Zeitronix ZT-2 wideband
GM 3 bar map sensor
GM IAT sensor
GM CLT sensor
AEM SR20 CAS wheel
LS2 coils
BKR7E gapped to .028"
BMW VTPS

AN coolant reroute
37mm Koyo
140A alternator
Greddy Profec B boost controller










There's a dyno video coming sometime soon.


I pretty much already have a feeling what other people will say but I just wanted to document this for people who have 1.6 and want to boost them and only hear put in a 1.8. I ran my old motor at 17 psi and then 22 psi for a year before I overheated it and blew it up. It's possible and they aren't permanent but they will work and can last. Rings seem to be the biggest problem with high boost high mileage 1.6 motors.
Attached Thumbnails
350HP 1.6??? Ebay turbos, Corn oil and drifting inside-img_4350.jpg   350HP 1.6??? Ebay turbos, Corn oil and drifting inside-img_4032.jpg   350HP 1.6??? Ebay turbos, Corn oil and drifting inside-img_4357.jpg   350HP 1.6??? Ebay turbos, Corn oil and drifting inside-img_4353.jpg
theshdwconspracy is offline   Reply With Quote
Old 01-12-2015, 11:59 PM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

That thing is a ticking time bomb...
Schuyler is offline   Reply With Quote
Old 01-13-2015, 12:01 AM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

200ft.lbs at 4600rpm is pretty much exactly why we all say "get a 1.8"
Savington is offline   Reply With Quote
Old 01-13-2015, 12:08 AM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

This has got to be a world record...
thirdgen is offline   Reply With Quote
Old 01-13-2015, 12:11 AM   #5
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

pics of manifold please.
cyotani is offline   Reply With Quote
Old 01-13-2015, 12:12 AM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

How are the rods not outside the block by now.
aidandj is offline   Reply With Quote
Old 01-13-2015, 12:16 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

I'm too retarded to embed vimeo

Dyno run

https://vimeo.com/116620162
theshdwconspracy is offline   Reply With Quote
Old 01-13-2015, 12:24 AM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
200ft.lbs at 4600rpm is pretty much exactly why we all say "get a 1.8"
I get your point but also consider that this turbo is comically sized for this motor. With a smaller GTX I would like to be able to see similar power sooner. Looking at a 2867 or 2871 sometime around tax returns.
theshdwconspracy is offline   Reply With Quote
Old 01-13-2015, 02:07 AM   #9
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,067
Total Cats: 253
Default

Neat. I bet the hit is pretty intense.

In4rodfreedom
viperormiata is offline   Reply With Quote
Old 01-13-2015, 02:43 AM   #10
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

**** bruh someone get Vlad and Dann in here.
triple88a is offline   Reply With Quote
Old 01-13-2015, 03:36 AM   #11
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 399
Total Cats: 21
Default

Subbing
Corifto is offline   Reply With Quote
Old 01-13-2015, 03:37 AM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Big numbers on shitty hardware is always impressive, props
soviet is offline   Reply With Quote
Old 01-13-2015, 08:49 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Quote:
Originally Posted by Savington View Post
200ft.lbs at 4600rpm is pretty much exactly why we all say "get a 1.8"
no boost,
no boost,
no boost,
no boost,
no boost,
OH ****!!!!!!!
AND SHIFT.
Braineack is online now   Reply With Quote
Old 01-13-2015, 09:59 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

That's pretty much exactly how it is.
Fun and amusing for when you want to reinact TX2k videos or feel like you're driving a supra or something.
18psi is offline   Reply With Quote
Old 01-13-2015, 10:07 AM   #15
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 399
Total Cats: 21
Default

Quote:
Originally Posted by Braineack View Post
no boost,
no boost,
no boost,
no boost,
no boost,
OH ****!!!!!!!
AND SHIFT.
Quote:
Originally Posted by 18psi View Post
That's pretty much exactly how it is.
Fun and amusing for when you want to reinact TX2k videos or feel like you're driving a supra or something.

Lol, first Supra dyno I ever saw in person when I was younger, and on a car with a huge turbo. Was under 200hp until 5500-6000rpm, and then topped out at 981 a second later. Must feel good to have all that power for a second...........
Corifto is offline   Reply With Quote
Old 01-13-2015, 01:02 PM   #16
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,067
Total Cats: 253
Default

Save your pennies and put a new frame Precision, Borg FMW or EFR on there. More powerz and more powerbandz.
viperormiata is offline   Reply With Quote
Old 01-13-2015, 01:11 PM   #17
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,660
Total Cats: 1,559
Default

My buddy Gary's GTR R32 was like that. It didn't pull until 5500 and then whammy! But it actually had a usable range because it was ported with big cams and ran to 9800RPM and 733awhp. It can be a lot of fun with a powerband like that but it would be very impractical on a racetrack.
sixshooter is offline   Reply With Quote
Old 01-13-2015, 01:16 PM   #18
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by Corifto View Post
Lol, first Supra dyno I ever saw in person when I was younger, and on a car with a huge turbo. Was under 200hp until 5500-6000rpm, and then topped out at 981 a second later. Must feel good to have all that power for a second...........
How did it not just blow the tires off on the street.
aidandj is offline   Reply With Quote
Old 01-13-2015, 01:20 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Why do you think they only roll race from like 60-80? haha
I mean if that's your thing, it's really not bad because all you really need for that is 1k of powerband.

And to be fair, OP your power and torque output on stock 1.6? is seriously shocking. I mean 380 and 280 is a lot of power and torque to put through the ancient b6 and if it really is on stock rods then I am impressed.
18psi is offline   Reply With Quote
Old 01-13-2015, 01:24 PM   #20
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Wuuuuuuuuuuuuuuuuuuuuuuuuut.


In for video!
concealer404 is offline   Reply With Quote
