Default BEGI S4, GT2860RS, 3" Exhaust

Tim tuned an '03 S4 with a 3" exhaust today. The car's set up: GT2860RS Internally gated, IC #2, 2.75" Downpipe, 3" Mid pipe (no cat), and 3" Left Exit Exhaust. Other mods are minor and of no consequence, oil catch can, powder coating etc... Owner is going the forged internal route this summer, so we tuned for 13 psi as requested.

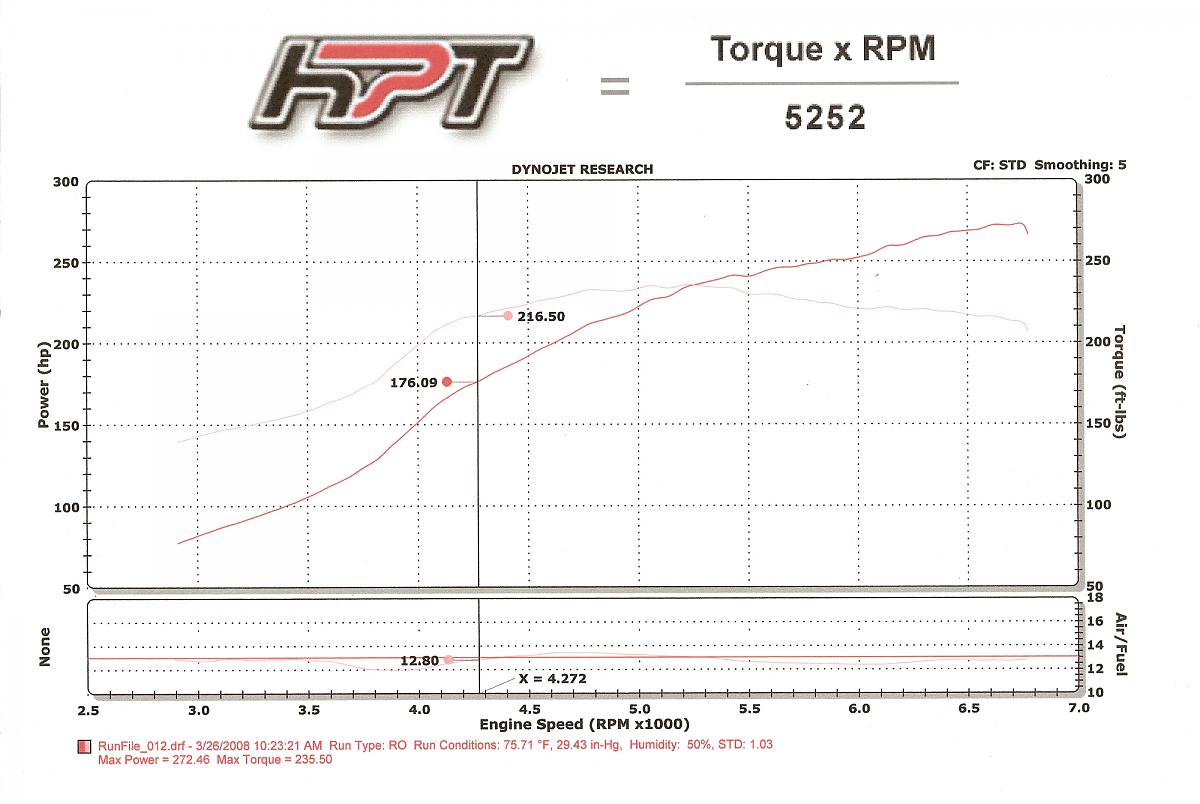

Results: 272.46 rwhp, 235.50 ft-lbs. @ 13 psi. Correction factor: STD 1.03 as calculated by the weather station.

Best numbers done with the Xede unit on a Miata so far.
Stephanie
Attached Thumbnails
BEGI S4, GT2860RS, 3" Exhaust-begi_03_s4_xede_kockcopy.jpg
Stephanie Turner is offline   Reply With Quote
Old 03-26-2008, 05:56 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

Quote:
Originally Posted by Stephanie Turner View Post
Best numbers done with the Xede unit on a Miata so far.
Stephanie
maybe run it to redline next time and beat those numbers
Braineack is offline   Reply With Quote
Old 03-26-2008, 06:10 PM   #3
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
94 < 2000 lbs w/99 motor @ ~14psi , 271hp-235ft/lbs, GT2560R with AbsurdFlow© tubular manifold/intercooler piping/3" stainless turbo-back exhaust
Interesting how similar the power is. So how is Paul's car making as much power with a smaller turbo at similar boost level? And doesn't the 03 have higher compression than the 99?

No bashing, but serious questions. Is it engine managment? Manifold design? Am I missing something?

Nice numbers, that must be insane to drive.
jayc72 is offline   Reply With Quote
Old 03-26-2008, 06:41 PM   #4
Newb

Join Date: Jan 2008
Location: Chicago
Posts: 38
Total Cats: 0
Thumbs up

Hi Stephanie,

Did you guy do any pulls with the standard map in the Xede? If so, please post them. I would like to see the difference Dyno tuning makes.

Daryl
(any news?)
NoCrash is offline   Reply With Quote
Old 03-26-2008, 07:00 PM   #5
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

nice.
Stealth97 is offline   Reply With Quote
Old 03-26-2008, 07:07 PM   #6
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Stephanie,

I'd love to see runs made with a similar system on a 94! Hopefully a black one with a hard top and snow tires.

Casey
cueball1 is offline   Reply With Quote
Old 03-26-2008, 07:08 PM   #7
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Wow, nice numbers. Better than I'd expect! I should be tuning my car... :-(
AbeFM is offline   Reply With Quote
Old 03-26-2008, 07:08 PM   #8
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Sam-03's have lower comp. than 99's and also, pauls maps are very aggressive on timing
paul also has a 3" DP vs 2.75" and its more straight compared to BEGi's IIRC
id like to see the S4 with a MS dyno tuned and then look at the numbers
Zabac is offline   Reply With Quote
Old 03-26-2008, 07:16 PM   #9
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by Zabac View Post
Sam-03's have lower comp. than 99's and also, pauls maps are very aggressive on timing
paul also has a 3" DP vs 2.75" and its more straight compared to BEGi's IIRC
id like to see the S4 with a MS dyno tuned and then look at the numbers
I'm pretty sure the '03 had 10:1 where the 99 had 9.5:1. I'm not Sam by the way
jayc72 is offline   Reply With Quote
Old 03-26-2008, 07:25 PM   #10
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Zabac,

You might get your wish when they finish my car. My 94 is down there as a mule. They're installing the S4 system and should be doing testing/ tuning any time now. (I hope!)
cueball1 is offline   Reply With Quote
Old 03-26-2008, 07:25 PM   #11
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

I believe the 03 has higher CR also.

Maybe this persons CR is lower because he modded it??
TURNS101 is offline   Reply With Quote
Old 03-26-2008, 07:27 PM   #12
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by cueball1 View Post
Zabac,

You might get your wish when they finish my car. My 94 is down there as a mule. They're installing the S4 system and should be doing testing/ tuning any time now. (I hope!)
I'll be happy to see that. I'm going to get an S3, GT2860RS, 3" from dp to bumper, MSPNP, RX7 550's.

C
chriscar is offline   Reply With Quote
Old 03-26-2008, 07:29 PM   #13
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

****, your right JAY (sovvy)
Zabac is offline   Reply With Quote
Old 03-26-2008, 07:48 PM   #14
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

damn it! beat me by 1 HP!!! but I weigh ~400 lbs less. Anyway, I was thinking my torque is kinda low at 235 for 271hp but I see you made the same. Should the torque be a lil closer to the HP max or is that typical?
paul is offline   Reply With Quote
Old 03-26-2008, 07:50 PM   #15
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

hey steph, can you post the DRF file so i can directly compare my 2560 setup to it easily?
paul is offline   Reply With Quote
Old 03-26-2008, 10:13 PM   #16
Former Vendor
Thread Starter

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Tim was supposed to copy files for me. I will check and see if he did.

Quote:
Should the torque be a lil closer to the HP max or is that typical?
Corky says that is typical. Due to the pressure losses and/or drag in the system (If i am understanding correctly!). In order to get more torque we would need to increase flow (bigger TB, less drag thru IC, less drag thru filter, etc.) and increase the boost levels.
Stephanie

p.s. 1 less psi too.
Stephanie Turner is offline   Reply With Quote
Old 03-26-2008, 10:17 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

oh yeah.....well mine only made 10rwtq less at 6k than yours on my little 1.6L at the same boost.
Braineack is offline   Reply With Quote
Old 03-26-2008, 10:23 PM   #18
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by Stephanie Turner View Post

Corky says that is typical. Due to the pressure losses and/or drag in the system (If i am understanding correctly!). In order to get more torque we would need to increase flow (bigger TB, less drag thru IC, less drag thru filter, etc.) and increase the boost levels.
Stephanie

p.s. 1 less psi too.
paul, i guess that means we gotta put on that new intake manifold and mustang TB before dyno day...
ArtieParty is offline   Reply With Quote
Old 03-27-2008, 12:01 AM   #19
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by chriscar View Post
I'll be happy to see that. I'm going to get an S3, GT2860RS, 3" from dp to bumper, MSPNP, RX7 550's.

C

Me too. I basically have the same setup as Chris already in my 96 except I got a used S5 with a T3 turbo and 3" Enthuza exhaust (no cat ), AEM and 550 injectors so I've been waiting to read your impressions when you get your kit.
Rafa is offline   Reply With Quote
Old 03-27-2008, 10:09 AM   #20
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,481
Total Cats: 248
Default

Looks good Steph/Tim/Begi! With an Xede too, very nice. I too would like to see Paul's 2560 plot overlaid on this 2860RS plot to see how much later, if any the 2860rs spools. You guys are kinda close to sea level, right?

I think you guys should drive up to delaware next weekend for the dyno day too.

Last edited by TurboTim; 03-27-2008 at 10:31 AM. Reason: oops, put 2560RS instead of 2860RS, duh
