Default Dyno graphs from NE Dyno Day 11/15/08

While we are still waiting for the guy at ACA Performance to figure out how to email me the DRF files* I figured I would at least put up the scanned printouts. Not ideal since we can't overlap them but you can glean some info from them. Like Tim don't **** around.

Note that in Artie's gutted manifold pulls the x axis is wheel speed, not engine speed.

My Daily Driver: Stock 94 motor with 269k miles on it, GT2554R, BEGi cast manifold, 2.5" ic piping, 18x12x3" core fmic, AbsurdFlow 3" bellmouthed downpipe/exhaust, 14psi


The Machine: Stock 99 motor with a BEGi turbo intake manifold w70mm tb, GT2560R, 2.5" ic piping, 18x12x3" core fmic, AbsurdFlow turbo manifold/3" bellmouthed downpipe/exhaust, 17psi



Artie's 95 with stock 95 motor/99head with GT2560R, 2.5" ic piping, 18x12x3" core fmic, AbsurdFlow turbo manifold/3" bellmouthed downpipe/exhaust, 15psi


Artie's 95 with stock 95 motor/99 head with gutted intake manifold, GT2560R, 2.5" ic piping, 18x12x3" core fmic, AbsurdFlow turbo manifold/3" bellmouthed downpipe/exhaust, 15psi


In summary:

My daily makes 200+ ftlbs of torque from ~3200rpm to about 5700rpm.
The Machine makes it before 3100rpm and holds it out past redline.
Artie crosses the 200ftlb mark just before 3200rpm and can only hold it to ~6700 rpm with stock intake.
With the gutted intake manifold Artie makes 200ftlbs ~100rpm later and just holds it above that mark out to redline.

Last edited by paul; 11-22-2008 at 11:46 AM.
paul is offline   Reply With Quote
Old 11-20-2008, 08:04 PM   #2
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

TurboTim setups FTMFW!!! Thanks Timmy.
ArtieParty is offline   Reply With Quote
Old 11-20-2008, 08:10 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Does Arty run VICS on the stock manifold? I'm guessing not.
Ben is offline   Reply With Quote
Old 11-20-2008, 08:15 PM   #4
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Not
paul is offline   Reply With Quote
Old 11-20-2008, 08:22 PM   #5
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Now you have me wanting a 99 head and a new intake mani. Good thing I'm broke at the moment.

The only difference between your setup and Artie's is the intake manifold and throttle body right? So he'd pick up another ~25 hp with that.

Last edited by johndoe; 11-20-2008 at 08:41 PM.
johndoe is offline   Reply With Quote
Old 11-20-2008, 08:55 PM   #6
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

That and I'm a much better driver on the dyno.

I have much shorter and more direct intercooler piping so that may be worth something.
I also run a 99 bottom end vs Artie's 95 bottom end.

My 300hp run was at 14psi, Artie's 278 is in the 15psi range.
paul is offline   Reply With Quote
Old 11-20-2008, 09:13 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

so what it their issue?

c:\dynoruns\

left click, sort by modified

select all the damn files from that day....
Braineack is online now   Reply With Quote
Old 11-20-2008, 09:19 PM   #8
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

The son Anthony sent me a ******* .bmp today showing 3 of artie's pulls and 1 of johndoe's. no idea what that guy is doing over there.
paul is offline   Reply With Quote
Old 11-20-2008, 09:20 PM   #9
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by paul View Post
That and I'm a much better driver on the dyno.

I have much shorter and more direct intercooler piping so that may be worth something.
I also run a 99 bottom end vs Artie's 95 bottom end.

My 300hp run was at 14psi, Artie's 278 is in the 15psi range.
looks like you've found the limit of your gt2560r as you've only made another 11whp with 3 more psi, though your torque curve is even sicker
Mach929 is offline   Reply With Quote
Old 11-20-2008, 09:35 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

Quote:
Originally Posted by paul View Post
The son Anthony sent me a ******* .bmp today showing 3 of artie's pulls and 1 of johndoe's. no idea what that guy is doing over there.
They need to stop exporting them and acutally get them through windows explorer...
Braineack is online now   Reply With Quote
Old 11-20-2008, 09:37 PM   #11
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Yup, I posted that in another thread somewhere. I am considering a 2871 not because I want to make more power but because I want to do it with less boost. The 2560 is definitely maxed out at 14-15psi making 365 crank hp.
paul is offline   Reply With Quote
Old 11-20-2008, 09:40 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

When going to the gutted mani, was Artie's car leaned out, or was that the same tune from the last run with the full manifold? Looks like it was leaned out more on the top end after the first gutted run. Looks like the stock manifold might have made more power with more tuning on the top end given the afr.

What's the compression difference between the 99 and 95 bottom ends? Just trying to pick out the differences.
m2cupcar is offline   Reply With Quote
Old 11-20-2008, 09:53 PM   #13
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

The car was re street tuned after the manifold swap. Artie's 3rd pull with the stock intake manifold is within .5 afr.
When we swapped the gutted mani on artie's boost dropped 2-3 psi. I guess this is due to more or the air actually getting into the motor instead of building up in the manifold. So for run 2 we brought the boost back up to 15 where it was for the first set of pulls.

cr on 95 is 8.8:1, 99 is 9.5:1
paul is offline   Reply With Quote
Old 11-20-2008, 09:59 PM   #14
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by paul View Post
Yup, I posted that in another thread somewhere. I am considering a 2871 not because I want to make more power but because I want to do it with less boost. The 2560 is definitely maxed out at 14-15psi making 365 crank hp.
hmm i'm not sure the 2871 should be your next turbo with a stock internals motor. i could be wrong but that torque curve is so sweet i'd hate to see it lost with too laggy of a turbo. do they make a gt2860 .86? i wonder how different spool would be between that and a 2871 .64?
Mach929 is offline   Reply With Quote
Old 11-20-2008, 10:37 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

2871 is a newer and better turbo than the 2860. They are supposed to spool equally but the 2871 flows better.

Active VICS vs gutted manifold would have been more interesting. Too bad.
Ben is offline   Reply With Quote
Old 11-20-2008, 11:08 PM   #16
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by Ben View Post
2871 is a newer and better turbo than the 2860. They are supposed to spool equally but the 2871 flows better.
I've been patiently awaiting the results of this dyno-day for the purpose of deciding which turbo is best for me. I know Corky says the 2560 is his favorite all-around snail, but with my plans for an S4 and 3"dp/exhaust making spool a non-issue, I had settled on a Disco for the headroom... and also being able to make 300whp on a few less psi than a 2560. But if the 2871 is a better unit... now my homework starts all over again.

I would have loved to see the boost lines along with the AFR's... but can I assume based on the torque curves of all 3 setups, that full boost is reached around 3500rpm? Can I expect the same response from a 2871? How "inferior" is the 2871 spool... are we talking about 200rpm or 500rpm?
samnavy is offline   Reply With Quote
Old 11-20-2008, 11:57 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

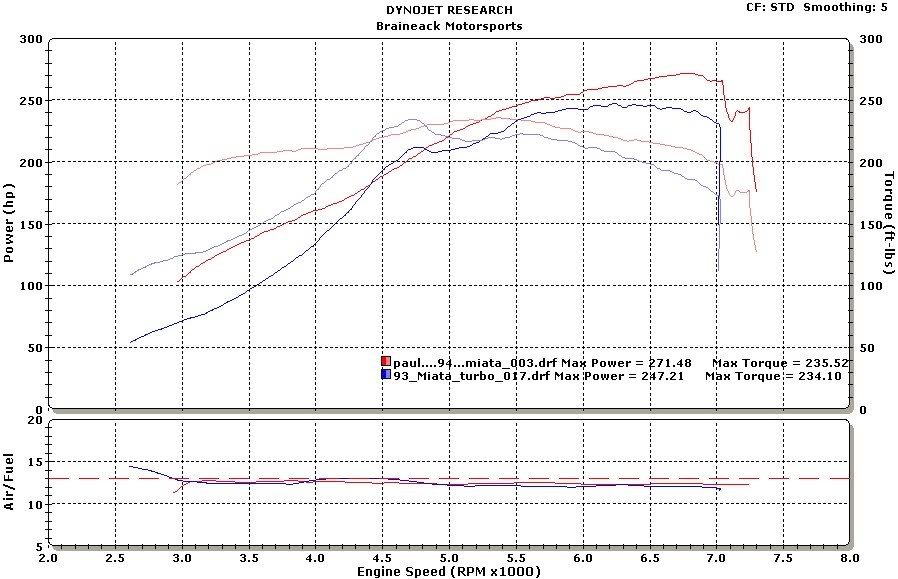

paul, your old stock manifold plot to Brad's latest with his 2871...

log manifold, 8.7:1 compression, 1.6L
