Dyno'd my 15 psi greddy - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 10-28-2007, 02:19 PM   #1
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default Dyno'd my 15 psi greddy

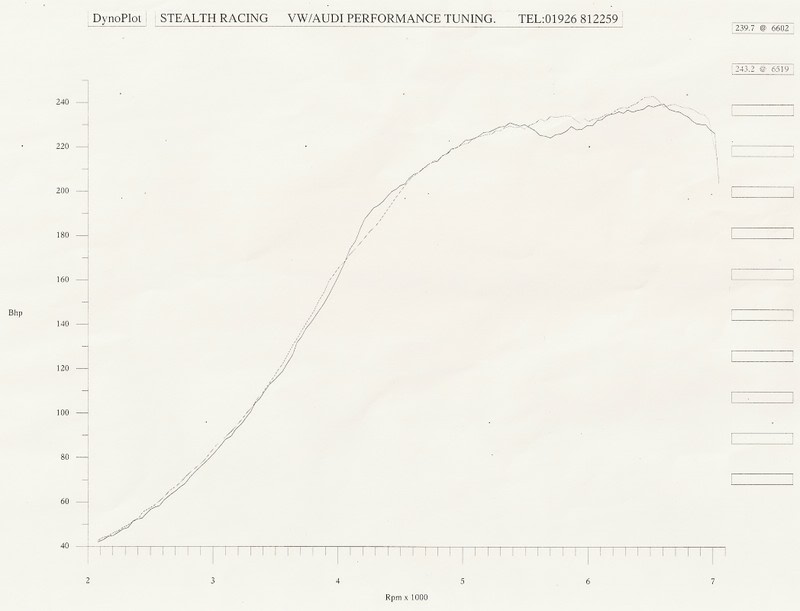

Power
Name:  bhpplot.jpg
Views: 12
Size:  32.8 KB

Torque


Made 243.2 bhp, & 237.2 ft/lbs.
There were two dyno runs, the dotted line is the second dyno run.

Still some issues to work out, need to better setup fueling/timing above 4500 RPM. Pulling way too much timing top end. Looking forward to getting her back on the rollers for try #2
Not too shabby for a Greddy

Last edited by tritium; 10-30-2007 at 10:51 AM.
tritium is offline   Reply With Quote
Old 10-28-2007, 02:23 PM   #2
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Is boost holding steady at 15psi, or dropping off towards redline? Your power curves look like Ben's, before he used EBC to keep the boost level from dropping off so much. Must be a fun car!
Atlanta93LE is offline   Reply With Quote
Old 10-28-2007, 02:29 PM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Or it could be all the timming he is pulling and a lack of EBC together. I dunno though still that is pretty respectable for some one on the other side of the pond
magnamx-5 is offline   Reply With Quote
Old 10-28-2007, 02:32 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

are you running any sort of piggyback or standalone or just base greddy?
mazda/nissan is offline   Reply With Quote
Old 10-28-2007, 02:33 PM   #5
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Boost actually creeps up to about 16 psi at redline, but think I'm pulling way too much timing. I'm pulling the same amount from 5500 RPM onwards, so suspect I could fix this with a few map adjustments. I just wish I'd known this before putting her on the dyno. If it weren't for the torue drop, I'm guesstimating I could've been seeing comfortably over 250 bhp.
tritium is offline   Reply With Quote
Old 10-28-2007, 02:35 PM   #6
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by mazda/nissan View Post
are you running any sort of piggyback or standalone or just base greddy?
E-manage ultimate and Greddy. 460 cc RX-7 injectors, Starion intercooler, Racing Mazda Downpipe, 3" Enthuza exhaust and custom 2.5" silicone IC pipes.
tritium is offline   Reply With Quote
Old 10-28-2007, 02:37 PM   #7
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
I dunno though still that is pretty respectable for some one on the other side of the pond
Cheers, sometimes you guys say the sweetest things
*wipes tear from eye*

Last edited by tritium; 10-30-2007 at 05:33 AM.
tritium is offline   Reply With Quote
Old 10-28-2007, 04:03 PM   #8
Junior Member
iTrader: (7)

Join Date: Apr 2007
Location: South of Houston, Texas
Posts: 329
Total Cats: 0
Default

Quote:
Originally Posted by tritium View Post
E-manage ultimate and Greddy. 460 cc RX-7 injectors, Starion intercooler, Racing Mazda Downpipe, 3" Enthuza exhaust and custom 2.5" silicone IC pipes.
Curiosity, how long did it take for you to get that DP?
mikef85 is offline   Reply With Quote
Old 10-28-2007, 04:49 PM   #9
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by mikef85 View Post
Curiosity, how long did it take for you to get that DP?
Interesting that you should mention that, I waited 6 months for mine...


Here she is on the dyno:
http://www.youtube.com/watch?v=pAJfbe7h-AM

Last edited by tritium; 10-28-2007 at 05:31 PM.
tritium is offline   Reply With Quote
Old 10-28-2007, 05:31 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

i stand by my "all you greddy guys need to replace your wastegates" statement.

nice numbers regardless of the torque drop.


i can't believe it creeps us, not with that drop, the hp should be about 20-30 point higher than the torque if the boost held flat.


but again, regardless, it looks like fun.
Braineack is offline   Reply With Quote
Old 10-28-2007, 05:38 PM   #11
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
i stand by my "all you greddy guys need to replace your wastegates" statement.

nice numbers regardless of the torque drop.
I'm not certain what you mean, why replace? I've got a helper spring holding the wastegate shut up to 12 psi, I posted about this in another thread a few months ago.
Boost definitely isn't dropping, I'm 100% sure of this.
If you wish, I can show you datalogs right up to near 20 psi at redline, where you can clearly see the boost is increasing (creeping) right up to redline.
tritium is offline   Reply With Quote
Old 10-28-2007, 05:41 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

it actually like to see it. it may just be the scaling of the map that makes the torque look like it drops as if the boost isn't holding like a typical greddy kit.
Braineack is offline   Reply With Quote
Old 10-28-2007, 05:44 PM   #13
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Scaling or not, the tq does drop from about 240 to 170 lbft.
neogenesis2004 is offline   Reply With Quote
Old 10-28-2007, 06:27 PM   #14
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Yea, you know I had suspected this before putting the car on the dyno, because I noticed there didn't seem to be much more power from 5000 RPM to redline. I regret not paying more notice to that, hindsight is 20:20 as they say, but its all a learning experience.
tritium is offline   Reply With Quote
Old 10-29-2007, 10:44 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

I wouldn't be surprised if IT is IGN. I lost the same amout of torque when the ecu pulled 10* advance after peak torque from air temp compensation. Torque curve looks very similar.
m2cupcar is offline   Reply With Quote
Old 10-29-2007, 10:49 AM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

What have you done to make pressure rise towards redline? Every other greddy falls towards redline.

I'm also curious what your intake temps were looking like. I'm wondering if you were loosing power due to the turbo being past its range. At 16 psi in the mani, that could be 20 psi at the compressor outlet.
Ben is offline   Reply With Quote
Old 10-29-2007, 11:25 AM   #17
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

The main problem appears to be that I was overfueling. If you watch the video I posted of the dyno run, at the end of each pull you can hear the engine starting to misfire. This is because as the boost is creeping up it is entering a new region of the fueling map, which wasn't setup efficiently.
I was also pulling too much timing top end. This morning I've spent 5 hours rebuilding the fueling map from scratch, pixel by pixel from datalogs. Its now in its third revision and top end has improved from before. The dyno will say all, just as soon as I can get around to doing that I will.
So far I've only added 1.5 degrees advance beyond 5500 rpm and no sign of knock as of yet, and its helped.
I had run autotune the day before the dyno to try and even out the peak boost AFRs (little boost overshoot) but I'm guessing the LC-1 wideband was perhaps out of calibration and messed up the region of the map between 15 & 18 psi (for safety it was tuned to 18 psi prior to the dyno run).

Ben, I'm using a helper spring to hold the wastegate shut until 12 psi.
I can see from datalogs that boost isn't dropping off.
tritium is offline   Reply With Quote
Old 10-29-2007, 11:36 AM   #18
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default Boost remains constant regardless of RPM

Here is a datalog I was looking at earlier.
Blue is boost, the selected value reads 15.8 psi at 6868 revs. And overfueling.
But not by that much, the LC-1 must be out of calibration.
tritium is offline   Reply With Quote
Old 10-29-2007, 11:36 AM   #19
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

could you post a pic of your spring setup, and a datalog of somehting like a 3rd gear pull, so we can see your mastery of the greddy wastegate craptuator?
devin mac is offline   Reply With Quote
Old 10-29-2007, 11:58 AM   #20
Newb
Thread Starter

Join Date: Mar 2006
Location: 51st State
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by devin mac View Post
could you post a pic of your spring setup, and a datalog of somehting like a 3rd gear pull, so we can see your mastery of the greddy wastegate craptuator?
At once my good man, let thy mastery astound you !
Please see post #11 here:
https://www.miataturbo.net/forums/sh...=helper+spring
tritium is offline   Reply With Quote
