Default FE3 t3/t4 Miata

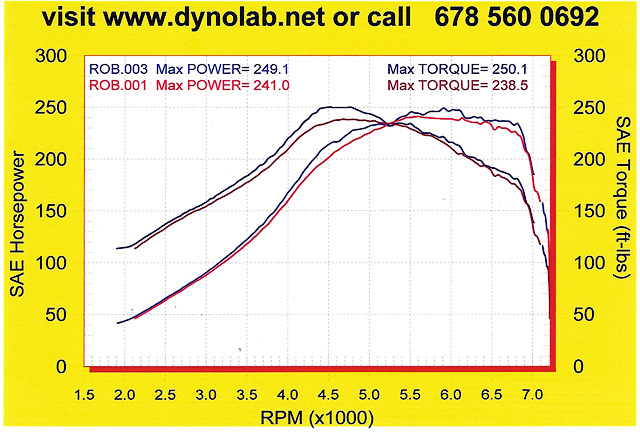

Fell "victim" to conservative AF targets. Final run 3 showed ~10rwhp/ftlbs gain with 4 points of Link master fuel removed. AFR on that run (16 to 14 to 16 psi) ran 11.2 at the power peak to 10.6 in the dip and to 7k. Pulling the master killed spool since the low end went lean, but showed how rich the higher boost was as the torque falls, the hp plateaus and then falls. Lots of tuning left to do.
Attached Thumbnails
FE3 t3/t4 Miata-dyno051207640.jpg
m2cupcar is offline   Reply With Quote
Old 05-14-2007, 05:06 PM   #2
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by m2cupcar View Post
Fell "victim" to conservative AF targets. Final run 3 showed ~10rwhp/ftlbs gain with 4 points of Link master fuel removed. AFR on that run (16 to 14 to 16 psi) ran 11.2 at the power peak to 10.6 in the dip and to 7k. Pulling the master killed spool since the low end went lean, but showed how rich the higher boost was as the torque falls, the hp plateaus and then falls. Lots of tuning left to do.
I think you need to consider swapping that turbine housing for a .63 housing, with a 2.0 you should have enough motor, additionally at 15 PSI that turbo should be making alot more power. I suspect timing is far to conservative up top too, just a guess.

Mark
Markp is offline   Reply With Quote
Old 05-14-2007, 05:39 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

looks good rob. i agree on the turbine housing. i'm running a .64 a/r and it's not too much. (the .86 woulda been)

did you measure knock for your pulls?
y8s is offline   Reply With Quote
Old 05-14-2007, 05:43 PM   #4
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I think you are exactly right. I didn't swap the turbine to the .63 at the time because it was going to require rebuilding the entire downpipe and I'd come to the end of the road for fabrication time. Also required another wastegate solution. I've got a 5-bolt merc and my .63 is 5-bolt ford.

I based all my maps on the FM defaults and it hurt on the dyno. NA 1.8 with an avo ran 250rwhp on the same dyno with a link at 12:1 and 15psi. I'm tuned for 11.1 at 15psi. I have no horsepower on the top end. Other FE3s keep climbing like the BPs - so there's lots tuning left up there. I'll get there. I'm a newb at this tuning stuff.

I know of an Mx3, same engine and turbo - 293whp at 14psi. So I know I should be near there.

I just wanted to leave the dyno w/o my SSA manifold coming apart.

No knock with any of the changes. More room for less fuel and more advance.
m2cupcar is offline   Reply With Quote
