Greddy @ 14psi, 247hp, 217lb/ft @ DIYautotune

Greddy @ 14psi, 247hp, 217lb/ft @ DIYautotune

Old 05-13-2008, 10:27 PM
  #1
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,538
Total Cats: 40
Default Greddy @ 14psi, 247hp, 217lb/ft @ DIYautotune

Name:  Page.jpg
Views: 16
Size:  85.3 KB

We ended up pulling 7 hp worth of timing out of the final map for a margin of safety, so I'm putting down an uncorrected 240 RWHP (RHHP?) to the ground.

a short vid of one of the ramp runs:



and an oil leak I finally pinpointed, which Ben was kind enough to help fix when I stopped by Mazmart on the drive home:


Matt and Jerry at DIY are fantastic to do business with also, I must add. Matt did a couple mods to my PNP while Jerry and I got the car settled onto the dyno, and he was done in like 10 minutes! Fantastic.
kotomile is offline
Old 05-13-2008, 10:48 PM
  #2
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,369
Total Cats: -1
Default

Looking good! Can we peek at your spark map?
wes65 is offline
Old 05-13-2008, 10:52 PM
  #3
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,015
Total Cats: 3,081
Default

sweet
18psi is offline
Old 05-13-2008, 11:34 PM
  #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,140
Total Cats: 6
Default

Dang thats a big oil leak, can't believe you haven't had that bolt installed all this time.
Great numbers though, lucky guy to have a working car.
cjernigan is offline
Old 05-14-2008, 12:10 AM
  #5
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,161
Total Cats: 5
Default

what sized injectors are you using...

and can I steal you .msq
miatamania is offline
Old 05-14-2008, 12:43 AM
  #6
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 266
Default

Wow, nice numbers. Good vids too Thats a huge oil leak, now time for some vids on the street!
Fireindc is offline
Old 05-14-2008, 12:56 AM
  #7
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 466
Total Cats: 0
Default

I too would like to take a look at your MSQ map and a possible quick run down of mods.
JDMAflac is offline
Old 05-14-2008, 01:40 AM
  #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,850
Total Cats: 1,687
Default

Holy **** oil leak. Where was that coming from? Oil return fitting, or the fifth A/C compressor bolt (the M8 45mm one)?
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is online now
Old 05-14-2008, 02:26 AM
  #9
Senior Member
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

IT sucks living so damn far from you guys!
Mimime is offline
Old 05-14-2008, 05:13 AM
  #10
Junior Member

Join Date: Apr 2008
Location: Sacramento
Posts: 171
Total Cats: 0
Default

Dang, nice numbers
J.T. is offline
Old 05-14-2008, 05:27 AM
  #11
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 3,001
Total Cats: 707
Default

I'm interested to know what the specifics of your setup are
__________________
Ryan Passey
ThePass is offline
Old 05-14-2008, 05:38 AM
  #12
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,538
Total Cats: 40
Default

The vBgarage gives a pretty good rundown of specs, but the gist is Greddy kit, turbo clocked, 22x9x3 FMIC (from Nester), MSPNP w/ 460cc injectors, diy dual feed rail, Begi DP, Enthuza 3" and custom Enthuza test pipe 2.5" - 3". Oh and the WGA is a Garrett unit from an FM1 kit.

I can post my .msq but I take zero responsibility if it's wrong for your engine! This tune was with 93 octane and my biggish intercooler. [EDIT - and I'm on HiRes 10G code..] I'll post it when I get home from work

CJ - I stopped by Mazmart and Ben let me find a bolt that would work, and the drive home was much less smelly than the drive there... I think the oil was leaking out, then burning off of the DP/exhaust going down the road.

Sav - the bolt

Last edited by kotomile; 05-14-2008 at 12:30 PM.
kotomile is offline
Old 05-14-2008, 06:12 AM
  #13
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,850
Total Cats: 1,687
Default

Originally Posted by kotomile View Post

Sav - the bolt
God damn. Glad I have a bolt there.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is online now
Old 05-14-2008, 08:14 AM
  #14
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

Originally Posted by kotomile View Post
I stopped by Mazmart and Ben let me find a bolt that would work, and the drive home was much less smelly than the drive there... I think the oil was leaking out, then burning off of the DP/exhaust going down the road.
So the oil leak went away? Well then I'm glad it was just that bolt and not the front crank seal. But that's damn scary how many people just remove that bolt and toss it when they pull A/C.

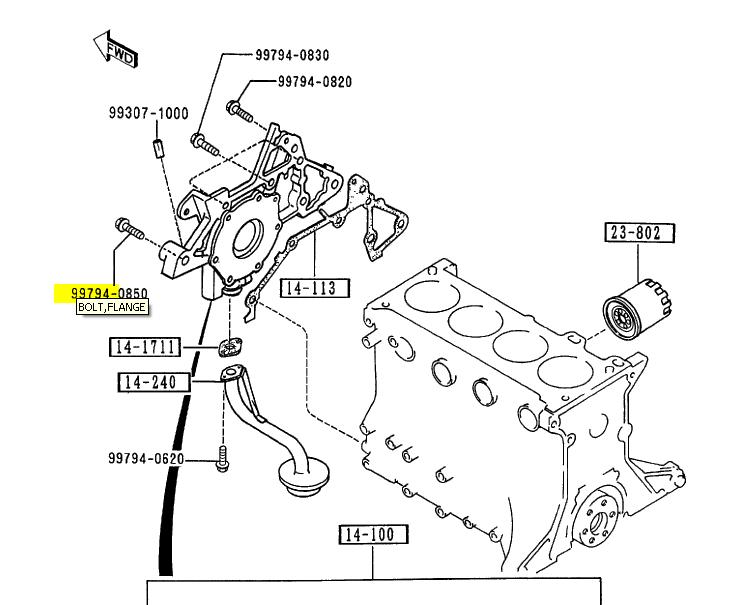

And for the record, since MazdaEPC doesn't show, if you take the A/C comp bracket off, you must replace this bolt with a shorter bolt to secure the oil pump.
Attached Thumbnails Greddy @ 14psi, 247hp, 217lb/ft @ DIYautotune-oilpump.jpg
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 05-14-2008, 09:04 AM
  #15
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

FYI-- these numbers are 'SAE Corrected' just not 'Fudge Factor' corrected to boost anyone's ego.

So you guys know, on a DynaPack it's really easy to tell if there's a fudge factor being used (technical term in the DP software is a TC Factor for Torque Correction). To tell this look at your dyno plot, on the right side at the numbers. The Power and PowFly should equal one another. If PowFly is higher than Power then a TC Factor correction is being added. The only real legitimate use of this is to try and estimate what 'crank horsepower' a car would make, but you'd need to know the exact drivetrain losses as a percentage, and you're assuming that percentage is static under all loads, which likely isn't the case. I choose to leave it at 1.00 which is straight up, no correction.

If anyone is wondering, the reason the Torq reading is 4.10 times high than the TorqFly reading? You guessed it, that's the axle ratio on this car. TorqFly is the actual torque the dyno is measuring at the hubs, it then divides that by the axle's ratio to give you the number you're used to looking at. So yes, with the axle multiplying the torque, you're realistically putting 373.9 ft/lbs of tq down to the pavement at 1503 rpms....
__________________
Jerry a.k.a. 'FoundSoul'
DIYAutoTune.com
'91 Miata BEGi S3 GT2560 w/ MSPNP - 14.1psi - 253whp, 232wtq
'95 Miata n/a
A few other cars....
FoundSoul is offline
Old 05-14-2008, 09:22 AM
  #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,880
Total Cats: 2,071
Default

and this is why you don't go to a Subbie shop to tune
Braineack is online now
Old 05-14-2008, 09:23 AM
  #17
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,386
Total Cats: 320
Default

Congrats Matt, I think that qualifies you for badass status.

btw- I bet half the miatas out there with a/c pulled are missing that bolt.
m2cupcar is offline
Old 05-14-2008, 09:28 AM
  #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,880
Total Cats: 2,071
Default

Hey I warned you guys like 2 years ago about that bolt.
Braineack is online now
Old 05-14-2008, 09:47 AM
  #19
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,538
Total Cats: 40
Default

Originally Posted by m2cupcar View Post
Congrats Matt, I think that qualifies you for badass status.

btw- I bet half the miatas out there with a/c pulled are missing that bolt.
haha, maybe.. there are a lot of faster ones though for sure. which after driving this around a bit, seems kind of strange that someone would want more. I suppose I'll get there eventually but in the meanwhile this is brilliant!

I bet most are too, and are wondering where their oil leak is coming from..
kotomile is offline
Old 05-14-2008, 10:03 AM
  #20
Elite Member
Thread Starter
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,538
Total Cats: 40
Default

Oh, and first and second can no longer be given full throttle on my 195s

I have some 205s waiting to go on though, they might help a little..
kotomile is offline
