Old 06-24-2008, 04:48 PM   #1
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default Greddy @5.5PSI

1.8 injectors and tony DP and Cat.
noticed the 10hp and torque gain just by swapping the dp and cat...
dyno shows stock vs greddy vs greddy with turbotony dp and free flow cat.
right now it's doing 7psi, but i need to lower the boost untill i get the IC as it is going too lean say 13.'s.


http://img139.imageshack.us/img139/2825/11674274rh5.jpg
mx5dude69 is offline   Reply With Quote
Old 06-24-2008, 04:59 PM   #2
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Good improvement, I still wonder why everyone lifts before redline though?
Zabac is offline   Reply With Quote
Old 06-24-2008, 05:02 PM   #3
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Conversion? Sorry, I'm lazy.
BenR is offline   Reply With Quote
Old 06-24-2008, 05:34 PM   #4
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

the intake crossover tube was about to blow...
question: if i am leaning at 7psi without a IC, adding one wont make it even leaner?
mx5dude69 is offline   Reply With Quote
Old 06-24-2008, 07:35 PM   #5
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

stupid me. of course it will, i just need to get a better fuel pump, because the Vortech with the 12:1 disc is only good enough for 5 psi...

i'll post some pics of the engine bay tomorrow.
mx5dude69 is offline   Reply With Quote
Old 06-24-2008, 07:41 PM   #6
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

Quote:
Originally Posted by BenR View Post
Conversion? Sorry, I'm lazy.
150 Horse Power
154Ft Lbs Torque

bear in mind this is the 90bhp euro version.
mx5dude69 is offline   Reply With Quote
Old 06-24-2008, 10:16 PM   #7
Junior Member
iTrader: (2)

Join Date: May 2008
Location: Murfreesboro, TN
Posts: 110
Total Cats: 0
Default

1ps = ~1hp. Not sure of the actual conversion, but if an engine makes 200hp it makes ~203ps
Drewkeen is offline   Reply With Quote
Old 06-25-2008, 02:10 AM   #8
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

Quote:
Originally Posted by Drewkeen View Post
1ps = ~1hp. Not sure of the actual conversion, but if an engine makes 200hp it makes ~203ps
ok ok 148HP.
mx5dude69 is offline   Reply With Quote
Old 06-25-2008, 02:23 AM   #9
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,771
Total Cats: 18
Default

Nice #'s! For 5 psi
IcantDo55 is online now   Reply With Quote
Old 06-25-2008, 11:32 AM   #10
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

That is the same WHP I got with the 2.5" DP and 2.5" exahust, but I only made 126tq. You must be running some insane timing, I was running 4deg, cause it is Texas and it was HOT HOT HOT.
ray_sir_6 is offline   Reply With Quote
Old 06-25-2008, 01:50 PM   #11
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

Quote:
Originally Posted by ray_sir_6 View Post
That is the same WHP I got with the 2.5" DP and 2.5" exahust, but I only made 126tq. You must be running some insane timing, I was running 4deg, cause it is Texas and it was HOT HOT HOT.
i'm running 6 degrees. not sure if the dynos are measured different over here...
only think I can say is that it pulls well, and clutch is slipping a bit already.
mx5dude69 is offline   Reply With Quote
Old 06-25-2008, 02:02 PM   #12
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Yes, all dyno's read differently. You can even get different readings from the same dyno on different days, or even just different times during the same day (3-5% variance for same day, so not that much).
ray_sir_6 is offline   Reply With Quote
Old 06-25-2008, 02:28 PM   #13
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Zabac View Post
I still wonder why everyone lifts before redline though?

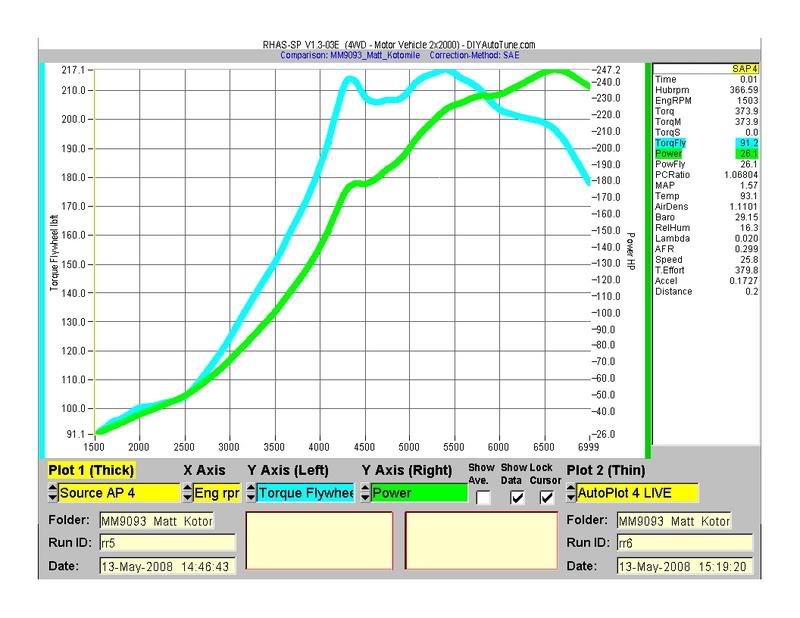

Even with better WGA can, Bell DP, no cat, 3" catback, and 2.5" charge piping sticking with it until redline is kind of pointless. After about 6600 power began to drop off pretty steady.

Name:  Page.jpg
Views: 2
Size:  85.3 KB
kotomile is offline   Reply With Quote
Old 06-25-2008, 05:13 PM   #14
Junior Member

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

I'm guessing that's 148bhp at the flywheel?

things you ideally want before upping the boost:

suitable injectors
timing control (Bipes, MS, Emanage etc..)
Fuelling control (New Vortech disc, or MS, Emanage etc etc..)
Intercooler


I don't see how fitting an intercooler will make your car run leaner though?
You may see a small drop in psi, but power should remain the same as the charge will be cooler.
jim-NA is offline   Reply With Quote
Old 06-25-2008, 05:28 PM   #15
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Why at the fly? Mine made that at the wheels, not that much tq though.



Quote:
Originally Posted by jim-NA View Post
I'm guessing that's 148bhp at the flywheel?

things you ideally want before upping the boost:

suitable injectors
timing control (Bipes, MS, Emanage etc..)
Fuelling control (New Vortech disc, or MS, Emanage etc etc..)
Intercooler


I don't see how fitting an intercooler will make your car run leaner though?
You may see a small drop in psi, but power should remain the same as the charge will be cooler.
ray_sir_6 is offline   Reply With Quote
Old 06-25-2008, 08:53 PM   #16
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

Quote:
Originally Posted by jim-NA View Post
I'm guessing that's 148bhp at the flywheel?

things you ideally want before upping the boost:

suitable injectors
timing control (Bipes, MS, Emanage etc..)
Fuelling control (New Vortech disc, or MS, Emanage etc etc..)
Intercooler


I don't see how fitting an intercooler will make your car run leaner though?
You may see a small drop in psi, but power should remain the same as the charge will be cooler.
just spent the last 2 hours adjusting the wastegate to hold 6psi steady.
now i run 12.0 to 12.5 at WOT to redline. seems good to me, and since 12.5 is the sweet spot, better yet.
I thought by adding an IC the colder air (more 02) would result in a leaner condition if you maintained the same psi level.

and yes it is 148 at flywheel.

Ray, your car is 115hp, mine is the 90hp euro version.
mx5dude69 is offline   Reply With Quote
Old 06-26-2008, 01:30 PM   #17
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

Quote:
Originally Posted by mx5dude69 View Post
and yes it is 148 at flywheel.

Ray, your car is 115hp, mine is the 90hp euro version.
You pulled the motor and put it on an engine dyno? That's alot of work.

What is the difference in the engines?
ray_sir_6 is offline   Reply With Quote
Old 06-26-2008, 02:21 PM   #18
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

Quote:
Originally Posted by ray_sir_6 View Post
You pulled the motor and put it on an engine dyno? That's alot of work.

What is the difference in the engines?

no, sorry obviously i didnt do that. it is measured at the wheels, but the plot actually says measured at the engine in spanish... ah man, i'm sorry, i dont know **** about dyno's, and i was just trying to explain what the mechanic told me. translation from spanish is measured at the engine... he told me it was a brake dyno? whatever that means...
came out wrong, but i didnt mean to say at the flywheel.

different cams(milder), piston, lower compression. have a look at
https://www.miataturbo.net/forum/sho...&highlight=Ole for more details on the engines.
mx5dude69 is offline   Reply With Quote
Old 06-26-2008, 07:21 PM   #19
Junior Member

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

Cool, so you got it running at 6psi now, and since you can monitor the AFR's you should be ok.
Honestly, installing the Emanage was the best thing I ever did (apart from fitting the turbo), gives you much more control, and a better idea of what's going on with the engine.

If your Spanish Dyno is anything like the one I used here in the UK then it will measure the Bhp at the wheels, then on the rundown it calculates the approximate BHP at the flywheel, I think transmission losses of 20-30bhp are typical on mx5's, mine were around 30bhp. (168bhp at flywheel vs 138bhp at the wheels)
jim-NA is offline   Reply With Quote
Old 06-26-2008, 07:31 PM   #20
Junior Member
Thread Starter

Join Date: May 2008
Location: Lisbon
Posts: 109
Total Cats: 0
Default

what afrs you get at 5psi with the emanage?

i need to talk to phil from p5 to get one asap... not sure if its gonna be a MS or EMU. the wiring on my ECU is a pain...
mx5dude69 is offline   Reply With Quote
