Old 03-26-2009, 08:34 PM   #21
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

My clutch has been slipping a little bit from time to time. I'm not sure if, or how much that affected it. I really didn't think the numbers were that low. I was hoping to see 250 but realistically I was expecting 220ish. As others have said, I think if he'd revved it out I could have picked up a few more hp and been awfully close to what I was expecting. What would you guys expect from a 2560 @ 12psi?

I haven't dyno tuned the car yet but I have bumped up the spark map a good bit listening for detonation with det cans. I'm sure there is a little more to be had with some dyno spark tuning.

I just did a compression check and it came out 160, 160, 162, 158 so that looks pretty good (gauge seems to read low from previous cars I've checked).

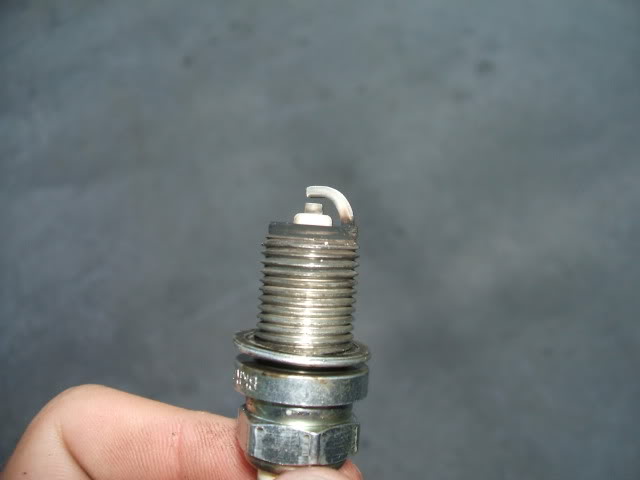

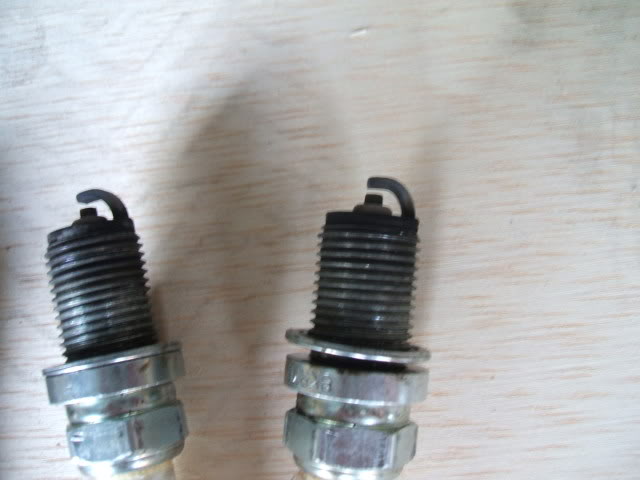

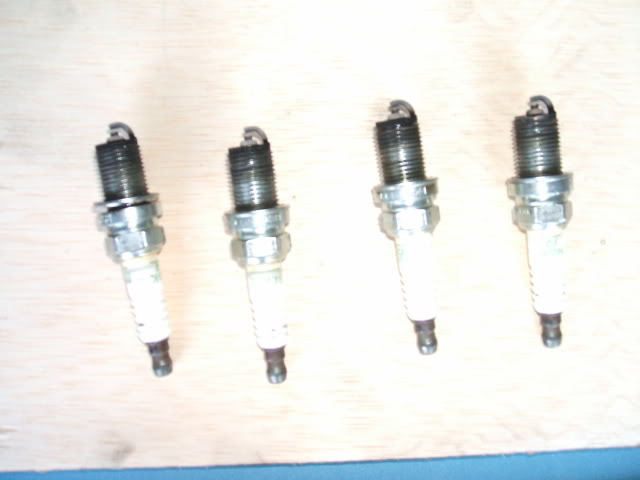

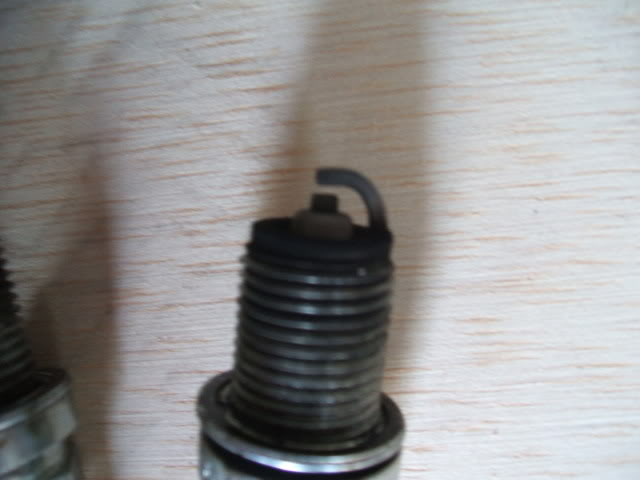

I took some pics of the plugs. Maybe you guys can deduce something from the pictures, they just look like spark plugs to me. *shrug* In the pics with a light background the plugs came out looking really dark. In the pics with a dark background they came out looking really light. In person, the base of the plug (by the threads) are pretty black while the electrode is much ligher, a very light tan almost white I would say. They're gapped to .028, should I go narrower? Should I be looking for some COPS?

Any advise is very welcome, thanks.

Name:  DSCF0779.jpg
Views: 61
Size:  26.3 KB

Name:  DSCF0784.jpg
Views: 61
Size:  22.0 KB

Name:  DSCF0788.jpg
Views: 60
Size:  33.8 KB

Name:  DSCF0789.jpg
Views: 60
Size:  29.3 KB
pdexta is offline   Reply With Quote
Old 03-26-2009, 09:08 PM   #22
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

what ign # are you running at 12psi? 20* or less? more? just wondering.
locomonkeyboricua is offline   Reply With Quote
Old 03-26-2009, 09:21 PM   #23
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

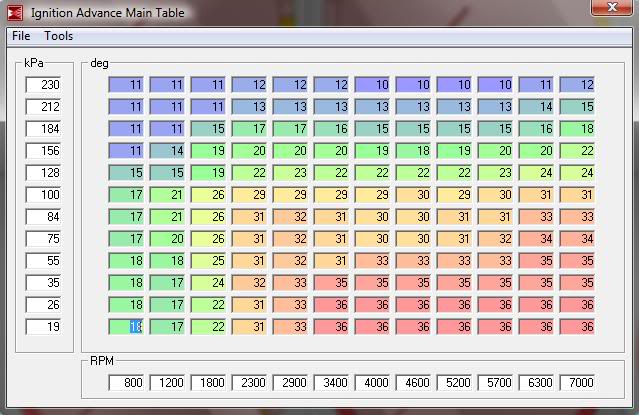

Here's my spark map:

Name:  spark.jpg
Views: 67
Size:  60.1 KB
pdexta is offline   Reply With Quote
Old 03-26-2009, 10:05 PM   #24
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

I run this spark map without detonation on my 99 motor with a 2560



and something very close on my 94 motor with 2554



Unless you are running a much smaller intercooler and/or getting much higher temps you should be able to run close to it.

I'd want to see 230-240hp on a 2560'd 1.8 with with 220-230 ft-lbs
paul is offline   Reply With Quote
Old 03-26-2009, 10:26 PM   #25
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

Thanks for posting those maps, that makes me feel a lot better about bumping my map up a little bit.
pdexta is offline   Reply With Quote
Old 03-26-2009, 10:57 PM   #26
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Note: I take no responsibility for whatever happens. "Close to it" can be translated many different ways.
paul is offline   Reply With Quote
Old 03-26-2009, 11:10 PM   #27
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

Quote:
Originally Posted by paul View Post
Note: I take no responsibility for whatever happens. "Close to it" can be translated many different ways.
Haha, duly noted. You will only be held responsible if positive results are observed.
pdexta is offline   Reply With Quote
Old 03-27-2009, 11:42 AM   #28
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

yea pual is right... his look about the same as mine and i run 91 octane here in CA and 91 in cali is like 90 because of all the clean air **** they put in the gas. so try puals and see what happens. i think it should run good since you are in FL.
locomonkeyboricua is offline   Reply With Quote
Old 03-27-2009, 12:01 PM   #29
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

this is a proper spark table:
hustler is offline   Reply With Quote
Old 03-27-2009, 03:23 PM   #30
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

your built right hustler? thats to steep for 91 oct. but you have a nice table i wish i could use it. how much TQ and HP with that table and and what boost?
locomonkeyboricua is offline   Reply With Quote
Old 03-27-2009, 03:42 PM   #31
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by locomonkeyboricua View Post
your built right hustler? thats to steep for 91 oct. but you have a nice table i wish i could use it. how much TQ and HP with that table and and what boost?
low static compression and the turbine characterstics are the shining factor. Its makes over 1-million whp and wtq.

261whp/252wtq on a dynodynamics
hustler is offline   Reply With Quote
Old 05-02-2009, 11:22 PM   #32
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

I re-dyno'd today, much better numbers this time around, 13psi this time: 262hp, 240tq. I just wanted to thank everyone for their help. You guys have been amazing in helping my idiot *** get this car together.

I'll get the dyno sheet scanned and posted as soon as I can.
pdexta is offline   Reply With Quote
Old 05-02-2009, 11:33 PM   #33
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

so what did you end up changing?

I just changed my car's spark map from teh base DIY to about 3-4 degrees more retarded than pauls map and that made a HUGE difference all around. Its nice to know that i can still go about 3 degrees more advance all around and still be fairly safe.

DYNO this summer hopefully!
240_to_miata is offline   Reply With Quote
Old 05-03-2009, 03:21 AM   #34
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

The vast majority of that gain was timing. After advancing the map a good bit my clutch, that I'd noticed slipping just slightly a couple times before, completely let go on the first pull I made. At that point I was pretty sure that I'd picked up some decent power, haha.
pdexta is offline   Reply With Quote
Old 05-03-2009, 03:24 AM   #35
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

What kind of dyno?
Savington is offline   Reply With Quote
Old 05-03-2009, 04:30 AM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
What kind of dyno?
hustler is offline   Reply With Quote
Old 05-03-2009, 04:41 AM   #37
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by hustler View Post
Savington is offline   Reply With Quote
Old 05-03-2009, 01:33 PM   #38
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,119
Total Cats: 44
Default

Well i hope to see similiar numbers with my setup. i'll also be dyno'ing on a dynojet so pdexta's numbers can be my base goal. but here in TN we care nothing of emissions and I can get 110 octane down the street, would 16psi be useless on a 2560r? I realize paul runs 17psi but he's also got the nice absurdflow setup

was the 262/240 pull with a new clutch?
flier129 is online now   Reply With Quote
Old 05-03-2009, 03:15 PM   #39
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

It was a different dyno this time, dyno dynamics. One of my friends pulled on both dynos and lost a couple hp this time around, FWIW.

Yes, this run was on a new clutch, about a month old.

The guy that pulled before me was an old Smokey and The Bandit looking Firebird. The guy said he was making around 400. He seemed pretty heartbroken when it put down 257, then he disappeared real quick after I made 262.
pdexta is offline   Reply With Quote
Old 05-03-2009, 03:53 PM   #40
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Haha, nice improvement. I'm not sure about current dyno correction factors, but those are nice numbers either way, and looks like you found well more than 10% in your tuning(that extra 1psi probably didn't hurt either).
gospeed81 is offline   Reply With Quote
