Default GT2560, 12psi dyno

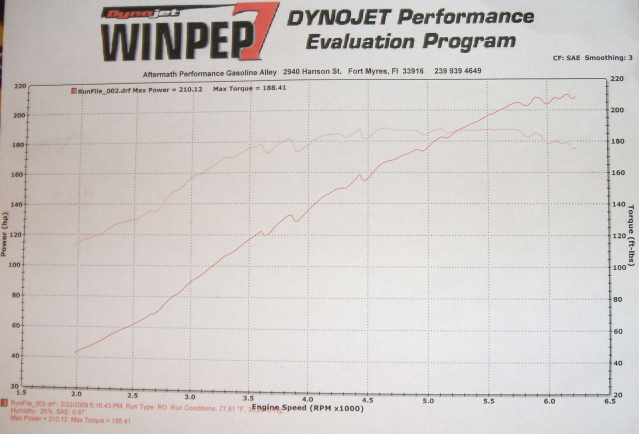

Finally got the car dyno'd today. The guy only took it to 6200rpms, I didn't notice until they were taking it off the dyno. I think I could have gotten a little more power out of it if he'd taken it to redline, but oh well.

I was a little disappointed with the results; 210hp, 188tq. Need moar boost!

Name:  dyno.png
Views: 121
Size:  1.45 MB
pdexta is offline   Reply With Quote
Old 03-22-2009, 11:54 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

wtf is wrong with it? Have you not tuned the ******? You should be making a ****-ton more output with that much boost on a gt2560.
hustler is offline   Reply With Quote
Old 03-23-2009, 02:16 AM   #3
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Even if he'd continued it to 7200, I can see the hp curve starting to flatten out... maybe you've got another 10whp in there the way it was going.

But Hustler is right. It doesn't look like you're spooling real well. You're a good 30-40ftlbs low too. Guys make more power than that on 1.6's w/2554r at 12psi.

What exhaust are you running?

I don't suppose you've done any datalogging... AFR curve?

Why don't you post up your spark map as well.
samnavy is offline   Reply With Quote
Old 03-23-2009, 02:18 AM   #4
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

my 1.6 made 225whp 205tq at 12psi on a 2560, +1 with the other guys you need to tune a little better
disturbedfan121 is offline   Reply With Quote
Old 03-23-2009, 08:42 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by disturbedfan121 View Post
my 1.6 made 225whp 205tq at 12psi on a 2560, +1 with the other guys you need to tune a little better

I'm going to guess if he had pulled to 7K it would have made something in the range of 220/188.
Braineack is offline   Reply With Quote
Old 03-23-2009, 11:35 AM   #6
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

the guy stopped running mine at like 6500 as well
disturbedfan121 is offline   Reply With Quote
Old 03-23-2009, 11:52 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

i bet your tach showed 7K and he lifted. I always run till i hit my limiter.
Braineack is offline   Reply With Quote
Old 03-23-2009, 11:56 AM   #8
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

good possibility, i didn't consider that.
disturbedfan121 is offline   Reply With Quote
Old 03-23-2009, 11:58 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

last time i watched my tach i lifted at 6K as well.
Braineack is offline   Reply With Quote
Old 03-23-2009, 12:05 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Those numbers are kind of depressing.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-23-2009, 12:16 PM   #11
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

for a 2560 yes they are.
leatherface24 is offline   Reply With Quote
Old 03-23-2009, 12:23 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Yep- always tell the dyno dude to watch the computer not your tach. Mine shows 7500 at 7000.
m2cupcar is offline   Reply With Quote
Old 03-23-2009, 07:37 PM   #13
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by leatherface24 View Post
for a 2560 yes they are.

yeah they are. my 2554 is laughing at them.
paul is offline   Reply With Quote
Old 03-23-2009, 07:59 PM   #14
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Quote:
Originally Posted by levnubhin View Post
Those numbers are kind of depressing.
Hehe, your avatar makes me want to attempt a carrier landing.

Pdexta, I think it had 215 or 220 in it if the dyno op hadn't flinched. Your car felt nice and quick to me. And I know the light weight helps, but it ran pretty darn well. Good job.
sixshooter is offline   Reply With Quote
Old 03-23-2009, 08:00 PM   #15
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

when i got my car dynoed stock ( at 98 whp for a 1.8 ....which is low) i had him go to the limiter. He was the first one to mention how far my tach is off.
240_to_miata is offline   Reply With Quote
Old 03-24-2009, 12:10 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'd like to know if this car spent ay time on spark tuning, or its just a "dumb" tune. I made 30whp just on spark tuning at 10psi.
hustler is offline   Reply With Quote
Old 03-24-2009, 09:20 PM   #17
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

I need to spark tune my cars. I'd love to pick up some more power.
paul is offline   Reply With Quote
Old 03-24-2009, 10:11 PM   #18
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

That looks pretty good. Too bad he didn't run it 500 more rpm to see if hp kept climbing or not.

I'm assuming that you've not load tuned your spark table. You can pick up 10% there, assuming the motor isn't tired.
Ben is offline   Reply With Quote
Old 03-26-2009, 04:32 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

did you ever figure out why your car is so slow?
hustler is offline   Reply With Quote
Old 03-26-2009, 07:46 PM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

My car? It's not slow, it's just not as fast as the last one.

We're getting there. Time is precious, but mods are coming.
Ben is offline   Reply With Quote
