Default Ignition Trouble?

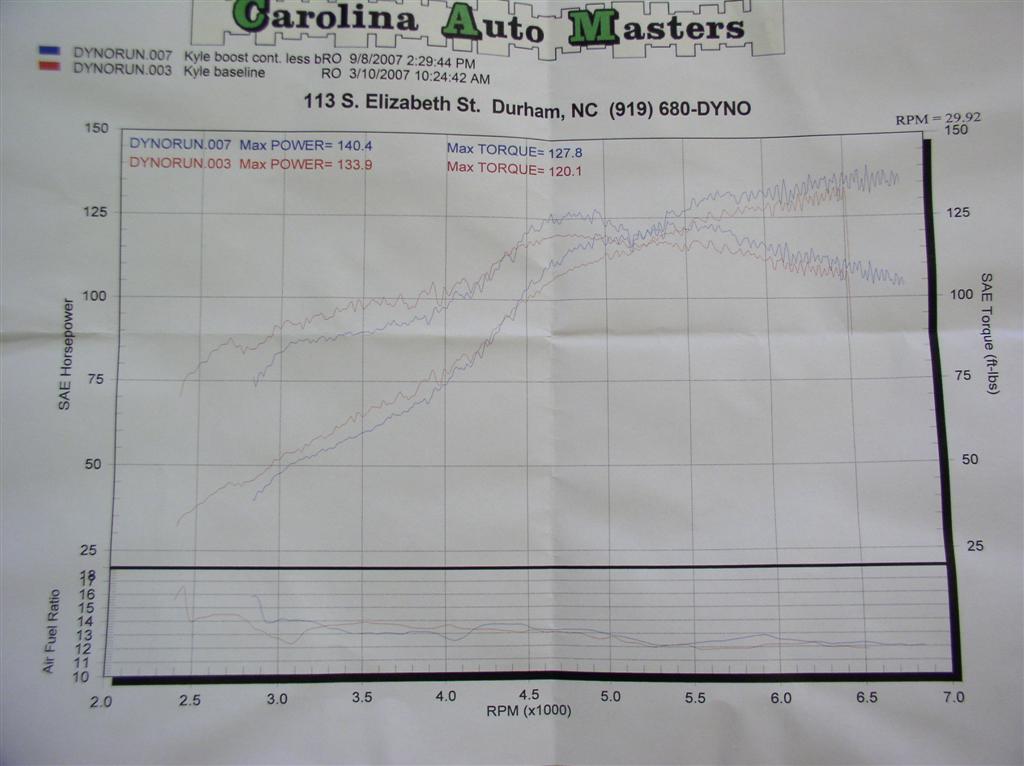

Here is my dyno from today, I'm thinking coil packs are the issue with the noisy chart and screwy AFR... any ideas?

- Greddy Kit @ ~6psi
- Stock exhaust and dp
- No AFPR
- Toyota green 315cc injectors
- Emanage Blue
- OG's Autotune
- Greddy Profec Spec B EBC
- Starion IC
- Colder plugs, 8.5mm wires


Last edited by manstretch; 09-08-2007 at 06:32 PM. Reason: .
manstretch is offline   Reply With Quote
Old 09-08-2007, 06:39 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Typicall of dynojets, that pick up rpm signal, from the plug wires. The afr might be a screwed up Wideband on the dyno unless you where detonating.
magnamx-5 is offline   Reply With Quote
Old 09-08-2007, 06:47 PM   #3
Newb
Thread Starter

Join Date: Jun 2006
Location: NC
Posts: 28
Total Cats: 0
Default

Well, I was getting hesitation/bucking randomly while under load, the AFR just kept going back and forth... we thought it seemed like an ignition problem.
manstretch is offline   Reply With Quote
Old 09-08-2007, 06:58 PM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

02 clamp
issue
magnamx-5 is offline   Reply With Quote
Old 09-08-2007, 08:57 PM   #5
Newb
Thread Starter

Join Date: Jun 2006
Location: NC
Posts: 28
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5 View Post
02 clamp
issue
What with the o2 clamp exactly?
manstretch is offline   Reply With Quote
Old 09-08-2007, 09:56 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

obviusly you are cycling between closed and open loop i bt if yu just pulled the sensor you would run alot more even and be richer to boot.
magnamx-5 is offline   Reply With Quote
Old 09-08-2007, 09:59 PM   #7
Newb
Thread Starter

Join Date: Jun 2006
Location: NC
Posts: 28
Total Cats: 0
Default

Pulled the sensor? I still don't understand why it would oscillate?
manstretch is offline   Reply With Quote
Old 09-10-2007, 11:21 AM   #8
Newb
Thread Starter

Join Date: Jun 2006
Location: NC
Posts: 28
Total Cats: 0
Default

Ok guys, make sure your spark plugs are tightened all the way.
manstretch is offline   Reply With Quote
Old 09-10-2007, 11:57 AM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Are you saying your plugs were falling out?
cjernigan is offline   Reply With Quote
Old 09-10-2007, 01:12 PM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

If it was just loose plugs i am gonna be pissed.
magnamx-5 is offline   Reply With Quote
Old 09-11-2007, 09:09 AM   #11
Junior Member

Join Date: May 2007
Location: NC
Posts: 246
Total Cats: 0
Default

There's a dyno in Durham ?? I'm in Chapel Hill and was under the impression the only dyno in 50miles was in Raleigh at Phantasm (err Ricers R Us - it's a civic shop primarily)... We should catch up somtime man - love to meet other miata folks in the area :-)
mtncrvr is offline   Reply With Quote
Old 09-19-2007, 08:32 PM   #12
Newb
Thread Starter

Join Date: Jun 2006
Location: NC
Posts: 28
Total Cats: 0
Default

Yes, all of my plugs were loose. Tightened them up and it's better, but still not perfect... I'm still getting some slight misfiring, so I bought another set of coils on ebay. We'll see if that helps any.
manstretch is offline   Reply With Quote
Old 09-19-2007, 09:35 PM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Might want to change the plugs and wires while you're at it to remove any other variables as well. It would be cheap assurance.
cjernigan is offline   Reply With Quote
Old 09-19-2007, 10:32 PM   #14
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

cop ftw! =)
lazzer408 is offline   Reply With Quote
Old 10-07-2007, 11:38 PM   #15
Newb
Thread Starter

Join Date: Jun 2006
Location: NC
Posts: 28
Total Cats: 0
Default

Changed coils and wires, plugs are less than a year old... not much difference. Gonna change the fuel filter next, but I'm not expecting it to change much. How reliable is the stock fuel pressure regulator? Any chance that could be my problem?
manstretch is offline   Reply With Quote
