mp62 10.8psi stock 99 motor - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 09-05-2010, 06:59 PM   #1
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default mp62 10.8psi stock 99 motor

so after installing a 190 fuel pump i got the car back to the dyno. picked up 2hp but other then that it was all the same.

car was always running 10.8psi the boost gauge just sucks and is being sent back.

car was tuned for 91, not 93 or race gas so i could have reliable power in any state and not have to mix fuel at hallett.

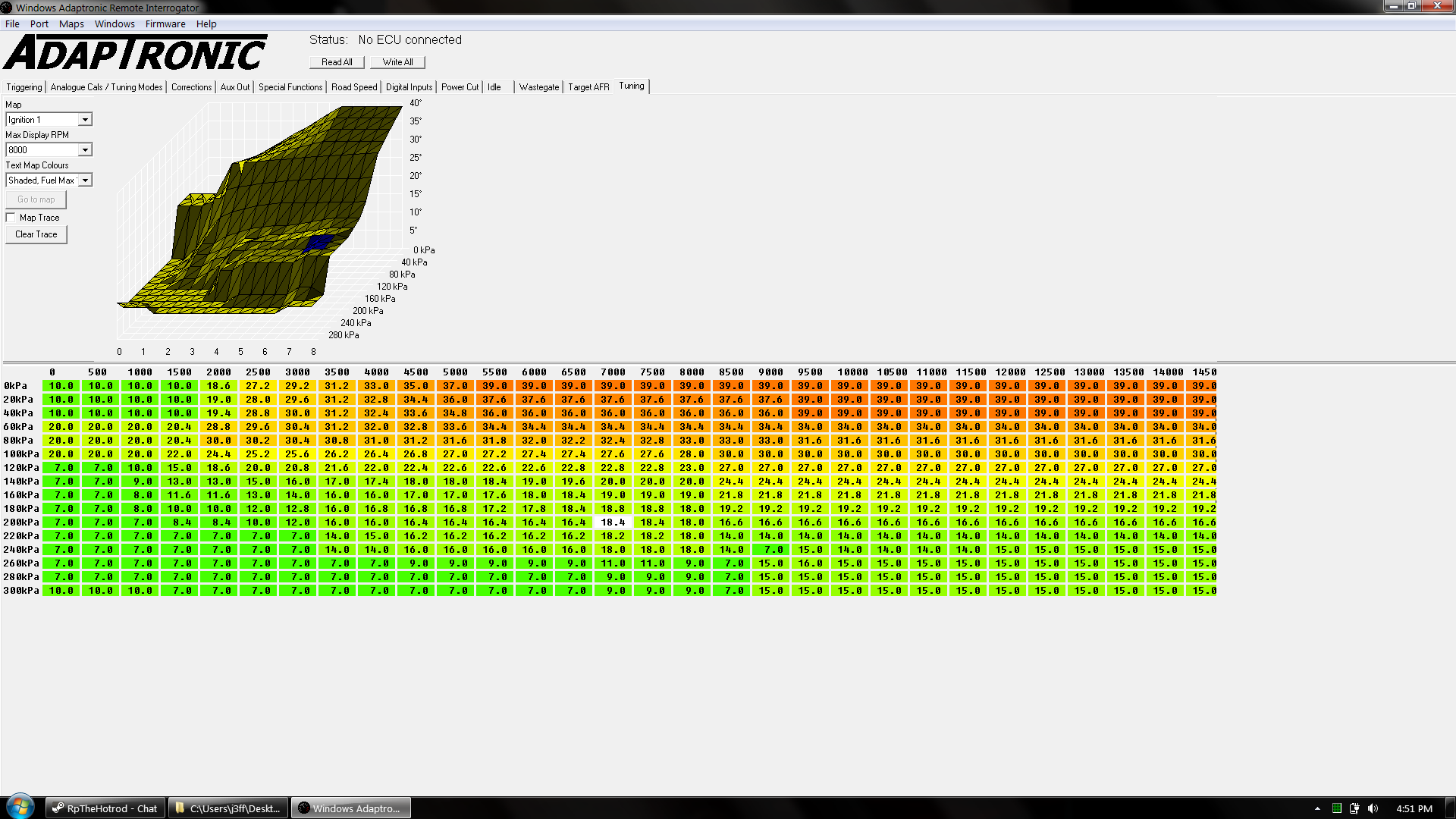

Name:  ignition2.png
Views: 16
Size:  98.2 KB
Attached Files
File Type: ecu Jeff_man2010-09-05_afterkantuning1.ecu (8.0 KB, 209 views)

Last edited by jeff_man; 09-05-2010 at 07:11 PM.
jeff_man is offline   Reply With Quote
Old 09-05-2010, 07:02 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

sweet. so its 11psi instead of 9. what is your knock table looking like?

care to post up your map?
I'm just curious what your settings are like.

also how are your warmup enrichments, throttle tip in, and all that?
18psi is offline   Reply With Quote
Old 09-05-2010, 07:04 PM   #3
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by 18psi View Post
sweet. so its 11psi instead of 9. what is your knock table looking like?
what is a knock table?
jeff_man is offline   Reply With Quote
Old 09-05-2010, 07:05 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

I meant your "set background knock level" table in "analogue calcs" tab
18psi is offline   Reply With Quote
Old 09-05-2010, 07:08 PM   #5
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by 18psi View Post
I meant your "set background knock level" table in "analogue calcs" tab

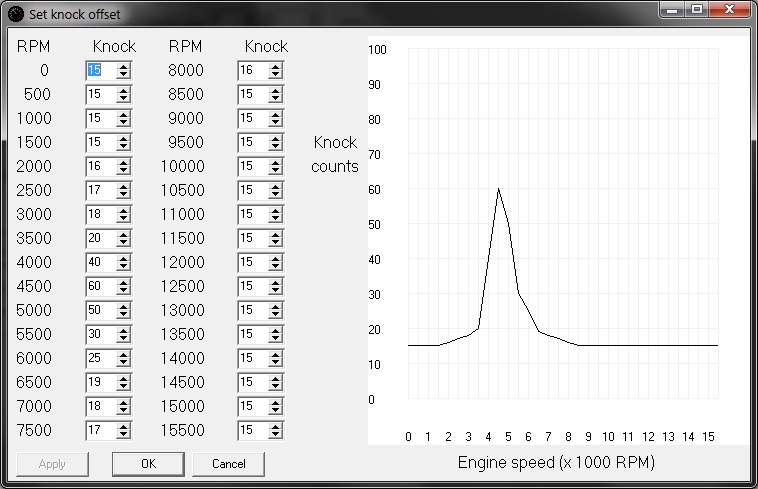

i know, i had to go take a screen shot. i'll add the map to the first post
Attached Thumbnails
mp62 10.8psi stock 99 motor-knock.jpg
jeff_man is offline   Reply With Quote
Old 09-05-2010, 07:10 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

60 at 4500 is really low.
is your spark table always left on open loop?

cause most of us get a ton of noise in that region when there's really no knock.
18psi is offline   Reply With Quote
Old 09-26-2010, 02:04 PM   #7
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,121
Total Cats: 44
Default

So what were the power numbers?!
flier129 is online now   Reply With Quote
Old 10-12-2010, 01:00 PM   #8
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by flier129 View Post
So what were the power numbers?!
240hp 220ftlb
jeff_man is offline   Reply With Quote
Old 06-09-2011, 03:43 AM   #9
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

Quote:
Originally Posted by 18psi View Post
60 at 4500 is really low.
is your spark table always left on open loop?

cause most of us get a ton of noise in that region when there's really no knock.
Can you enlighten me? going back from more tuning with some 550cc as the 335cc are out of fuel.

ignition is running closed loop and knock level retard at 70 for 2550ms. would like a proper knock setting that works to save my motor under fuel starve and other situations.
jeff_man is offline   Reply With Quote
Old 06-09-2011, 11:57 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

I mean if that's all the static you get in that area then great, but my car was seeing 100-120 counts of false knock (verified with det cans) at 4500, and pulling timing for no reason. A few others had the same.

How much ignition is it pulling in that area, if any?

Cause if you're in closed loop, have your base knock table set to 60 at 4500, and are getting false knock in that area like most of us did, it will be pulling a bunch of timing there. If not, then great.

Basically get det cans, tune the knock filter, then dyno tune the spark.
Though I'd still keep det cans on there during dyno time just to double check the knock sensor.
18psi is offline   Reply With Quote
Old 06-09-2011, 02:48 PM   #11
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

great, i'm to dumb to have any clue what your talking about
jeff_man is offline   Reply With Quote
Old 06-09-2011, 10:46 PM   #12
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

just show your tuner his post. prolly won't need to if he's an experienced tuner though. he would notice the timing retard or the valley in the graph if you were having a problem. i had my knock sensor go out on me so i just disconnected it. at the power level i'm running i knew it was fine, and has been for the last 18mos., although i have new knock sensor on it now that came with my new/used ecu. are you trying to make more power or just tuning for the new injectors to have a safe amount of headroom. aren't you the one that told me 330cc injectors were the best ever?
spoolin2bars is offline   Reply With Quote
Old 06-09-2011, 11:45 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by jeff_man View Post
great, i'm to dumb to have any clue what your talking about
Your knock sensor thinks there's knock going on, but it's not. This comes down to how I constantly chuckle inside because so many tuners with "solid reputations" sit inside a car, in a closed building while tuning a car ripping on the throttle and expect to hear detonation. I could go on and on about how no tuners properly load test a car after tuning, especially a racecar, using a naked ear. This is what happens when the guy tuning the car doesn't have any money invested in the engine. Luckily for you, the guy who tuned it knows enough to use caution, but I still don't trust a knock sensor over my det-canned-ear.

Remember when I tuned John's car on the dyno with the screwed up read-out by ear (with eddy control still working), with the det cans, and it matched DIY and 949's tuned spark tables? Yeah, that's what I'm talking about.

Quote:
Originally Posted by spoolin2bars View Post
aren't you the one that told me 330cc injectors were the best ever?
I had to hold a gun to his head and explain "dead time" and explain to him how I have old, shitty RX7 550+cc injections and my car idles and drives better than anything he's ever known. He listened to reason though.
hustler is offline   Reply With Quote
Old 06-10-2011, 02:32 AM   #14
Elite Member
Thread Starter
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

I was calling you about this earlier but for got about it went i left for dinner. Kan is going to go back over all my tune setting as the map i started with was for a 99 stock everything from Australia and all he and i changed was idle, crack, fuel table and spark table.

Quote:
Originally Posted by spoolin2bars View Post
ren't you the one that told me 330cc injectors were the best ever?
don't think so, may have regulated info that my car runs well because of the 335cc i had in it that i was hearing from tuner and local people.
jeff_man is offline   Reply With Quote
Old 06-15-2011, 09:02 AM   #15
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

open loop ignition ftw.

btw. Here's my current ign map. MP62 @185kPa (actual boost is around 14.5PSI). I run around 17-18 deg BTDC at boost....(and wait for it)..... without IC

and before someone ask's. Car is tuned with detcans and cooled with WI (IAT easily stays below 122F)
muoto is offline   Reply With Quote
