Old 02-07-2009, 07:06 PM   #1
Senior Member
Thread Starter

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default My dyno thread, 7 psi Greddy

149.9 WHP/134.2 ft/lbs

The Dyno: Power Curve Dyno
Dyno Dynamics 2WD dyno

Current Specs:
Stock 1.6 Motor w/153K miles
Greddy turbo with manual boost controller
Greddy manifold ceramic coated and port matched
2.5 RM DP
2.5 FM/JR Cat
2.5 Enthuza Exhaust
TDR Intercooler
BEGI AFPR
Bipes ACU
Lightened Stock Flywheel
15 inch rotas
Stock AFM
Stock FP
1.6 injectors <--maxed out

I'm running lean (>14.0 between 4400 rpm and 5000). Might get some bigger injectors for the time being. I wanted to get a baseline to see what I was running right now.

To do list: MS, WB and torsen.

Pictures in a couple days.

Chris
Miatamaniac92 is offline   Reply With Quote
Old 02-07-2009, 07:17 PM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

PUT SOME BIGGER INJECTORS IN THERE ASAP! those AFRs are dangerous. and you should be able to turn the wick up a bit for more power.
budget racer is offline   Reply With Quote
Old 02-07-2009, 07:33 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

in the least add more fuel pressure with the AFR...
Braineack is online now   Reply With Quote
Old 02-07-2009, 08:06 PM   #4
Senior Member
Thread Starter

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

It's maxed, I am turning down the boost.

Chris
Miatamaniac92 is offline   Reply With Quote
Old 02-07-2009, 09:11 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have some NB injectors at my house in Dallas that you can have on the free. You should join the MS crew and get 550's though.
hustler is offline   Reply With Quote
Old 02-07-2009, 09:54 PM   #6
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

My personal experience was that 6 psi with proper AFR's is faster than 7 or 8 psi with **** AFR's. Also, though in a way you are right about the injectors, what you are really maxing out is the fuel pump. Our pumps just can't push nearly enough fuel pressure to make the 230cc or whatever injectors flow enough. Unless you get some on the free, don't get 1.8 injectors - wait for MS so you can get some proper squirters. FWIW, I can get 11:1 AFR's at 6.5 psi using megasquirt if I so choose an I am currently on the stock injectors too.. though I have a suspicion that my pump is a freak and somehow is doing much better than it should for the miles it has.. but anyways, +1 on getting MS asap because adjusting with a AFPR = lose.

Without changing anything except for getting a proper fuel supply, that setup at that psi should be ~170 rwhp.

-Ryan
ThePass is offline   Reply With Quote
Old 02-10-2009, 12:24 AM   #7
Senior Member
Thread Starter

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
I have some NB injectors at my house in Dallas that you can have on the free. You should join the MS crew and get 550's though.
I'll take you up on that.

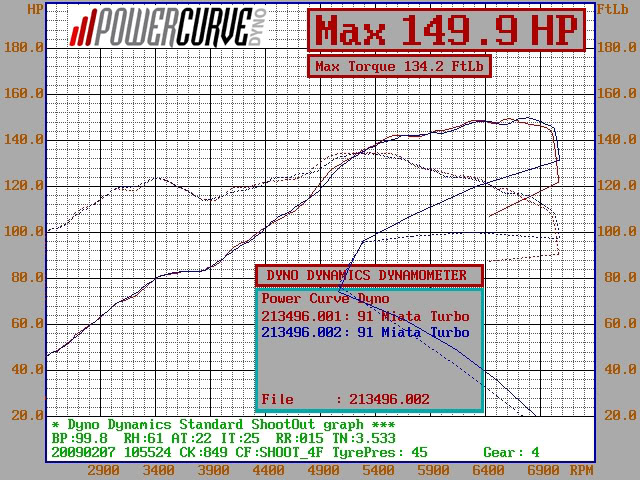

My dyno plot:

Name:  ChrisW.jpg
Views: 91
Size:  146.4 KB

Chris
Miatamaniac92 is offline   Reply With Quote
Old 02-10-2009, 01:01 AM   #8
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I would've expected a little more out of it. I don't have a dyno chart on me, but I turbo'd a friends 92 miata with the greddy kit. Customer intercooler install, emanage, and turbosmart recirc BOV & manual boost controller. Also has the Begi downpipe, stock injectors, and the stock fuel riser the kit came with. The greddy wastegate has trouble holding boost, but a about 7.5PSI, he made 164.9 RWHP, and 162 lb torque, and that was on the same dyno (dyno dynamics). Air/fuel readings were quite a bit better then that too.
dustinb is offline   Reply With Quote
Old 02-10-2009, 01:04 AM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by hustler View Post
You should join the MS crew and get 550's though.
.
kotomile is offline   Reply With Quote
Old 02-16-2009, 04:13 PM   #10
Junior Member
iTrader: (2)

Join Date: May 2008
Location: Murfreesboro, TN
Posts: 110
Total Cats: 0
Default

The stock 1.6 AFM is hurting power, too. A few more mods and you will have a big improvement in power.
Drewkeen is offline   Reply With Quote
Old 02-23-2009, 04:14 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I forgot your injectors last night...but maybe you can get them sooner than later.
hustler is offline   Reply With Quote
Old 11-03-2011, 01:27 PM   #12
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by hustler View Post
I forgot your injectors last night...but maybe you can get them sooner than later.
I have a 91 with 1.6 motor.
Greddy TD04
Racing Mazda DP
Flebay IC
MS PnP
Walbro Fuel pump
Stock injectors
7 psi

And no clue what power it makes

I have the stock CAT. It has a tiny inlet and is likely hurting my spool up time and maybe peak power ...
poobs is offline   Reply With Quote
Old 11-30-2011, 11:38 PM   #13
Junior Member
iTrader: (1)

Join Date: Jul 2010
Location: Louisville, KY
Posts: 196
Total Cats: 0
Default

holy pumped thread batman
PatrickB is offline   Reply With Quote
Old 12-01-2011, 06:55 AM   #14
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by PatrickB View Post
holy pumped thread batman
poobs is offline   Reply With Quote
Old 12-01-2011, 09:15 AM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

More concerning than the pumped thread is the stock injectors and 7psi.
