Old 01-18-2007, 09:17 PM   #1
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Smile myfonti's first dyno results!

i finally got my car dynoed! the before dyno was so unappealing that i almost cried([email protected])
right after that, i got a dp custom made at 2.5 in. and 3 in. test pipe with the rest of the piping to the magnaflow resonator and muffler at 3 in. as well...
the end dyno result was [email protected] not bad, right?

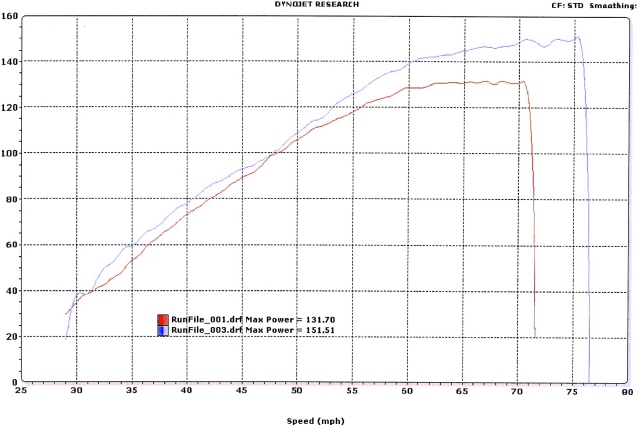

check my sheet! it was on a dynojet...
next is a clutch(break it in), then throw on my emb, 305cc injectors, jr afpr, 190lhp fp... i want 250rwhp! but ill settle for 230...
Attached Thumbnails
myfonti's first dyno results!-dyno1.jpg
myfonti is offline   Reply With Quote
Old 01-18-2007, 09:27 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That's a step in the right direction, get that clutch and everything else in already man, you've been talking about it for about a month now.
cjernigan is offline   Reply With Quote
Old 01-18-2007, 09:30 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

looks good (especially for the boost level)....I'd like to see it vs. engine speed.


happen to have the .drf files?
Braineack is offline   Reply With Quote
Old 01-18-2007, 09:31 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

all i have is what i posted... and the receipt... want that? hehe ummm whats a .drf file?
myfonti is offline   Reply With Quote
Old 01-18-2007, 09:32 PM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That's the actual dyno file that the dynojet creates, you can ask the shop for it .
cjernigan is offline   Reply With Quote
Old 01-18-2007, 09:34 PM   #6
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

i dont think them guys saved it if anything... it was just a simple dyno run... nothing hooked up like wbo2... just before and after runs... although, the before and after numbers were the best numbers, so i guess those were the only 1s shown...
myfonti is offline   Reply With Quote
Old 01-18-2007, 09:47 PM   #7
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Looks really good. Numbers are right on. And don't feel bad about the 132, I think I made something like 122 after installing the stock GReddy kit and going to the dyno. Funny how I never posted or saved that run...
brgracer is offline   Reply With Quote
Old 01-18-2007, 09:50 PM   #8
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

Looking good man, once I get my clutch in, I am going to schedule a dyno run to see what I am making at 8psi. Once I get new injectors, then I am going to step it up a lot more.
boostinsteve is offline   Reply With Quote
Old 01-18-2007, 10:05 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

1 more note, that was at 8 degrees btdc... will i have more power bumping the timing to 10? 12? or 14? that is once i install my emanage blue or water injection... whichever comes first...
myfonti is offline   Reply With Quote
Old 01-18-2007, 10:11 PM   #10
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

Once you get the WI in, I was able to run my base 12 degrees of timing, and only pull 2 degrees to eliminate all knock at 6psi, just to give you a better idea. But, I also rely on my WI a little bit too much. I am putting to gether a safeguards system for the WI, so that will give me some piece of mind. It will give you a little more power, but you have to be careful when messing with the ignition timing when incresing the cylinder pressures.
boostinsteve is offline   Reply With Quote
Old 01-20-2007, 02:49 PM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Quote:
Originally Posted by myfonti View Post
all i have is what i posted... and the receipt... want that? hehe ummm whats a .drf file?
Once you get the DRF file you can compare dyno runs with other people (I've got an interesting one at home comparing my 201 HP turbo to a 202 HP M62. Very eye opening...
rmcelwee is offline   Reply With Quote
Old 01-20-2007, 11:11 PM   #12
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

hmmm do u think the shop saved my dyno run? i need a clutch! i want [email protected]! but will settle for 230 if it doesnt work out...
myfonti is offline   Reply With Quote
Old 01-21-2007, 06:27 AM   #13
Elite Member
iTrader: (1)

Join Date: Jun 2005
Location: Charleston, SC
Posts: 2,980
Total Cats: 14
Default

Sure they saved it. Too lazy to delete it and too lazy to give you a copy. I'd drop by there with a USB memory key or floppy and ask for a copy if they won't send you one in email.
rmcelwee is offline   Reply With Quote
Old 01-21-2007, 07:22 AM   #14
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

great figures.

Its pretty amazing that you have gained approx 2orwhp by opening up the exhaust at the same PSI.

Surely thats like around a gain of 30+hp at the flywheel?

Anyway ...its convinced me to open up my exhaust another quarter inch.

I always thought it would make minimal difference.
tabs604 is offline   Reply With Quote
Old 01-21-2007, 01:17 PM   #15
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 467
Total Cats: 0
Default

^kinda on the same boat

I guess i need to update my natural aspirated exhaust for a FI one.
JDMAflac is offline   Reply With Quote
Old 04-27-2007, 03:54 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

that's awesome. definetly means its a good downpipe. why am I so happy about this? because that downpipe is currently sitting out in the parking lot. IN MY MIATA! followed by a 2.5" cat, piping, and magnaflow muffler

hehe although I'm running a bipes pulling 10degrees, and 7.5psi. wonder what I'm making?
curly is offline   Reply With Quote
