Default Slowest Turbo Miata ever makes a pull

I can still hear the poor transmission whimpering in the garage right now. Poor little guy, he's a tough one for holding out, i'll give him that.



The Data:


.msl attached.

I'm honestly a little to embarrassed to post my timing and VE map. Just take my word for it, it's ugly.
Even STILL i had a better, more smooth powerband than 80% of the SRT4 neons that were there that day. Even with that weird lean spike i had around 3300rpm. I tuned the entire way to the dyno that morning too... Still had issues.

This is a good baseline before winter though, we'll see what better spark, a little more fuel, and some boost can do. I REALLY want to get a good tune on this thing and take it to 8000+rpm. The papers, and even the video shows that this thing still has power yet to be made in the higher RPM's. Obviously, 3.636 is in the works and hopefully i can nab a 6 speed sometime over winter as well.
Attached Thumbnails

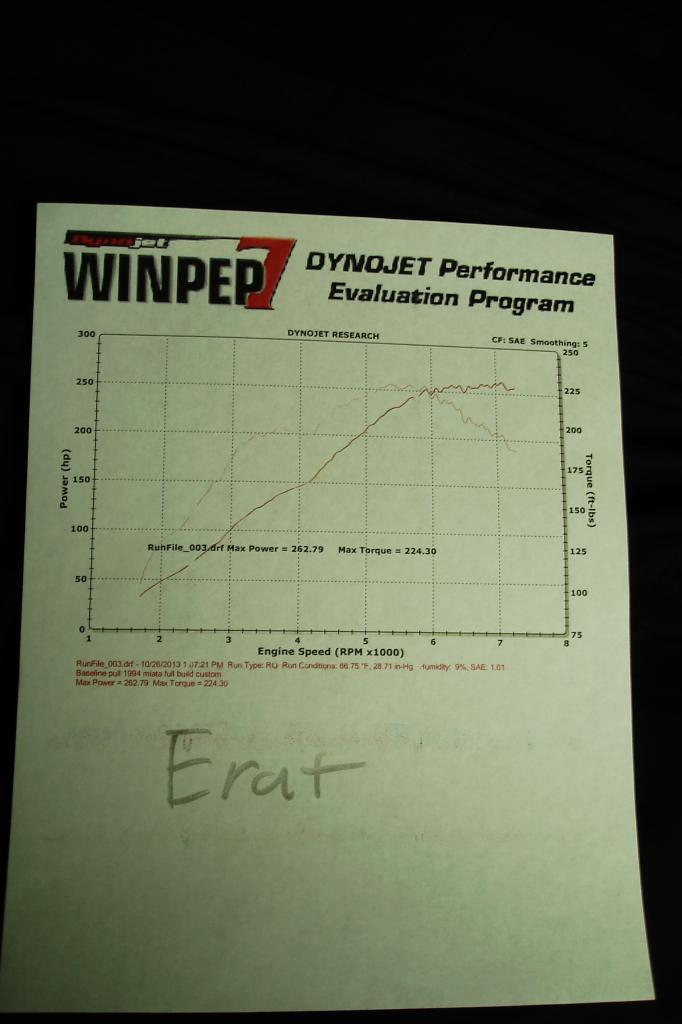

Slowest Turbo Miata ever makes a pull-10-26-13dyno.jpg
Attached Files
File Type: msl 2013-10-26_13.06.17 - 262hp pull.msl (104.4 KB, 89 views)
Erat is offline   Reply With Quote
Old 10-29-2013, 09:45 PM   #2
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Erat View Post
Obviously, 3.636 is in the works and hopefully i can nab a 6 speed sometime over winter as well.
I might have what you're looking for. Strongly leaning towards doing an rx7 TII trans in mine and I have a 6 speed sitting in my garage just across the river from you in Windsor.
BoostedSmurf is offline   Reply With Quote
Old 10-29-2013, 10:00 PM   #3
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

PM me if you want to sell it.

I doubt i'll be allowed across the border though. :( Well... I could probably get across, just not back.
Erat is offline   Reply With Quote
Old 10-29-2013, 10:09 PM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Nice numbers! Details on setup?
thirdgen is offline   Reply With Quote
Old 10-29-2013, 10:39 PM   #5
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Erat View Post
PM me if you want to sell it.

I doubt i'll be allowed across the border though. :( Well... I could probably get across, just not back.
I don't have an issue bringing it across for you as long as tolls and gas are covered.

I still need to do some research into the TII trans before committing, but if you want the 6 spd that might motivate me to stop being lazy and actually research it lol.
BoostedSmurf is offline   Reply With Quote
Old 10-30-2013, 08:49 AM   #6
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Quote:
Originally Posted by thirdgen View Post
Nice numbers! Details on setup?
Built engine(95 block and head). Scat rods, Supertech pistons 9.0:1 1mm over, ballanced, BE oil pump, Gates WP and TB, ACL bearings.
PnP head, Supertech 1mm over valves with supertech 63lb dual springs. Fully rebuilt with all new parts and 99+ retainers.
gt2560 with FM log manifold and turndown everything fully PnP. Ran on wastegate pressure. (FM no electronics kit) Turbosmart BOV
2.5" FM exhaust with test pipe.
750cc 5o injectors, with MS2. (stock fuel and spark) 350hp intercooler.
FM stage 2 clutch.
I think that's everything.

Quote:
Originally Posted by BoostedSmurf View Post
I don't have an issue bringing it across for you as long as tolls and gas are covered.

I still need to do some research into the TII trans before committing, but if you want the 6 spd that might motivate me to stop being lazy and actually research it lol.
Well, i don't want to pay a ton just to get it across. I really don't want to be spending more than $700 or so on it total.
I need one though, so i'll have to get it from somewhere.
Erat is offline   Reply With Quote
Old 10-30-2013, 10:05 AM   #7
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Congrats on the numbers. I'm assuming the lean spike you referenced is the cause of the torque plateau in the 3k - 4k range.


Also, that is the most ghetto looking dyno facility I have ever seen. Where on Earth -


Oh.


Detroit.
Scrappy Jack is offline   Reply With Quote
Old 10-30-2013, 10:30 AM   #8
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Yup, Exactly what went wrong with the torque plateau...


This was actually more close to Flint, which we know is even worse than Detroit... It was a Dynojet FWIW.
Erat is offline   Reply With Quote
Old 10-30-2013, 10:46 AM   #9
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Erat View Post
Well, i don't want to pay a ton just to get it across. I really don't want to be spending more than $700 or so on it total.
I need one though, so i'll have to get it from somewhere.
Getting it across would probably cost about $20 lol
BoostedSmurf is offline   Reply With Quote
