Default Soviet era car, space age turbo, rocket fuel

Yesterday I went to the dyno and made 458whp and 391ft/lbs on the last run.

- E85 (rocket fuel)
- 1.8 block, 84mm wiseco pistons, eagle rods (1884cc displacement)
- stock 99 head from a pick and pull junkyard
- wittyworks hotside parts (manifold, downpipe, exhaust)
- Borg Warner EFR6758 turbo
- Flat-top EUDM intake manifold, stock 99 throttle body
- M-tuned fuel rail in single-feed configuration, stock fuel hard lines, -6AN lines after that
- Fuelab mini FPR, ID1000 injectors, 60psi base fuel pressure
- Walbro 416 E85 pump (part #F90000267)
- Precision 600 intercooler
- Silverado truck coils (aka LS2 coils), 0.035" gap, NGK 4091 resistorless plugs, MSD 32829 wires
- 6 speed transmission from a 2005 Mazdaspeed
- ACT 6 puck xtreme clutch
- Timing map made by Faeflora. Timing map of RAPE



The dyno operator started all the pulls at 3-3.5k rpm which is too late and doesn't reflect my EFR's spool accurately. For example, during the last run it spooled to 29psi at 4300rpm - vs 3700 if the pull was started at 2k

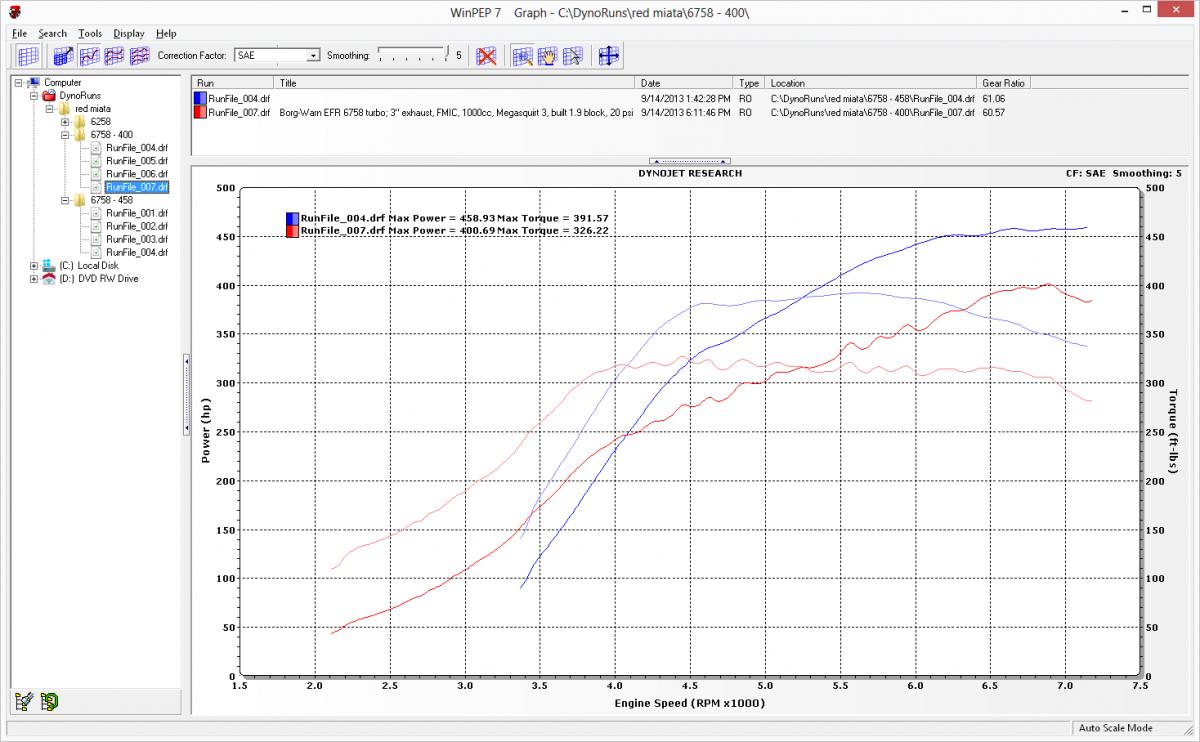

my old 400whp dyno vs 458, showing late spool

(nothing changed in the hotside since that dyno)

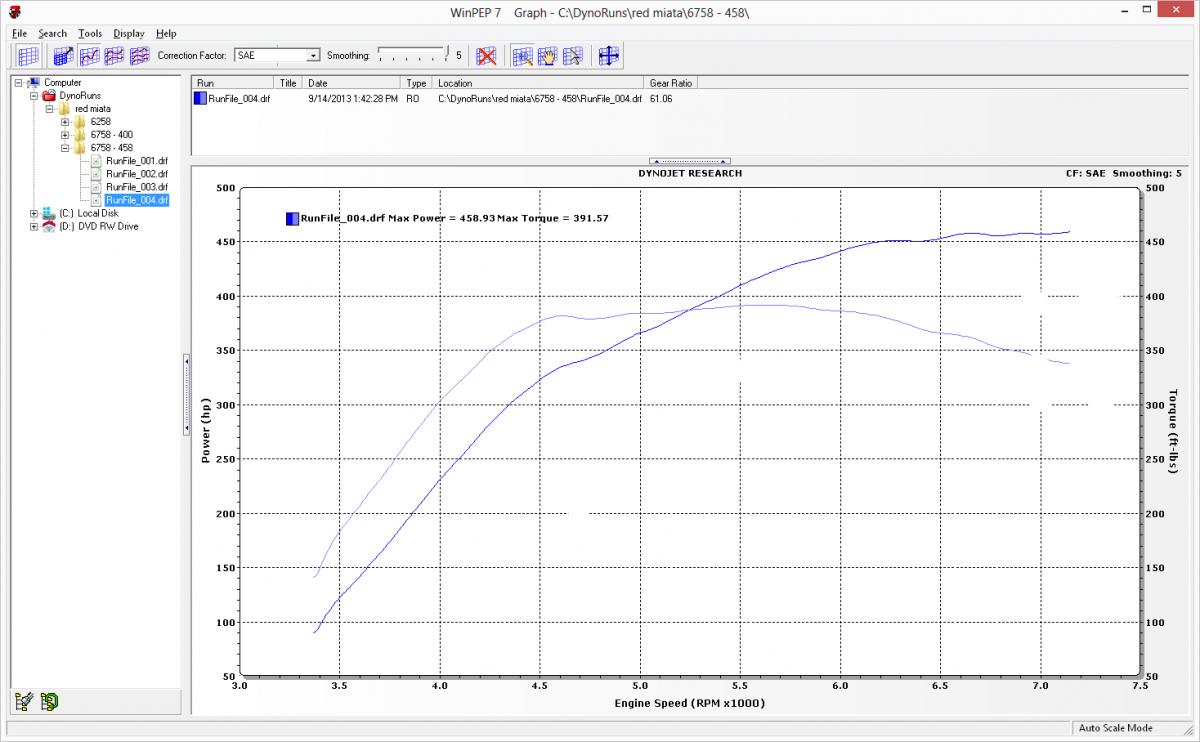

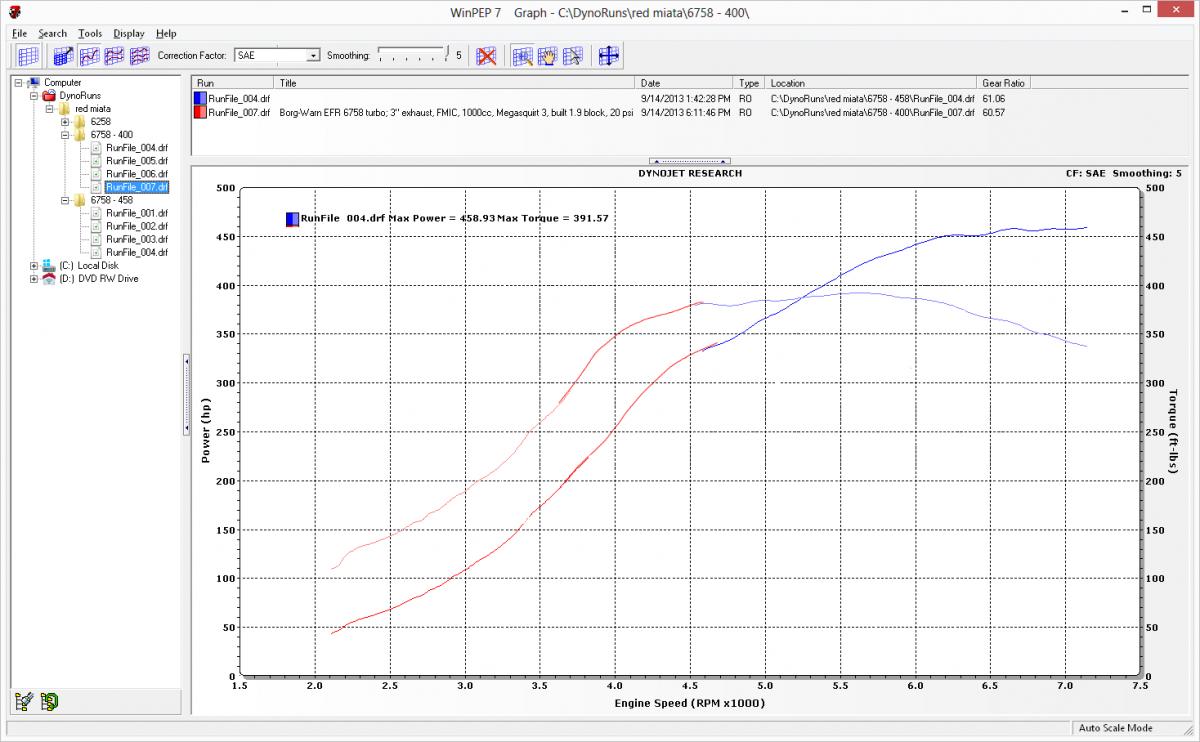

photoshopped 458whp dyno to show how spool SHOULD be like

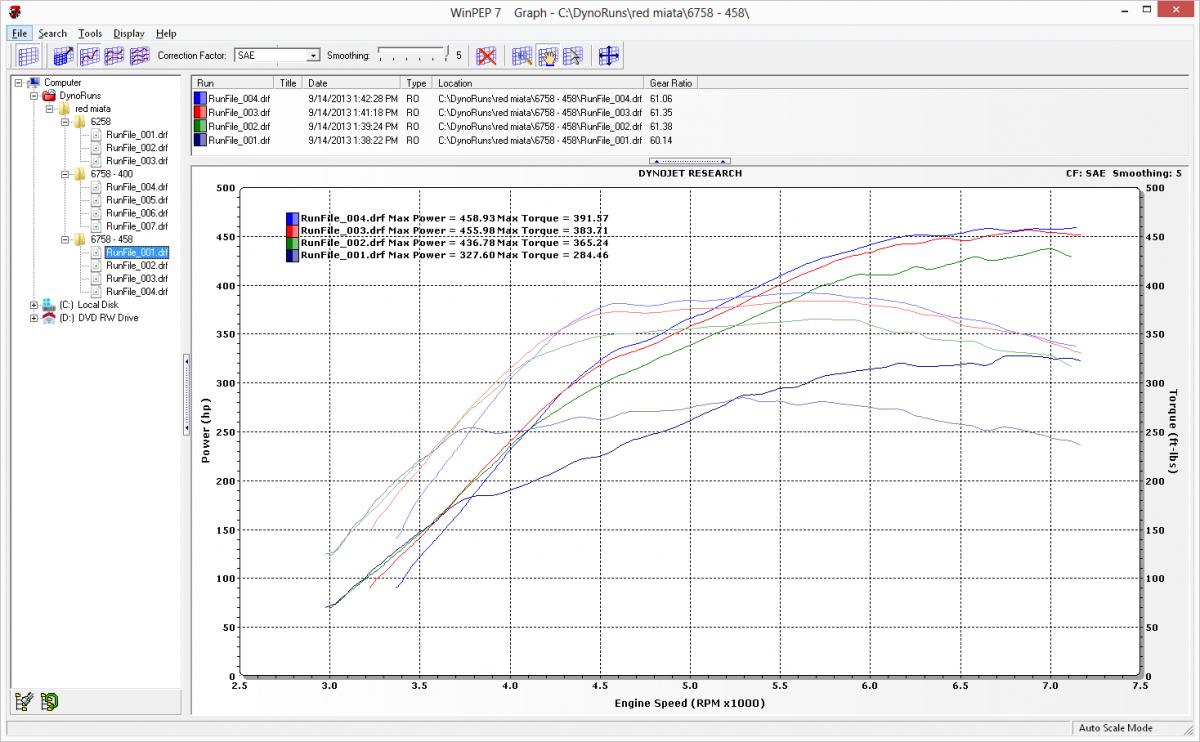

All 4 runs overlayed

Run1: Wastegate, 15psi
Run2: Allofit, -4* timing, dyno fan off
Run3: Allofit, -2* timing, dyno fan on
Run4: Allofit, unadjusted timing map, dyno fan on

Logs:
http://s95367906.onlinehome.us/photo...58whp/Run1.msl
http://s95367906.onlinehome.us/photo...58whp/Run2.msl
http://s95367906.onlinehome.us/photo...58whp/Run3.msl
http://s95367906.onlinehome.us/photo...58whp/Run4.msl

Videos:

Attached Thumbnails
Soviet era car, space age turbo, rocket fuel-458whp.jpg   Soviet era car, space age turbo, rocket fuel-458whp-vs-400whp.jpg   Soviet era car, space age turbo, rocket fuel-458whp-spool.jpg   Soviet era car, space age turbo, rocket fuel-allruns.jpg
soviet is offline   Reply With Quote
Old 09-15-2013, 02:55 PM   #2
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Some notes
- Fuel pressure was higher than it was supposed to, for some reason it was hovering around 63psi effective pressure
- Wastegate boost was only 15-16psi so I could have probably reached 30psi or higher if I tightened the wastegate arm. All the "allofit" pulls were hitting 0% wastegate duty.
- 90% injector duty cycle, meaning there was still fuel left!
- Turbo speed sensor was disconnected, sadly :(
soviet is offline   Reply With Quote
Old 09-15-2013, 03:00 PM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Turbo speed data would be dope.

Wanna post the Fae timing map of rape?
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-15-2013, 04:08 PM   #4
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Um, that's all on the CAS sensor? woah....
AbeFM is offline   Reply With Quote
Old 09-15-2013, 04:53 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

post the msq lol
18psi is offline   Reply With Quote
Old 09-15-2013, 05:03 PM   #6
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by AbeFM View Post
Um, that's all on the CAS sensor? woah....
no, I have a 36-1 trigger wheel. The cas is just for CAM signal - I modified it to only have a single tooth.
soviet is offline   Reply With Quote
Old 09-15-2013, 05:38 PM   #7
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Turbo speed data would be dope.

Wanna post the Fae timing map of rape?

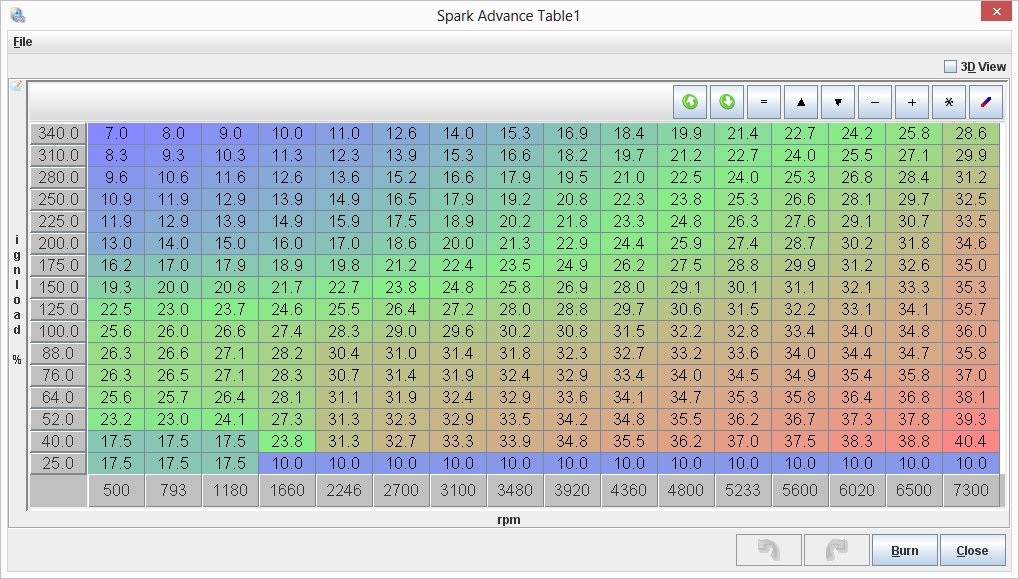

That made 458
-2* made 454
-4* made 436. the fan wasn't on but it was definitely gaining up until -2*
Attached Thumbnails
Soviet era car, space age turbo, rocket fuel-timing.png
soviet is offline   Reply With Quote
Old 09-15-2013, 05:55 PM   #8
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

^ d-d-d-d-d-daaaaaaamn
viperormiata is offline   Reply With Quote
Old 09-15-2013, 08:06 PM   #9
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,904
Total Cats: 109
Default

That is very impressive. All the work has paid off.
miata2fast is online now   Reply With Quote
Old 09-16-2013, 04:21 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I can get a 3900-4000rpm full spool (29psi) out of a 3076 on a 1.9L if I start at ~2700rpm.

I also got 428hp at 29psi at -5* on an already conservative ignition map (was out of water on the WI system and didn't notice on the dyno).

So somehow I was expecting more out of this setup, given the 3076 is an old turbo by todays standards.
Reverant is offline   Reply With Quote
Old 09-16-2013, 05:06 PM   #11
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Reverant View Post
I can get a 3900-4000rpm full spool (29psi) out of a 3076 on a 1.9L if I start at ~2700rpm.

I also got 428hp at 29psi at -5* on an already conservative ignition map (was out of water on the WI system and didn't notice on the dyno).

So somehow I was expecting more out of this setup, given the 3076 is an old turbo by todays standards.
You're excluding a lot of information. Head, RPM, fuel, etc.
soviet is offline   Reply With Quote
Old 09-17-2013, 03:19 AM   #12
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

VVT head with no work apart from SS valves, "93" octane fuel ("100 RON"), max RPM is 7300, JE 84mm/8.6:1, 99 intake w/VICS, GM coils, RX-7 FD gearbox, MS2. Target AFRs are 11.3-11.5, timing is 8-15* retarded compared to your map posted above.
Reverant is offline   Reply With Quote
Old 09-17-2013, 07:51 AM   #13
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
I can get a 3900-4000rpm full spool (29psi) out of a 3076 on a 1.9L if I start at ~2700rpm.

I also got 428hp at 29psi at -5* on an already conservative ignition map (was out of water on the WI system and didn't notice on the dyno).

So somehow I was expecting more out of this setup, given the 3076 is an old turbo by todays standards.
428hp or 428whp?
Nagase is offline   Reply With Quote
Old 09-17-2013, 08:37 AM   #14
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Crank hp. I have come to the conclusion that US dynos read about the same whp as what most european dynos read as crank hp.
Reverant is offline   Reply With Quote
Old 09-17-2013, 09:00 AM   #15
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by Reverant View Post
Crank hp. I have come to the conclusion that US dynos read about the same whp as what most european dynos read as crank hp.
That's odd. So when new cars are dynoed there, it's already adjusted for drivetrain loss and you get near the published figures?
Nagase is offline   Reply With Quote
Old 09-17-2013, 09:30 AM   #16
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Its all a guestimate so why not? I'd say that sounds pretty reasonable with a vvt head actually.
thenuge26 is offline   Reply With Quote
Old 09-17-2013, 11:00 AM   #17
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Reverant View Post
Crank hp. I have come to the conclusion that US dynos read about the same whp as what most european dynos read as crank hp.
Yeah, no.
My dyno result is SAE corrected WHP on a dyno that's approved for club racing, so its accurate. Uncorrected, its 485whp/404ft/lbs. Crank hp is over 500, closer to 550.
soviet is offline   Reply With Quote
Old 10-25-2013, 01:58 AM   #18
Newb

Join Date: Oct 2013
Posts: 2
Total Cats: 0
Default

better power/weight ratio then a 1.3 million dollar pagani huayra? Badass!!!
96accordsir is offline   Reply With Quote
Old 11-07-2013, 09:45 AM   #19
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I may be a bit late to this ( been focusing on getting my car running and not the forums )
Our builds are about identi-chokes- Not really, I don't have awesomeness :(
But, I noticed, why does the gear ratio keep changing in all 4 runs? I thought it's suppose to stay the same.
Also smoothing: 5, seems like a lot. I'm no expert on this stuff though, just trying to understand it.
Sorry if it seems I'm critiquing.
Impuls is offline   Reply With Quote
Old 11-07-2013, 09:57 AM   #20
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Impuls View Post
I may be a bit late to this ( been focusing on getting my car running and not the forums )
Our builds are about identi-chokes- Not really, I don't have awesomeness :(
But, I noticed, why does the gear ratio keep changing in all 4 runs? I thought it's suppose to stay the same.
Also smoothing: 5, seems like a lot. I'm no expert on this stuff though, just trying to understand it.
Sorry if it seems I'm critiquing.
I think the gear ratios are different because the more power my car makes the more it "squats" on the rollers and the more rear tires get compressed.

The rear shocks compress A LOT under full power - see vidya


Regarding smoothing - I always use 5. For some dynos its unneeded, for other it is. Another factor is ramp settings they use on the rollers - the dyno I went to before did long pulls (~10 seconds) vs the last time it was a 5 second run. It can be clearly illustrated if you use the 'time' scale in WinPEP -


Finally, in the same image above I turned off any correction factors. BAM all of a sudden I'm making 474whp
It was a very nice day and ambient conditions were better than SAE specs.
