Old 10-13-2012, 04:52 AM   #21
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Joe Perez View Post
Looks photoshopped. The shadows are all wrong. Definitely fake.
obviously seafoamed

well done Soviet, this is most impressive!

Last edited by sturovo; 10-13-2012 at 05:02 AM.
sturovo is offline   Reply With Quote
Old 10-13-2012, 08:51 AM   #22
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by thirdgen View Post
Please tell me more about that orange line coming off the breather. Where does it go, and details/ etc.
It goes to a catch can which is mounted on the passenger side firewall. It is a -12an line covered in fire sleeve.

Those numbers look amazing.
shuiend is offline   Reply With Quote
Old 10-13-2012, 11:06 AM   #23
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

HoleeShitman strikes again.
TurboTim is offline   Reply With Quote
Old 10-13-2012, 12:01 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I was going to drive over and meet up to this...but my 220rwhp is so slow i count make it. I went into reverse and cried.

I need to see what one of those turbos could do on a 1.6L...that's just crazy impressive.
Braineack is offline   Reply With Quote
Old 10-13-2012, 12:25 PM   #25
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

Well that looks like fun!
skidude is offline   Reply With Quote
Old 10-13-2012, 01:04 PM   #26
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Soviet is busy having victory secx with his harem so i will answer quesions in hus stead.

Quote:
Originally Posted by bcrx7 View Post
I'm going for 30-32PSI max. I better get my 575 crank power at that point!
If you only make 550whp at that psi then there is zero hope for me to break 600 with my s366 at the same psi. *****.

Quote:
Originally Posted by Reverant View Post
Was somehow expecting a little more. Got 420whp on the GT3076 car, with the ignition retarded 5 degrees due to no water in the WI system and me not noticing on the final pulls. 5 degrees is like 40-50whp on this setup. Ok, that was at 29psi though.

So, in another news, IN SOVIET RUSSIA, BOOST TURNS UP YOU!

Yah. So.

Details on the three runs:

Run 1: Wastegate, 17psi
Run 2: 23psi
Run 3: 26psi, plus 2* timing

I think the car can hit 450hp on e85 and 10psi more . The little power taper up top could probably be flattened up with more timing in the last two columns.

Last edited by Faeflora; 10-13-2012 at 01:45 PM.
Faeflora is offline   Reply With Quote
Old 10-13-2012, 08:50 PM   #27
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by Faeflora View Post
Soviet is busy having victory secx with his harem so i will answer quesions in hus stead.
Yus. after dyno, we went to some ------ry "car meet" because it just happened to be next door. Scott promised to show up - didn't. After that I spent time with le girlfriend and went to autox today. Just got home.

Car rapes face, turbine wheel didn't explode. Autocrossed at 300whp (wastegate pressure) Autocross is pointless in this car right now because it just spins wheels. Its a hoot but wears out tires quickly. So I'm going to stop autox. Problem solved.

Quote:
Originally Posted by thirdgen View Post
Please tell me more about that orange line coming off the breather. Where does it go, and details/ etc.
Lars is correct, it's a -12AN line going to a catch can with a breather. It's always dry. I get vapor out of the catch can, that's about it. PCV hole is welded shut.

Quote:
Originally Posted by thirdgen View Post
What gears / tranny?
6 speed, 3.9 gears, 5th gear on dyno.
soviet is offline   Reply With Quote
Old 10-13-2012, 09:28 PM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

So has MT finally found the "HOLY GRAIL"?
18psi is offline   Reply With Quote
Old 10-13-2012, 09:55 PM   #29
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

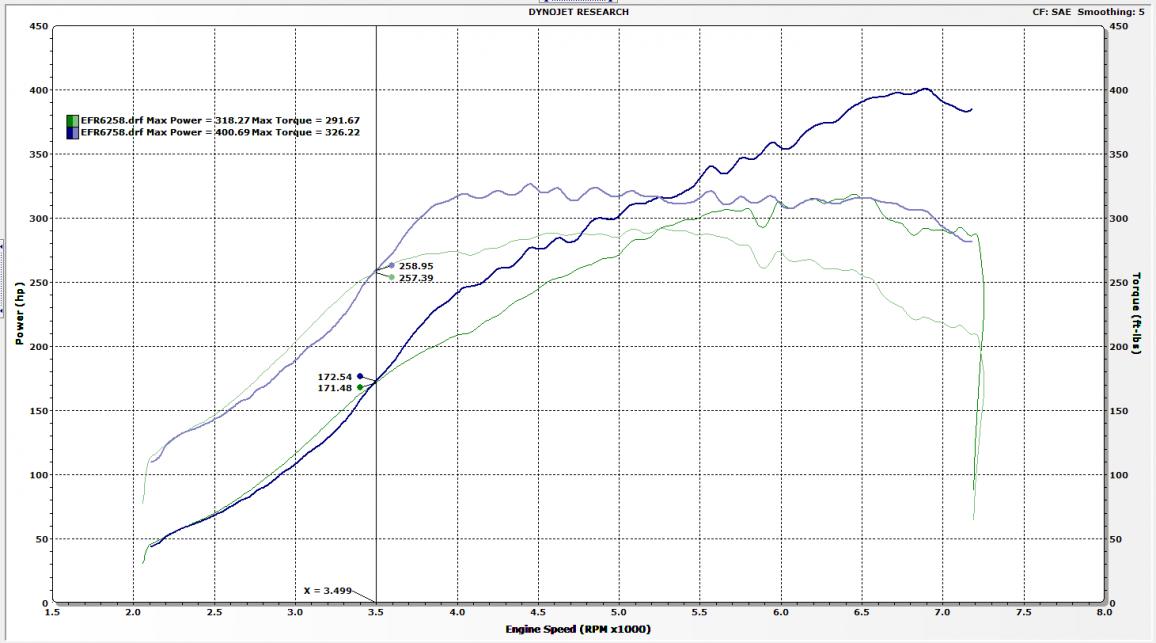

And here's what everyone really cares about.


However, I don't think that chart fully represents EFR6258. Simply because back then I had very simplistic boost control (open-loop EBC with boost duty table that just had same duty % everywhere).

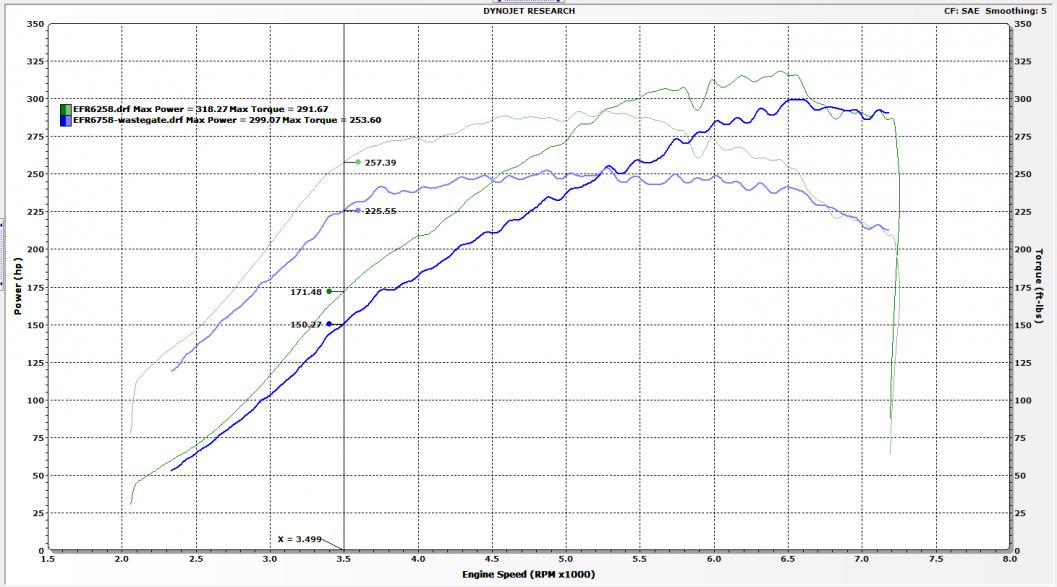

So here's an example of EFR6258 with my simplistic boost control vs EFR6758 on just wastegate - 17-18psi vs like 17psi peak on wastegate. 6258 clearly wins in spool.


And finally, closed-loop EBC vs wastegate on EFR6758. This clearly shows how superior closed-loop EBC is and why you'd be stupid to not run it.


24.5 vs 17psi, identical timing map on both runs.
Attached Thumbnails
Soviet Era Car, Space Age Turbo.  EFR 6758-efr6758-vs-efr6258.jpg   Soviet Era Car, Space Age Turbo.  EFR 6758-efr6758-wastegate-vs-efr6258.jpg

Last edited by soviet; 10-13-2012 at 10:17 PM.
soviet is offline   Reply With Quote
Old 10-13-2012, 10:07 PM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

holy sh

18psi is offline   Reply With Quote
Old 10-13-2012, 10:44 PM   #31
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

That poor transmission, lol.
hustler is offline   Reply With Quote
Old 10-13-2012, 11:00 PM   #32
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by hustler View Post
That poor transmission, lol.
Pretty sure I'm at the limit of my drivetrain and I DO NOT want to play the expensive "lets stuff a drivetrain from another car into a miata" game.
soviet is offline   Reply With Quote
Old 10-14-2012, 03:14 AM   #33
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Thats what I would expect.

Now put some cams in it.
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-14-2012, 04:24 AM   #34
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Thats what I would expect.

Now put some cams in it.
How about I put some wiener in your puss?
Faeflora is offline   Reply With Quote
Old 10-14-2012, 11:06 AM   #35
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Awesome numbers, congrats.

Fae said "stock crappy 1.8 head" is that a NA head? 99-00? 01+? I guess I need to go study your build thread, I want my car to be just like yours when it grows up.
pdexta is offline   Reply With Quote
Old 10-14-2012, 11:10 AM   #36
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by pdexta View Post
Awesome numbers, congrats.

Fae said "stock crappy 1.8 head" is that a NA head? 99-00? 01+? I guess I need to go study your build thread, I want my car to be just like yours when it grows up.
Soviet is running a stock 94-97 1.8 head.
shuiend is offline   Reply With Quote
Old 10-14-2012, 03:09 PM   #37
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Actually its a 99-00 IIRC
18psi is offline   Reply With Quote
Old 10-14-2012, 03:36 PM   #38
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Imagine the dyno chart with VVT. Faster spool. Better top end.
Faeflora is offline   Reply With Quote
Old 10-14-2012, 03:49 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

I wouldn't do anything for top end. But faster spool, most definitely
18psi is offline   Reply With Quote
Old 10-14-2012, 04:09 PM   #40
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

VVT head, porting and a turbo intake if he doesn't already have one. That spool is pretty badass though, not going to lie. If I only had 5k to throw down on my car...
Der_Idiot is offline   Reply With Quote
