Default Stock 1.6 owns 1.8s graph inside

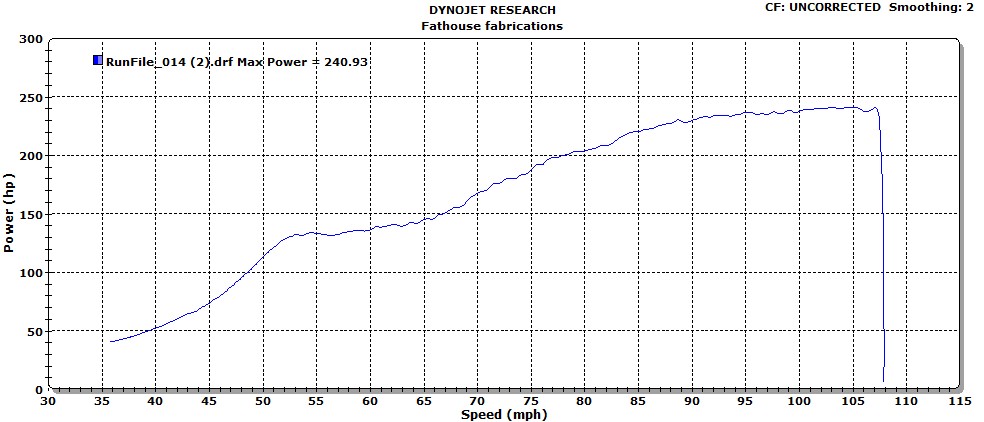

Dyno results from yesterdays run. From a 1.6l with minor homemade headwork, stock internals, t25sr20 turbo, water to air cooler, 2.5" exhaust with artech manifold. Ran at 11.5psi.

On a dynojet 424lcx
Attached Thumbnails
Stock 1.6 owns 1.8s graph inside-240wph-graph.jpg
btabor is offline   Reply With Quote
Old 03-14-2015, 02:53 PM   #2
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Looks good
Really wish that their rpm pickup was working, hate not having everithing on the plot
Attached Thumbnails
Stock 1.6 owns 1.8s graph inside-27d977c4-f506-463b-b53b-2a7b34379d2d.jpg

Last edited by HHammerly; 03-14-2015 at 03:06 PM.
HHammerly is offline   Reply With Quote
Old 03-14-2015, 03:38 PM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Yes for how much we paid that's the least they could have done for us
btabor is offline   Reply With Quote
Old 03-14-2015, 03:52 PM   #4
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Nex time we schedule dyno time we need to have them agree that everithing will b in working order
HHammerly is offline   Reply With Quote
Old 03-14-2015, 05:04 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

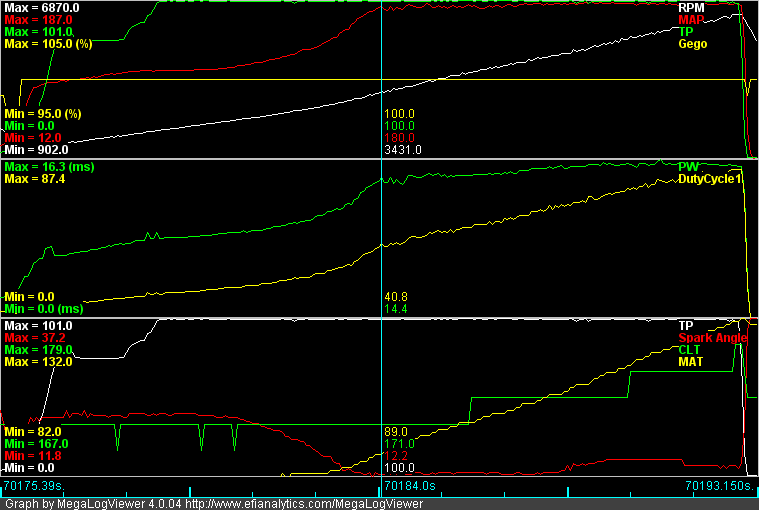

Here is a 4th gear log I did today. As you can see 180kpa @ 3400rpms. It spools so fast for a journal bearing turbo.
Attached Thumbnails
Stock 1.6 owns 1.8s graph inside-graph12psi4thgear.png
btabor is offline   Reply With Quote
Old 03-14-2015, 05:58 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I'm waiting for a similarity modded 1.8 to dyno lower...
curly is offline   Reply With Quote
Old 03-14-2015, 06:00 PM   #7
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Curly, I have to look at the timing table you gave me and compare it to how mine ended up.
btabor is offline   Reply With Quote
Old 03-14-2015, 06:22 PM   #8
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Do you have the actual .drf files Brian and Harold? I'd like to look at mine in comparison.
Chiburbian is offline   Reply With Quote
Old 03-14-2015, 07:49 PM   #9
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

My timing was crazy low, my cae is a ticking time bomb or i had lower than 93 octane on it.
Send my your email address and ill email you my files

Last edited by HHammerly; 03-14-2015 at 08:02 PM.
HHammerly is offline   Reply With Quote
Old 03-14-2015, 07:54 PM   #10
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Is that before or after the tune Harold? How did the in-car tuning with Scott go afterwards?
Chiburbian is offline   Reply With Quote
Old 03-14-2015, 09:11 PM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

What i don't understand is that rpm pickup was working just fine on both Steves' cars. We were getting torque numbers out of both.
concealer404 is offline   Reply With Quote
Old 03-14-2015, 09:14 PM   #12
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

^ +1.

And I am on stock coils, wasted spark even!

Brian, can you do a street pull from 2k rpm in 4th gear for the purposes of plugging into virtualDyno? I am curious what it says.

Last edited by Chiburbian; 03-14-2015 at 09:31 PM.
Chiburbian is offline   Reply With Quote
Old 03-14-2015, 09:41 PM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Maybe because Harold and I have toyota/gm coils and they had stock ignition
btabor is offline   Reply With Quote
Old 03-14-2015, 09:42 PM   #14
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Quote:
Originally Posted by Chiburbian View Post
^ +1.

And I am on stock coils, wasted spark even!

Brian, can you do a street pull from 2k rpm in 4th gear for the purposes of plugging into virtualDyno? I am curious what it says.
There is one in this thread. Can you translate it to virtual dyno? My car weights about 2250 I weight 170
btabor is offline   Reply With Quote
Old 03-14-2015, 10:03 PM   #15
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Quote:
Originally Posted by btabor View Post
There is one in this thread. Can you translate it to virtual dyno? My car weights about 2250 I weight 170
Can you upload the .msl file itself? I'd be happy to post the results. Or you can email it to me. You still have my email correct?
Chiburbian is offline   Reply With Quote
Old 03-14-2015, 10:07 PM   #16
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

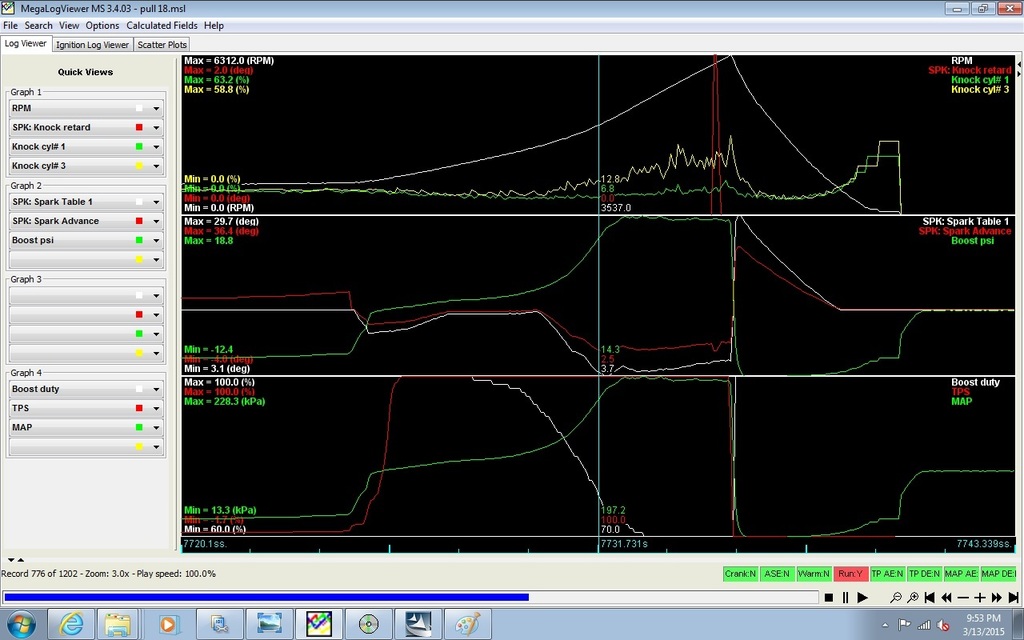

The car is good after Scott's tune but he had to pull a bunch of timing from all the cylinders and some additional timing from 2 and even more on 3, all this without much power change and looking at the knock sensor readings.
He started tuning with a base tune that is considered very safe and so i do not know why this motor is so detonation prone, that is why i say that the car was a ticking time bomb look at the attached log, that was my last pull and the ecu pulled timing on it, i think that i may pull another deg or two out to make sure that it is ok on hot days, ill defently be runing some racing gas or E85 once i get the flex fuel sensor going and a tune on track days... and will start to build my spare motor LOL
Attached Thumbnails
Stock 1.6 owns 1.8s graph inside-818d9aa2-1595-4f45-adc8-403b517986a0.jpg
HHammerly is offline   Reply With Quote
Old 03-14-2015, 10:07 PM   #17
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

I know how to get RPM signal on Fab9 COP, just needed to experiment a bit... the dyno operator should have been able to do the same with Toyota/GM COP system.

You can manually convert the MPH dyno plot to RPM on the bottom axis if you have your rear end ratio and what gear it was dyno'ed in, and from RPM and HP derive the torque. Sort of a pain in the *** but you can do it.

Keith
Twodoor is offline   Reply With Quote
Old 03-14-2015, 10:16 PM   #18
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Can this be done with the "viewer" software or only with the full dyno package? You can download the reader for free. It's called WinPEP.
Chiburbian is offline   Reply With Quote
Old 03-14-2015, 11:30 PM   #19
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

You'll have to do it manually. I don't think you should have to, though. We had rpm signal and torque numbers generated on your car.
concealer404 is offline   Reply With Quote
Old 03-15-2015, 01:10 AM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

I'm trying to comprehend how that's better than a 1.8
Or do you mean a n/a 1.8?

Good job dynoing your cars though, and 240 out of a t25 is pretty good for sure
