Default Stock 95 T3/T04E on 10 psi!

Finally got on the dyno today, dyno sheet will be scanned and uploaded later today! The wideband at the dyno WAS NOT hooked up so dont mind the ultra lean AFR on the dyno sheet!!

Made 208hp and 194tq on the first pull, started getting really bad heatsoak from there on out, ambient temp was 90 degrees outside with 26% humidity. After about the 3rd pull the clutch started slipping on the big end. I got into a fender bender the day before thats why the bumper is black! Measurements performed on a dynojet.

Stock 1.8, T3/T04E on 10psi, MS1 Standalone. Untuned rich basemap, went to find power figures and get some strong datalogging, got 8 pulls (about hour and 20min) for $50!!!!









Last edited by na8psi; 05-13-2010 at 02:24 PM.
na8psi is offline   Reply With Quote
Old 05-12-2010, 09:38 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

wtf is all that blue smoke?
18psi is offline   Reply With Quote
Old 05-12-2010, 09:44 PM   #3
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
wtf is all that blue smoke?
Ehhh probably my lack of exhaust showing my lack of restrictor lol
na8psi is offline   Reply With Quote
Old 05-13-2010, 12:18 AM   #4
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

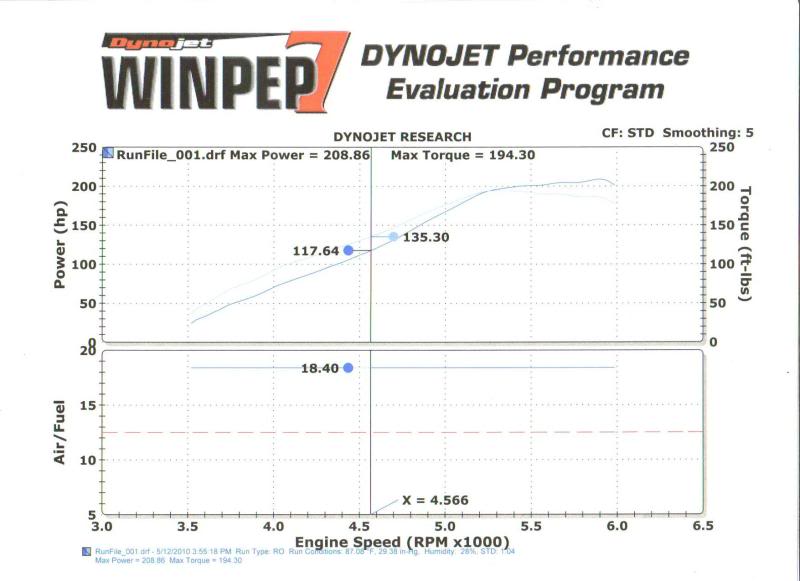

Dyno sheet uploaded!!!! DONT MIND THE AFRs the dyno wideband was not hooked up!

Name:  dyno.jpg
Views: 30
Size:  46.3 KB
na8psi is offline   Reply With Quote
Old 05-13-2010, 12:28 AM   #5
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

Is that a chinese T04E?

Mine is, and it's .63 A/R hot side and I'm wondering when it'll hit 10psi. Seems kinda like yours might be the same size.

What's your exhaust? What injectors?
Project84 is offline   Reply With Quote
Old 05-13-2010, 12:43 AM   #6
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by Project84 View Post
Is that a chinese T04E?

Mine is, and it's .63 A/R hot side and I'm wondering when it'll hit 10psi. Seems kinda like yours might be the same size.

What's your exhaust? What injectors?
Yea its a ***** charger, .63 a/r. Those pulls were made with open 2.5inch downpipe. Injectors are rx7 460s. Spools at 2200 or so and full boost by 3800-4000.
na8psi is offline   Reply With Quote
Old 05-13-2010, 12:47 AM   #7
Senior Member
iTrader: (2)

Join Date: Jul 2008
Posts: 602
Total Cats: 0
Default

Awesome, so mine will be identical. Thanks for the info!

Would you be so kind as to share your tune? That'll really help me get a few steps ahead quickly in getting this thing finished.
Project84 is offline   Reply With Quote
Old 05-13-2010, 01:08 AM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

damn you make the torque but the power is missing is your clutch slipping that badly?
magnamx-5 is offline   Reply With Quote
Old 05-13-2010, 09:16 AM   #9
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Those eBay t3/t4s are stage 3 (76 trim) turbines too- they really start the fun further up the boost pole. And that's what your torque curve shows IMO. I've seen stage 3 48AR turbine housings come up on eBay relatively cheap.
m2cupcar is offline   Reply With Quote
Old 05-13-2010, 10:05 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

needs less turbo...and moar rings.
Braineack is offline   Reply With Quote
Old 05-13-2010, 10:13 AM   #11
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Wastegate gate pre-load, oil restrictor, clutch, then repeat.
Sparetire is offline   Reply With Quote
Old 05-13-2010, 11:14 AM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

haha your lungs now contain the quart of oil your motor used to.

also: t3/t04e at 10 psi making 208 hp on a dynojet is ..... well keep trying anyway.
y8s is offline   Reply With Quote
Old 05-13-2010, 02:21 PM   #13
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

hahaha yes very well aware now that I need to put that oil restrictor in. FM clutch kit has been ordered.
na8psi is offline   Reply With Quote
Old 05-13-2010, 02:23 PM   #14
I'm Miserable!
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
Those eBay t3/t4s are stage 3 (76 trim) turbines too- they really start the fun further up the boost pole. And that's what your torque curve shows IMO. I've seen stage 3 48AR turbine housings come up on eBay relatively cheap.
I've been curious about this option, but really just wondering how easy it is to do this process being that I've never done it before.
na8psi is offline   Reply With Quote
