Savington

iTrader: (31)

Motor:

• Trackspeed "Stage 2" shortblock
  • 83.5mm Supertech 8.6:1 piston w/ thermal coating
  • Manley H-beam rods
  • ACL Race bearings
  • ARP head/main studs
  • Boundary Stage 2 oil pump
• Supermiata CNC ports
• Supertech +1mm valves
• Supertech SUB lifters
• Supertech heavy double valvesprings
• OEM BP6D cams
• OEM VICS manifold

Turbo:

• Trackspeed Turbo Kit w/ BW EFR6258 0.64a/r
• Precision 350hp intercooler
• prototype Trackspeed IC pipes
• custom 3" exhaust

EMS/Fuel/Ignition:

• MSLabs MS3 Basic w/ CAN Wideband
• Innovate LC-2
• GM Flex Fuel Sensor
• Injector Dynamics ID1000 (82%DC max)
• Deatschwerks DW200
• OEM BP4W fuel rail
• OEM NA6 FPR (43.5psi w/ reference)
• Fuelab 818 filter (6ppm Fiberglass media)
• pump E85 (~77.5% ethanol)
• OEM VVT coils

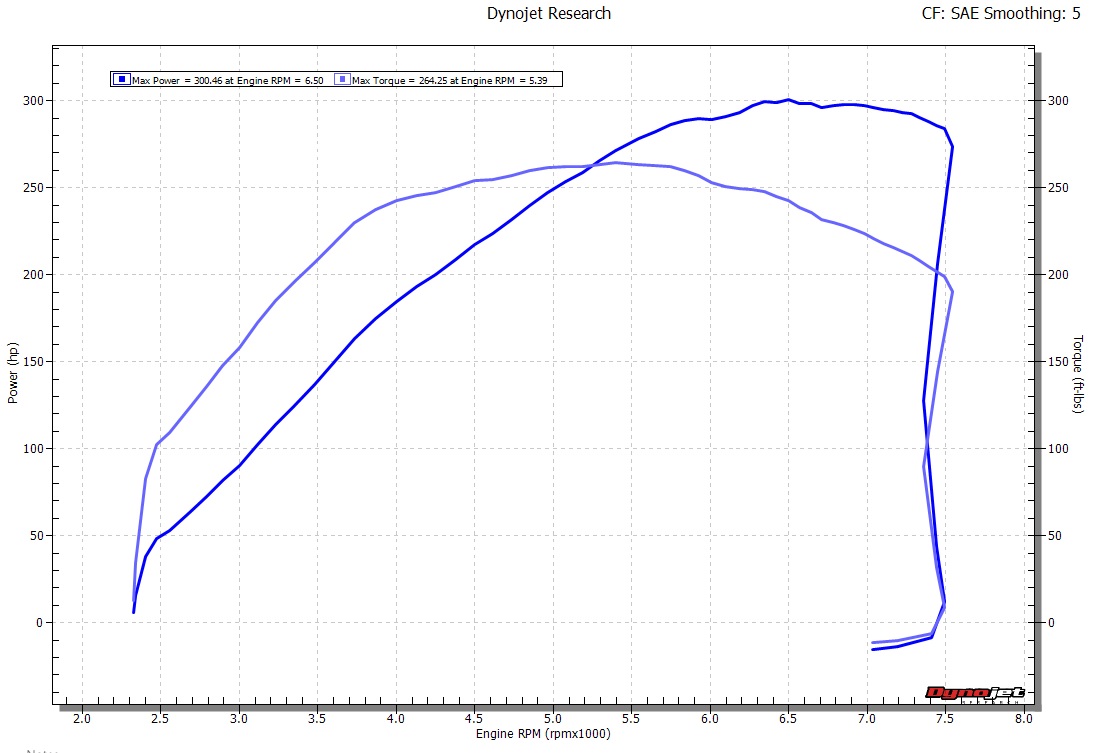

300whp/264wtq at 16psi peak. Made a little more on the pull before (304/268ish) but I backed the timing off a couple degrees for safety. 16psi at 5300, bleeds to 15psi at 6600 and stays there. It made 270/244 at 13.5psi and 286/255 at 15psi, so there is lots left in the setup even breathing through a VICS manifold. The low-boost can that is required to make the 200/220whp maps possible means there's a little less boost from 3500 to 4500 then there should be, and peak boost is limited as well. I probably could have squeaked it out to 18psi with the boost controller nearly shut, but there was no reason to go further. The goal was a 300whp kill-mode map, we got there easily.

18psi

iTrader: (76)

Looks great
Shoulda gone to 18psi, just because

nigelt

iTrader: (10)

Beautiful torque curve!

dleavitt

iTrader: (1)

A glimpse into my future, minus the E85. Nice!

psyber_0ptix

iTrader: (4)

Amazing numbers. This makes my plot look gutless before 3700rpm.

TurboTim

iTrader: (9)

Nice torque Trackspeed! That's got to be a beast on the track.

For guys with streetcars who don't necessarily need the track-abuse durability of a fully built engine on ethanol, would your setup on a stock VVT longblock and 93 octane pump gas map produce a similar dyno graph, all other components being the same (same intercooler, exhaust, appropriately sized injectors for pump gas, etc)?

sonofthehill

iTrader: (1)

Looks crazy fast, very nice.

aidandj

iTrader: (5)

Are you willing to share dyno files? For comparison purposes

Savington

iTrader: (31)

Email me

Braineack

iTrader: (62)

looks fun!

aidandj

iTrader: (5)

Thanks! CNC Head + E85 is cool. Took me 2 more PSI and a 6758 to make a similar curve.

shuiend

iTrader: (24)

I mean I would expect a $5k head to work magically.

k24madness

iTrader: (6)

To compliment that head add some higher lift cams with just a tick more (10 degrees) intake duration and that HP will climb to redline instead of leveling off. Should hit 350whp at the same boost/rpm level.

Looks great Andrew! I now get the earlier 6258 recommendation. Will 99 head alter the curve drastically?

Mobius

iTrader: (2)

Nice!
