Default Emanage Ultimate: Error "Low Vtec Input"

Hi folks,

erverytime I start my car I get the error message "Low Vtec input below 1000rpm". And the main unit is starting to flash red in short intervall.

Has anyone before experienced this error? I changed my EMB harness to be a EMU harness (added Connector C and wired all the extra lines)

I have no wire in Pin 13, which would be the VTEC input. But we don't need this wire anyway, don't we?!

Help is appreciated.

EMU is working fine in every other way.

Greets
Zaphod is offline   Reply With Quote
Old 05-04-2008, 10:11 AM   #2
I'm Miserable!

Join Date: May 2007
Posts: 589
Total Cats: 0
Default

Maybe a Jumper is wrong.
Check JP10
Check JP16

Make sure they are right, both should be Open.
MX5-4me is offline   Reply With Quote
Old 05-04-2008, 03:43 PM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

But I use the VTEC out as trigger for my O2clamp. So at least jumper 10 should be 1-2 or not? Because I think if I set Jp 0 to open the aux output will not be triggered?!

Greets
Zaphod is offline   Reply With Quote
Old 05-06-2008, 07:38 AM   #4
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

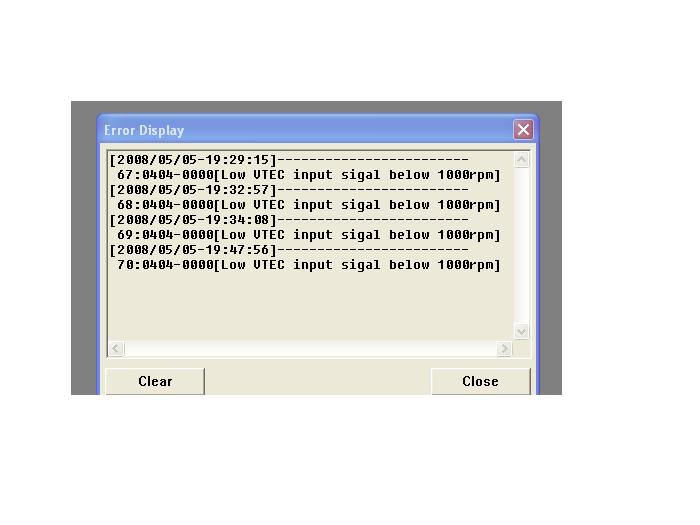

Here is a little picture of the error message



Still haven't got a clue.

Jp 10 at 2-3 (for O2clamp aux map)
JP 16 open (Karman in)
JP 17 open or 1-2 (no change)

Greets
Zaphod is offline   Reply With Quote
Old 05-06-2008, 10:42 AM   #5
Senior Member
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

do you have a pic of your auxiliary map? i had this error before but am not sure how i solved it i just cant remember now
musanovic is offline   Reply With Quote
Old 05-06-2008, 02:28 PM   #6
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Sorry, have no pic here, but it is like

off - from -10 Psi to 0 Psi all over the RPM band
on - from 0.1 Psi to 14 Psi all over the RPM band from 0 to 8000.

greets
Zaphod is offline   Reply With Quote
Old 05-06-2008, 02:42 PM   #7
I'm Miserable!

Join Date: May 2007
Posts: 589
Total Cats: 0
Default

Quote:
Originally Posted by Zaphod View Post
Sorry, have no pic here, but it is like

off - from -10 Psi to 0 Psi all over the RPM band
on - from 0.1 Psi to 14 Psi all over the RPM band from 0 to 8000.

greets
What version of the software are you running on the EMU?
MX5-4me is offline   Reply With Quote
Old 05-06-2008, 03:28 PM   #8
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Version 2.16
Zaphod is offline   Reply With Quote
Old 05-19-2008, 08:37 AM   #9
Junior Member

Join Date: Apr 2007
Location: Melboure australia
Posts: 171
Total Cats: 0
Default

could it have something to do with when the clamp is opened? it seems like its the only time its giving you the reading....

are there any other channels you can use?
sprx3 is offline   Reply With Quote
Old 05-19-2008, 08:52 AM   #10
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Well, no there is no other channel I can use - because this is the only chanle with the dedicated on/off map.

Error seems to come once after startup - not again during driving. I don't think it is connected with the switching of the O2clamp. Funny thing is - the channel for the O2clamp is the Vtec output channel - VTec input isn't even connected at my EMU.
