Default Emanage Ultimate oddness...

Hi guys,

I just try to describe my sometimes a bit odd emanage behaviour and ask you to give me some suggestions what might be the cause of this.

I am just about to refine my maps (using autotune and some own adjustments) - when I drive around and do some runs from low rpm steady accelerating to redline everything seems to work fine. Good AFRs (though still a bit to be dialed in)
When I drive and lets say I try to overtake a slower (about every other) car and push the throttle hard - my AFRs sometimes fall to 9.8 instantly and stay there no matter which rpm/psi. After a while everything works fine again.

What could cause this? Bugged O2clamp signal? OEM ECU going to safety mode?

Thanks for your help!

P.S.: If there would be a way to cut a part out of the log I could post some examples. (Because my log showing this is quite huge)

Greets
Zaphod is offline   Reply With Quote
Old 05-26-2008, 10:38 AM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

To show the log portion you want, you might be able to "print screen", paste it into "Paint" and pull out the section you want to show us.
olderguy is offline   Reply With Quote
Old 05-26-2008, 11:36 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Well, yes, I thought about that, but what I was thinking about - if I remember corractly the EMb software was able to cut out parts of the log?!

O.K. here are two screenshots

AFR - yellow
I/J input - orange
I/J output - magenta
rpm - red
tps - green

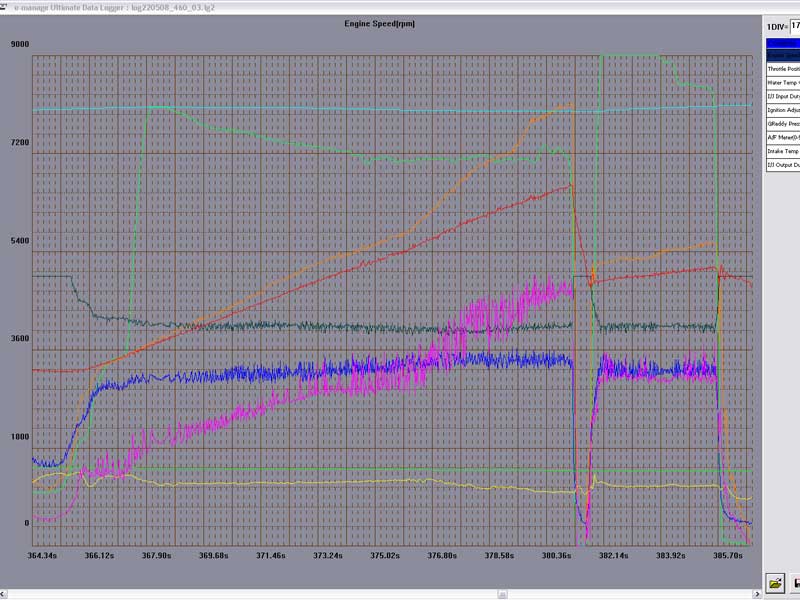

first clean run - (just a little lean in the middle due to a not perfect map)

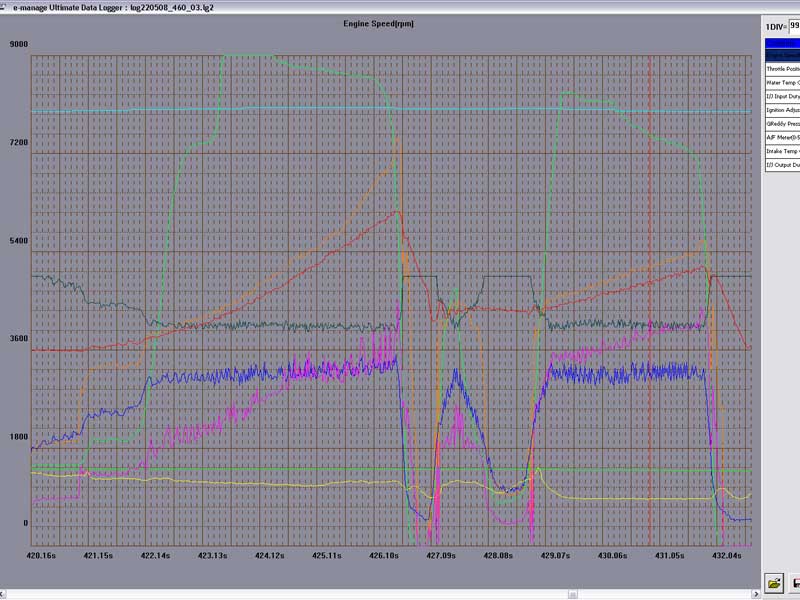

second (from the same log) - specially the second right "pull" AFRs instantly dropping to a flat 9.8



Any help appreciated.
Zaphod is offline   Reply With Quote
Old 05-26-2008, 11:40 AM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Where is your AFR reading coming from and is there any real-time "feel" to the change?
olderguy is offline   Reply With Quote
Old 05-26-2008, 02:28 PM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

AFRs are comming from my ZT-2 wbo2, through the 2nd option port. (I have a selfmade connector maybe its an issue there?!)

The realtime change is noticable as stumble.

Greets
Zaphod is offline   Reply With Quote
Old 05-26-2008, 09:35 PM   #6
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

My first guess would be that your O2 clamp voltage is set too low or absent.
olderguy is offline   Reply With Quote
Old 05-27-2008, 01:36 AM   #7
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

My O2 voltage is set to 0.39V (btw it's your autotune re-used as O2clamp triggered by the EMU) But I am also thinking the clamp could have sent a wrong voltage at this point.

Greets
Zaphod is offline   Reply With Quote
Old 05-29-2008, 02:32 PM   #8
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Just a thought - is it possible, that my sparks are getting blown out at this points?

Greets
