3 port solenoid prefered frequency


Old 11-12-2017, 04:28 PM
  #1
Newb
Thread Starter

Join Date: Jul 2016
Location: Kosice
Posts: 2
Total Cats: 0
Default 3 port solenoid prefered frequency

Hi All,

I have thi solenoid:
https://www.ebay.co.uk/itm/3-Port-Bo...8AAOSwFqJWp4JK

There are no instuction/no details about prefered frequency and max/min duty cycle. Please does anybody know this setup? Or how to get it (especialy frequency)?

Thanks,
Michal
mikee19 is offline
Old 11-12-2017, 05:39 PM
  #2
All-round "Good Guy"

Lokiel's Avatar

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 729
Total Cats: 107
Default

Cheap Chinese knock-off of a 3-port MAC valve.
Just use values everyone else uses for their GM MAC valves - these may or may not work, it's a cheap Chinese product after all.
Lokiel is offline
Old 11-13-2017, 01:07 AM
  #3
Newb
Thread Starter

Join Date: Jul 2016
Location: Kosice
Posts: 2
Total Cats: 0
Default

please could you share the link to one you are using?
mikee19 is offline
Old 11-13-2017, 02:39 AM
  #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,827
Total Cats: 55
Default

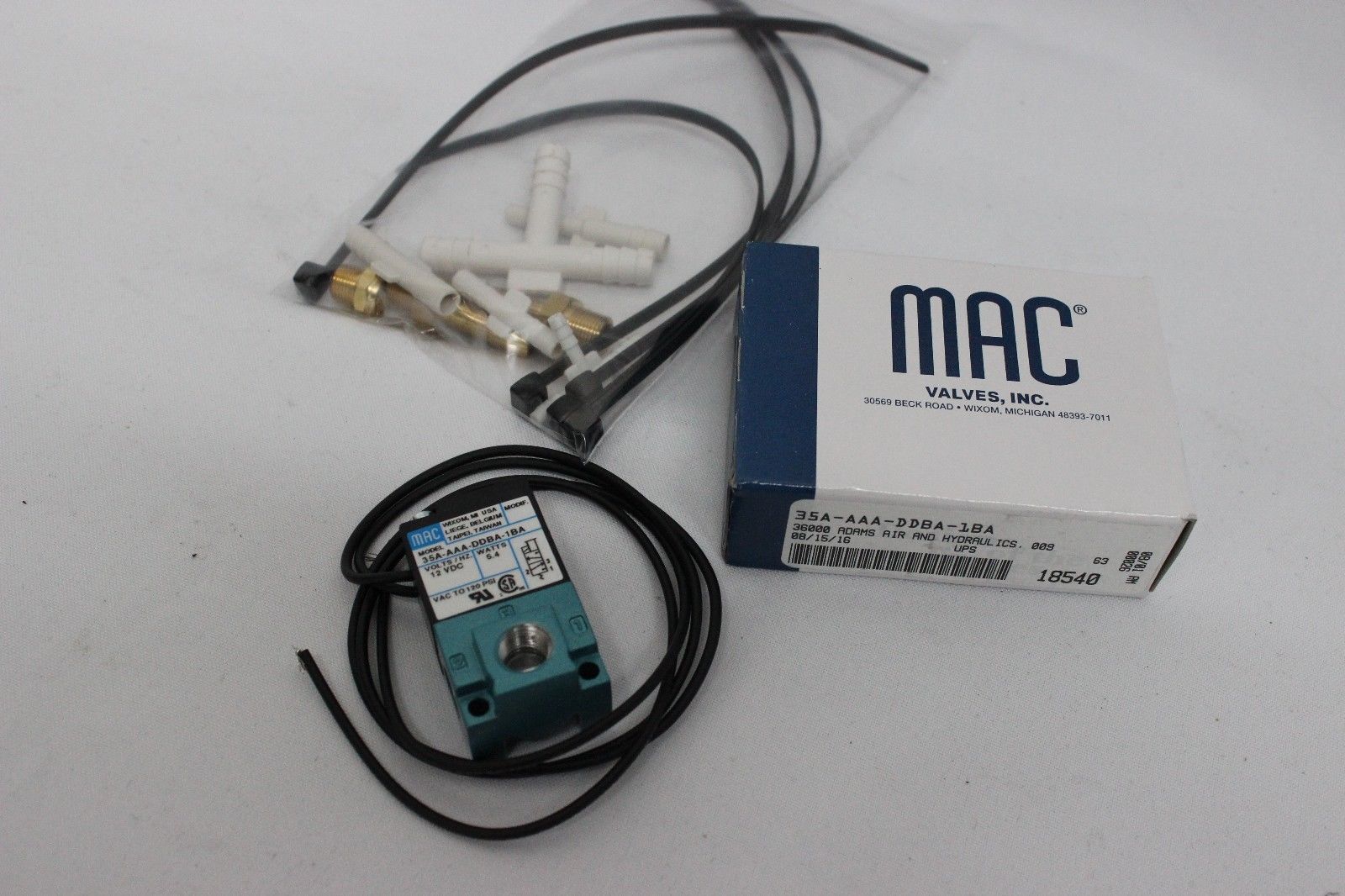

This is what a legit one looks like.
Attached Thumbnails 3 port solenoid prefered frequency-s-l1600-1-38.jpg
nitrodann is offline
Old 11-13-2017, 02:42 AM
  #5
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,827
Total Cats: 55
Default

Please note that the bag of accessories shown have been added by the company marketing it as a boost control solenoid.
The valves themselves just come in the box alone from the manufacturer/importer.
nitrodann is offline
Old 11-17-2017, 04:14 PM
  #6
ECU Pariah

ChrisLol's Avatar

Join Date: Mar 2016
Location: Lexington, KY
Posts: 135
Total Cats: 62
Default

A good frequency of the legit 3-port MAC valve is 33Hz. This gives an approximate duty cycle range of 20-80%

So to answer your original question... Try 33Hz?
ChrisLol is offline
