Default AFR/Timing/Fueling question

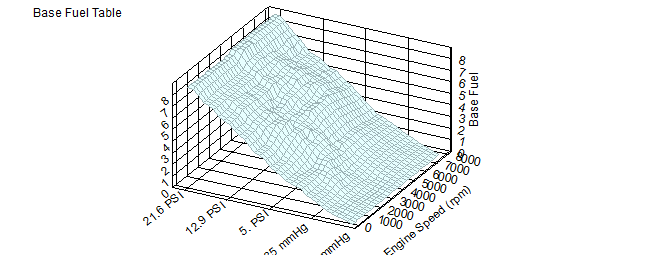

Hey guys, I want to start focusing on fixing my fuel map (it's pretty ugly right now) and was hoping folks could look at my AFR target and Timing maps so I know they're right before I start adjusting fueling. From what I'm hearing on fueling it should be going up in a linear fashion, however I don't want to play with the fuel map until I'm sure everything else is OK. I attached my fuel map for kicks if anyone wants to advise me on this. I'd like to avoid going to a Dyno this time, I'm tired of paying for peak power and having shitty cruising fuel economy.
Attached Thumbnails
AFR/Timing/Fueling question-fuel-map.png
Attached Files
File Type: csv 8-21-2013 - AFR table.csv (4.1 KB, 71 views)
File Type: csv 8-21-2013 - Fuel table.csv (6.3 KB, 61 views)
File Type: csv 8-21-2013 - Timing table.csv (5.3 KB, 70 views)
Der_Idiot is offline   Reply With Quote
Old 08-21-2013, 10:42 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

So, there's no VEA or VEAL for a Hydra?

Your AFR table doesn't make sense to me. Some areas have sensible values like 12:1 and 14:1. Other areas have gibberish like 0.5:1 and 43:1. What's up with that?

Do a search for AFR tables. There are threads with good examples along with discussion of why you use certain AFR's in certain operating areas.
hornetball is offline   Reply With Quote
Old 08-22-2013, 03:38 PM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

Oh shoot yeah the AFR table and Timing table CSVs are backwards (AFR table is the timing table, and vice versa). I tried using interpolation to clean up my fuel map, but it gutted some sections so deeply that they would likely have very lean cells.
Der_Idiot is offline   Reply With Quote
Old 08-30-2013, 02:46 PM   #4
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

Bump. Anyone?
Der_Idiot is offline   Reply With Quote
Old 08-30-2013, 05:44 PM   #5
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

I don't run that lean at idle, but run leaner in cruise(15.5-16), and I think you can run leaner in your under 8 psi boosted cells(~12.2-12.7). I didn't look at anything else yet because I'm driving.
sixshooter is offline   Reply With Quote
Old 09-04-2013, 05:18 PM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

I have trouble idling smoothly at 900rpm and anything more than ~14.7, but anything 1250+ and in a vacuum cell was adjusted leaner (target of 15.6, might bump it up even more), as was boost up to 6psi (target of 12.2:1, 7psi has 12:1 and 8 has 11.8:1).

Car runs surprisingly well in cruise for running so lean, just need to go through a tank without any ignition issues and I should have some improved economy. My last mostly freeway tank I got 22mpg, if I can get 24 I'll be happy. If I break 26 (doubtful) I'll be back to the worst mpg tank I had prior to converting to turbo.
Der_Idiot is offline   Reply With Quote
Old 09-04-2013, 05:49 PM   #7
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Some of the economy might be from your timing too. Joe has a good thread where he adjusted his timing in the cruising cells for fuel efficiency. Basically, the closer you are to MBT the better economy you will get (which makes sense, a more complete burn, more torque).

IIRC he was datalogging pulsewidth to help him determine if a change resulted in better or worse economy.
thenuge26 is offline   Reply With Quote
