Default Another Electronic Det Can Example

It's finally time to hit the dyno to tune spark. Speaking with the dyno operator (MER in Cresson, TX -- big time Miata race shop), I asked about knock detection while tuning. His answer . . . "we'll just use the existing knock sensor on the car." Uh oh.

My car is a 1990. It didn't come with a knock sensor. We can add one, of course, but you don't have to search much around here before you realize that det cans and human hearing (evolved over millions of years to dynamically detect minor sound variations) is a much better way to go. So, time to build a det can.

Now the question is, which type. There seem to be three main variations:
1. "Sound-Powered Phone" type. These are purely mechanical devices using a crushed piece of copper tube, flexible (but not too soft) air hose, and hearing protectors. If you're not handy with a soldering iron, these are a good way to go.
2. Electronic Stand-Alone type. These are electronic and use an electret microphone. Usually constructed by purchasing an off-the-shelf personal listener and then modifying it by adding wire to remote-mount the microphone in a battery clip. You listen with an ordinary headset.
3. Electronic PC type. Similar to #2 with the variation that you use your tuning laptop's built-in sound card to amplify the microphone signal. Again, an ordinary headset is used for listening.

I decided on option #3. These are the advandages as I see them:
1. As I'm tuning MS, I'm going to have my laptop on hand anyway.
2. The sound card built-in to my laptop is (I think) more high fidelity than an inexpensive personal listener.
3. If needed, I can use my laptop to record and analyze the audio.
4. I can use robust, shielded manufactured cabling.
5. This will actually cost less and be less work to build.

So, here we go:

Parts (PNs and prices are from Radio Shack -- use the vendor of your choice):

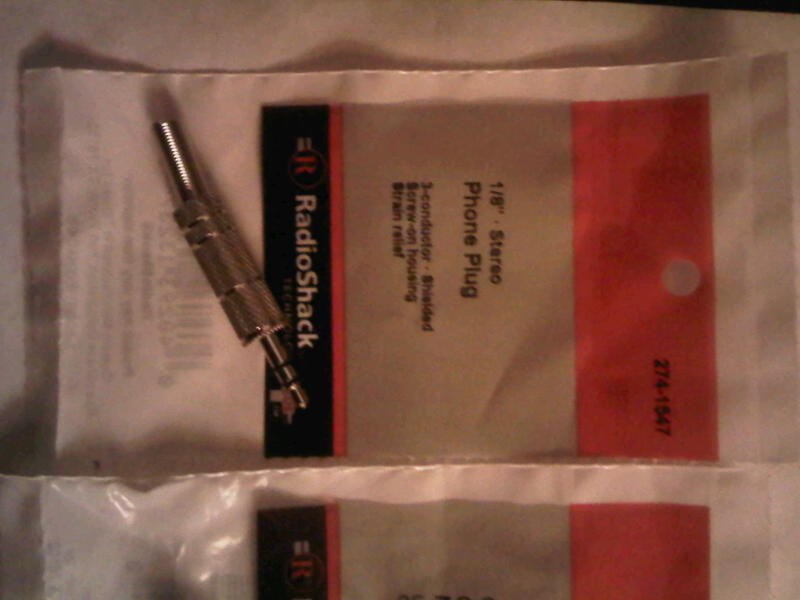

1. 1/8" (3.5mm) Stereo Plug -- PN 274-1547 -- $4.19:

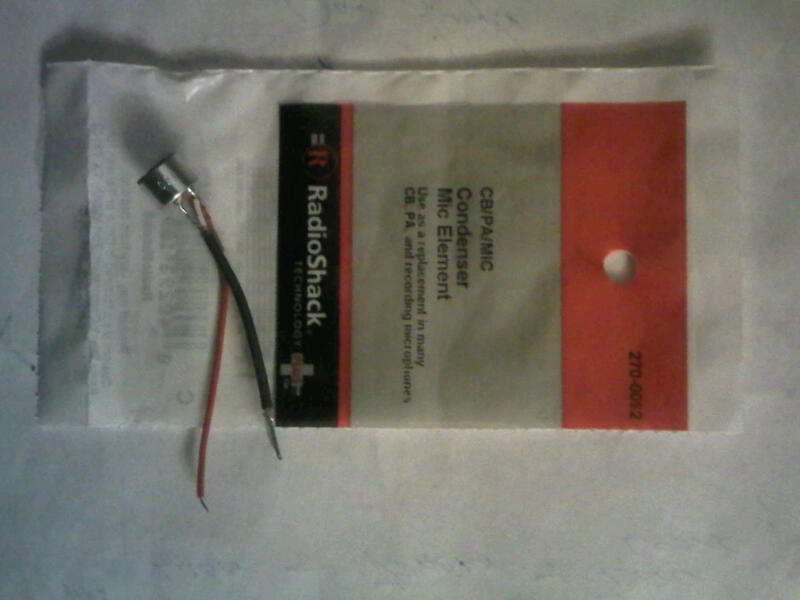

2. Electret Microphone Element with Pigtail -- PN 270-0092 -- $3.99:

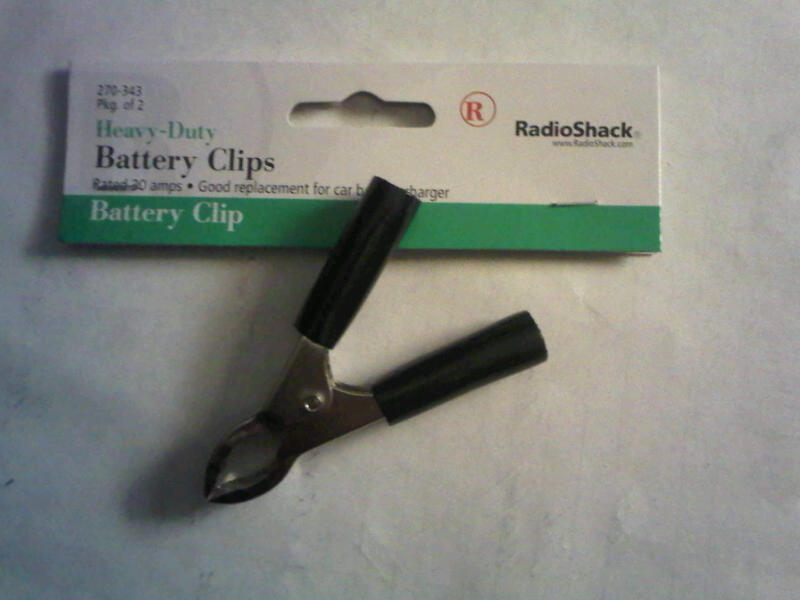

3. Battery Clip (2 to a package) -- PN 270-0343 -- $4.29:


Total . . . $12.37.

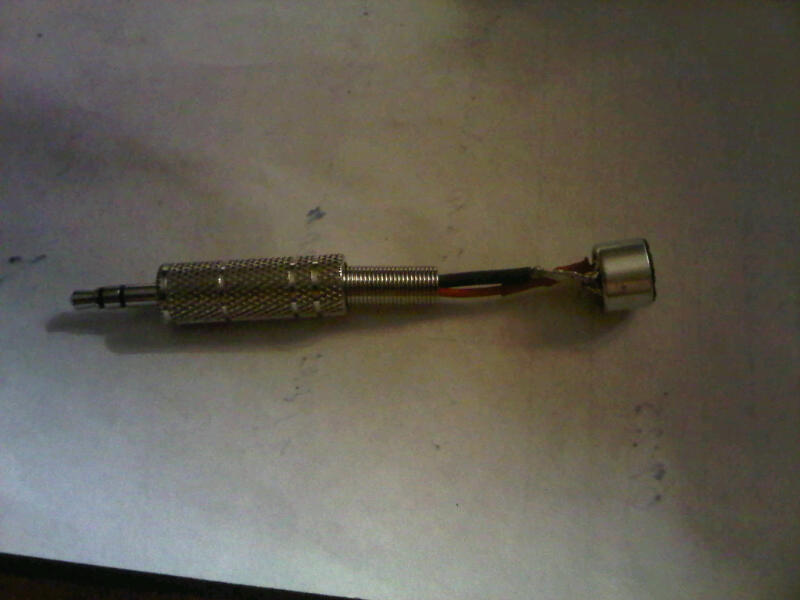

First, solder the microphone to the stereo plug. The white microphone wire goes to the plug tip. The red microphone wire goes to the plug's middle ring. The bare shielded microphone wire goes to the plug's base and shield. See http://www.hobby-hour.com/electronic...microphone.php for more information on wiring a microphone plug for a PC sound card.

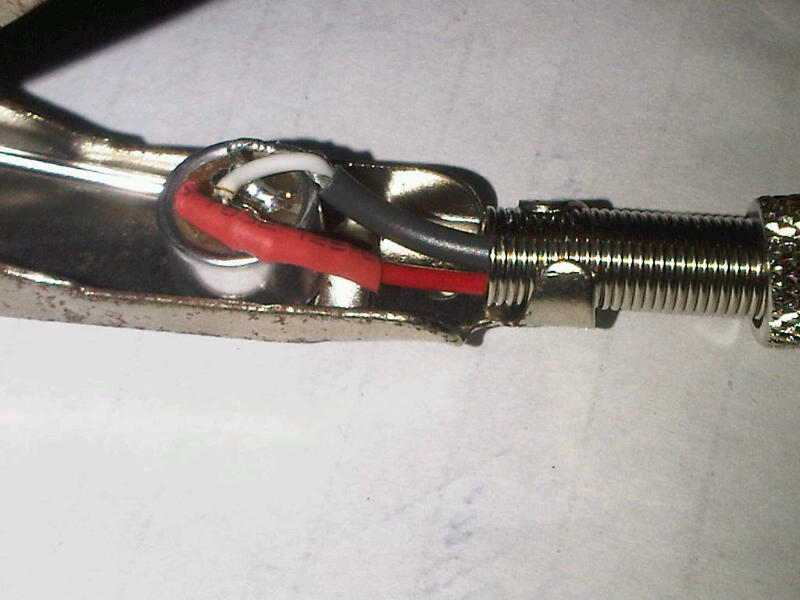

Next, place the microphone in the battery clip and crimp the clip handle's ears around the plug's shield pigtail. This provides electronic shielding (grounded to your engine block) to reduce unwanted noise from things like your ignition system. It also provides strain relief.

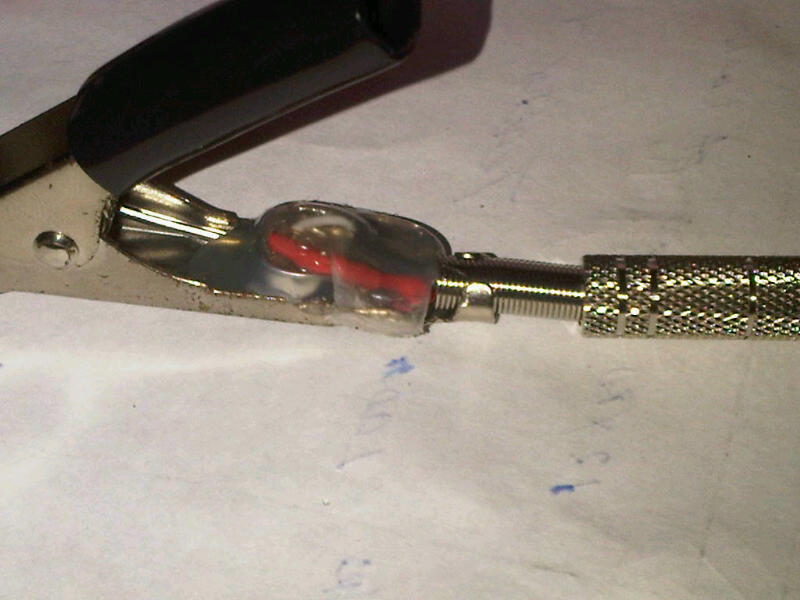

Finally, pot the heck out of it with hot glue. You're doing a couple of things here: (a) strain relief/robustness/waterproofness/etc. and (b) helping the microphone to only pickup vibrations from the clip rather than the external environment. Note that because of the hot glue and the vinyl covers on the clip handles, this assembly should only be used on the cold side of the engine.

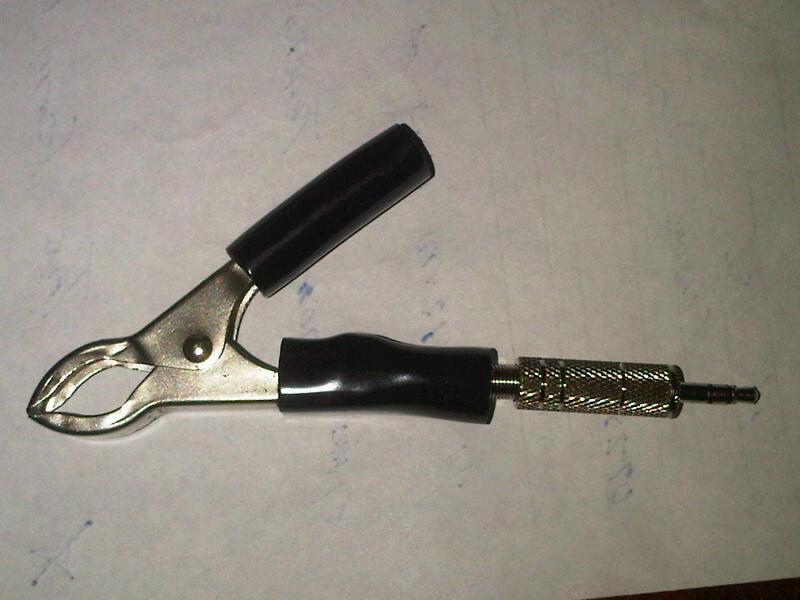

Finished microphone/plug/clip assembly:

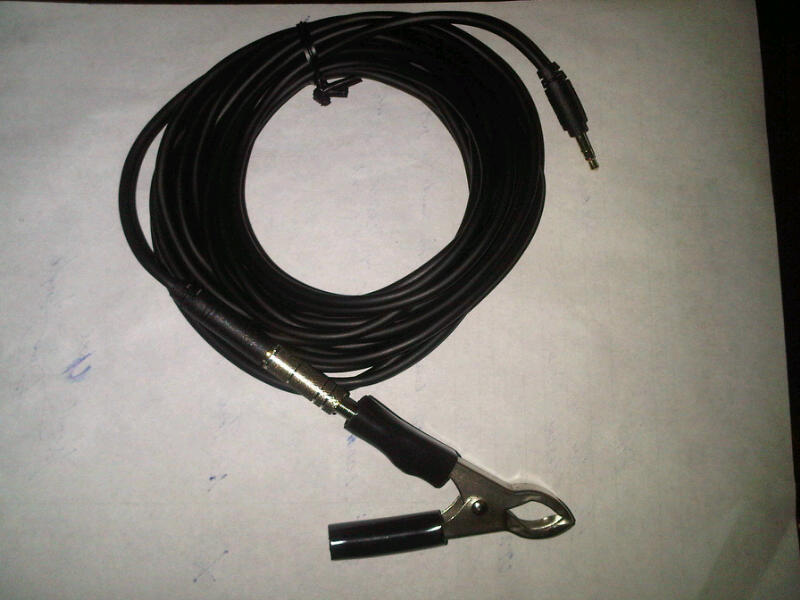

Assembly plugged into a high-quality 20' 1/8" shielded stereo extension cable (PN 420-2562 -- $12.99):

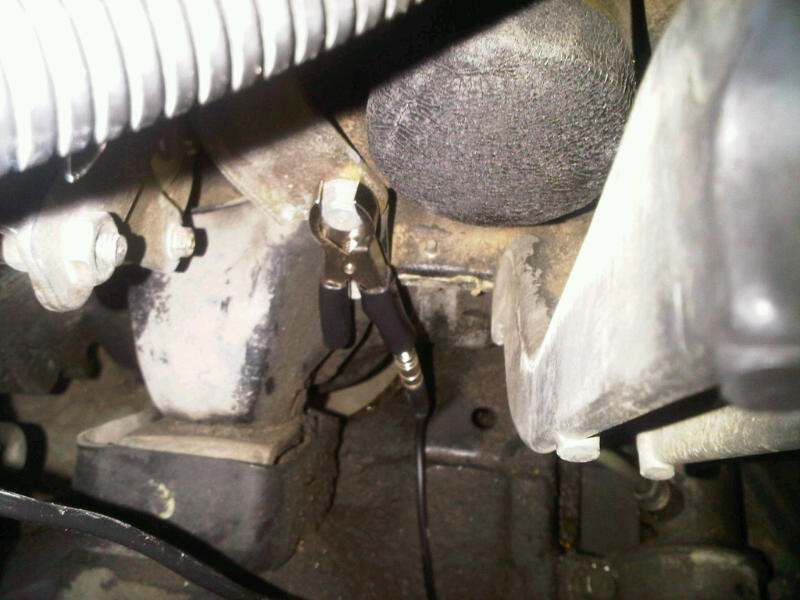

Test run. Clipped to the engine mount bolt that secures the starter bracket. Note starter (left), oil filter (upper right) and intake manifold brace (far right).


The sound quality from this assembly seemed good on the initial test (engine started and idled with some revving). I could clearly hear the hydraulic lifters operating the valves. There was little, if any, hiss or external noise. Volume was good and not distorted. This should work well. I'll let you know after the dyno session on Monday.
Attached Thumbnails
Another Electronic Det Can Example-img00347-20111110-2109.jpg   Another Electronic Det Can Example-img00348-20111110-2109.jpg   Another Electronic Det Can Example-img00349-20111110-2110.jpg   Another Electronic Det Can Example-img00350-20111110-2217.jpg   Another Electronic Det Can Example-img00357-20111110-2228.jpg

Another Electronic Det Can Example-img00358-20111110-2234.jpg   Another Electronic Det Can Example-img00360-20111110-2247.jpg   Another Electronic Det Can Example-img00361-20111110-2257.jpg   Another Electronic Det Can Example-img00366-20111111-1036.jpg   Another Electronic Det Can Example-img00347-20111110-2109.jpg

Another Electronic Det Can Example-img00348-20111110-2109.jpg   Another Electronic Det Can Example-img00349-20111110-2110.jpg   Another Electronic Det Can Example-img00350-20111110-2217.jpg   Another Electronic Det Can Example-img00357-20111110-2228.jpg   Another Electronic Det Can Example-img00358-20111110-2234.jpg

Another Electronic Det Can Example-img00360-20111110-2247.jpg   Another Electronic Det Can Example-img00361-20111110-2257.jpg   Another Electronic Det Can Example-img00366-20111111-1036.jpg

Last edited by hornetball; 11-13-2011 at 11:15 PM.
hornetball is offline   Reply With Quote
Old 11-11-2011, 02:41 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

You should try the same with an eyebolt, under the head of that same bolt. Securing the mic might be a little harder.
curly is offline   Reply With Quote
Old 11-11-2011, 03:21 PM   #3
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by curly View Post
You should try the same with an eyebolt, under the head of that same bolt. Securing the mic might be a little harder.
Or, a ring terminal could be secured under the bolt and be adapted to secure the pigtail. Or, you could hack up the battery clip shown, flatten one end and drill a hole for the bolt. If you wanted to build this and leave it in place, that would be cool and would probably improve the sound quality.

Hmmmm . . . .
hornetball is offline   Reply With Quote
Old 11-11-2011, 04:13 PM   #4
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

i used a 2Ga copper lug so I could bolt mine in the factory knock sensor port, so far the hightemp hot glue I used has held but I dont drive around with it on there for very long
MD323 is offline   Reply With Quote
Old 11-14-2011, 05:07 PM   #5
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Sub'd for results! Perfect timing too! I just decided today to look into making a det can!
Gryff is offline   Reply With Quote
Old 11-14-2011, 07:05 PM   #6
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Unhappy

Went over this AM and the dyno was broken. Two weeks out.
hornetball is offline   Reply With Quote
Old 11-14-2011, 07:53 PM   #7
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

WTF happened to it? Regardless that sucks! I was really looking forward to hearing results of these...
Gryff is offline   Reply With Quote
Old 11-14-2011, 10:06 PM   #8
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Something was wrong with the serial data from the electronic control box. They're sending it off for repairs.

I've been driving around with the det cans. They work great.
hornetball is offline   Reply With Quote
Old 11-14-2011, 11:23 PM   #9
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Awesome, I think im gonna take the plunge on these.
Gryff is offline   Reply With Quote
Old 11-15-2011, 04:12 AM   #10
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Sub'd for info. Really want to hard mount a mic to the block using a plate/eye bolt/whetever and run the wires to the stereo plug in the back of my head unit for in car engine noise and the option to plug my headphones into the deck at will. Seems like a good idea for those "did the engine just make a funny noise?" moments.
TorqueZombie is offline   Reply With Quote
Old 11-15-2011, 11:21 AM   #11
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Nice project Esquire Hornetball.

TorqueZombie, Sean did exactly what you did- plug Jeff's knockbox into his stereo. That way he could listen to his engine while he drove his engine.
Faeflora is offline   Reply With Quote
Old 11-15-2011, 11:24 AM   #12
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by TorqueZombie View Post
Sub'd for info. Really want to hard mount a mic to the block using a plate/eye bolt/whetever and run the wires to the stereo plug in the back of my head unit for in car engine noise and the option to plug my headphones into the deck at will. Seems like a good idea for those "did the engine just make a funny noise?" moments.
Just keep in mind that a 600Ω line-level stereo audio input and an electret microphone jack are two different things -- even though they take the same plug. The electret microphone signal is (obviously) mono. The reason that you use a stereo plug is the microphone jack in a PC provides ~5VDC on the second channel (the "ring") to power the microphone. I doubt that your head unit has a microphone jack, but if it does, you're golden.

Last edited by hornetball; 11-21-2011 at 11:16 AM.
hornetball is offline   Reply With Quote
Old 11-15-2011, 11:31 AM   #13
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Faeflora View Post
Nice project Esquire Hornetball.

TorqueZombie, Sean did exactly what you did- plug Jeff's knockbox into his stereo. That way he could listen to his engine while he drove his engine.
Thank you Sir Fae.

Fae's info is spot on. While you can't directly plug the electret microphone into the line-level audio jack of the head unit, you can plug in the output of a microphone power/amp circuit (Jeff's knockbox). There are also fairly inexpensive devices called "Personal Listeners" that can be hacked up for use. They provide microphone power and amplification and have headset outputs that can be plugged into the head unit. I think there are some really cheap ones on E-bay. Radio Shack has one that costs about $30 IIRC.
hornetball is offline   Reply With Quote
Old 11-15-2011, 10:53 PM   #14
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

I just reread this thread. didnt see any mention of what software you used if any to listen to the microphone input live through your headphones. Lemme know what you got! meanwhile im gonna search for something like this.

EDIT: I found an informal way to test the mic, sounds pretty good! Still wondering if you have a better solution than to go into a mic test mode.

Last edited by Gryff; 11-15-2011 at 11:17 PM.
Gryff is offline   Reply With Quote
Old 11-16-2011, 11:08 AM   #15
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

In Windoze, I double click on the speaker icon in the taskbar, unmute the microphone input and turn it up all the way. Done.
hornetball is offline   Reply With Quote
Old 11-16-2011, 05:50 PM   #16
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Thas what I was dooin, just making sure you hadnt found a better solution.
Gryff is offline   Reply With Quote
Old 11-21-2011, 06:17 PM   #17
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,159
Total Cats: 131
Default

Audacity: http://audacity.sourceforge.net/
Quote:
About Audacity
Audacity is a free, easy-to-use and multilingual audio editor and recorder for Windows, Mac OS X, GNU/Linux and other operating systems. You can use Audacity to:

Record live audio.
Convert tapes and records into digital recordings or CDs.
Edit Ogg Vorbis, MP3, WAV or AIFF sound files.
Cut, copy, splice or mix sounds together.
Change the speed or pitch of a recording.
And more! See the complete list of features.
Chiburbian is offline   Reply With Quote
Old 11-21-2011, 06:42 PM   #18
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Remote mounting the mic in a "personal listener", into the big alligator jack in the pic, is exactly what I did.

I use in-ear headphones to keep ambient noise out. High quality ear-phones help a lot.
JasonC SBB is offline   Reply With Quote
Old 01-23-2012, 12:58 AM   #19
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 595
Total Cats: 2
Default

Great post. Hornetball thanks for all your help. When ever I post up you alway add something of real value and I appreciate it.
90 Turbo is offline   Reply With Quote
Old 01-23-2012, 02:11 AM   #20
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

You're welcome.
hornetball is offline   Reply With Quote
