Default EBC Ampage??

How many amps does an average (or specific) Electronic Boost Control Valve need? The reason i ask in the output i want to use from my ECU to control one can only support 0.6 Amps... not a lot!

If 0.6 amps is not enough then do i have any other options? Obviously cant use a relay...

My only other option is to use the output which i currently use for idle control which can sink 4 Amps. This would mean having no IACV and maybe using the minimum throttle stop bolt to just lift the idle until it wont stall. It is a dedicated race car so possibly not the end of the world depending how bad it is.

Last season i ran a standalone EBC with only a high and low setting and now i want to run a full boost control map to improve power delivery and increase driveability.
mr2daj is offline   Reply With Quote
Old 01-05-2013, 10:31 PM   #2
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

You could run it through some sort of higher powered transistor.

Dann
nitrodann is offline   Reply With Quote
Old 01-05-2013, 11:27 PM   #3
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

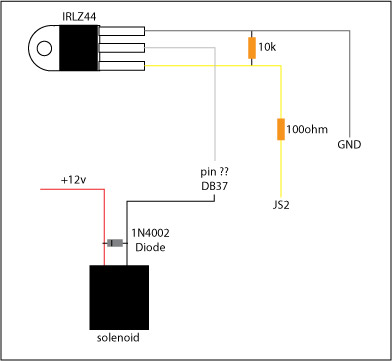

Use a mosfet.

Substitute JS2 for whatever output you are using on your ECU.

Profit
Attached Thumbnails
EBC Ampage??-msebcwiring.jpg
Jeff_Ciesielski is offline   Reply With Quote
Old 01-05-2013, 11:45 PM   #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Yeah like that

Dann
nitrodann is offline   Reply With Quote
Old 01-06-2013, 05:36 AM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by mr2daj View Post
How many amps does an average (or specific) Electronic Boost Control Valve need? The reason i ask in the output i want to use from my ECU to control one can only support 0.6 Amps... not a lot!

If 0.6 amps is not enough then do i have any other options? Obviously cant use a relay...

My only other option is to use the output which i currently use for idle control which can sink 4 Amps. This would mean having no IACV and maybe using the minimum throttle stop bolt to just lift the idle until it wont stall. It is a dedicated race car so possibly not the end of the world depending how bad it is.

Last season i ran a standalone EBC with only a high and low setting and now i want to run a full boost control map to improve power delivery and increase driveability.
Measure the resistance of the valve.

Measure how many volts you have on the "12V" input to the valve.

amps = volts / resistance.

So, for example, if you measure 13.5V on the valve, and the valve's resistance is 30 Ohms, the amps will be 13.5/30 = 0.45 which is ok.
Reverant is offline   Reply With Quote
Old 01-06-2013, 05:51 AM   #6
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

That's awesome! Thanks for the rapid response. Hopefully it will be fine.
mr2daj is offline   Reply With Quote
Old 01-06-2013, 05:56 AM   #7
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

The vave motec sell is 22ohms so is going to be very close depending on supply voltage. I would expect it is going to be fine though.
