Default Gauging interest on knock gauge

Hey guys,

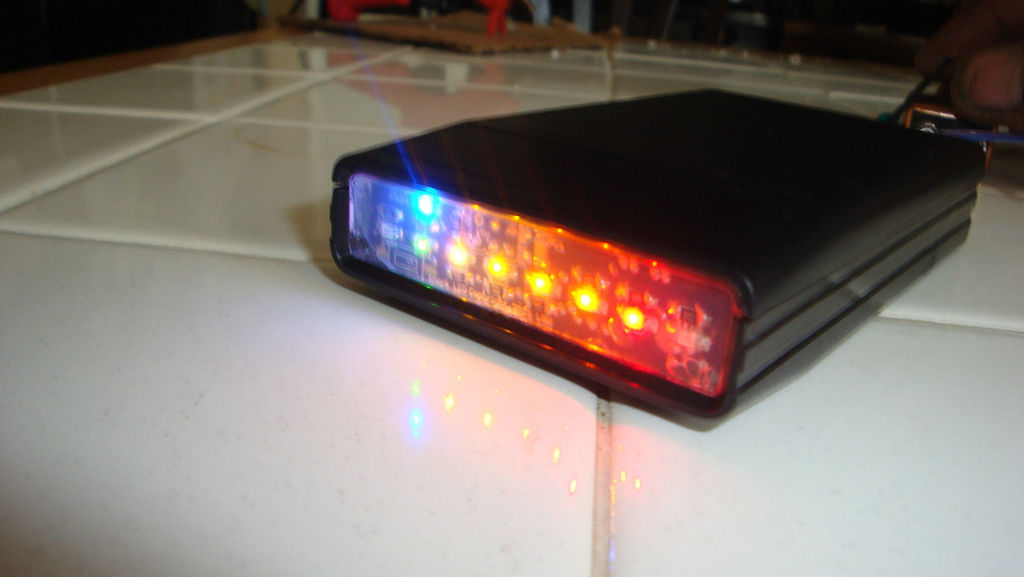

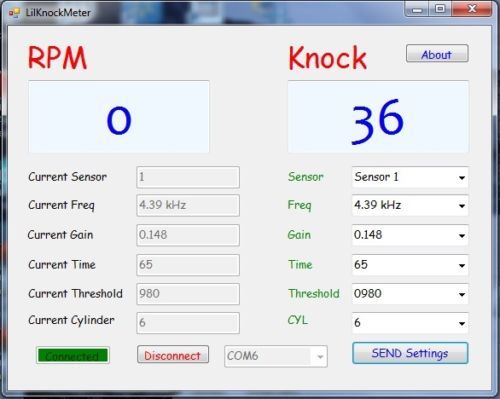

A friend of mine has been building these knock lights that work really, really well. They are programmable, to use ANY knock sensor. The only down side of this unit is that you have to wire in your own knock sensor, and you have to do some testing on it. Not a big deal. It comes with everything you need including the the USB cable for programming.

It comes with 5-6 ft of shielded wire ready to go as well too.

Features:
LEDs to show intensity of the knock
It has a HEADPHONE jack (my favorite feature. One wire to the knock gauge, and the other in to the Aux in of a radio).
It supports both digital and analog out.





He sales these units at 109 a pop, but obviously there is a discount as units sell.

But I just wanted to gauge interest to see if anyone else would be interested.
Attached Thumbnails
Gauging interest on knock gauge-knock%2520gauge_zpsl2t7nt5j.jpg   Gauging interest on knock gauge-knock%2520gauge%25201_zpskaikjfq5.jpg
ihiryu is offline   Reply With Quote
Old 12-23-2015, 02:57 PM   #2
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

I think this is pretty damn cool, assuming it works as advertised. How much would the price come down with a group buy or something?

It would be really cool if we bought a couple and shared them among forum members, since I can't really see it being useful except during dyno testing.
Itty is offline   Reply With Quote
Old 12-23-2015, 03:07 PM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,854
Total Cats: 271
Default

Having the visual aid to confirm with audible noise is a neat feature

Maybe a small batch to test the waters? Possibly for those whom know knock a little better and/or can get some dyno time with one of these for review.
Girz0r is offline   Reply With Quote
Old 12-23-2015, 03:28 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Sure, if you're serious I can talk to him about making a small initial batch. Just need to have some money.
ihiryu is offline   Reply With Quote
Old 12-23-2015, 04:11 PM   #5
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Sounds cool - might be worth a try.
rwyatt365 is offline   Reply With Quote
Old 12-23-2015, 04:34 PM   #6
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

wouldn't you want to wire your knock gauge into your ecu. so it can pull timing?
OGRacing is offline   Reply With Quote
Old 12-23-2015, 05:12 PM   #7
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

It has an analog and a digital output for that as well.
ihiryu is offline   Reply With Quote
Old 12-23-2015, 05:23 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Quote:
and you have to do some testing on it. Not a big deal.
Yes it is a big deal. The single most important part of any knock control system is knock filtration and knock windowing to get rid of a ton of false "knock" as well as trigger the specific areas that need to be triggered.

Don't get me wrong, I'm all for doing stuff like this so I'm not knocking (pun? lol) his product, but the difference between a generic knock system and one developed to a specific engine is night and day.

I would also be curious why wouldn't you just use the OEM knock sensor and the MS3 knock system and set that up to do this same thing, for free? It's already all wired in and set up, you'd just have to do similar "testing" with it to fine tune it. This product kinda seems redundant.

*edit: you can even wire in an output to a blinking light for the "visual" effect. It would cost like $5 in hardware.
18psi is offline   Reply With Quote
Old 12-23-2015, 05:31 PM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
I would also be curious why wouldn't you just use the OEM knock sensor and the MS3 knock system and set that up to do this same thing, for free? It's already all wired in and set up, you'd just have to do similar "testing" with it to fine tune it. This product kinda seems redundant.
If you don't have a MSPRO, or MSLABS MS3, the knock module is an extra $80 or something, totally worth the cost. I also don't really get the point of this device.
shuiend is offline   Reply With Quote
Old 12-23-2015, 05:58 PM   #10
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

It's really aimed for dyno use. I made some det cans that don't work very well at all. As far as the tuning goes, it is preset for a few knock sensors already, namely honda, nissan, and a few three wire bosch units.

So if you ran one of those instead, there would be no testing involved.

This is pretty much the feedback we wanted, we wanted to see back and forth to see both sides of the coin. I have mine getting sent, and I will gladly make a video showcasing the unit.

One other use of this, is if you tune a lot of cars.
ihiryu is offline   Reply With Quote
Old 12-23-2015, 06:03 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

it's not just the sensor that needs testing. It's the whole setup's ability to filter the different noises. If it doesn't filter, it's no different from a generic $15 set of homemade det cans. The noises/sound, is engine specific, not just sensor specific. Heck, you will even get different readings depending on where on the block you attach the sensor.

Most pro tuners don't use something like this because without filtration you might as well just use headphones and let your brain try to differentiate the different noise, because picking up all of it is counter-productive just like missing some of it, when really tuning spark. With one you won't really find limits because you'll run into noise that might not be knock and stop, with the other you might miss the knock and splooge the engine.

but I'm glad you're gonna try it, and share your experience. it's always cool to try new things, for science
18psi is offline   Reply With Quote
Old 12-23-2015, 07:38 PM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

How does this handle noise filtering? Filtering must vary with RPM to be effective.
Savington is online now   Reply With Quote
Old 12-23-2015, 07:45 PM   #13
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

http://nebula.wsimg.com/724d82e1fbc9...&alloworigin=1

I forgot to attach this earlier. Here's the instructions. I'm sorry I don't know the technical data of it. I will find out though
ihiryu is offline   Reply With Quote
Old 12-23-2015, 09:42 PM   #14
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Still costs more than the megasquirt knock module. Which can be programmed to flash lights if you want it to. And also pull timing.
aidandj is offline   Reply With Quote
Old 12-23-2015, 11:03 PM   #15
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Well for me, there's a very specific use. My wife now uses the miata, which runs MS3. My car uses an Ecumasters EMU (standalone). So it allows me to swap back and forth. Granted you guys are right, the correct way is to configure the knock sensors to actually work on each vehicle. But as of now, I'm slowly branching out on helping people tune their cars, so it's a tool that I can use.

It's like how certain people only trust their wideband, even though you already have one installed. They just feel more comfortable with their own stuff. I had a guy with a SRT4 that had a bad tune, and was actually knocking (bent a rod), and he never threw a knock code on the stock ECU (uses a flashing unit), and that's what I'd like to avoid.

So what I plan to do is this, get the unit here, wire it up to a cigarette lighter plug, and play with it to see what I can find. Is there any specific things you fellas want me to ask/try when I get my unit?

While you guys are right, for the most part this unit may not be for everyone, but for me, I have a clear use for it. To be able to use this unit, from car to car.

Sure Virtual Dyno is useful for seeing your torque curve, but it's not perfectly accurate, any shifts in head wind or even going downhill can effect the reading. The biggest thing for me, is I'd like to be able to dial it in as much as possible on the street before I spend hours and hours on the dyno.
ihiryu is offline   Reply With Quote
Old 12-23-2015, 11:16 PM   #16
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Does your Miata have stock pistons? Because they will melt if you test this.
aidandj is offline   Reply With Quote
Old 12-23-2015, 11:31 PM   #17
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Yes, care to elaborate?
ihiryu is offline   Reply With Quote
Old 12-23-2015, 11:34 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

configuring a detonation identification device will require running into frequent and various detonation.

basically he's right too - I hope you're willing to sacrifice the engine....for science
18psi is offline   Reply With Quote
Old 12-23-2015, 11:38 PM   #19
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Stock Miata pistons are cast. And are very very non-det resistant.

The knock module for MS3 is more advanced and can be configured with tunerstudio. It allows you to set all sorts of parameters.

Wire up a big LED to an output and use the megasquirt to trigger it.
aidandj is offline   Reply With Quote
Old 12-23-2015, 11:41 PM   #20
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Ohhhhhhhhhhhhhhhh

Lol no. You guys thought I was going to disable the stock knock sensors??

My plan is as follows;
Wire up honda Knock sensor to unit, find some way to fasten to block (maybe even try varying places), and compare it to the data of the stock unit.

This is more of a backup than anything.
