How to drive an NB speedo without a speed sensor

ECUs and Tuning Discuss Engine Management, Tuning, & Programming
Sponsored by:
Sponsored by:

How to drive an NB speedo without a speed sensor


Old 09-02-2015, 01:04 AM
  #1
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default How to drive an NB speedo without a speed sensor

<p>
</p><p>More details once we get all the calibrations.</p>
aidandj is offline
Old 09-02-2015, 12:04 PM
  #2
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

<p>So this came from yank's need for a speedo. He has an FE3 swap with an rx7 transmission, and the exhaust is in the way of the transmission speed sensor. Its in an NA, which has a cable driven speedo, so instead we switched to an NB cluster which has an electrically driven speedo.</p><p>The MS3 has provisions for taking a square wave in as a speed sensor, and can also output a square wave.</p><p>The ABS sensor we used outputs a VR signal much like the NB sensor, but at a different rate. So the plan became abs sensor -&gt; vr conditioner -&gt; megasquirt -&gt; speedo.</p><p>Last night when I pulled out my spare cluster I realized that the cluster wanted a vr signal to drive it, and thought we were fucked. But I said screw it and hooked up the square wave, and it worked.</p><p>Now we just need&nbsp;to wire it into the megasquirt and do some math.</p><p>&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p>
aidandj is offline
Old 09-03-2015, 03:02 AM
  #3
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 30
Default

YaY!
yank is offline
Old 09-03-2015, 03:03 AM
  #4
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 30
Default

Now when i make sweet ripper videos people will know how fast i'm going.
yank is offline
Old 11-09-2015, 04:49 PM
  #5
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Can someone double check this.

We have the ABS sensor providing a speed signal to the MS3.

We have powered the speedo using a 0-5v square wave.

We are now trying to make a 0-5v output signal from the MS3. VSS out provides a switch to ground which means that we should just add a 5v pull up and it should be fine right?

The speedo works when you give it a 0-5v square wave between the two wires that connect to the speedo sensor. So one of these should be tied to ground, and the other pulled up to 5v right?



Pull up resistor at location 1.

Is this right? What value resistor for a pullup.
Attached Thumbnails How to drive an NB speedo without a speed sensor-mkbra2x.jpg
aidandj is offline
Old 11-10-2015, 11:09 AM
  #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,329
Total Cats: 62
Default

Yep, I'd stick a 1K resistor at location 1.
__________________
Matt Cramer
www.diyautotune.com
Matt Cramer is offline
Old 11-10-2015, 02:10 PM
  #7
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Thanks Matt.
aidandj is offline
Old 11-12-2015, 12:31 AM
  #8
Senior Member

Join Date: May 2007
Location: Atlanta
Posts: 657
Total Cats: 104
Default

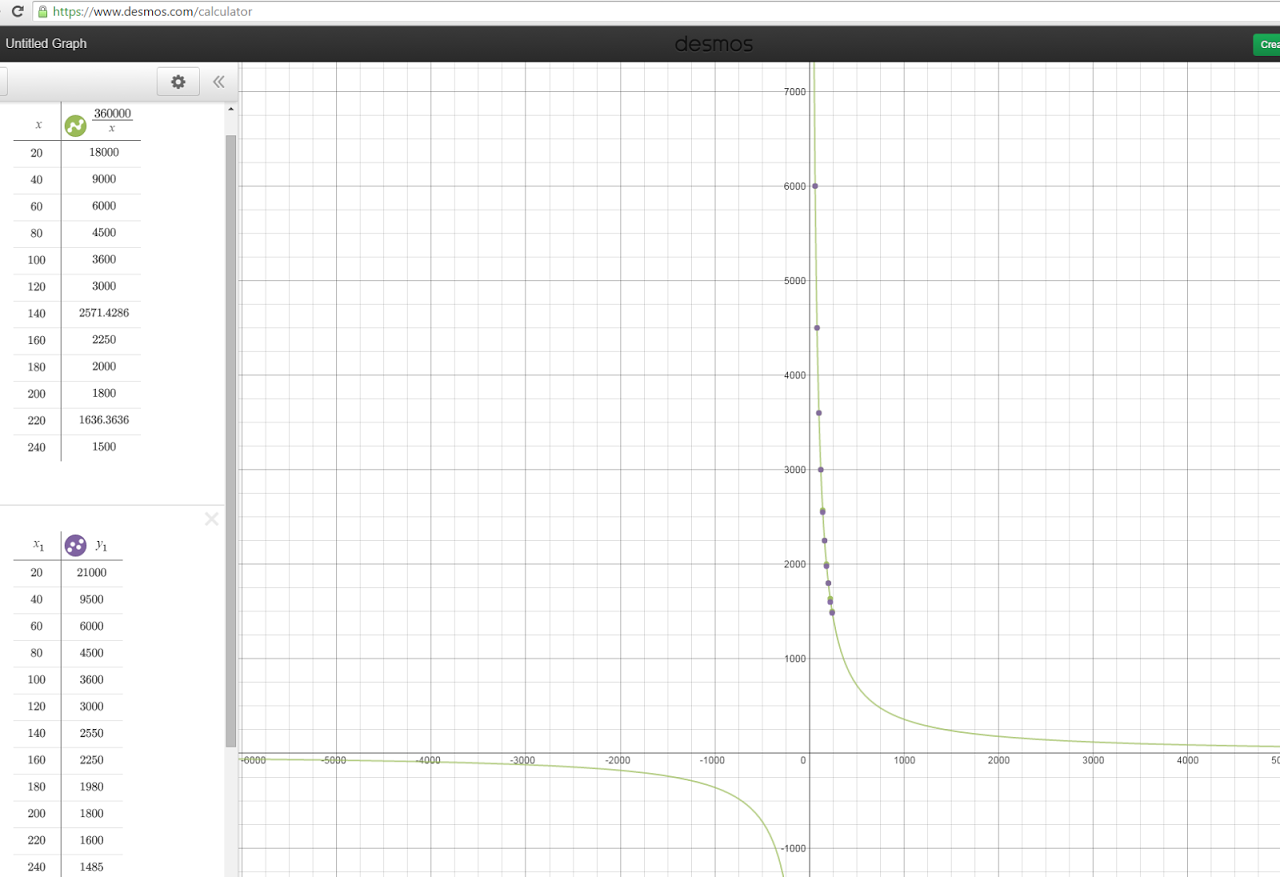

I'm doing something similar with OBDII PID's - but the good news is that I've already got your MPH figured. Okay, KPH - because OBDII standardizes on metric.



Is the observed pulses per second and the correlating KPH on the gauge. Functionally I fudged together this equation - with some compensations for the microcontroller.

Code:
if (kph > 240) kph = 240; // quick sanity check
    delaytime = (360000 / kph) - 20; //20us compensation for swing time
    next_speedo_toggle = current_time + delaytime;
Attached Thumbnails How to drive an NB speedo without a speed sensor-speedo.png
gooflophaze is offline
Old 11-12-2015, 07:24 PM
  #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,365
Total Cats: 85
Default

Personally, with how fucked up and shitty miata gauges are, I'd only use that PPM math as a starting point. Then I'd put the wheels in the air in the garage, and fiddle with that output until the gauge matched the math you do to convert RPM and gear ratio. Or use a GPS on the road to fiddle with it.
Leafy is offline
Old 11-12-2015, 07:29 PM
  #10
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Thats a cool idea. This solution was meant to be as simple as possible. Should just be 1 wire from the ECU to the speedo. (Maybe 2)
aidandj is offline
Old 11-12-2015, 08:11 PM
  #11
Senior Member

Join Date: May 2007
Location: Atlanta
Posts: 657
Total Cats: 104
Default

The PPM math came from observation - I tossed pulses at it, tweaked them until I had points (x1 and y1 correlations) then found the equation afterwards. It's not terrible on the speedo side - you can see slight deviations from my calcs, but I think it's accurate enough(tm).

The tach? Now that one is wonky. I ended up having to use a piecemeal function to get it accurate (originally dialed in a accurate to 100rpm lookup table) and it's not a square wave, the tach starts fluctuating wildly if a minimum low(been awhile, can't remember if it's low or high) time isn't maintained.
gooflophaze is offline
Old 11-12-2015, 09:35 PM
  #12
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 346
Total Cats: 40
Default

Originally Posted by bittetech View Post
The PPM math came from observation - I tossed pulses at it, tweaked them until I had points (x1 and y1 correlations) then found the equation afterwards. It's not terrible on the speedo side - you can see slight deviations from my calcs, but I think it's accurate enough(tm).

The tach? Now that one is wonky. I ended up having to use a piecemeal function to get it accurate (originally dialed in a accurate to 100rpm lookup table) and it's not a square wave, the tach starts fluctuating wildly if a minimum low(been awhile, can't remember if it's low or high) time isn't maintained.
I think the signal is ideally supposed to be 4k counts per mile (squarewave out to accessories) or 8k counts counts per mile (VR signal in to odometer unit).
What are the X and Y axes on your graph?
scenturion is offline
Old 11-12-2015, 10:14 PM
  #13
Senior Member

Join Date: May 2007
Location: Atlanta
Posts: 657
Total Cats: 104
Default

X is kph, Y is microseconds until next pulse. So.. ugh, this'll be annoying to solve.

1 mile = 8k pulses

so.. 60 seconds at 60mph = 1 mile (make this easy on myself)
60mph = 96.5606 kph
360000 / 96.5606 kph = 3728.22869783 us pulse rate
6000000 microseconds in a minute / 3728.22869783
= 16093.433 signal switchings from high to low and low to high so.. /2 .. so.. 8k?

close enough? (to be fair - I only use integer math in my code for speed. accurate 'nuff.)
gooflophaze is offline
Old 11-12-2015, 10:26 PM
  #14
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Originally Posted by bittetech View Post
X is kph, Y is microseconds until next pulse. So.. ugh, this'll be annoying to solve.

1 mile = 8k pulses

so.. 60 seconds at 60mph = 1 mile (make this easy on myself)
60mph = 96.5606 kph
360000 / 96.5606 kph = 3728.22869783 us pulse rate
6000000 microseconds in a minute / 3728.22869783
= 16093.433 signal switchings from high to low and low to high so.. /2 .. so.. 8k?

close enough? (to be fair - I only use integer math in my code for speed. accurate 'nuff.)
More accurate than stock.
aidandj is offline
Old 11-12-2015, 11:03 PM
  #15
Senior Member

Join Date: May 2007
Location: Atlanta
Posts: 657
Total Cats: 104
Default

In my circuit I'm including a trimpot that'll give +-10% to allow for wheel / differential flexibility as well since I'm trying to read everything off the OEM ECU. And if you want to get a custom tachometer gauge face from revlimiter, I should be able to scale that as well.
gooflophaze is offline
Old 11-13-2015, 01:01 AM
  #16
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,406
Total Cats: 328
Default

I'm so proud my speedo cluster can contribute so much to the general knowledge of the miata community.
Mobius is offline
Old 11-13-2015, 01:25 AM
  #17
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

Originally Posted by Mobius View Post
I'm so proud my speedo cluster can contribute so much to the general knowledge of the miata community.
It was a worthy sacrifice.
aidandj is offline
Old 11-13-2015, 01:38 AM
  #18
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,406
Total Cats: 328
Default

As long as we end up with something I can use to drive an NB speedo cluster with MS3 logs. Or AIM logs. I can write whatever converter is necessary to feed it as long as I know whatever the necessary format is.
Mobius is offline
Old 11-13-2015, 12:41 PM
  #19
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 346
Total Cats: 40
Default

Originally Posted by bittetech View Post
In my circuit I'm including a trimpot that'll give +-10% to allow for wheel / differential flexibility as well since I'm trying to read everything off the OEM ECU. And if you want to get a custom tachometer gauge face from revlimiter, I should be able to scale that as well.

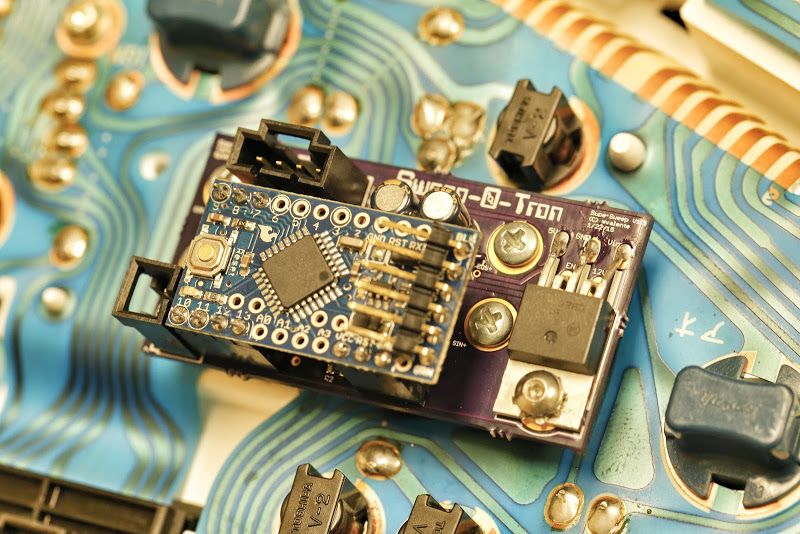

What are you trying to accomplish? I would be happy to help! I designed two different circuits to run the speedometer and tachometer so I could use custom gauges.

The Arduino-based one seems to be closer to what you are trying to accomplish and has some more detail in my thread here.

It can take a mostly-arbitrary signal (from any electronic speed sensor), modify it in software to scale it and change the duty cycle, and then output it back into the odometer unit or directly into the gauge.



I also designed a much simpler board which allows for scaling the tachometer or speedometer independent of the odometer (not much use if you arent getting in 8k pulses/mile), but some of the general component blocks might be useful.
Attached Thumbnails How to drive an NB speedo without a speed sensor-80-136665_stackd_miata_arduino_controlled_gauge_cluster_067a3093_44b4927bfc53200e24d758e325b4549.jpg
scenturion is offline
Old 01-02-2016, 05:49 PM
  #20
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,481
Total Cats: 1,628
Default

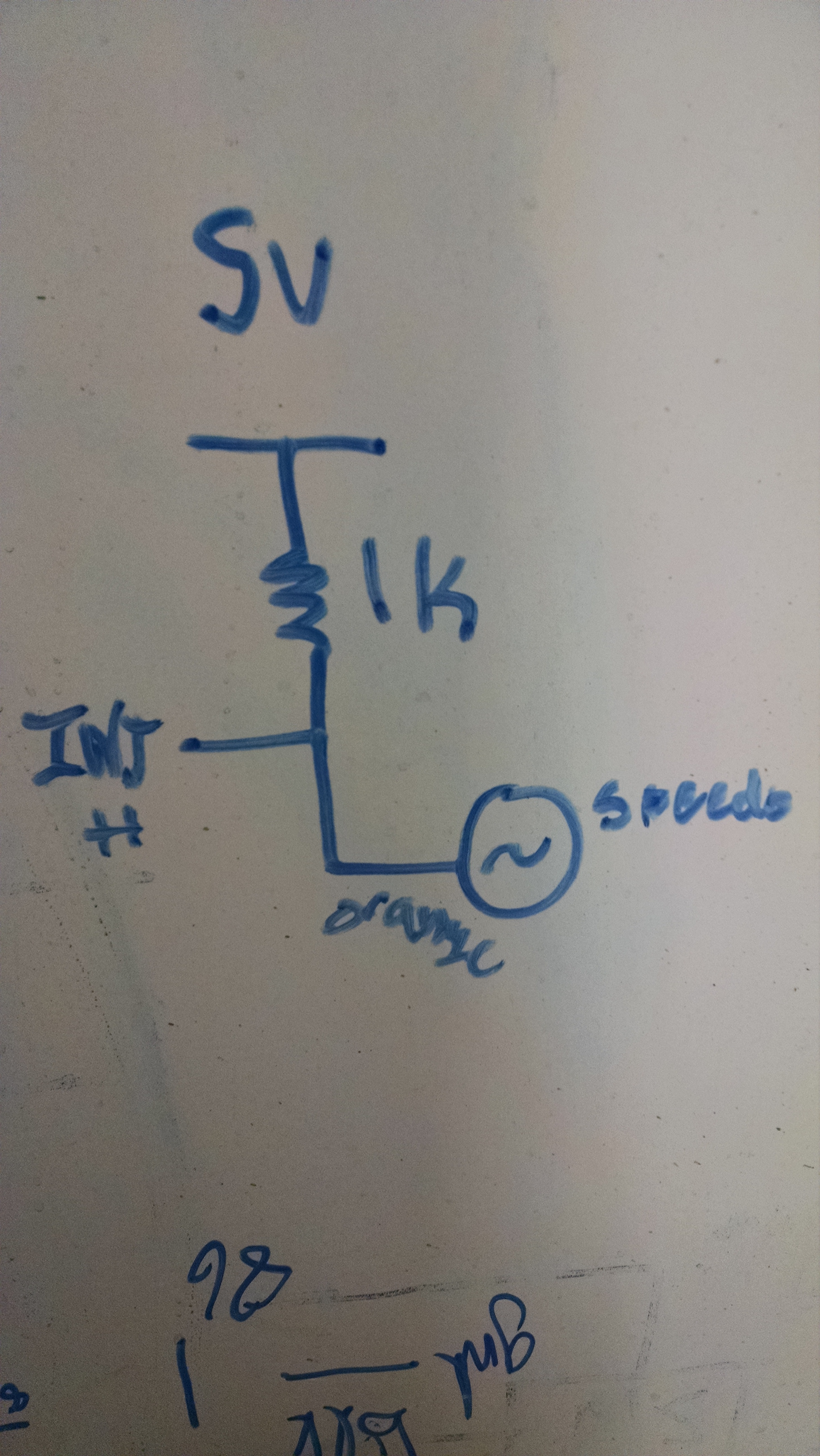

Attached Thumbnails How to drive an NB speedo without a speed sensor-6yuttlc.jpg
aidandj is offline
